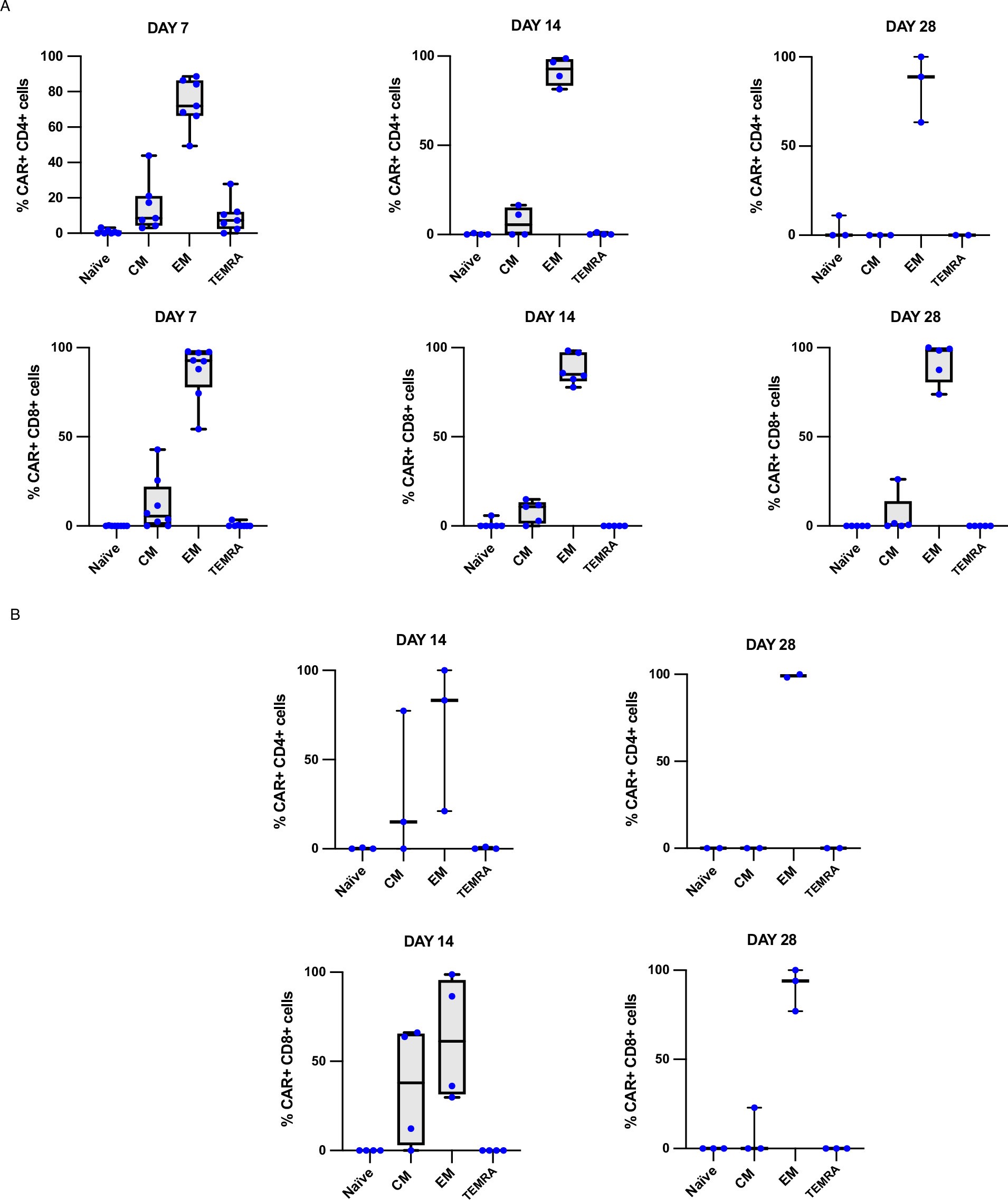

Extended Data Fig. 2: In vivo memory profile of zorpocabtagene-autoleucel cells in peripheral blood (PB) and bone marrow (BM).
From: Anti-CD19 CAR T cells for pediatric patients with treatment-refractory autoimmune diseases
Distribution of ‘naive’, central memory (CM), effector memory (EM) T cells, and terminally differentiated effector memory T cells re-expressing CD45RA (TEMRA) in the CD4+CAR+ and CD8+CAR+ T cells in PB (a) and in BM (b), according to different time points after zorpocabtagene-autoleucel infusion. BM samples were collected only in OPBG patients. Each dot represents an individual evaluable patient. Boxes represent the first quartile, median and forth quartile distribution, and boundaries of lower and upper whiskers showing minimum to maximum values.
