Effective genome editing with an enhanced ISDra2 TnpB system and deep learning-predicted ωRNAs

Nature Methods volume 21, pages 2084–2093 (2024)Cite this article

Subjects

Abstract

Transposon (IS200/IS605)-encoded TnpB proteins are predecessors of class 2 type V CRISPR effectors and have emerged as one of the most compact genome editors identified thus far. Here, we optimized the design of Deinococcus radiodurans (ISDra2) TnpB for application in mammalian cells (TnpBmax), leading to an average 4.4-fold improvement in editing. In addition, we developed variants mutated at position K76 that recognize alternative target-adjacent motifs (TAMs), expanding the targeting range of ISDra2 TnpB. We further generated an extensive dataset on TnpBmax editing efficiencies at 10,211 target sites. This enabled us to delineate rules for on-target and off-target editing and to devise a deep learning model, termed TnpB editing efficiency predictor (TEEP; https://www.tnpb.app), capable of predicting ISDra2 TnpB guiding RNA (ωRNA) activity with high performance (r > 0.8). Employing TEEP, we achieved editing efficiencies up to 75.3% in the murine liver and 65.9% in the murine brain after adeno-associated virus (AAV) vector delivery of TnpBmax. Overall, the set of tools presented in this study facilitates the application of TnpB as an ultracompact programmable endonuclease in research and therapeutics.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

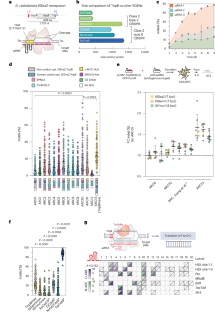

Fig. 1: DNA cleavage and base editing in mammalian cells with TnpBmax.

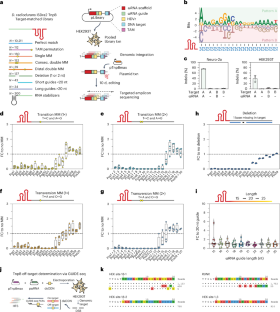

Fig. 2: A target-matched library screen reveals principles for ωRNA guide design.

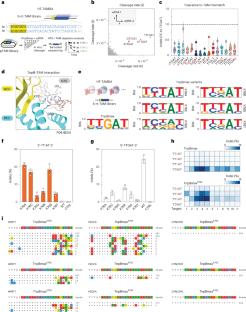

Fig. 3: Structure-guided rational engineering of TnpB to accept alternative TAMs.

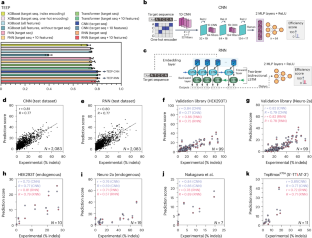

Fig. 4: Machine learning accurately predicts ωRNA efficiency.

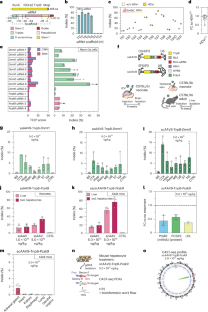

Fig. 5: In vivo genome editing with TnpBmax in the murine liver and brain.
