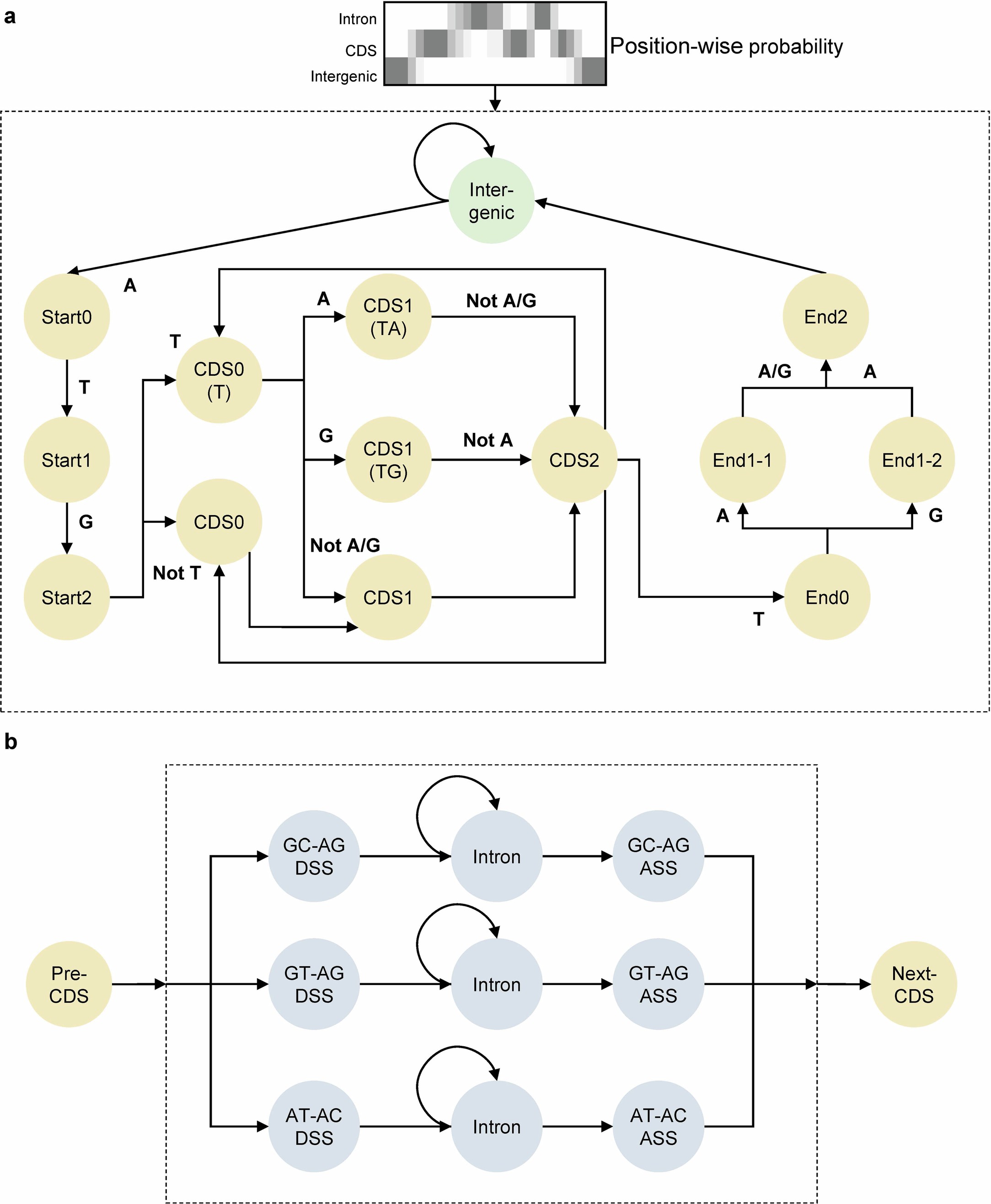

Extended Data Fig. 2: Overview of the gene structure decoding component in ANNEVO.

a, Predefined primary gene structure states. Gene structure states are defined based on the typical gene structure of eukaryotes. Each arrow in this diagram represents a possible state transition, with adjacent nucleotides specifying the required composition for the transition. Gene structure decoding utilizes the Viterbi algorithm, leveraging the prediction probabilities provided by the deep learning model to determine the most likely sequence of states. b, Intron state groups. The intron state account for three primary splicing patterns: GC-AG, GT-AG, and AT-AC. These splicing patterns are incorporated in the decoding process and considered during gene structure predictions. Importantly, an exit from an intron state to a CDS state does not return to the original CDS phase; instead, it transitions to the next CDS phase. For example, if the model enters an intron state from CDS0, it will exit to CDS1.
