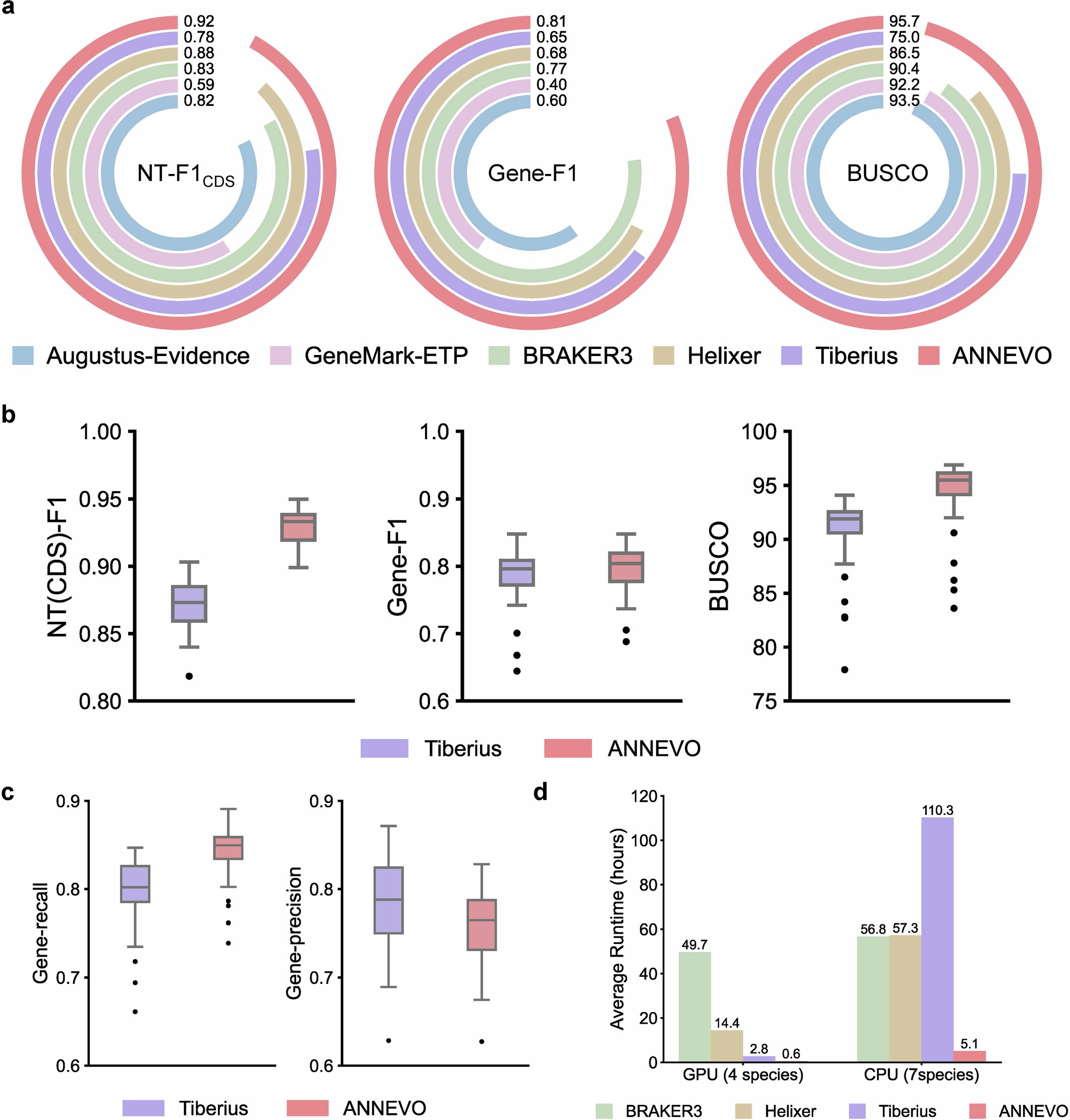

Extended Data Fig. 5: Benchmarking against evidence-assisted annotation pipelines and deep learning methods.

a, Average performance across six vertebrate model species. This panel presents a comparative analysis restricted to vertebrates, aligning with Tiberius’s stated scope. ANNEVO consistently and substantially outperforms all other methods in this comparison set. Tiberius shows a notably lower average performance, primarily due to a sharp decline in its performance on Vertebrate_other clade (as detailed in Extended Data Figs. 3,4). b, Performance comparison between ANNEVO and Tiberius on all (43) test mammalian species. ANNEVO demonstrates superior performance across most test mammalian species, with higher NT(CDS)-F1, gene-F1 and BUSCO scores than Tiberius by an average of 5.9%, 1.0%, and 3.5%, respectively. The boxplot elements are defined as described in the Fig. 2b legend. c, Comparison of prediction tendencies between ANNEVO and Tiberius on all (43) test mammalian species. ANNEVO exhibits a tendency to recover more gene models, while Tiberius demonstrates a more conservative prediction behavior. The boxplot elements are defined as described in the Fig. 2b legend. d, Comparison of runtime across different deep learning-based gene annotation methods under GPU and CPU-only environments. BRAKER3 was used as the baseline for comparison. ANNEVO is substantially faster than all other methods in any settings. Note that due to the extreme resource demands of Tiberius, it could not be executed on a GPU with 32 GB of memory. Therefore, GPU-based evaluations were conducted on four vertebrate model species, while CPU-only evaluations were performed including mammalian model species.
