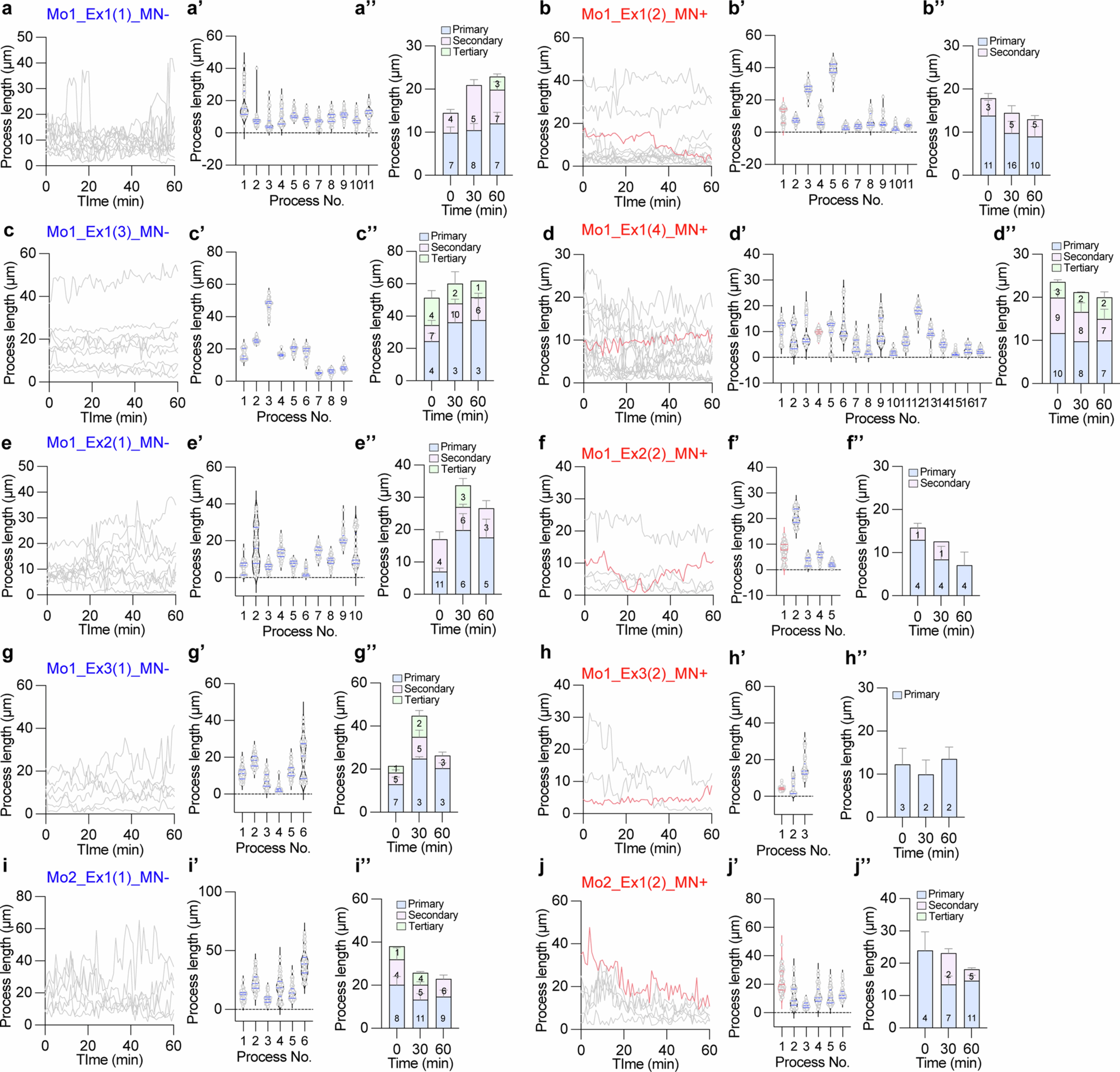

Extended Data Fig. 6: Two-photon imaging of microglial dynamics obtained from two distinct mice.
From: Propagation of neuronal micronuclei regulates microglial characteristics
(a) to (j'') Quantification of individual microglial morphology. The line graph shows the change in the length of individual processes. Specific processes were measured every minute for one hour. The red outlines present MN+ processes. The violin plot shows the distribution of the lengths of individual processes in the line graph. The red outlines present MN+ processes. The blue and red line indicates the median and quartiles. The stack bars graph indicates the type and the number of individual processes (primary, secondary, tertiary, and quaternary processes) at 0, 30, and 60 minutes. The individual dot plots of stack bar graphs are shown in Supplementary Fig. 1. mean±SEM. Blue title: MN− microglia, n=10 cells, Red title: MN+ microglia, 10 each microglia obtained from 2 individual mice (mice identification number; Mo1 and Mo2).
