Extended Data Fig. 5: B-factors of the mature CA hexamer.

From: Intrinsic curvature of the HIV-1 CA hexamer underlies capsid topology and interaction with cyclophilin A

Extended Data Fig. 5

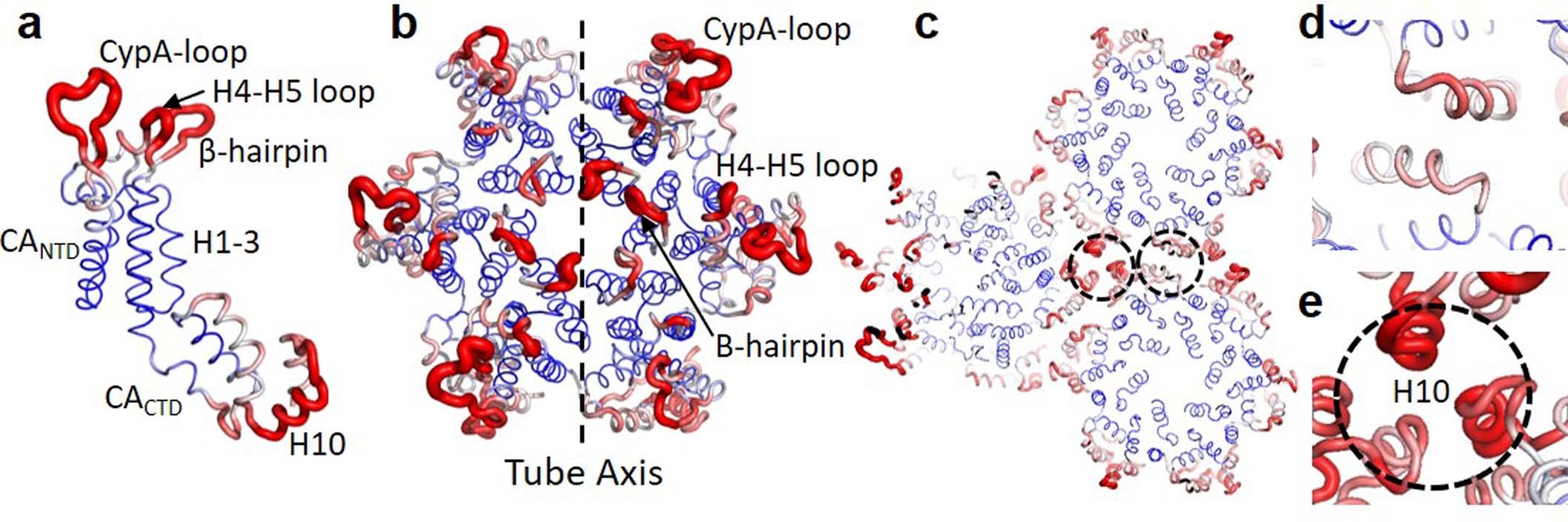

a–c, A sausage representation of B-factors mapped onto a CA monomer (a), hexamer (b), and tri-hexamer (c). The CypA-loop, H4-H5 loop, β-hairpin and H10 display high B-factors. d, e, Close-up views of a dimer interface (d) and a trimer interface (e) circled in (c). The width and coloring of the sausage are directly proportional to the B-factor, from blue (-30) to red (-100). CANTD, CA helices H1-3, CypA-loop, H4-H5 loop, β-hairpin and CACTD H10 are labeled.
