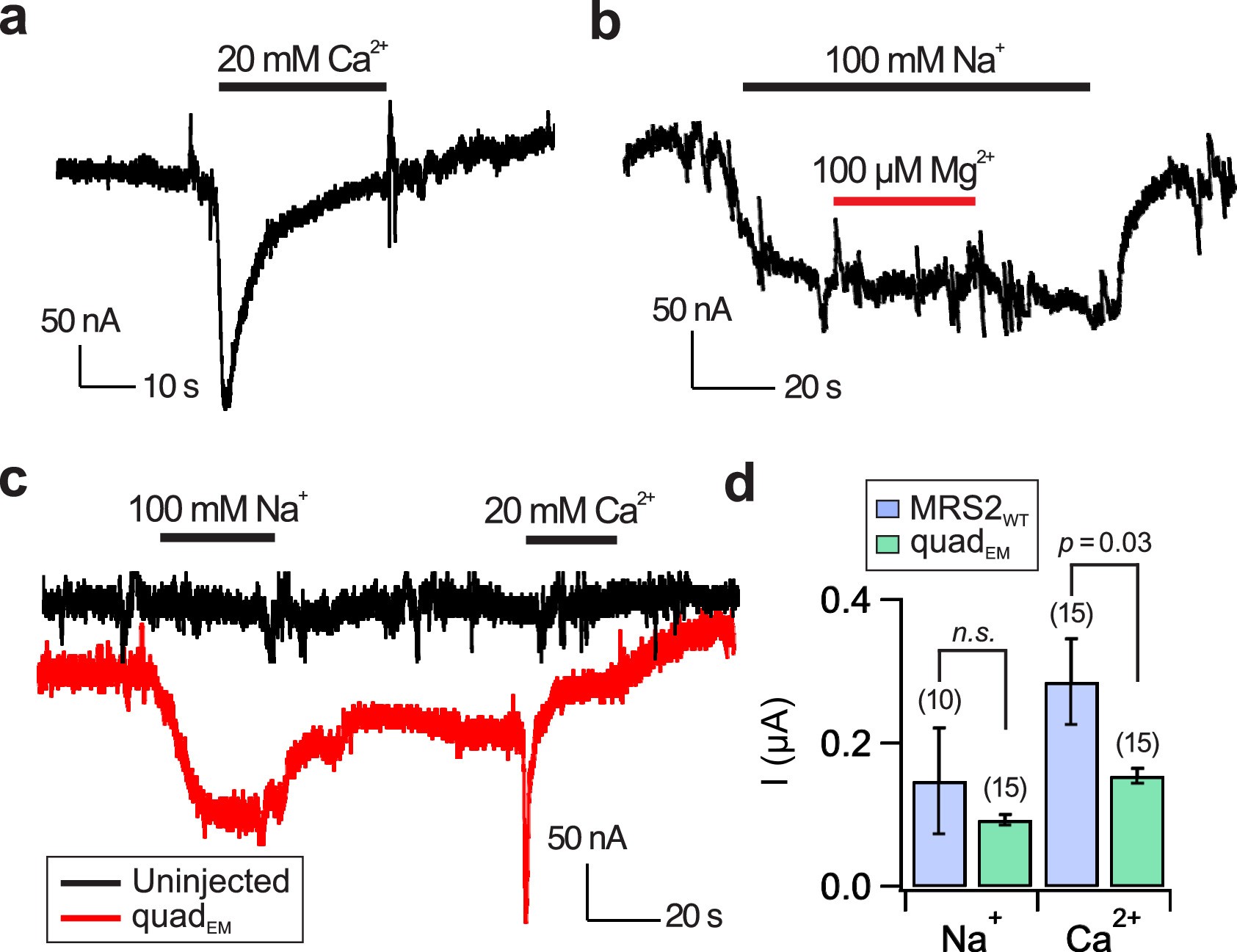

Extended Data Fig. 8: MRS2 function without R332S.
From: Structure and function of the human mitochondrial MRS2 channel
a-b, MRS2WT shows Ca2+ inactivation (a) and conducts Na+ currents that are not inhibited by Mg2+ (b). c-d, The effects of introducing quad mutations into MRS2WT, as shown in representative traces (c) and a bar chart (d). Statistical analyses were performed using two-tailed t-test. n.s.: no significance. The exact number of independent repeats was provided above each bar. Data were presented as mean ± S.E.M.
