Extended Data Fig. 6: Multidimensional chemical mapping for RPL36B.
From: Comprehensive analysis of Saccharomyces cerevisiae intron structures in vivo

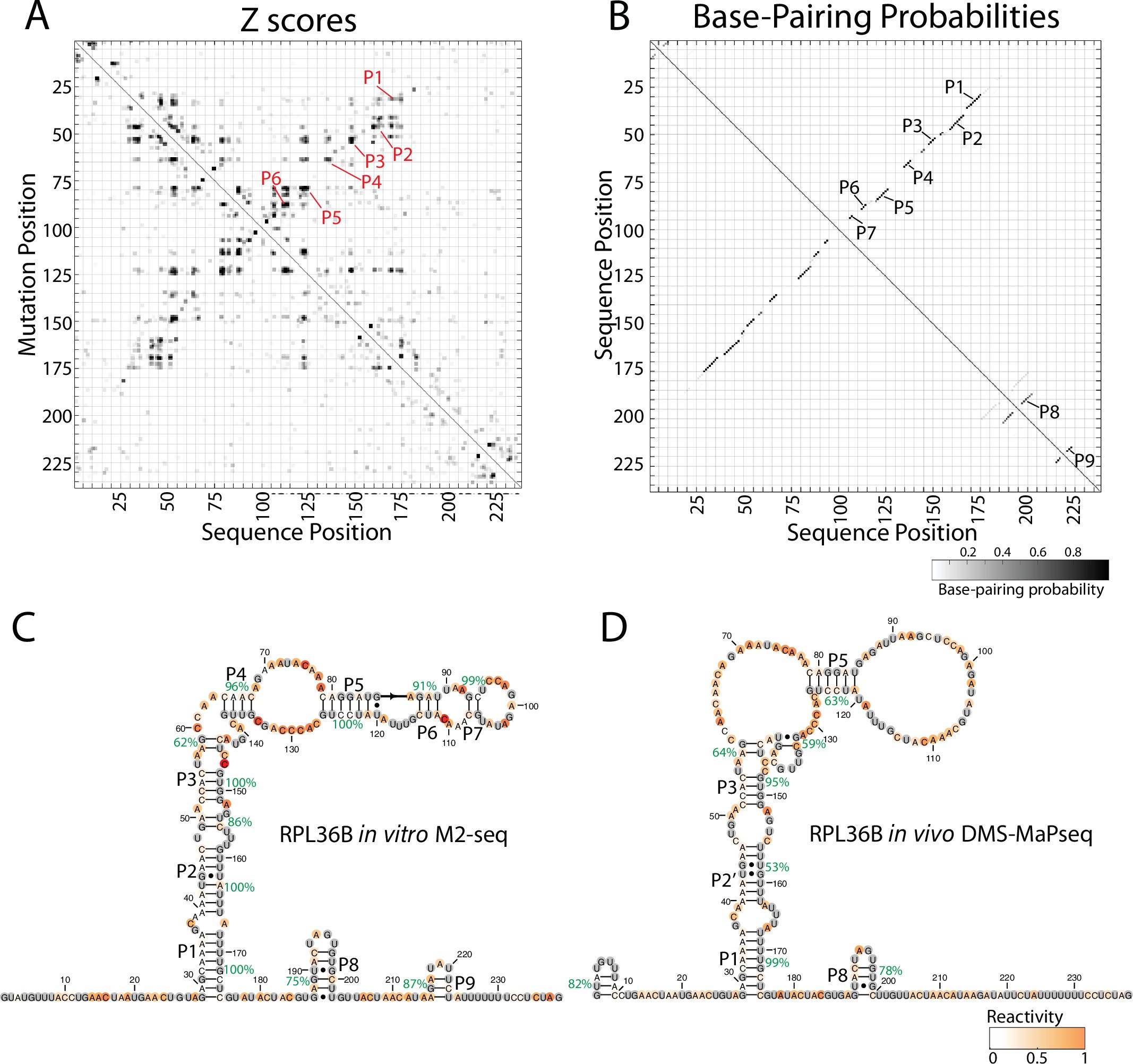

A) In vitro M2-seq Z scores for the intron in RPL36B, with peaks representing helices annotated in red. B) In vitro chemical reactivity base-pairing probabilities for RPL36B using 1D and 2D chemical reactivity from M2-seq. Secondary structure predictions guided by 1D and 2D DMS probing data for the intron in RPL36B C) from in vitro M2-seq, and D) from in vivo DMS-MaPseq.
