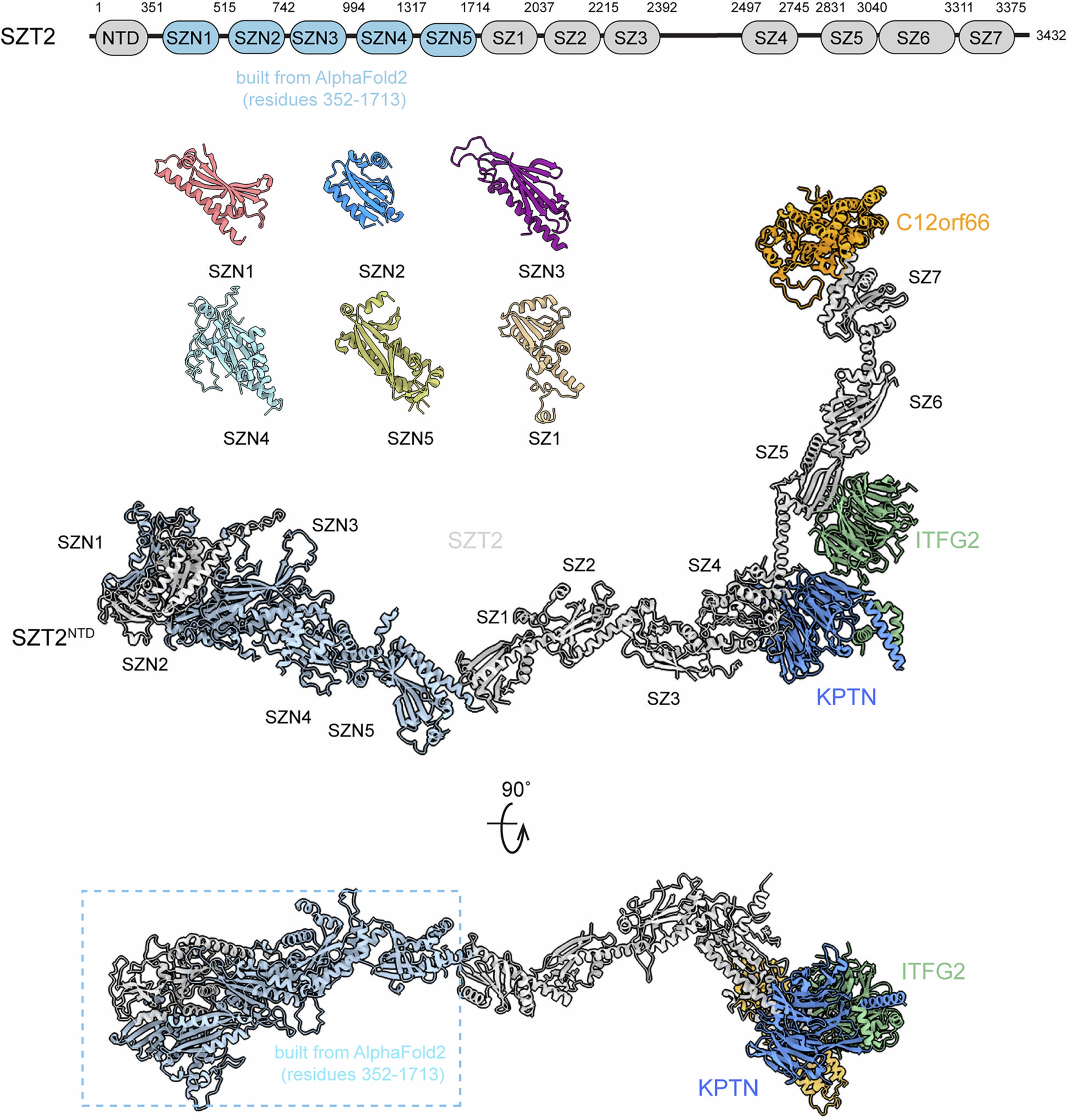

Extended Data Fig. 8: Hypothetical full-length KICSTOR model.
From: Architecture of the human KICSTOR and GATOR1–KICSTOR complexes
The model for residues 352-1713 of SZT2 was predicted from AlphaFold2 and then combined with the two refined models in this study.
