Supplementary Figure 3: Example of HRF profile deconvolution for a profile with a certain level of noise and interpolated band locations.

From: Structural interpretation of DNA–protein hydroxyl-radical footprinting experiments with high resolution using HYDROID

Supplementary Figure 3

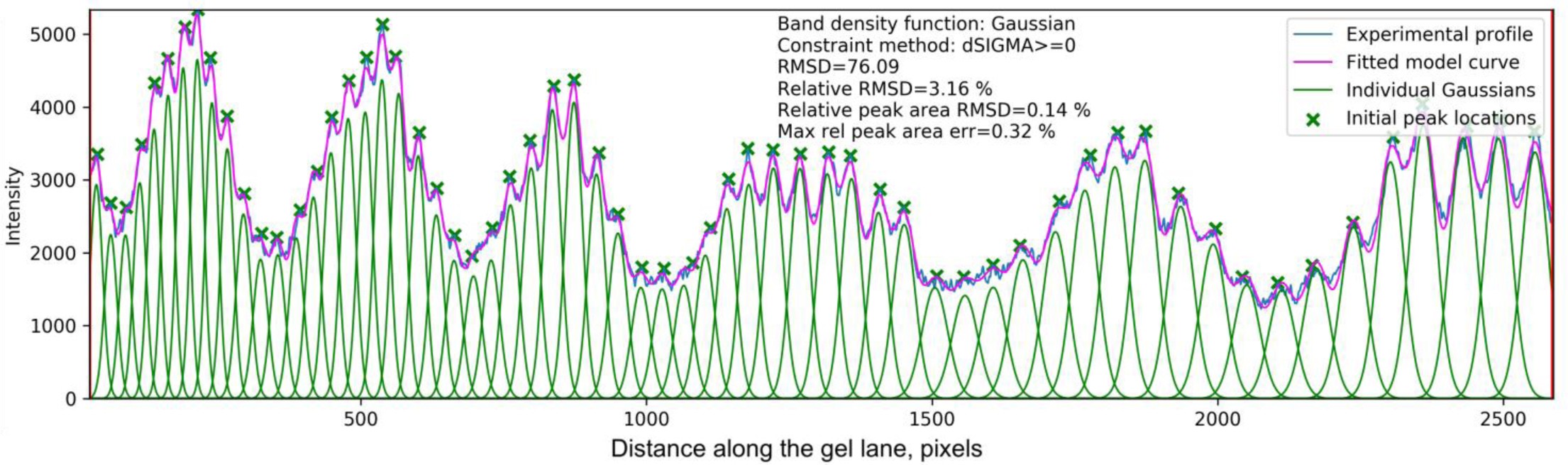

Our data fitting method works well even if individual bands lack discernible local maxima at their respective positions as long as their approximate positions are interpolated from the spacing of the neighboring bands. Data from the HRF gel lane profile for nucleosome of G. gallus reconstituted on 601 sequence was used (Example 2).
