Supplementary Figure 1: Composition and concentration range of lipids and polar metabolites detected in the human serum samples in the MetaHIT cohort. | Nature Protocols

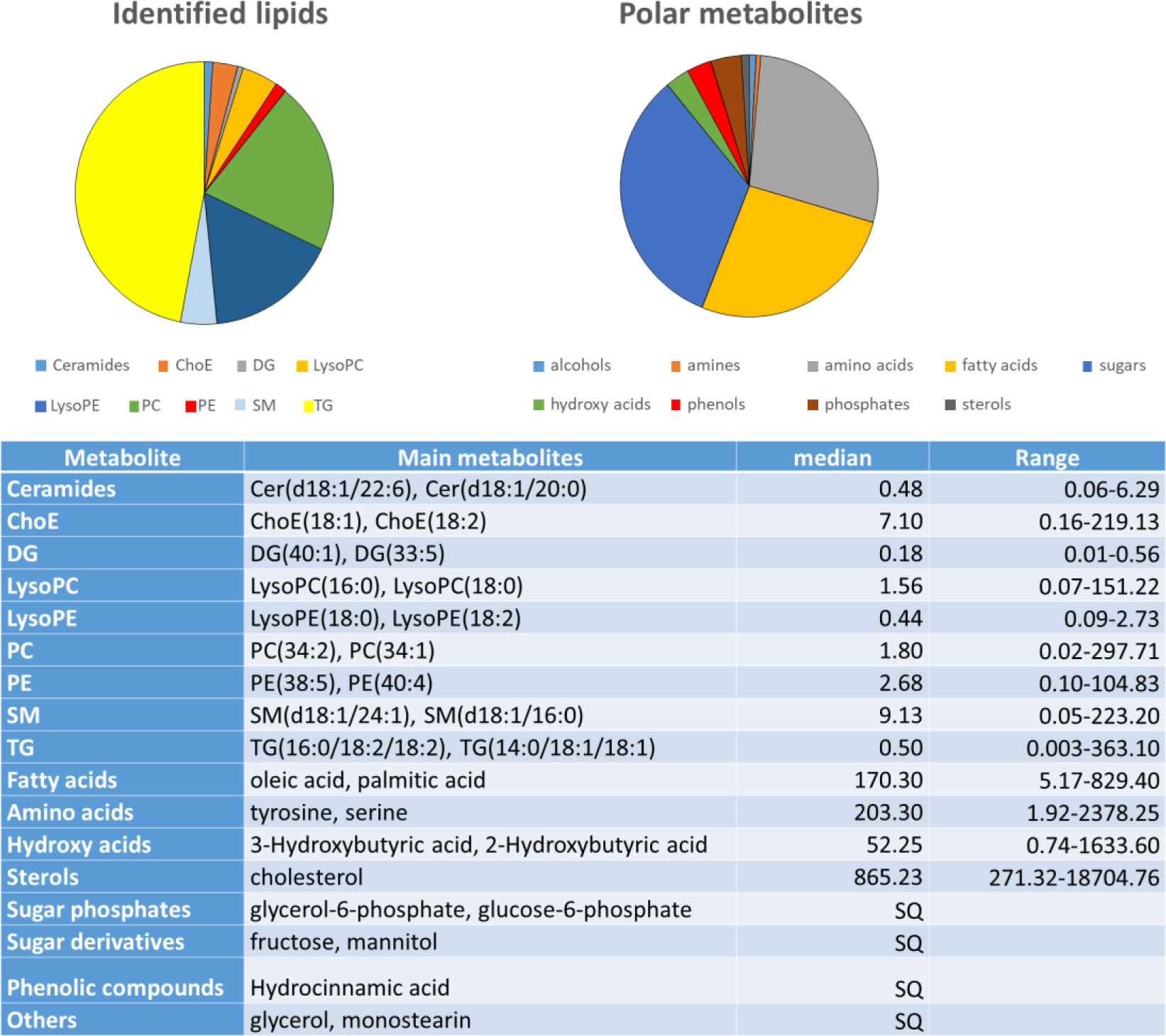

Supplementary Figure 1: Composition and concentration range of lipids and polar metabolites detected in the human serum samples in the MetaHIT cohort.

From: A computational framework to integrate high-throughput ‘-omics’ datasets for the identification of potential mechanistic links

Supplementary Figure 1

The polar metabolites include both fully identified metabolites as well as metabolites identified only at the compound class level (n=778) while the lipids include only fully identified such (n=287).
