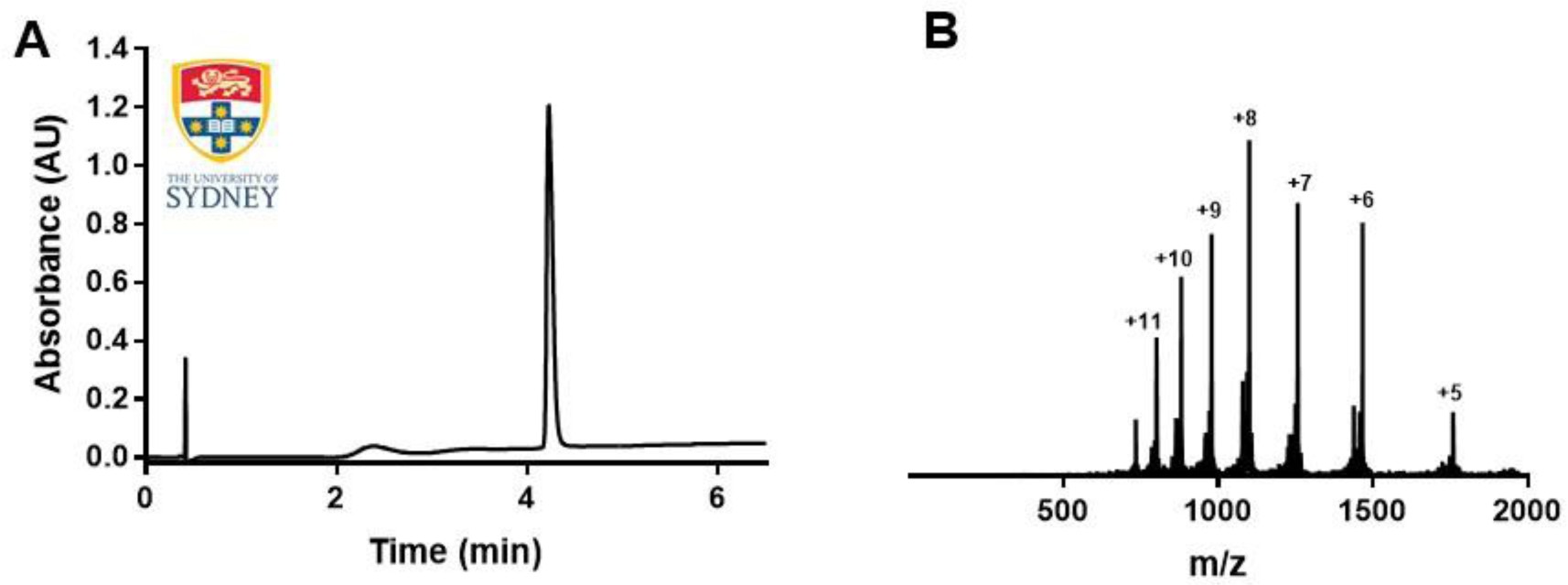

Supplementary Fig. 5.: Characterization of adiponectin (19–107) (C36Acm)—Payne Lab, University of Sydney.

a) Analytical reverse-phase HPLC trace and b) ESI mass envelope of reverse-phase HPLC purified Adiponectin (19–107) (C36Acm); R_t 4.22 min (0 to 50% B over 5 min, λ = 214 nm). Calculated Mass [M+5H]⁵⁺: 1759.1, [M+6H]⁶⁺: 1466.1, [M+7H]⁷⁺: 1256.8, [M+8H]⁸⁺: 1099.8, [M+9H]⁹⁺: 977.7, [M+10H]¹⁰⁺: 880.1, [M+11H]¹¹⁺: 800.1; Mass Found (ESI+): 1758.7 [M+5H]⁵⁺, 1466.1 [M+6H]⁶⁺, 1256.8 [M+7H]⁷⁺, 1099.9 [M+8H]⁸⁺, 977.8 [M+9H]⁹⁺, 880.2 [M+10H]¹⁰⁺, 800.2 [M+11H]¹¹⁺.
