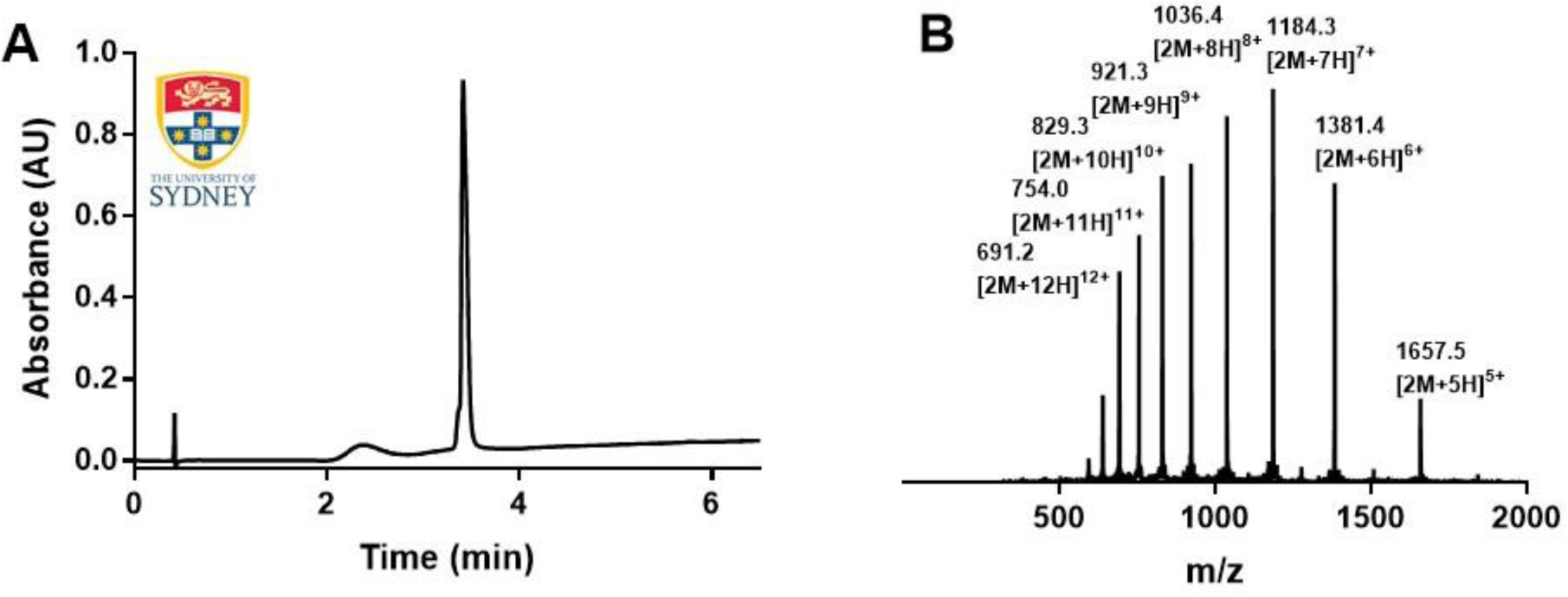

Supplementary Fig. 14.: Characterization of haemathrin-1 C-terminal diselenide dimer (24–59)—Payne Lab, University of Sydney.

a) Analytical reverse-phase HPLC trace and b) ESI mass envelope of reverse-phase HPLC purified Haemathrin-1 diselenide dimer (29–59); R_t 3.41 min (0 to 50% B over 5 min, λ = 215 nm). Calculated Mass [2M+5H]⁵⁺: 1658.3, [2M+6H]⁶⁺: 1382.1, [2M+7H]⁷⁺: 1184.8, [2M+8H]⁸⁺: 1036.8, [2M+9H]⁹⁺: 921.7, [2M+10H]¹⁰⁺: 829.6, [2M+11H]¹¹⁺: 754.3, [2M+12H]¹²⁺: 691.5; Mass Found (ESI+); 1657.5 [2M+5H]⁵⁺, 1381.4 [2M+6H]⁶⁺, 1184.3 [2M+7H]⁷⁺, 1036.4 [2M+8H]⁸⁺, 921.3 [2M+9H]⁹⁺, 829.3 [2M+10H]¹⁰⁺, 754.0 [2M+11H]¹¹⁺, 691.2 [2M+12H]¹²⁺.
