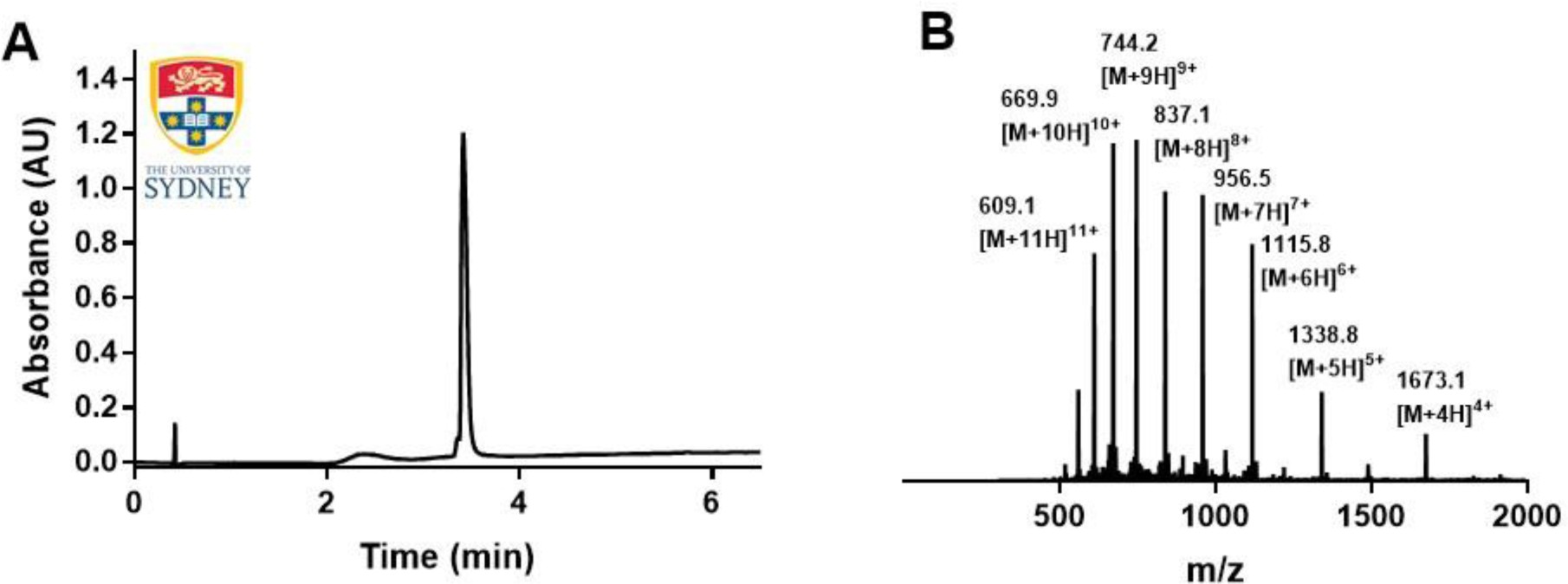

Supplementary Fig. 20.: Characterization of haemathrin-1 (1–59)—Payne Lab, University of Sydney.

a) Analytical reverse-phase HPLC trace and b) ESI mass envelope of reverse-phase HPLC purified Haemathrin-1; R_t 3.41 min (0 to 50% B over 5 min, λ = 214 nm). Calculated Mass [M+4H]⁴⁺: 1673.5, [M+5H]⁵⁺: 1339.0, [M+6H]⁶⁺: 1116.0, [M+7H]⁷⁺: 956.7, [M+8H]⁸⁺: 837.3, [M+9H]⁹⁺: 744.3, [M+10H]¹⁰⁺: 670.0, [M+11H]¹¹⁺: 609.2; Mass Found (ESI+): 1673.1 [M+4H]⁴⁺, 1338.8 [M+5H]⁵⁺, 1115.8 [M+6H]⁶⁺, 965.5 [M+7H]⁷⁺, 837.1 [M+8H]⁸⁺, 744.2 [M+9H]⁹⁺, 669.9 [M+10H]¹⁰⁺, 609.1 [M+11H]¹¹⁺.
