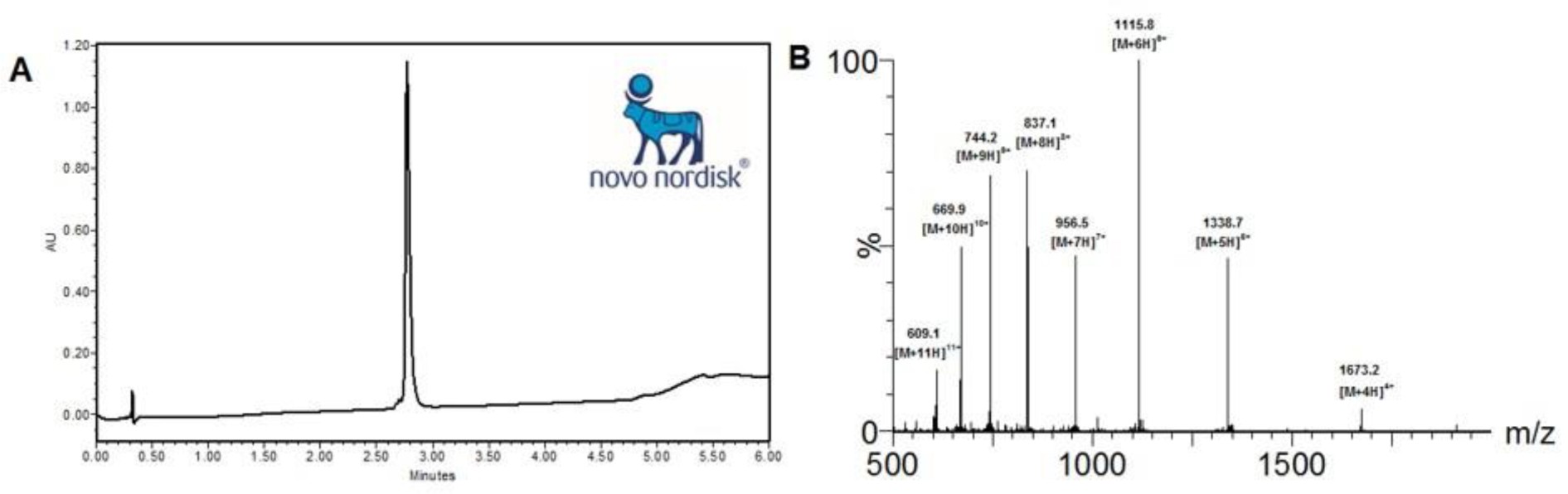

Supplementary Fig. 23.: Characterization of haemathrin-1 (1–59)—Dep. Research Chemistry, Novo Nordisk.

a) Analytical reverse-phase HPLC trace (C18 BEH) and B) ESI mass envelope of reverse-phase HPLC purified Haemathrin-1. Rt 2.77 min (5 to 10% B over 0.5 min followed by 10 to 30% B over 3.5 min, λ = 214 nm); Calculated Mass [M+4H]⁴⁺: 1673.3, [M+5H]⁵⁺: 1338.9, [M+6H]⁶⁺: 1115.9, [M+7H]⁷⁺: 956.9, [M+8H]⁸⁺: 837.2, [M+9H]⁹⁺: 744.3, [M+10H]¹⁰⁺: 669.9, [M+11H]¹¹⁺: 609.1; Mass Found (ESI+): 1673.2 [M+4H]⁴⁺, 1338.7 [M+5H]⁵⁺, 1115.8 [M+6H]⁶⁺, 956.5 [M+7H]⁷⁺, 837.1 [M+8H]⁸⁺, 744.2 [M+9H]⁹⁺, 669.9 [M+10H]¹⁰⁺, 609.1 [M+11H]¹¹⁺.
