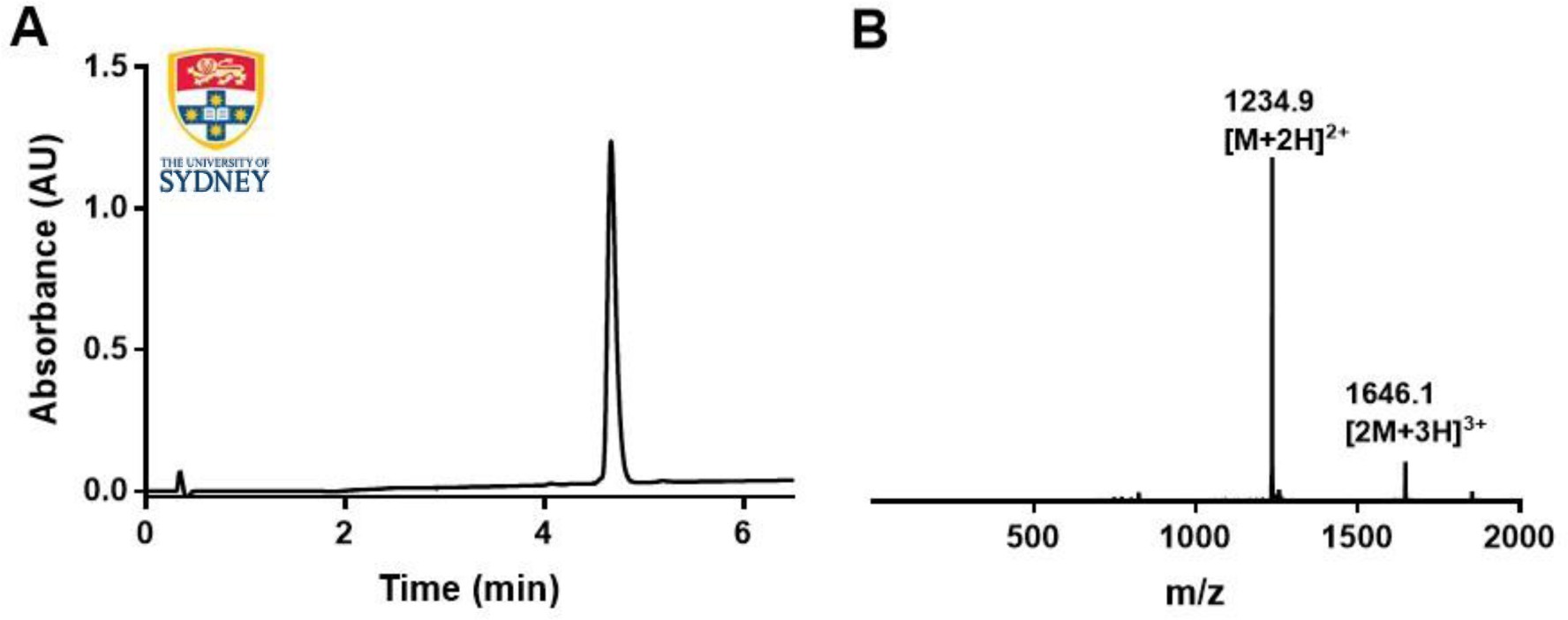

Supplementary Fig. 1.: Characterization of adiponectin (19–40) (C36Acm) selenoester—Payne Lab, University of Sydney.
From: Diselenide–selenoester ligation for chemical protein synthesis
a) Analytical reverse-phase HPLC trace and b) ESI mass envelope of reverse-phase HPLC purified Adiponectin selenoester (19-40). Rt 4.67 min (0 to 50% B over 5 min, λ = 214 nm); Calculated Mass [2M+3H]3+: 1646.8, [M+2H]2+: 1235.3; Mass Found (ESI+): 1646.1 [2M+3H]3+, 1234.9[M+2H]2+.
