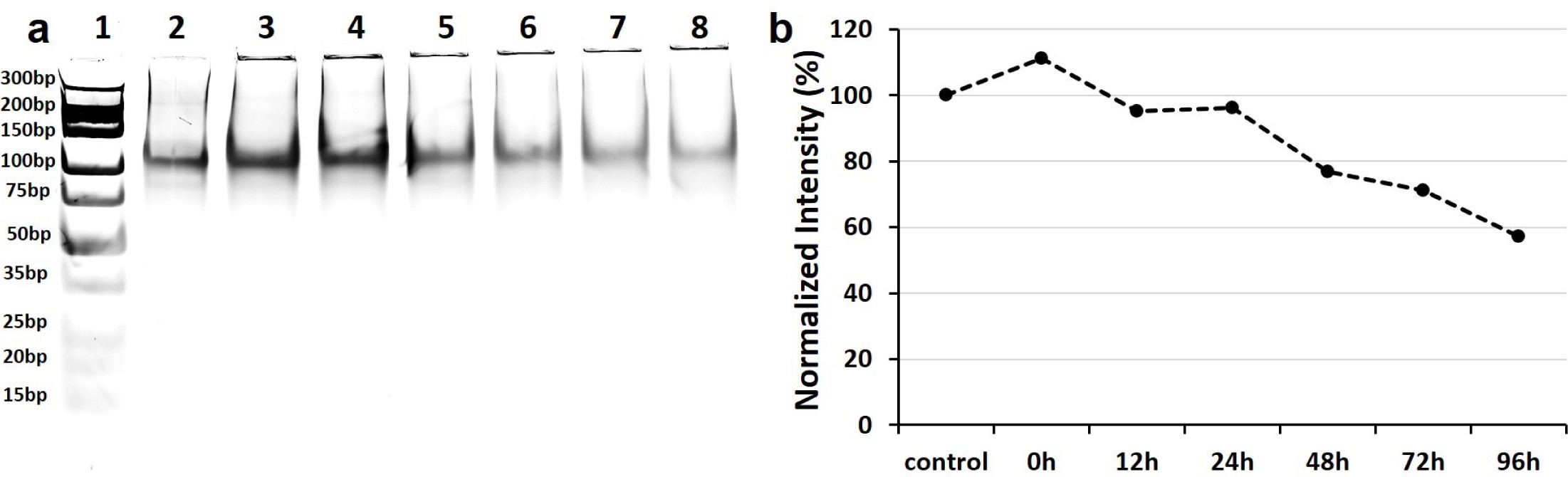

Supplementary Figure 11: DNA nanostructures are gradually degraded in plant cell lysate.
From: Engineering DNA nanostructures for siRNA delivery in plants
a, 10% native PAGE gel showing incubation of DHT monomer with plant cell lysate at different time points. Lane 1: marker; lane 2: DHT monomer only as control; lanes 3–8: DHT monomer incubated with plant cell lysate at 0 h, 12 h, 24 h, 48 h, 72 h and 96 h at room temperature. b, Normalized band intensity analysis of the gels in a where 100% band intensity is defined as the DHT monomer control alone without the plant cell lysate. Upward deviations from 100% are due to nonspecific protein adsorption to nanostructures that slightly increase the band width and optical density.
