Extended Data Fig. 4: Quantitative evaluation of different methods on datasets from different scanners/protocols.

From: iBEAT V2.0: a multisite-applicable, deep learning-based pipeline for infant cerebral cortical surface reconstruction

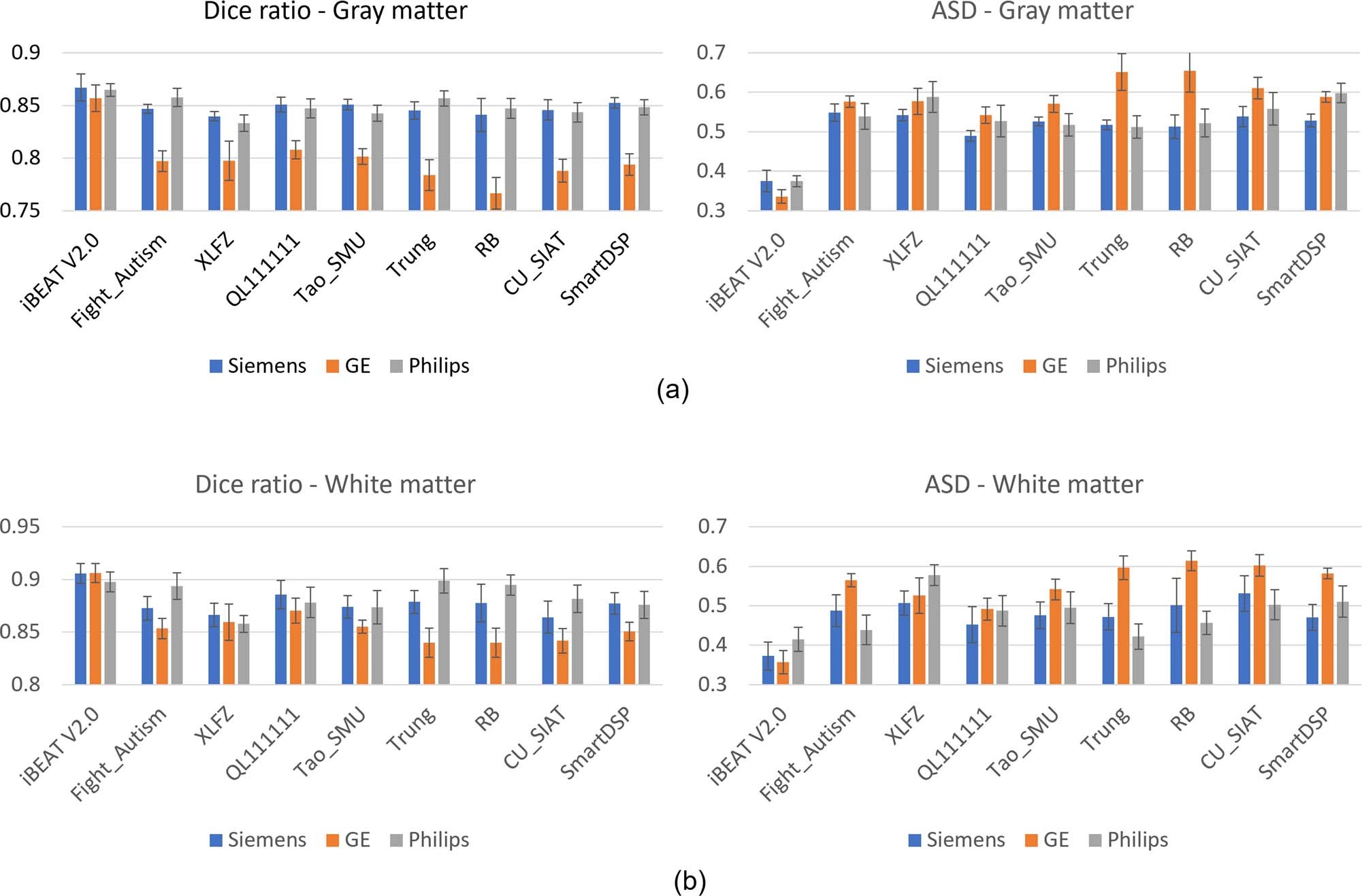

Extended Data Fig. 4

(a) The gray matter segmentation evaluation. (b) The white matter segmentation evaluation. The Dice ratio and Average Surface Distance (ASD, mm) evaluation metrics are reported for each evaluation. The error bars denote the standard deviation of the evaluation metric using different methods on the testing subjects.
