Fig. 2

From: A large multi-focus dataset for white blood cell classification

Fig. 2

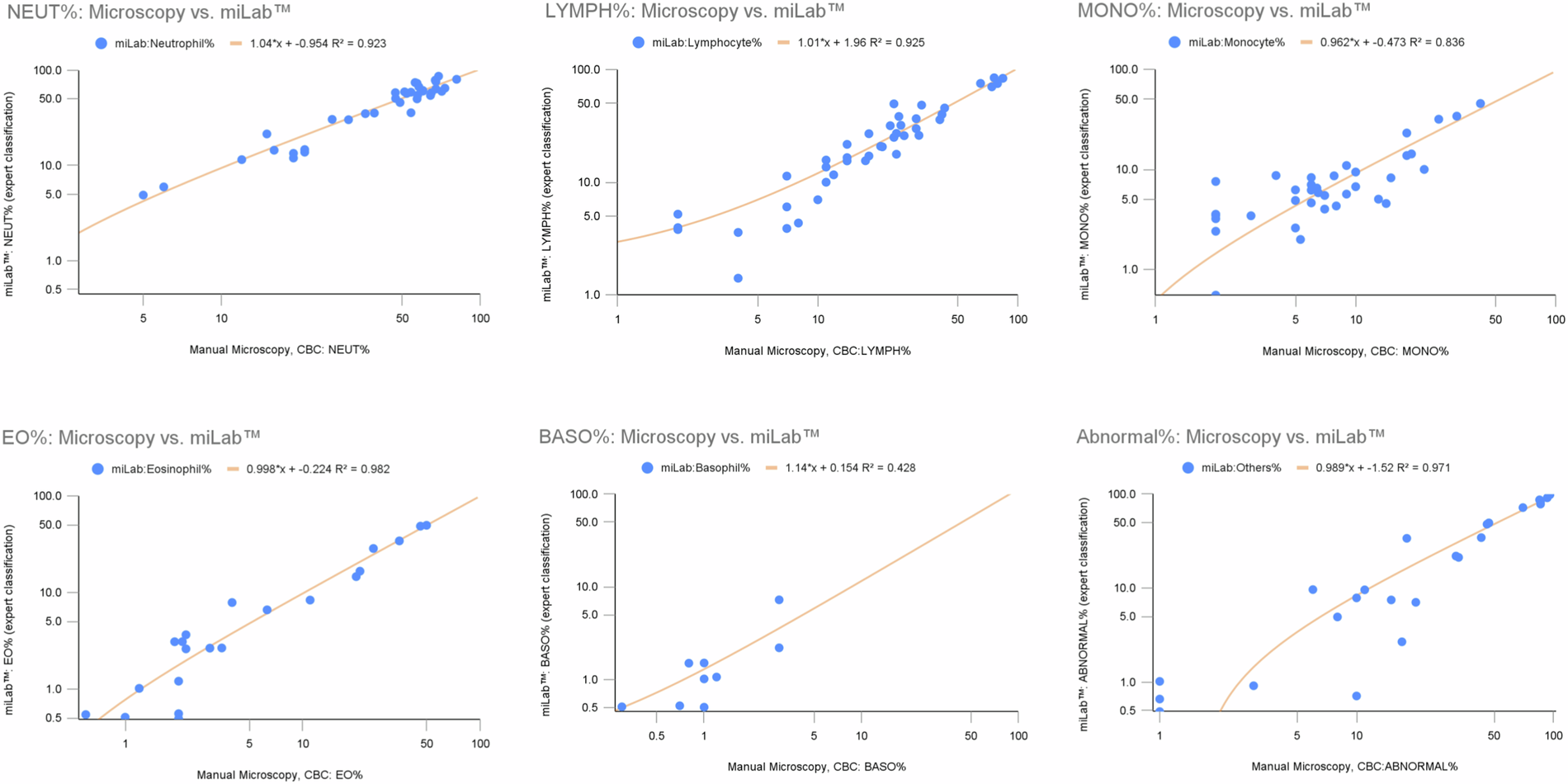

Calculated R2 scores between miLab expert classification and manual microscope are shown. Five normal WBC subtypes (neutrophil, lymphocyte, monocyte, eosinophil, basophil) and other immature WBCs are listed. The x-axis corresponds to the percentage of WBC cells of a specific subtype that exist in a ground truth slide. The y-axis represents the percentage of WBCs that miLab detected and classified by our experts. The axes are in logarithmic scale to better visualize data points.
