Fig. 2

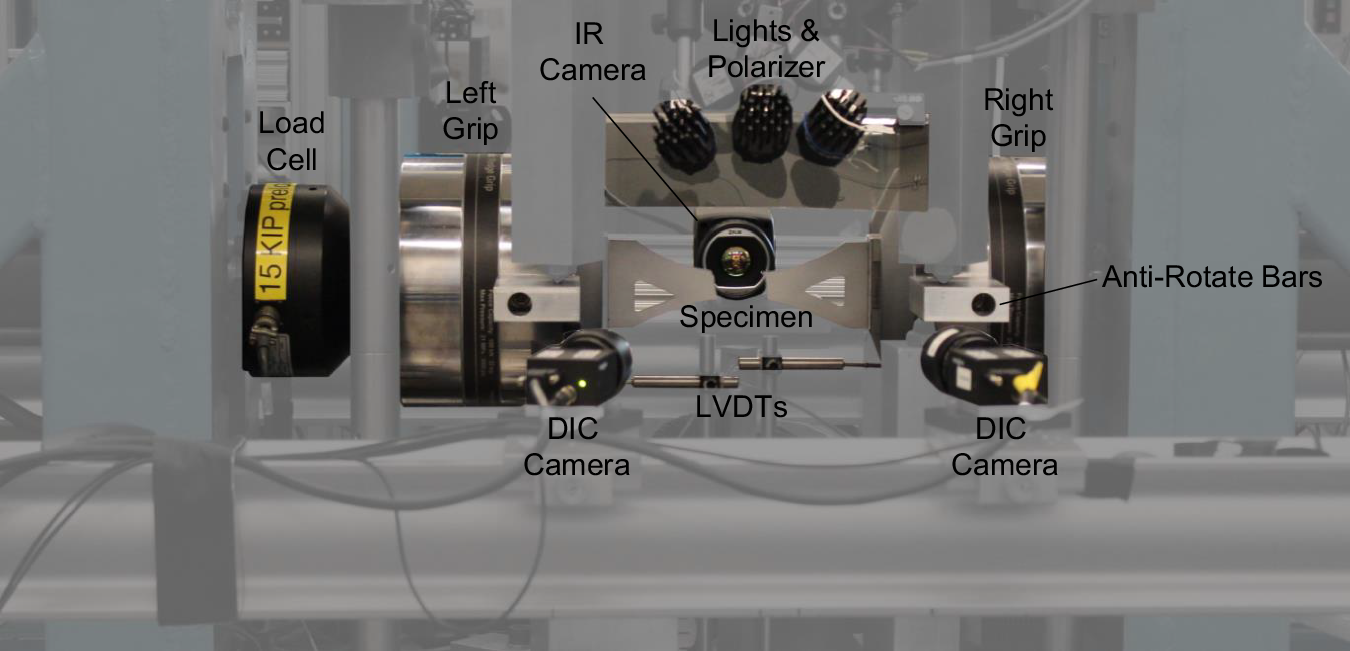

Representative experimental setup for tensile testing of 304L sheet metal specimens of unique geometries and tensile dog bones, with DIC measurements on one side and IR measurements on the reverse. Here, an X-specimen is shown after failure.
Fig. 2 | Scientific Data
