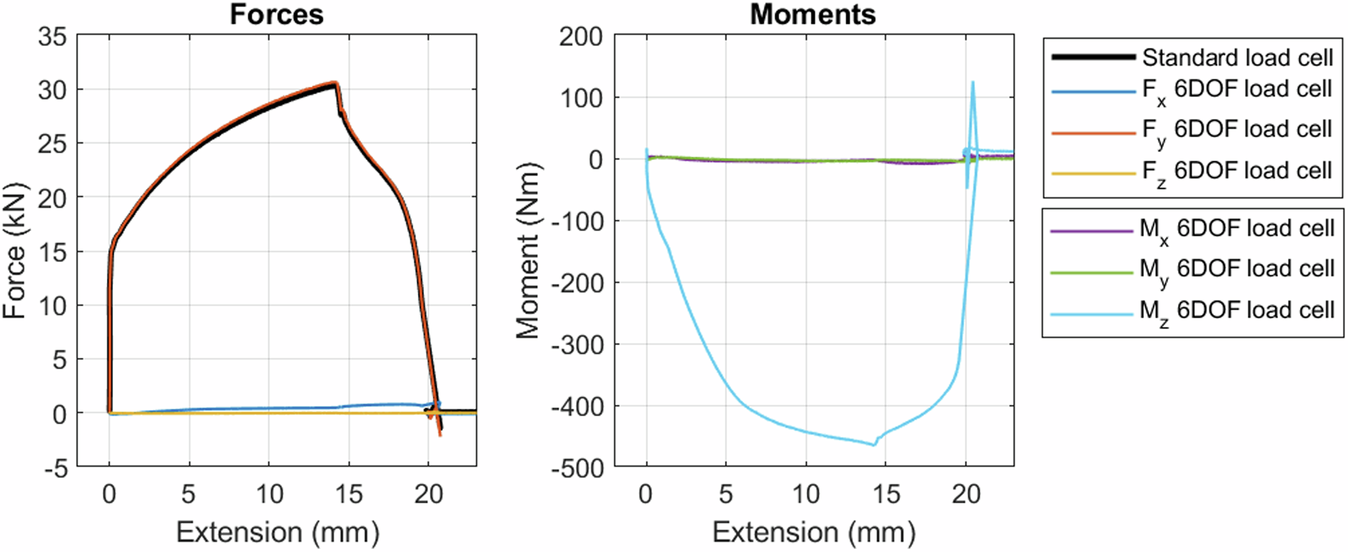

Fig. 4

Representative global data for bespoke specimen O1-1, including force from the standard load cell, forces and moments from the 6DOF load cell, and overall specimen extension as measured from the two LVDTs. (Time is also included in the global data, though not shown here).
