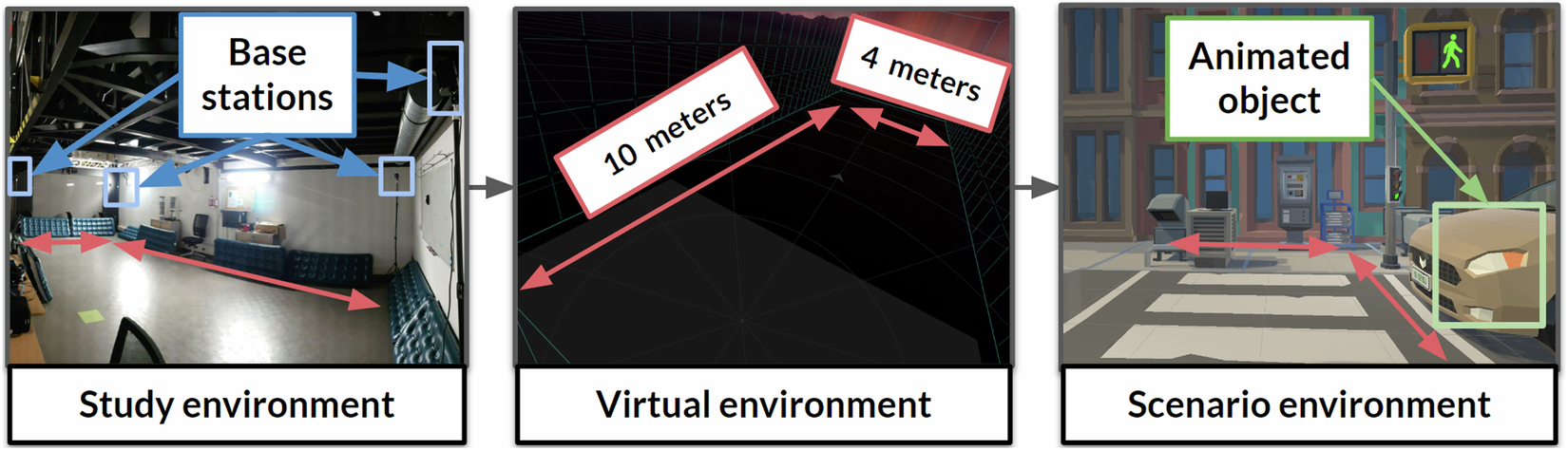

Fig. 2

The environment used for the experience measures 4 by 10 meters in navigation area is delimited by four base stations, one at each corner, and aligned with the virtual environment. Mattresses surround the are for security. (Figure orignally presented in Robert et al.⁷).
