Fig. 3
From: Chromosome-level genome sequencing and assembly of the parasitoid wasp Leptopilina myrica

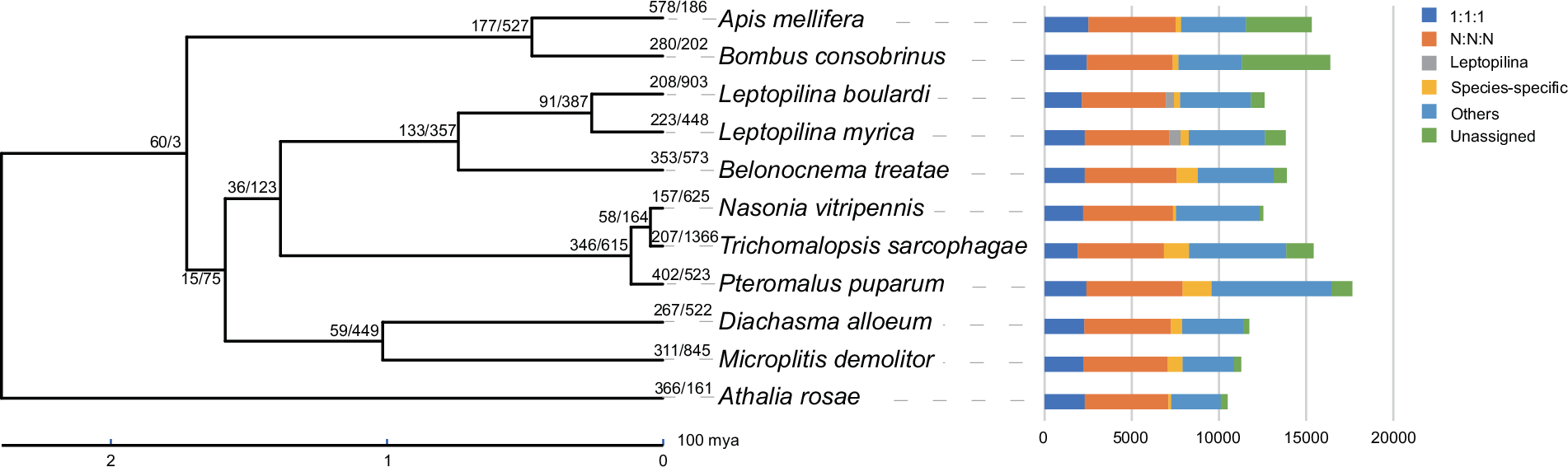

Phylogenetic tree. The maximum likelihood phylogenetic tree based on 2749 concatenated single-copy orthologous genes from 11 Hymenopterans. The bootstrap value of all nodes is supported at 100/100, and gene counts different types of orthologous groups. The expansion, contraction of orthologous groups (OGs) are shown on the nodes and tips. “1:1:1” indicates universal single-copy genes present in all species; “N: N: N” indicates multicopy genes, although the absence in a single genome is tolerated; “Leptopilina” means common unique genes in species from Leptopilina. “Species-specific” represents species-specific genes in the genome; “Unassigned” indicates genes which cannot be assigned into any gene families (orthogroups); “Others” means the remaining genes.
