Fig. 2
From: An in vivo microscopy dataset for the characterization of leukocyte death

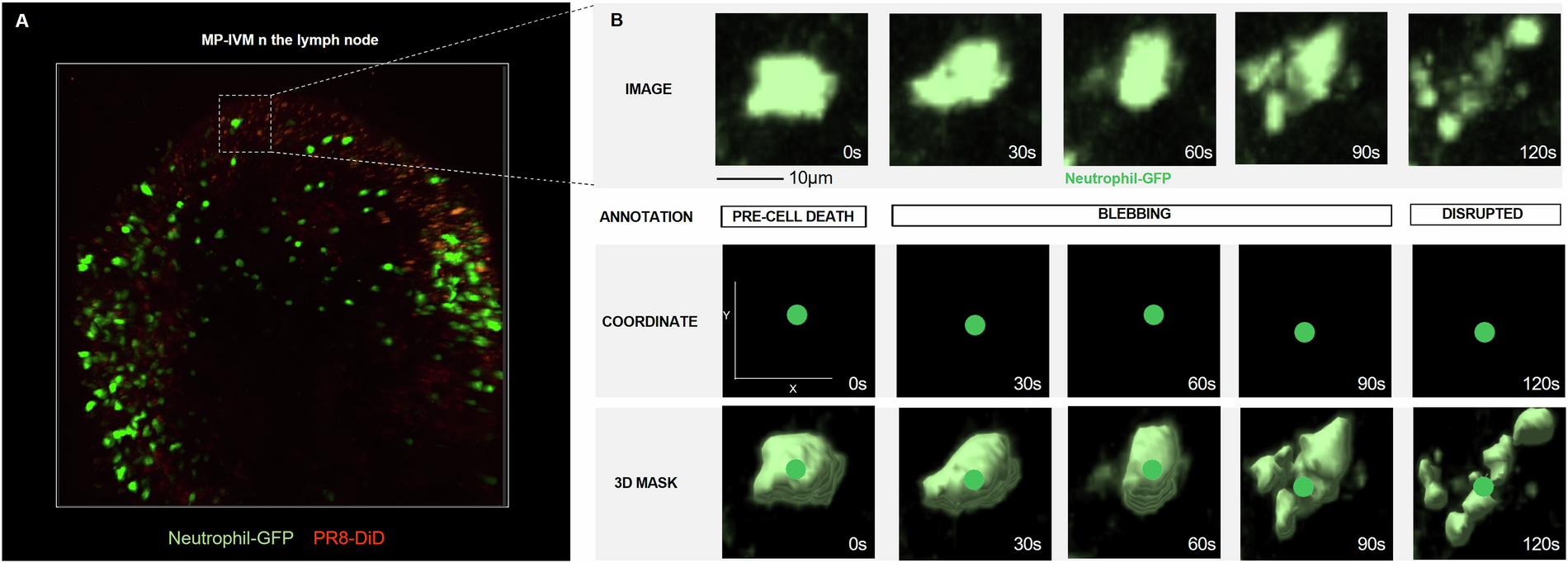

Dataset annotation of apoptotic events. (A) Micrograph depicting a MP-IVM acquisition in the lymph node of a mouse. Neutrophils expressing GFP (green) and a UV-inactivated influenza vaccine are labeled with DiD (red). (B) Dying cells from MP-IVM acquisitions are annotated frame by frame for the duration of the process according to their morphology (top). Frame annotation include semantic labels (pre-apoptotic, blebbing, disrupted), centroid tracking (middle), and 3D volumetric reconstruction of the cell (bottom).
