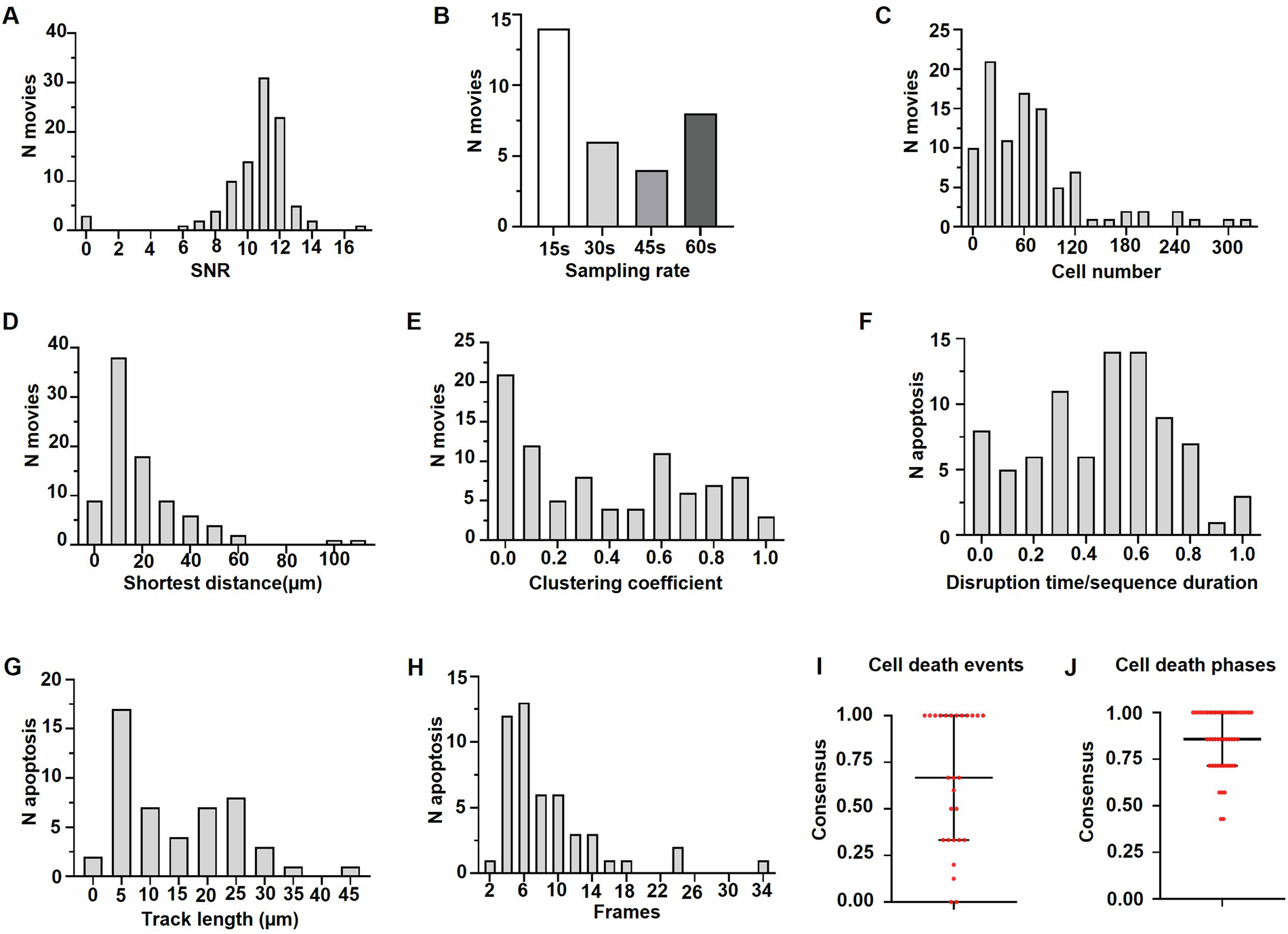

Fig. 3
From: An in vivo microscopy dataset for the characterization of leukocyte death
Data quality and validation. (A) Distribution of the signal-to-noise ratio of the different movies. (B) Prevalence of the sampling rates used for different microscopy acquisition. (C) Distribution of cell number per field-of-view. (D) Distribution of the shortest distance between each cell. (E) Distribution of cells involved in a local cluster formed by at least three cells in close proximity. (F) Ratios between the annotated timing of cell disruption and sequence duration. A value of 0.5 indicates that the cell disrupts in the middle of the annotation. (G,H) Scatterplots showing the total track distance of annotated apoptotic-like events (G) and their duration in frames (H). (I,J) Inter-operator consensus rate during the annotation of apoptotic-like events (I) and phases (J).
