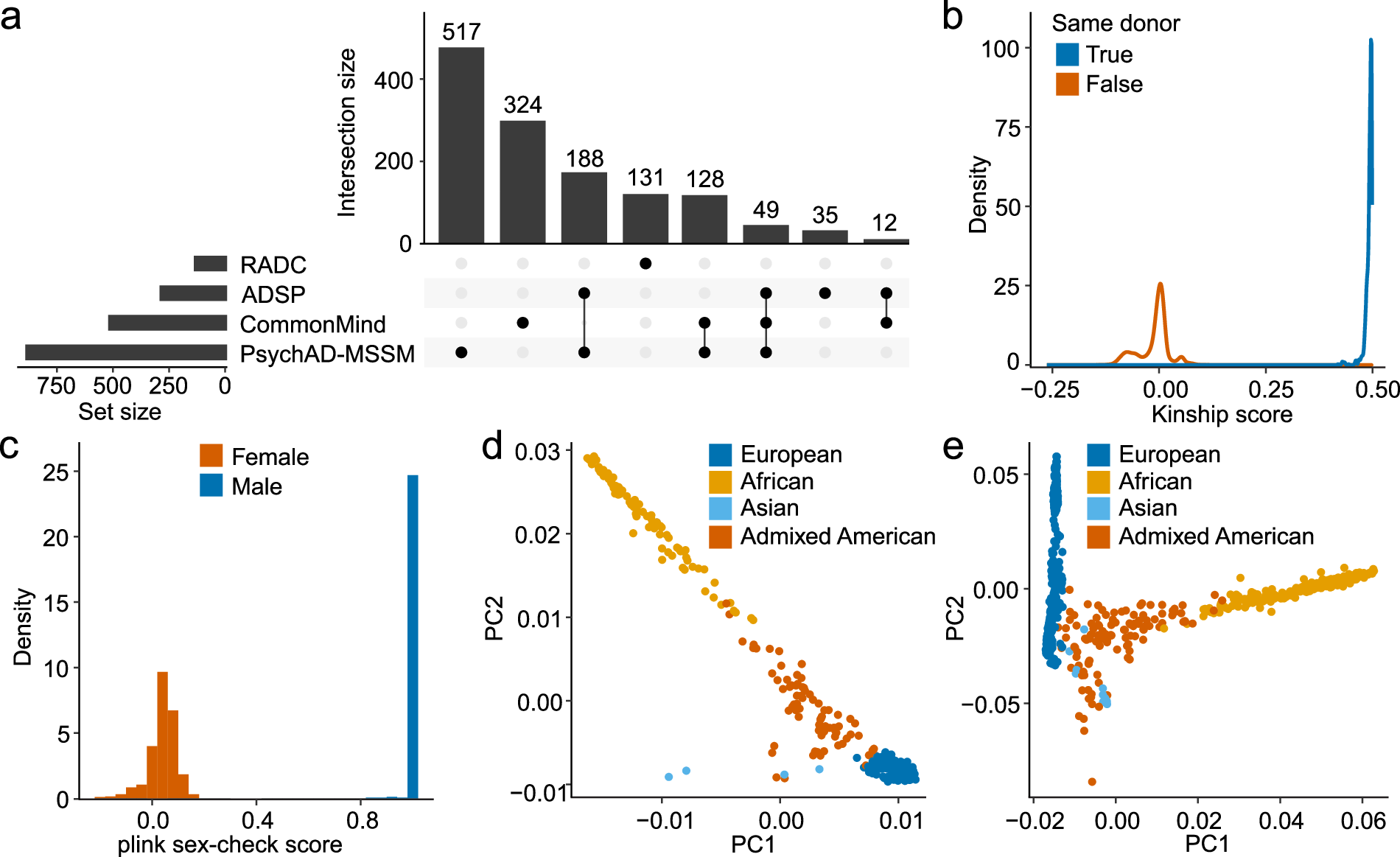

Fig. 3
From: Population-scale cross-disorder atlas of the human prefrontal cortex at single-cell resolution
Analysis of genotyping data. (a) Counts and intersections among sources of genotyping data available for donors from the PsychAD cohort. (b) Distribution of genetic similarities estimated between combined genotype dataset and genotypes called from snRNA-seq data. (c) F-statistic from plink’s “check-sex” function plotted by reported sex (samples with known sex chromosome aneuploidies not shown). (d,e) The first two PCs of genetic ancestry were calculated separately for the PsychAD-MSSM genotype dataset of 882 samples (d) and for the combined dataset of 1,381 samples (e).
