From: Snow depth measurements from Arctic tundra and boreal forest collected during NASA SnowEx Alaska campaign

Fig. 3

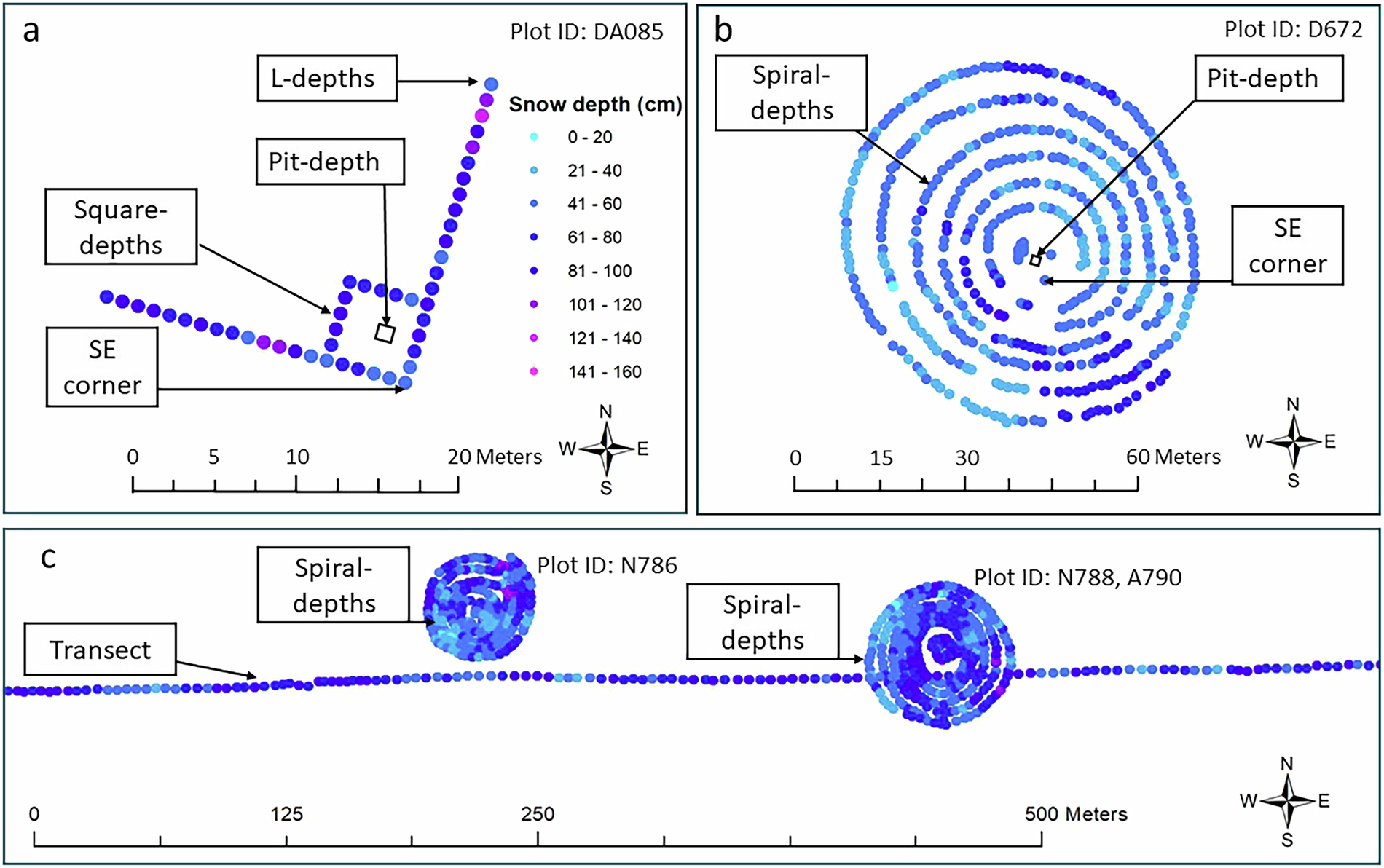

Examples of snow depth measurements taken in different spatial patterns: (a) shows pit-depth, square-depths with L-depths from one of the plots in FLCF; (b) captures spiral-depths at one of the plots in UKT; and (c) includes transect and spiral-depths at UKT. Note the difference in scale across each panel, representing different spatial extents of sampling patterns. Colours represent snow depth values.
