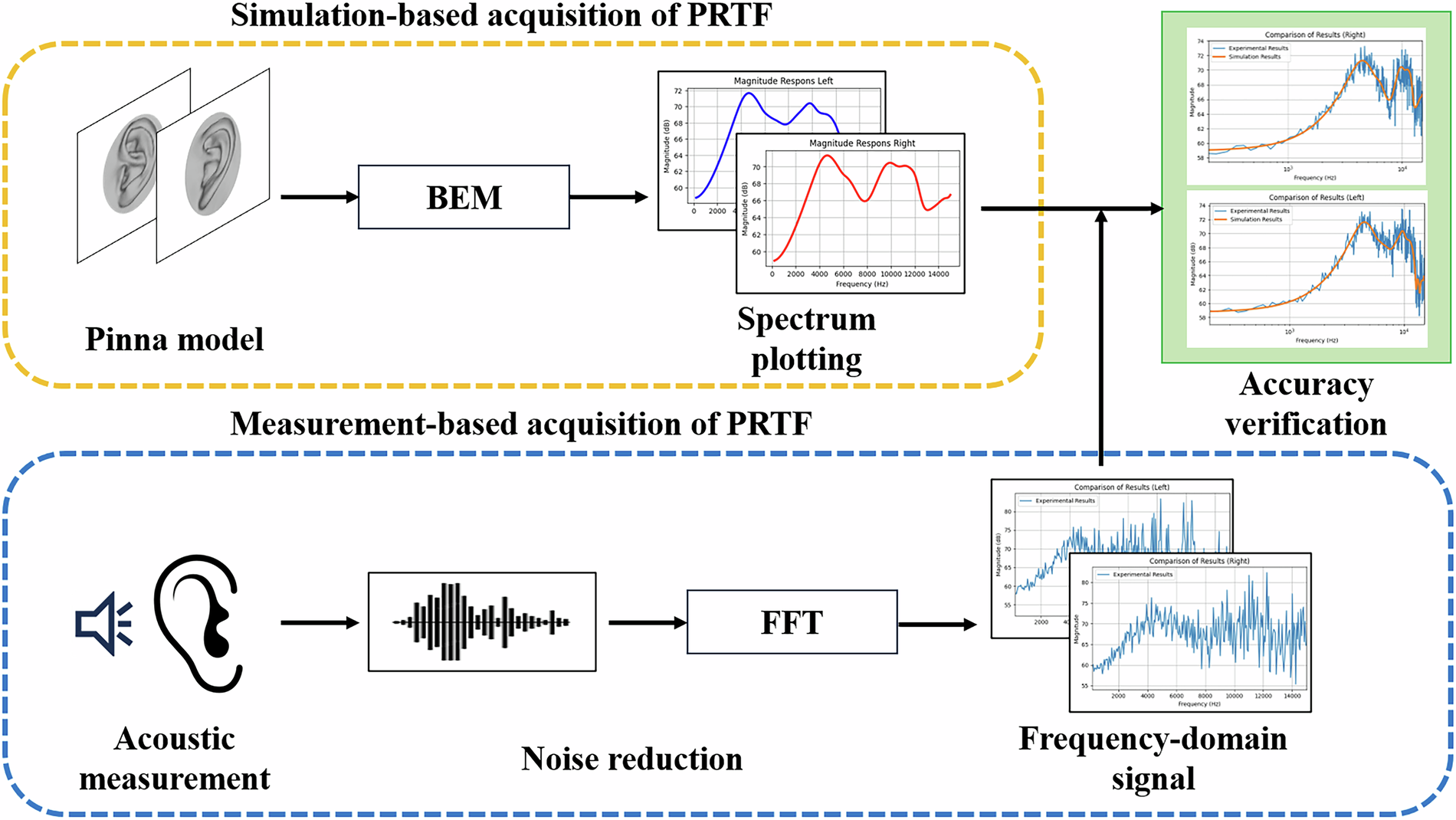

Fig. 10
From: A Dataset of Pinna-Related Transfer Functions Using High-Resolution Pinna Models
Actual measurement validation process. The process within the yellow box is to obtain the PRTF through simulation, while the process within the blue box is to obtain the PRTF through measurement. The PRTF waveforms from these two processes are compared to validate the accuracy of the PRTF dataset.
