From: A new 3D seismotectonic model of the Northern Apennines Pedeapenninic margin for seismic hazard assessment

Fig. 1

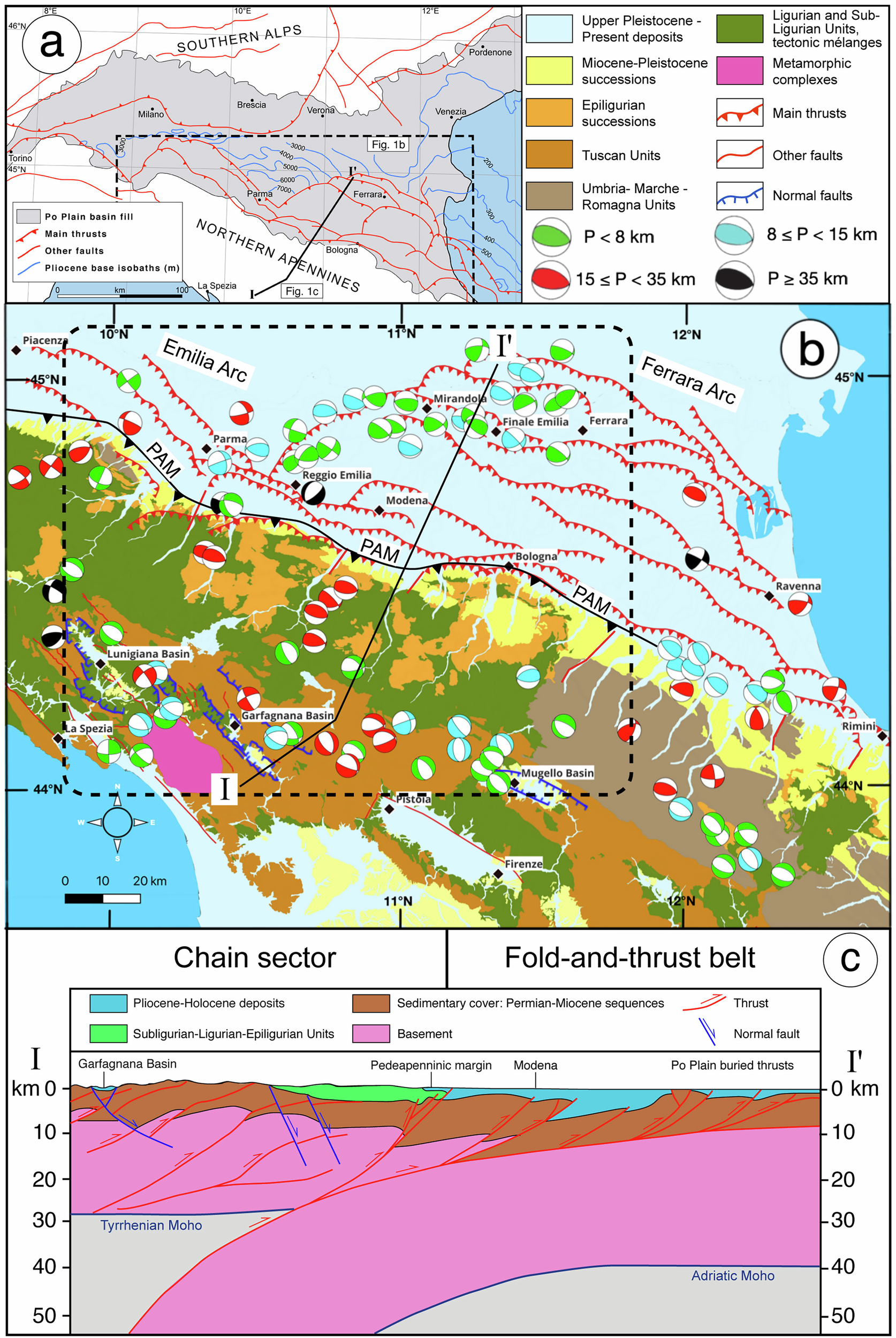

(a) Schematic structural framework of the study area19. (b) Geological-structural map of the Northern Apennines (modified after ref. 44). The dashed layout highlights the study area. Main active faults are taken from the Italian national database29. Focal mechanisms are derived from the RCMT catalogue (INGV - RCMT)68. PAM: Pedeapenninic margin. (c) Geological cross-section showing the overall structuring of the Northern Apennines belt, redrawn from ref. 48.
