From: An Arctic Ocean Thermohaline Dataset

Fig. 8

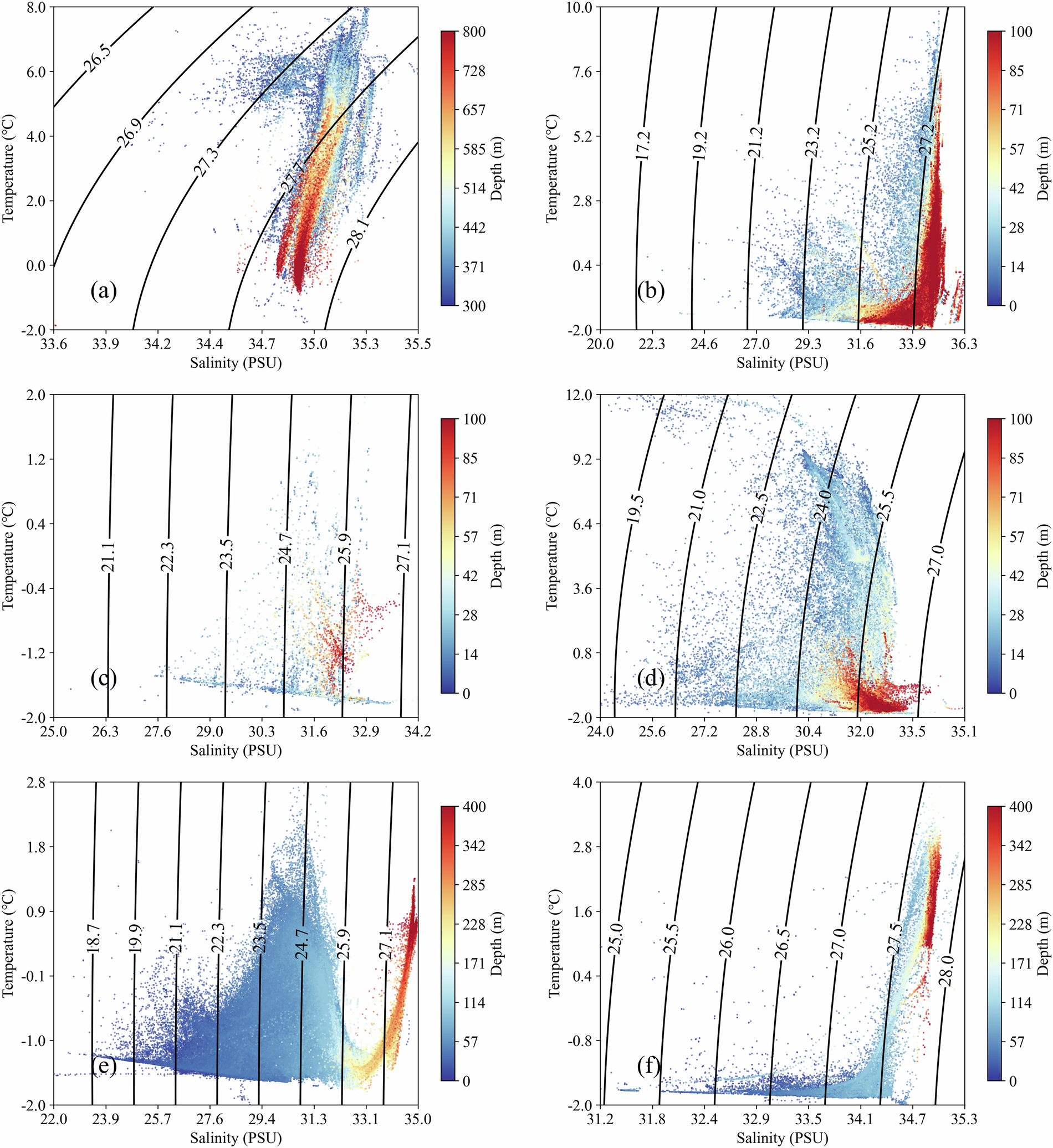

Temperature and salinity structure of water masses: (a) shows temperature‒salinity distribution characteristics of water masses in Area 1; (b) shows those in Area 2; (c) and (d) show those in Area 3 during winter and summer; (e) shows those in Area 4; (f) shows those in Area 5.
