Fig. 2
From: Whole-genome sequencing and variants data of 304 indigenous goats from Southwest China

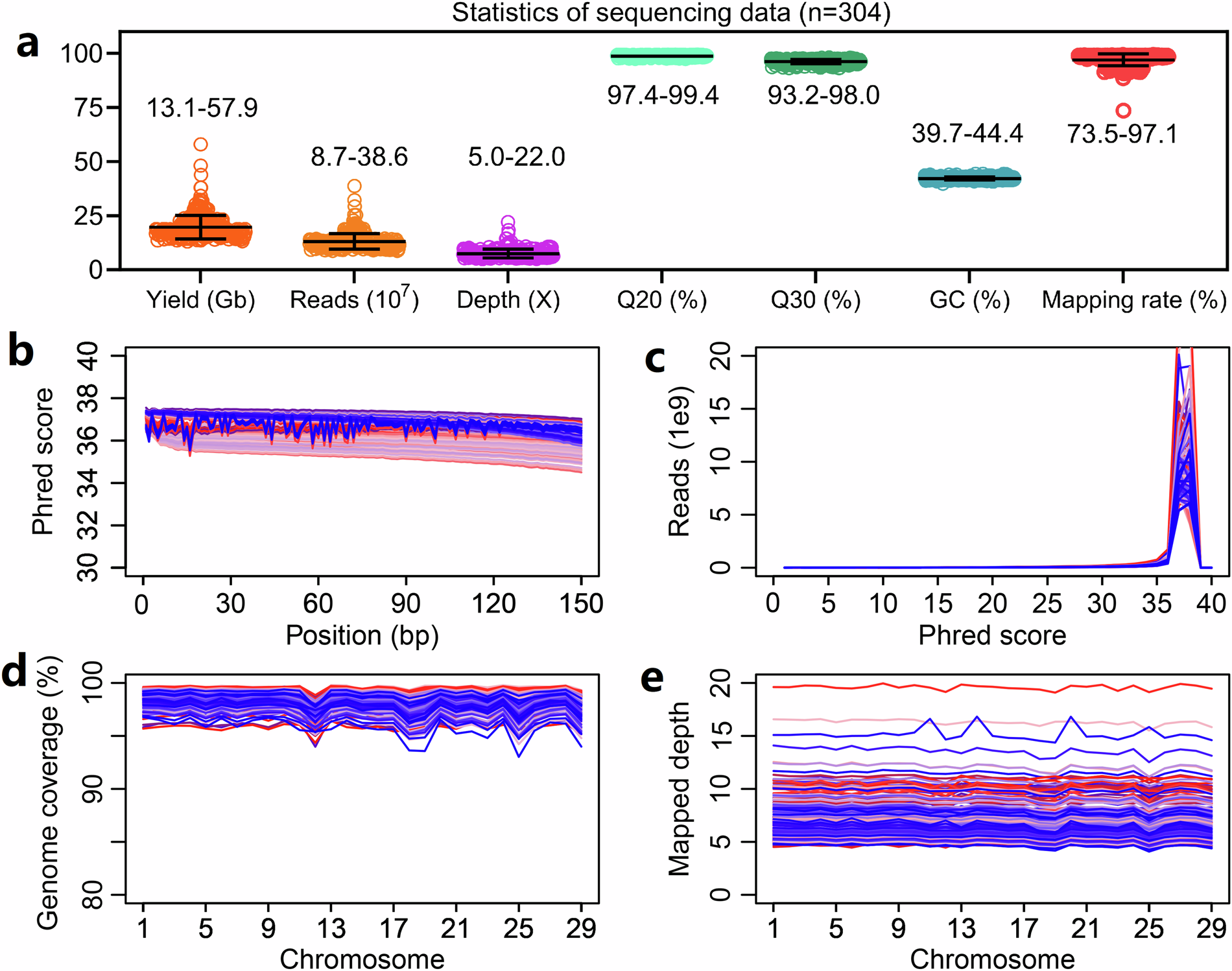

Statistics of sequencing data and read alignment. (a) The sequencing yield, reads, depth, phred quality scores (Q20 and Q30), GC content, and mapping rate of high-throughput sequencing data of 304 goats. (b) Average quality score per base in a 150-base-pair read. (c) The sequence quality score plot revealed that nearly all reads have quality scores ranging from 35 to 40. (d) The genome coverage of sequencing reads on the 29 autosomes of the goat reference genome exceeded 95%. (e) The mapped depth of sequencing reads on the 29 autosomes of the goat reference genome. The mapped depth of all samples exceeded 5X. Each colorful circle or line represents one sample of the 304 goats.
