Fig. 5
From: Fungal virulence factors datasets for inflammatory bowel disease-specific antifungal drug discovery

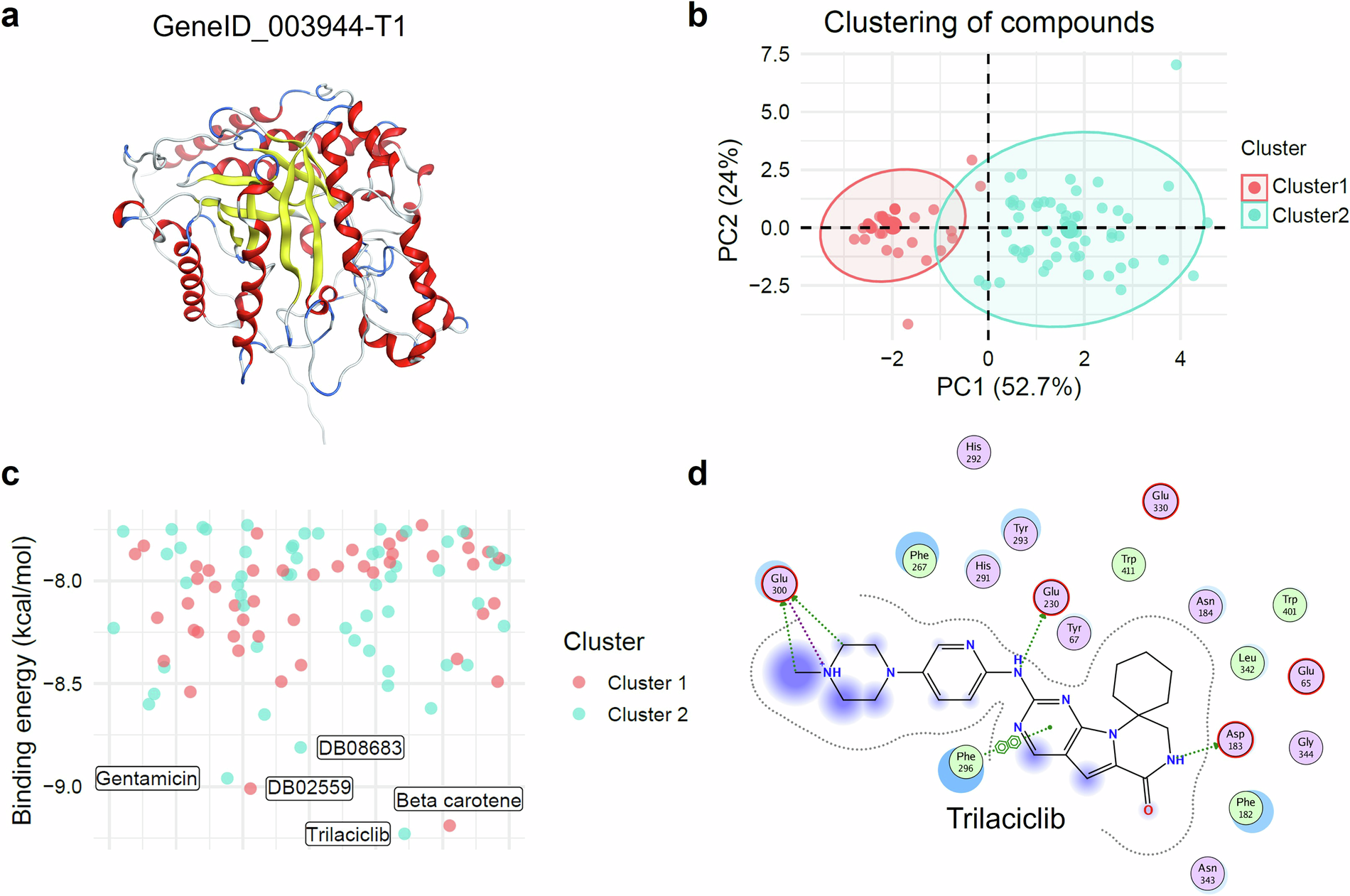

Virtual screening of small molecules targeting the IBD-associated VF GeneID_003944-T1. (a) Protein structure of GeneID_003944-T1. (b) Classification of physicochemical properties of the top 100 compounds with the lowest binding energies. (c) Distribution of binding energies between compounds and GeneID_003944-T1. (d) Interaction pattern between Trilaciclib and GeneID_003944-T1.
