Background & Summary

This dataset is a collection of features extracted from an ensemble of idealised moist baroclinic wave simulations (BWS)1,2. Baroclinic waves are synoptic-scale, alternating low and high pressure systems that grow in the midlatitudes due to baroclinic instability. These waves are important parts of the Earth’s global circulation as they transport energy polewards. Additionally, BWS can be used to investigate the dynamics of extra tropical cyclones (ETCs).

The BWS initial background states are meteorologically and numerically stable when run without the addition of an unbalanced perturbation, and are controlled by seven entry parameters3. Each BWS is initialised with a different set of entry parameters sampled from a Latin Hypercube, representing a different atmospheric initial state and allowing different realistic baroclinic wave development. Then, each developing ETC is tracked and characterised with a set of 89 features. These different feature sets constitute the dataset which is presented here and is Machine Learning ready, allowing exhaustive comparisons of a vast array of different background states and the resulting baroclinic developments using traditional or deep learning methodologies. Moreover, this dataset can be used with standard meteorological methods and as an alternative to re-analysis datasets to study ETCs. This comparison can be extended to understand the intricate relationship between the background atmospheric state and the eventual intensity of a cyclone that develops in it.

The dataset consists of one xml file and two repositories. The first repository contains 6,388 folders, each representing one BWS as simulated by the Open Integrated Forecasting System (OpenIFS) 43R3v24. The raw outputs are compressed and stored in these folders. In total 28 variables are output on either surface levels or on 28 pressure levels at a horizontal resolution of 125 km at the equator and 3 hour temporal resolution. The second repository has 22,259 comma-separated value files (.csv) containing 89 features extracted for each BWS and associated ETC. The features can be classified into four categories: background-related features, track-related features, dynamical intensity measures, and impact-relevant intensity measures.

Methods

This section describes the methods and infrastructures used to produce the dataset, including the toolboxes used and Application Programming Interface (API).

Moist baroclinic wave simulation

General Circulation Models (GCMs) are the cornerstone of weather forecasting and climate simulation5. They can be used to produce operational weather forecasts, predict future climate6, but also to simulate idealised weather systems enabling specific phenomena, such as convection7 or baroclinic waves8 to be studied. Baroclinic waves are synoptic weather phenomena of high and low pressure systems that develop in the mid-latitudes. These waves are fundamental to understand Earth’s global circulation as they transport energy and moisture polewards2,9,10. To study these phenomena, moist baroclinic wave simulations are performed using the Open Integrated Forecasting System (OpenIFS) cycle 43R3v24.

OpenIFS is a version of the Integrated Forecasting System of the European Centre for Medium-Range Weather Forecasts (ECMWF). Cycle 43R3 of IFS was operational at ECMWF from July 2017 to June 20184. The initial background state for these simulations is expressed analytically and setup through the configuration files in an aquaplanet setting. As a result, the jet structure and strength, the average virtual temperature, the surface relative humidity, the lapse rate and the surface roughness can be easily modified. In total, seven input parameters can be controlled to produce different initial background states, and subsequently different baroclinic wave developments. Previous work3 can be consulted for more details on the background state, the baroclinic wave development and the implementation in OpenIFS 43R3v2. Each baroclinic wave simulation is run with a spatial resolution of TL159, which corresponds to a specific spectral truncation used to compute the linear terms in the equations of the model11. The final grid cell size is approximately 125 km at the equator with 91 sigma levels, and the simulations are global. Alongside the spatial resolution, a model time step of 900 s (15 min), an output frequency of 3 h and a length of simulation of 20 days are chosen. The following physical parameterization schemes have been activated: vertical diffusion (LEVDIF), surface processes (LESURF), large-scale condensation (LECOND), mass-flux convection (LECUMF), prognostic cloud scheme (LEPCLD) and evaporation of precipitation (LEEVAP). The text in parenthesis refers to the OpenIFS namelist option that is set to true to activate each physical parameterization scheme. In addition, the negative humidity fixer (LEQNGT) is also turned on12. The radiation schemes have not been triggered. Depending on the initial background state, multiple low and high pressure systems develop. Some initial conditions lead to no development at all. All code and configuration files related to the moist baroclinic wave simulations can be found on this Zenodo repository13.

Ensemble generation

To generate the ensemble, the seven input parameters are used to define a 7-dimensional hypercube. The input parameters, along with their maximum and minimum values are given in Table 1. A Latin Hypercube Sampling (LHS)14 is performed in this parameter space to define a list of 6,500 different configurations. The code used to generate the LHS can be found in a GitLab repository15. Each configuration results in a specific set of initial conditions and thus a unique baroclinic wave simulation, which was simulated using OpenIFS@home16. OpenIFS@home is an open science climateprediction.net (CPDN)17 project allowing the fast computation of the computationally heavy ensemble of OpenIFS forecasts using the Berkeley Open Infrastructure for Network Computing (BOINC)18 framework. Five days after the start of the ensemble computation, 80% of the members were returned and transferred to the CSC - IT centre for science Ltd19 infrastructure for further processing as detailed in the next section.

Table 1 Details of the 7 input parameters detailed in the Methods section. Each line correspond to one of the seven input parameter.
Full size table

Ensemble processing

All the BWS are processed in order to 1) track the ETCs which develop in the simulations and 2) extract features which further characterise the background state and the developing cyclones. The workflow is presented in Fig. 1 and is fully implemented using the HyperQueue API20 on the CSC infrastructure19. From a list of identification tags (the experiment IDs used by OpenIFS), each BWS is processed independently, between 1 and 4 files are generated and pooled together. The next sections describe in detail the objective cyclone tracking and the feature extraction process.

Fig. 1
figure 1

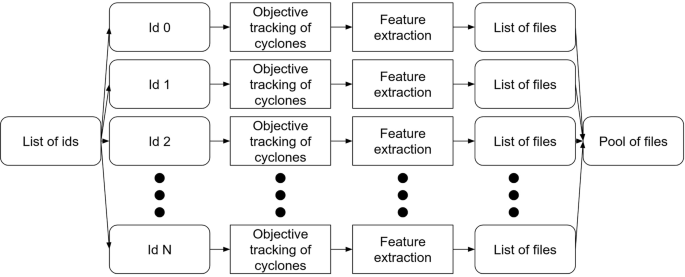

Distributed workflow for objective cyclone tracking and feature extraction.

Full size image

Objective cyclone tracking

Cyclone tracks are identified with the objective feature tracking software TRACK21,22,23. TRACK uses a Lagrangian approach of tracking individual cyclones by identifying extrema in a given field and following them through time. In order to track developing cyclones, the relative vorticity at 850 hPa (VO-850) at the TL159 resolution is first truncated to the T42 spectral resolution (310 km at the equator) and the planetary scale waves (wavenumbers 1-5) are excluded. This truncation ensures that very large- and small-scale features are excluded and only synoptic-scale cyclones are identified. TRACK produces output which consists of the horizontal location (longitude and latitude) and magnitude of the T42 VO-850 maxima for each time frame in each cyclone track. Then, the maximum relative vorticity within 2° geodesic radius is localised using relative vorticity at 700 hPa, 600 hPa, 500 hPa, 400 hPa, 300 hPa and 200 hPa in order to compute the tilt of the cyclone at these different pressure levels with VO-850 as the reference. The tilt is computed iteratively starting from the tracked relative vorticity at 850 hPa. Using the T42 maxima at the next pressure levels (700 hPa), the steepest ascent maximisation within a 5° geodesic radius is estimated using B-spline and the tilt is computed24. The tilt is computed alongside the objective tracking25. Finally, the cyclone tracks based in VO-850 are filtered to exclude stationary, weak and short-lived systems. Therefore, the tracks need to have a T42 VO of at least 1 × 10−5 s−1, be at least 1000 km long, and last for at least two days. All TRACK’s configuration files can be found in a GitLab repository15. The first three cyclones objectively identified in each BWS simulation by TRACK are kept for the feature extraction process.

Feature extraction

The feature extraction process can be decomposed into two parts and the features into four categories as represented in Fig. 2. The processing pipeline has been developed using Python.

Fig. 2
figure 2

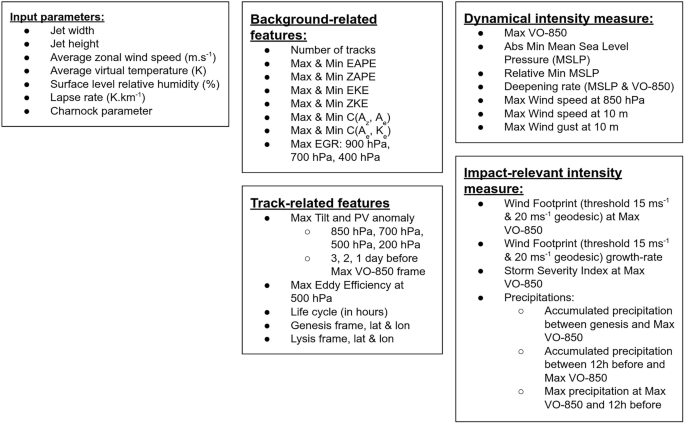

Taxonomy of the extracted features. The time frame of occurrence of each represented feature is also extracted if not computed at Max VO-850 time.

Full size image

First, background-related features are extracted. These features are only dependent on the background state and its evolution, meaning that these features are extracted regardless of the development of baroclinic waves. For each BWS, the time-series of the four energies of the Lorenz energy cycle are computed26,27: the Zonal mean Available Potential Energy (ZAPE), the Eddy Available Potential Energy (EAPE), the Eddy Kinetic Energy (EKE), and the Zonal mean Kinetic Energy (ZKE). The time-series of conversion terms between the ZAPE and EAPE, and between EAPE and EKE are averaged and extracted between 30° N and 60° N. The details of this calculations are shown in Toropainen (2024)28. The absolute maximum, minimum, and their respective time frame of occurrence are extracted. Finally, the maximum zonal mean Eady Growth Rate (EGR) values between 30° N and 60° N at each pressure levels considered (900, 700, 400 hPa) are computed from the potential temperature at a pressure level above and below29.

Then, the track-related features and the intensity measures are calculated. These features are extracted if at least 1 track is detected during the objective cyclone tracking for a given BWS. From the tracking process, the time frames of Genesis and Lysis are the first and last frame of the track respectively. The life cycle duration is the number of frames corresponding to the difference between Genesis and Lysis. The PV anomaly is computed as the difference between the PV field and the PV zonal average at every time frame. Then, the average value within a 2° geodesic radius from the potential vorticity maximum is computed30,31. The tilt and PV anomalies are extracted 3 days, 2 days, and 1 day before the frame of maximum tracked VO-850 at all pressure levels considered. The maximum Eddy Efficiency32 is computed as the maximum of the Eddy Efficiency averaged over a 10° geodesic radius centred on the cyclone’s center at 500 hPa.

All intensity measures are computed according to the study by Cornér et al.33 and using the code available in a GitLab repository15. A total of 16 intensity measures are computed including maximum vorticity, wind speed (850 hPa, 10 m), wind gust (10 m), the minimum mean sea level pressure (MSLP) and its growth-rate, the wind footprint with 15.0 and 20.0 m s−1 threshold and their respective growth-rates, and a Storm Severity Index (SSI)34. Finally, three precipitation measures are computed, two accumulated total precipitation (between genesis and the maximum vorticity frame, and the 12 hours before the maximum vorticity frame), and one instantaneous precipitation measure 12 hours before the maximum vorticity frame35.

Data Records

The dataset is available in FairData.fi36. The repository containing the data consists of three parts which are accessible independently. First, the xml used to submit the batch of jobs to the OpenIFS@home infrastructure. Each case is described by a unique_member_id and a set of parameters. The unique_member_id is a set of four walpha-numerical characters unique to a set of parameters, it is assigned during the generation of the ensemble and ranges from a000 to a50j. The set of parameters corresponds to the seven input parameters used to construct the background state of the baroclinic wave simulations and are presented in Table 13. The parameters are randomly selected and thus there is no meaningful relationship between the unique_member_id and the parameters.

Secondly, a folder named batch_1018 which contains the raw output of the OpenIFS@home infrastructure. Each sub-folder corresponds to one of the successful runs (6,388 sub-folder in total, see the Technical Validation section). The unique_member_id is included in the name of the sub-folder, which contain a collection of 20 zip archives in which the raw gridded OpenIFS output (GRIB files) is stored. The total size of this dataset is 10.34 TB. A comprehensive description of the batch_1018 folder is given Table 2.

Table 2 Data breakdown for each baroclinic wave simulation.
Full size table

Lastly, a folder named ExtractedFeatures contains the collection of features computed (see Fig. 2) as described in the previous section. There are 22,259 files, each respecting the following nomenclature: unique_member_id_general for the background-related features, unique_member_id_0/1/2 for the track-related features and the intensity measures respectively for the first, second and third baroclinic wave developing in the unique_member_id case. A comprehensive description of the ExtractedFeatures folder is given in Table 3.

Table 3 Data breakdown for the feature extraction.
Full size table

Technical Validation

Of the 6,500 members of the ensemble, 6,388 members have been processed successfully. Of the successful runs 80% have been processed within 5 days of the ensemble being launched on the OpenIFS@home infrastructure16. The remaining 20% of the successful runs have been returned within one month of launching the ensemble. OpenIFS@home is an open science and distributed infrastructure meaning that it is dependent on a higher number of technical and human parameters than a traditional High-Performance Computing (HPC) setup, which explains the late return of some of the successful cases. The remaining 112 cases have not been returned (12) or have failed (100). These failures are caused by unrealistically strong cyclones developing which resulted in exceptionally strong updraft winds, causing the OpenIFS 43R3v2 model to become numerically unstable and crash. The 112 unsuccessful runs will be called “hard fail runs” in the rest of the manuscript.

To test the validity of the simulated ETCs, the distribution of the maximum VO-850 and minimum MSLP for the first tracked cyclone in all 6388 successfully processed simulations is plotted in Fig. 3. The two distributions are skewed towards the most intense values, which is similar to the distributions for ETCs found in previous studies which analysed ETCs in the historical climate using reanalysis datasets and in the future climate using climate model simulations25,33,37,38,39. The baroclinic wave simulations3 therefore result in ETCs with reasonable intensity measure distributions compared to current or projected future climates. Furthermore, a visual inspection of relevant meteorological variables plotted on a map reveal features, such as cold fronts and warm sectors, which resemble those found in analyses from satellite images, reanalyses or model output. Hence we conclude that the ETCs in these idealised simulations resemble ETCs found in the real world. However, the set of input parameters strongly influence the speed and strength of the ETCs development as shown in Table 4 and Fig. 4 for five arbitrarily chosen cases. After 8.5 days of the development (the time step shown in Fig. 4) different combinations of input parameters have resulted in a varying number of mature low pressure systems of varying intensities. Cases with more and deeper low pressure systems undergo more rapid and intense development than those with fewer and shallower ones. For example, from a narrow, low and weak jet in Fig. 4a there is no baroclinic wave development at all. The meridional temperature gradient in this case is weak indicating little baroclinicity which results in slow development of baroclinic waves, as theoretically expected from the Eady model40. In another case with a wide, high and strong jet, and thus large baroclinicity, (Fig. 4e) many deep ETCs associated with large pressure gradients and frontal features can be seen. As a result, the dataset is considered of interest for the study of current and alternative climates. Future work will include comparison with CMIP66 projections and in-depth comparison with ERA533,41 tracked cyclones.

Fig. 3
figure 3

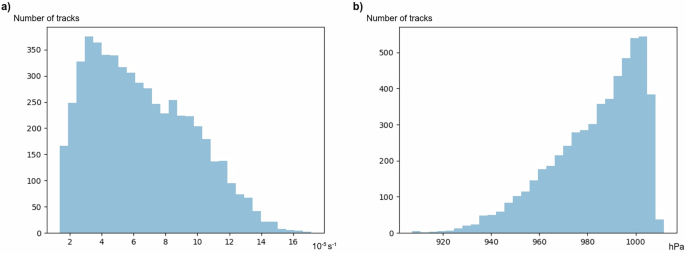

Total distribution of (a) the maximum VO-850 and (b) the minimum MSLP. Note that the y-axes differ between the two panels.

Full size image
Table 4 Experiment IDs and input parameters for the 5 cases presented Fig. 5. Number are truncated at 2 significant digits.
Full size table
Fig. 4
figure 4

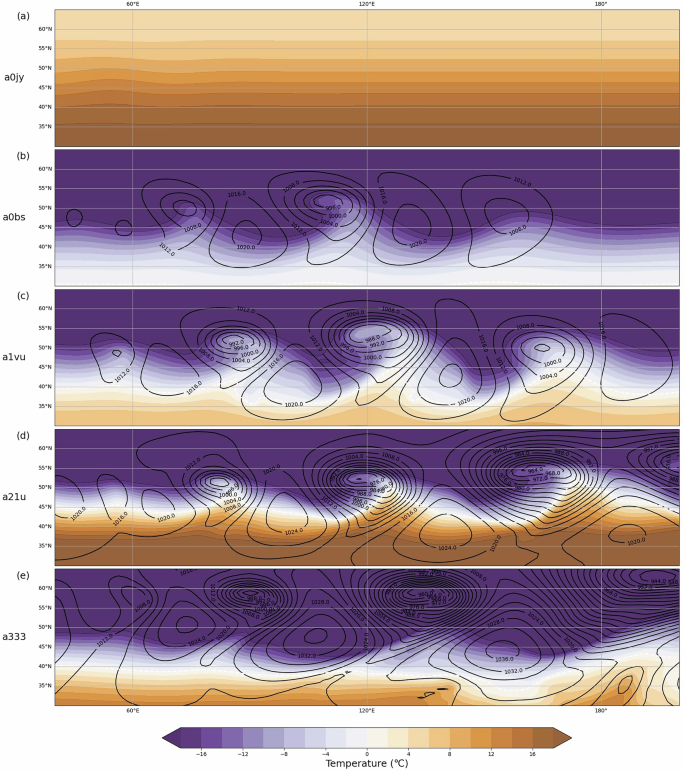

Baroclinic development for 5 cases at t = 204 hour, from weak to strong waves. The black contours show mean sea level pressure (hPa), and the shading shows the temperature (°C) at 850 hPa. The label on the left correspond to the member ID of the case, their input parameters are given Table 5. Note: this figure does not show the whole (global) model domain; the x axis ranges from 40–220° E, while the y axis ranges from 30–65° N.

Full size image

Figure 5 presents a projection of the missing and hard fail run (112 runs total) in the 7-dimensions hypercube. On the diagonal, the total distribution of the runs is represented. These distributions are compared to the original uniform distributions in order to assess the dependency of the missing or hard fails runs on the seven entry features (see Table 1) with the Mann-Whitney U-test and the Cramér-von Mises test. To consider that an entry feature is increasing the probability of a missing or hard fail run, both tests have to have a p-value below the confidence level. The confidence level is set at 5% for both tests. The results of the statistical tests are presented in Table 5. The missing run distributions depend on u0, but due to the low sample size for the missing runs, no conclusion can be reasonably drawn for these 12 cases. Concurrently, n, Tv,0, u0 and the lapse rate values (see Table 1) increase the probability to have a hard fail run. The hard fail runs are due to the unrealistic background states which can be generated by our implementation3. High lapse rate (greater than 0.005 K km−1), initial virtual temperature (superior to 295 K), wind speed (superior to 60 m s−1), with a wide jet stream (small n) create extreme initial conditions, making the OpenIFS 43R3v2 model to become numerically unstable and to crash.

Fig. 5
figure 5

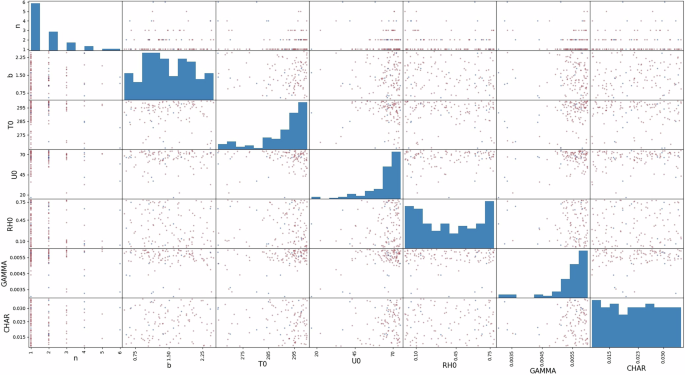

Projection of missing and hard fail runs in the initial hypercube, brown dots represent hard fail runs, cyan dots the missing runs. The diagonal represents the missing and hard fail distributions of the corresponding input parameter.

Full size image
Table 5 Statistical tests for missing and hard fail runs, p-value are written if both tests are below the level of confidence (α = 5%).
Full size table

Usage Notes

To manipulate the outputted GRIB files by OpenIFS@home in the folder batch_1018, python scripts can be found in a Zenodo repository in the plotting_scripts folder13. The script Usage_Script.py uses the xml file and the ExtractedFeatures folder to produce the Figs. 3 and 5, and the statistical tests presented in Table 5. By modifying the beginning of the script, each extracted feature can be filtered and / or plotted. The Usage_Script.py is available in a GitLab repository15.
