Fig. 9
From: Labeled Datasets for Air Handling Units Operating in Faulted and Fault-free States

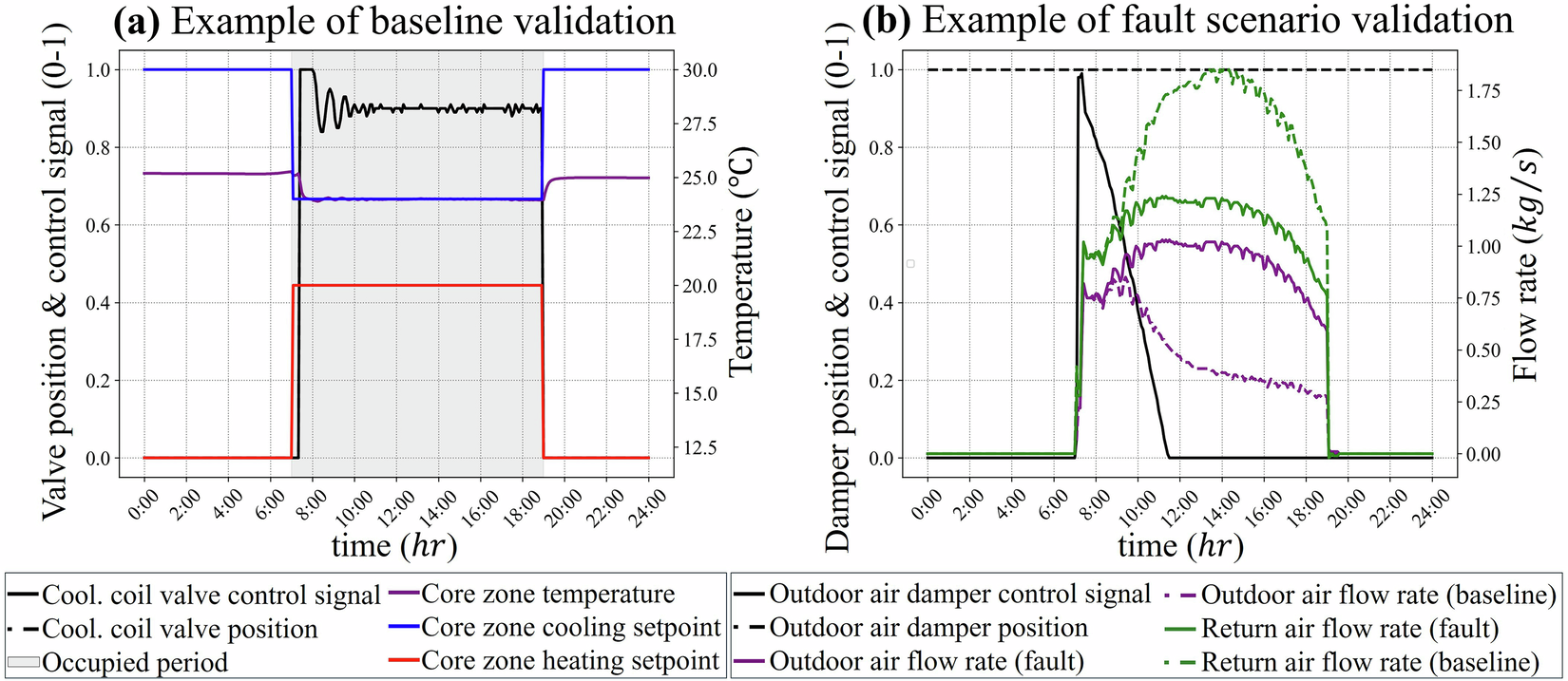

Example of G36-5wk (a) baseline scenario; and (b) fault scenario (outdoor air damper stuck fully open) and its comparison to baseline (only the second day of last week is plotted, but the same trends are seen for other days as well).
