Background & Summary

Insect pests are one of the major boreal forest natural disturbances across Canada. In 2021 alone, they affected 10.7 million hectares of forest across the country accounting for 74% of all forest disturbances1. There are two principal types of pests in the Canadian forest that cause high rates of tree mortality: defoliators, namely the spruce budworms (Choristoneura fumiferana and C. occidentalis), jack pine budworm (C. pinus pinus), and Hemlock looper (Lambdina fiscellaria fiscellaria), as well as bark beetles, like the mountain pine beetle (Dendroctonus ponderosa) and spruce beetles (D. rufipennis). Defoliators feed directly on tree foliage (needles, leaves), and their impacts range from growth reduction to complete tree mortality, with responses varying from gradual decline to abrupt change2. By contrast, bark beetles are wood-boring insects typically associated with blue stain fungi3. Their infestations cause tree death, with needle discoloration progressing from green to yellow to red, followed by canopy loss4. Insect activity follows a cyclical pattern that can shift Canada’s forest carbon budget from a sink to a source during peak outbreaks5,6,7. Moreover, climate change may influence the frequency and spatial distribution of insect outbreaks across Canada8,9. This emphasizes the need to understand and to take into account the spatial extent and temporal dynamics of pest outbreaks for carbon stock calculations10, cumulative effects analysis11, and forest management planning12. However, a consistent, repeatable, national-scale dataset for Canada is still lacking13.

The most common and comprehensive method for surveying yearly pest damage at the landscape scale is aerial surveys. As forest management is governed at the provincial and territorial level in Canada, aerial surveys are conducted separately in each jurisdiction and are limited to managed forests, which excludes large tracts of northern forests and certain national parks. Consequently, the surveys are spatially and temporally heterogeneous, their methodology varies between provinces/territories2, and are known to suffer from interpretation bias14,15. Canada agglomerates these various datasets and summaries pest information at the national level through the Pest Strategy Information System (PSIS)16 and within the National Forestry Database (NFD)17. The former includes historical forest pest survey data collected by Federal and Provincial pest management agencies. The latter includes annual forest pest statistics gathered from the Federal and Provincial agencies. In comparison, remote sensing can provide cost-effective and consistent mapping using repeatable methods, which can be beneficial for large-scale studies, such as forest carbon analyses10.

The use of remote sensing imagery to map the occurrence or estimate the severity of pest damage has been largely studied at the local scale in Canada2, and in pilot regions across the globe15. Since the consequences of pest outbreaks are often more gradual and less often stand-replacing compared to wildfires and harvesting, they have distinct spectral-temporal characteristics that help distinguish them from other disturbances18. These differences can be effectively leveraged using Landsat-based temporal segmentation approaches to detect insect pest outbreaks. For example, LandTrendr (Landsat-based detection of Trends in Disturbance and Recovery)19 has been applied to characterize insect pest disturbances in Oregon (USA)20, and British Columbia (Canada)15. Similarly, the CCDC (Continuous Change Detection and Classification) algorithm21 has demonstrated strong potential for capturing defoliation patterns in regions such as Alaska, western Canada22 and Italy23. Despite the availability of nationwide disturbance maps for Canada derived from remote sensing24,25,26, existing national maps do not include pest impact information. A few studies in Canada have incorporated pest outbreaks into a distinct class15,22,27,28, but they are spatially limited and target a restricted number of species. The spectral effects of each pest type vary depending on the host species and environmental conditions, which constrains model transferability29. Additionally, low defoliation intensity results in subtle spectral changes, increasing classification errors and confusion in remote sensing-based methods30. Another challenge arises, within a 30 m pixel, from the fact that defoliation does not affect all trees within a pixel uniformly or at the same time31, particularly in mixedwood forests2.

Recent deep learning methods have shown strong potential for handling time-series classification in the case of agricultural crop types32,33, land-cover mapping34,35,36,37,38 and forest disturbance detection28,39,40. In a previous study, Perbet et al.28 demonstrated that TempCNN and Transformer models effectively detect spruce budworm and hemlock looper outbreaks using temporal subsequences of 5, 7, or 10 years from summer Landsat composites of boreal forest across eastern Canada. It also allows for precise classification of wildfires and clear-cut, and moderate accuracy in identifying windthrow events. The subsequence approach is particularly valuable for operational monitoring, as it allows for annual updates with minimal computational effort and better efficiency to detect gradual disturbances. In addition, the use of temporal subsequences improves the ability to distinguish overlapping disturbances. The approach of Perbet et al.28 primarily detects severe and moderate cumulative defoliation, identifying areas with heavily defoliated or dead trees, while potentially missing early or light- to moderate -stage disturbances.

In this paper, we introduce 30 m resolution annual time series maps of forest disturbance focused on insect pest impacts from 1985 to 2024. To take advantage of the model’s classification performance and produce a comprehensive, up-to-date disturbance history for Canada, wildfires, harvests, and windthrow, which represent three other major disturbances, were also mapped. We focused exclusively on insect pests affecting coniferous trees, as deciduous species are generally more resilient to defoliation and are typically affected over smaller areas41. We first detail the training data sampling and modeling processes, followed by an assessment of map accuracy using multiple reference sources at different scales, including ground measurements at the plot level, and photo-interpreted imagery. Additionally, we analyze results based on severity, highlighting key findings and limitations.

Methods

Study area

To generate a consistent national-scale record of insect pest disturbances in Canadian forests, we produced remote sensing-derived maps covering 1985–2024. These maps span 909.4 Mha of land, of which 367 Mha is classified as forest. In this study, we targeted the most damaging insect pests of coniferous trees in the Canadian forest42. The targeted insect species can be grouped into three categories based on their needle loss dynamics: (i) Rapid defoliation progression (e.g., hemlock looper), characterized by rapid defoliation within a single year; (ii) Intermediate defoliation progression (e.g., mountain pine beetle, jack pine budworm, and spruce beetle), where canopy loss occurs over three to five years. In the case of spruce and mountain pine beetle, the defoliation is caused by tree mortality, however, these disturbances were included in this category because the spectral change occurs gradually20; (iii) and Gradual defoliation progression, prolonged disturbances spanning five to fifteen years, as observed with spruce budworm2,41. Figure 1 illustrates the aerial survey estimated geographic distribution and Landsat spectral-temporal characteristics of each targeted pest species.

Fig. 1
figure 1

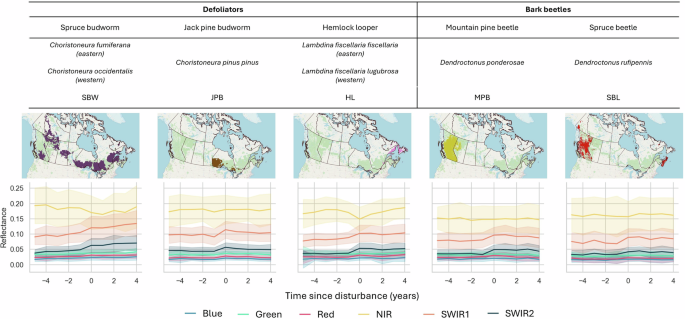

Illustration of the location of targeted pest outbreaks based on aerial surveys. The six coloured lines (Blue, Green, Red, NIR, SWIR1, and SWIR2) represent the median summer Landsat temporal trajectory of six spectral Landsat bands calculated from 500 random training points. Year 0 corresponds to the first year of insect detection in aerial surveys.

Full size image

Dataset

Training dataset

Since deep learning models require significantly larger datasets to achieve high efficiency compared to traditional machine learning methods, data preparation was a critical aspect of our study. At the pan-Canadian scale, substantial effort was dedicated to compiling and filtering input data to ensure high-quality training data that improves model performance. To ensure the model can detect subtle changes, such as defoliation, it was trained on a wide range of both disturbed and undisturbed classes. The reference dataset used for training and testing was compiled from multiple sources. The following section describes the classes, their data sources, and the criteria used to select reference points (Table 1).

Table 1 Classes used to train the TempCNN model.
Full size table

For each extracted pixel, we generated a ten-year subsequence of six Landsat spectral bands28. For classes representing change, the change event was randomly positioned within the subsequence, ensuring that it did not occur in the first year. This guarantees that the model is always exposed to a healthy forest state at the beginning of the sequence28.

Aerial surveys for insect pest classes

Training points of insect pest were randomly selected from a national polygon dataset compiled from aerial surveys between 1985 and 2022 conducted by all provinces and territories as part of pest monitoring programs. Aerial surveys are conducted to categorize current-year defoliation into severity classes (typically light: 11–30%; moderate: 31–70%; and severe: 71–100%). As aerial surveys tend to overestimate affected areas2, we selected pest training points within these areas according to the following strict criteria: (i) only polygons classified as medium or severe current-year defoliation were used; (ii) polygons were limited to a maximum size of 10,000 ha, as larger units were frequently found to encompass unaffected pixels; (iii) pixels overlapping urban areas, croplands, harvested areas, or burned areas were excluded using the North American Land Change Monitoring System (NALCMS)43,44 and CanLaD datasets25; and (iv) to ensure training points were located within coniferous forest, only pixels with at least 50% tree cover45, and classified as coniferous or mixed forest in the NALCMS43,44 were considered. Finally, we used a normalized burn ratio (NBR)46 time series to classify the spectral severity of the pest-affected pixel. NBR has proven to be sensitive to the detection of total19,47 and non-stand-replacing disturbances in Landsat time series28,48. From each selected pixel, we acquired the 10-year NBR subsequence with disturbance events occurring at the midpoint (5th year). From this NBR sequence, we detected NBR decrease (dNBR), where dNBR represents the difference between two subsequent years in the sequence. If a dNBR decrease lower than 0.1 was observed, the pixel was excluded from the reference dataset. The threshold of 0.1 was determined based on our expertise and on a previous study49 in order to minimize potential artifacts while still detecting low severity defoliation. We then derived three classes of severity based on the dNBR decrease as: (i) low severity when dNBR was greater than 0.1 and lower than 0.15; (ii) medium severity when dNBR was greater than 0.15 and lower than 0.25; and (iii) high severity when dNBR was greater than 0.25 (Fig. 2).

Fig. 2
figure 2

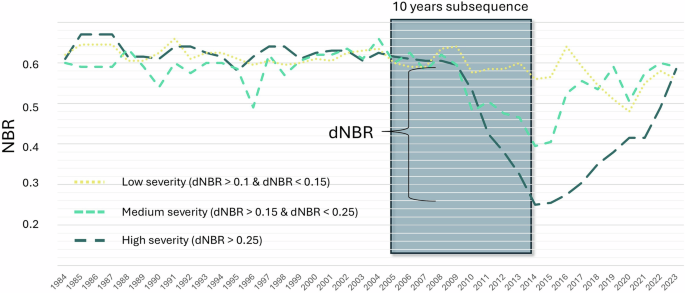

Illustration of the threshold for classifying severity based on the dNBR drop in the Landsat time series. From the ten-year NBR subsequence selected from the aerial survey, we calculated the dNBR and used it as a discriminator for the severity classes.

Full size image

Sources for non-insect classes

Quebec Forest Inventory

The operational forest inventory of the Quebec provincial government (eastern province in Canada), offers a collection of databases50 documenting all recorded disturbances since the 1970s, which were mapped using a combination of aerial imagery, satellite imagery, and field data. From this dataset, we randomly extracted training points for wildfires, total and partial harvesting, and windthrow, applying a 30 m inner buffer.

Photo-interpreted data

The Canadian National Forest Inventory51 is a probability sample using remote sensing plots (“photo plots”) that cover approximately 1% of the Canadian land mass. This program collects high-resolution imagery in 2 × 2-km plots every 20 km over Canada’s non-arctic ecozones52, which are then photo-interpreted to provide reliable forest and land cover information since 2000. The resulting polygons were used to randomly extract training points for the undisturbed control classes: forest, non-forest, and water classes. To complete the disturbance training dataset, photo-interpreted samples of harvesting, wildfire and windthrow from the previous CanLaD version were incorporated1.

Other remote sensing-based products for non-forested area

To minimize confusion between pest-related changes and other land cover changes, existing land cover maps were used to randomly extract training points. The NALCMS43,44 was used to identify and extract training pixels for the urban, crops, and rocks classes.

Synthetic signature for uncommon disturbances classes

To incorporate change classes for which no extensive datasets were available, we generated synthetic spectral trajectory subsequences. For crop, urban and road conversion, and water body expansion (mostly due to damming), we concatenated a 10-year sequence of healthy forest followed by a 10-year sequence of the target land cover class. Additionally, we aimed to enhance the detection of specific cases where pest outbreaks overlapped with other disturbances, such as wildfires and salvage logging. To address this, we created synthetic classes for pest-followed-by-fire and pest-followed-by-harvesting, combining pest outbreak subsequences with corresponding fire or harvesting spectral trajectories. Subsequently, the random ten-year subsequences required for training were extracted from these synthetic spectral trajectories. Based on our initial observations, we decided not to include crop, urban, and road conversions, treating them instead as undisturbed areas. Additionally, due to high confusion, pest-followed-by-fire events were reclassified as wildfires.

Landsat time series

A summer Landsat composite annual time series of Canada was prepared using the pixel with the best opacity53 from the Landsat Collection 2 Tier 1 image collection54, downloaded from Google Earth Engine55. Multiple Landsat sensors were used to produce these composites: (i) from 1984 to 2013 Landsat 5 with Multi Spectral Scanner (MSS) was used; (ii) from 1999 onwards Landsat 7 with Enhanced Thematic Mapper Plus (ETM+); (iii) from 2013 onwards Landsat 8 with the Operational Land Imager (OLI); and (iv) from 2021 onwards Landsat 9 with the OLI sensor.

Clouds and shadows were initially removed using the quality assessment band56 and the best pixel was selected based on either the opacity layer for Landsat 5 and 7, or the aerosol-based ranking in the QA band for Landsat 8 and 9. Residual clouds and cloud shadows not detected by the USGS QA bands were then removed using an additional cloud/shadow mask generated by a xgboost57 model in R. The summer composite is based on surface reflectance bands for July and August (blue, green, red, NIR (near-infrared), SWIR1 (shortwave infrared), and SWIR2).

Hybrid approach: the LandTrendr and TempCNN model design

The fixed ten-year window classification approach with TempCNN used in our previous work28 is somewhat sensitive to spectral artifact in the time series. This issue is particularly important at the end of the time series, where undetected clouds and shadows may lead to false detections. To address this limitation, we improved the original method of Perbet et al.28 by adjusting the starting year of the subsequence based on disturbance breaks identified by LandTrendr. The model design is thus divided in two steps, starting with LandTrendr disturbance detection, followed by TempCNN disturbance classification (Fig. 3).

Fig. 3
figure 3

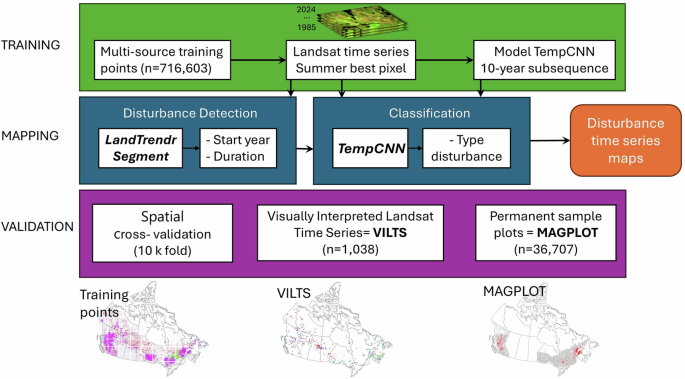

Flowchart of the methodology used in this study. MAGPlot refers to Multi-Agency Ground Plot, and TempCNN stands for Temporal Convolutional Neural Network.

Full size image

Step 1 – Disturbance Detection: LandTrendr is a segmentation method developed by Kennedy et al.19 to detect forest disturbance breaks in a Landsat time series using spectral indices15,20,58 or to produce synthetic time series53,59. In the first step of our approach, we used LandTrendr to detect the start and end of the potential disturbance segment. The starting year of the disturbance corresponds to the first year when the NBR decrease exceeds 0.1. The ending year of the disturbance is the last year of the corresponding segment. From the entire Landsat time series (1984–2024), we extracted the 5 most recent LandTrendr disturbance segments for each pixel. We only considered up to five decrease segments up to 2024, as a sixth break occurs in only 0.002% of Canada, and more than three overlapping disturbances are extremely rare within this 40-year period25. For each pixel and for each disturbance sequence lasting less than 10 years, we applied the classification step to attribute the type of disturbance.

Step 2 – Disturbance type classification: Temporal Convolutional Neural Network (TempCNN) is a one-dimensional convolutional network model adapted for pixel-based temporal analysis of remote sensing data. It has been successfully applied in agricultural crop32,33 and forest disturbance classification28. In this study, the input data are 10-year subsequences of 6 Landsat spectral bands: blue, green, red, NIR, SWIR1, and SWIR2. A ten-year subsequence was considered sufficiently long to capture multi-year defoliation, yet short enough to limit overlapping disturbances. The following model parameters, selected based on previous work by Perbet et al.28, include a kernel size of 3, hidden layer dimension of 64, and dropout of 0.4. Moreover, the model was trained for 50 epochs with a batch size of 64, weight decay of 1e−5 and a decreasing learning rate of 0.001 every epoch. To fine-tune the model and extract performance metrics, we separated the training points using a 66 tile regular grid across Canada, to apply spatial cross-validation60,61,62. The model was trained 10 times, with each iteration using 90% of the tiles for training and 10% for testing. To evaluated potential overfitting, four tiles were reserved for validation. The final model was trained using all available points. The TempCNN model was developed and trained on a workstation equipped with an NVIDIA RTX 2080 Ti GPU.

The TempCNN model was applied on a pixel-based 10-year subsequence, starting from the year before the LandTrendr-detected disturbance begins (Fig. 4). This allows TempCNN to capture the entire sequence of the disturbance effect on the spectral values, as well as any potential recovery effects. If the first year of the subsequence corresponds to missing data (due to clouds, shadows, or artifacts), the first available year with spectral information was used instead. For all breaks starting after 2015, the subsequence begins in 2015, as the model is trained on 10-year subsequences and can only operate with a full 10-year range.

Fig. 4
figure 4

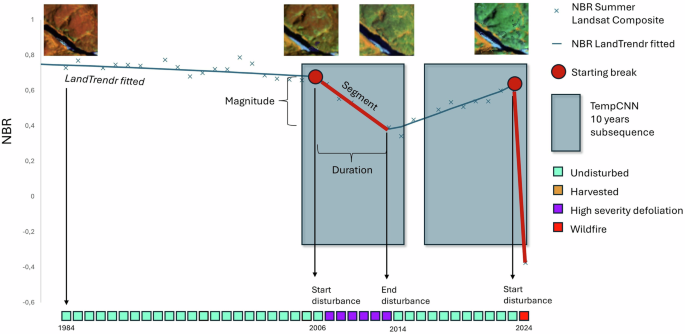

Illustration of the pixel-based method for detecting and classifying disturbances. From the Landsat NBR time series (blue x symbol), LandTrendr detects two starting break points (red points) of disturbance segments (red lines). A 10-year Landsat subsequence is extracted for each starting break point, which is then passed unto the TempCNN model for disturbance classification. Using the start and the end years of the LandTrendr segment and the classes predicted by TempCNN, a disturbance time series is created, with the type of disturbance for each year. In the case of rapid disturbances (wildfire, harvesting, windthrow), only the first year of the disturbance is retained in the time series. For pest disturbances, the information is preserved throughout the duration of the event, as defined by the LandTrendr segmentation.

Full size image

Using the TempCNN predicted disturbance type and the LandTrendr segment start and end years, we were able to create a yearly, pan-Canadian disturbance time series at the pixel level. When the predicted disturbance type is known to be rapid and stand-replacing, such as wildfire, total harvesting, windthrow, or water expansion, the disturbance is indicated for only one year in the time series. For wildfire classes, if missing data cause the LandTrendr segment to exceed more than 2 years, the starting year is set to the end year of the segment. In the case of multi-year defoliation, such as that caused by insect pests, the predicted type of disturbance is preserved throughout the duration of the disturbance segment, as defined by LandTrendr. The resulting time series was then used to perform the analyses described in the rest of this study.

The creation of the historical disturbance maps was made possible using the Government of Canada’s High-Performance Computing (HPC) service. The country was divided into approximately 2,000 tiles of 10,000 km² each to enable parallel processing. The complete workflow, from LandTrendr break detection to map production, takes approximately three days.

Data Records

The resulting maps are available on the Government of Canada open-data platform (https://doi.org/10.23687/902801fd-4d9d-4df4-9e95-319e429545cc)63. This project is in line with the original machine learning-based CanLaD initially developed nearly 10 years ago which did not include insect pest disturbance. The dataset presented here that was developed with a more powerful algorithm will replace the original CanLaD1,25 harvest and fire time series maps, and could be complemented with older disturbance data64.

The dataset includes:

In the parent folder: (i) the cartographic projection definition in WKT format (_projectionDefinitionWKT_lcccan83.prj), (ii) a raster containing the last Julian day of the time series, expressed as the number of days since January 1, 1970 (canlad_JJ_max.tif), (iii) two readme files in English and in French (_lisezmoi.txt and _readme.txt), (iv) a csv file with legend name and color of the disturbance types (legend_type.csv).

In the Disturbances_Latest folder: a combined raster of the latest disturbance type (canlad_1985_2024_latest_type.tif), along with the associated starting year of disturbance (canlad_1985_2024_latest_year.tif) and ending year of disturbance (canlad_1985_2024_ending_year.tif). For each raster, the corresponding pyramid file (.ovr), auxiliary information file (.aux.xml), and QGIS style file (.qml) are also provided.

In the Disturbances_Time_Series folder: annual rasters of disturbance type from 1985 to 2024 (canlad_annual_*.tif).

Raster class codes are: 1 = Wildfire; 2 = Harvesting; 3 = Windthrows; 4 = Water extension; 5 = Defoliation-followed-by-Harvesting; 6 = Low severity defoliation; 7 = Medium severity defoliation; 8 = High severity defoliation. The QGIS style file is available in the repository, as well as a csv file linking disturbance class codes and labels.

To reduce noise and correct classification artifacts, several post-processing steps were applied to the final maps. First, isolated disturbance pixels were removed using a 12-pixel sieve filter, with the sieve mask created based on a five-year moving window (affecting approximately 10% of the disturbed pixels). Second, pixels classified as harvesting or pest outbreaks inside wetlands determined according to the forest land cover class from the Spatialized Canadian National Forest Inventory (SCANFI)53, were removed. This filter affected approximately 2% of the disturbed pixels.

The data is licensed under the Creative Commons Attribution 4.0 International license.

Technical Validation

Two independent spatial-temporal validation analyses were carried out to assess the performance of the data product described in this study. First, we used a series of available permanent sample plots for validation across three provinces. Since these plots have restricted temporal (e.g., a specific year of measurement) and spatial range adapted for disturbance detection and classification, they could not be used to validate all our disturbance classes across all provinces and disturbance duration. To complement this, we developed an independent validation dataset by visually photo-interpreting pixel disturbance classes. Both validation efforts were conducted using the raw annual disturbance time series maps, prior to any post-processing. To reduce the influence of isolated pixels on performance metrics, all statistics were based on the majority class, comprising the 9 surrounding pixels around the validation points.

Multi-agency ground plot validation

We used the Multi-Agency Ground Plot (MAGPlot)65 database version 1.1 which is the Canadian forest ground-plot data repository that harmonizes contributed provincial and territorial permanent forest sample plots across Canada. Plots within this database typically cover an area of 400m2 and include individual tree species measurements and health conditions. We selected plots from the provinces of Ontario, British Columbia, and Quebec based on strict quality criteria, namely accurate plot geolocation, availability of defoliation data, and overall data abundance.

For each of the 52,712 ground plot measurements since 1985, we estimated the proportion of aboveground biomass (AGB) associated with trees impacted by defoliators in a plot, referred to as %AGB defoliated. To do this, the AGB of trees with a diameter at breast height (DBH) greater than 9 cm was individually estimated using the allometric models by Lambert et al.66 and Ung et al.67, based on DBH measurement. Then, the AGB of all coniferous trees inventoried as defoliated were summed to compute the defoliated AGB. The plot-level proportion of AGB defoliated was then calculated according to Eq. (1).

$$ \% {AGB\; defoliated}=\frac{\sum {AGB\; defoliated}}{\sum {AGB\; total}}\times 100$$
(1)

After applying a filtering approach (e.g., excluding deciduous defoliation, measurements with more than 80% dead trees from unknown disturbances, or plots with AGB lower than 50 t/ha), we analyzed 36,707 measurements (Quebec = 25,659; Ontario = 9,137; British Columbia = 1,914). Figure 5a illustrates the commission and omission errors as a function of the biomass defoliation percentage extracted from field data. Ground plots were grouped into 5 bins based on the percentage of AGB defoliated. Figure 5b shows the classification results of the defoliated pixels by severity category. We observed a decrease in omission errors and an increase in the number of pixels classified as medium or high severity in plots with more than 60% defoliation. These results indicate that low defoliation levels visible in the field are not well detected by the annual time series approach. The regular proportion of pixels classified as low severity across all bins suggests a weak correlation between the field-based defoliation and severity classes based on NBR drop.

A visual analysis of the 115 false detections (where defoliation was not recorded in field measurements but was detected by our model) revealed that in 70% of instances, spectral changes was visible in the Landsat time series. Additionally, 33% of these cases were also identified by aerial surveys conducted in the same year as the field visits. These results highlight the differences between field-based and remote sensing observations, since defoliation occurring in the upper canopy may not always be visible from ground-level measurements. These discrepancies also highlight the limitations of using permanent sample plots for validating remote sensing-based analyses, as they were not originally designed for defoliation monitoring.

Figure 5c shows the count of omitted detections categorized by error type. In most cases, the omission occurred because the LandTrendr approach failed to detect the target disturbance. As a result, these pixels were not processed by the TempCNN disturbance classification model. Omission is primarily related to the 0.1 NBR threshold selected for disturbance detection, which is insufficient for identifying low levels of defoliation.

Fig. 5
figure 5

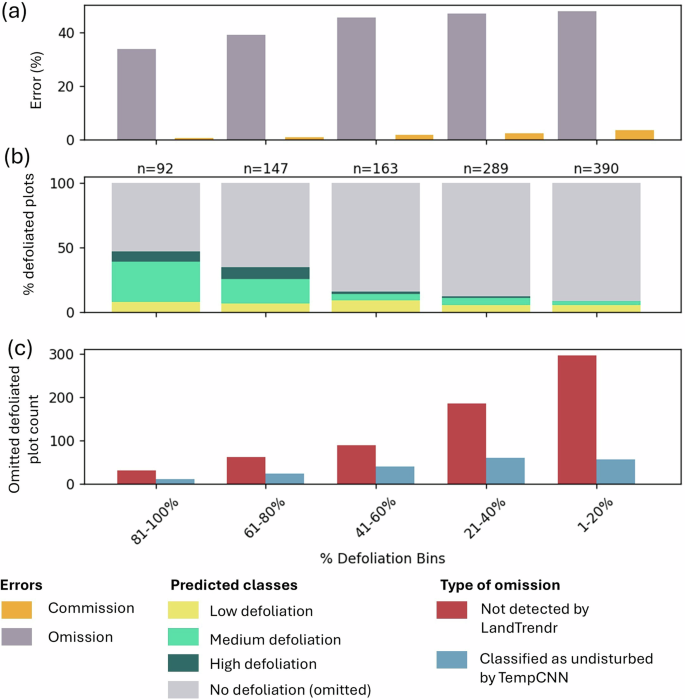

Validation using ground plot (MAGPLOT): (a) Omission and commission errors in defoliation classification, (b) predicted defoliation classes and (c) sources of omission errors per biomass defoliation percentage bins.

Full size image

Visually Interpreted Landsat Time Series validation Points (VILTS)

In order to have an independent validation dataset that was strictly established for remotely sensed disturbance validation, we created an additional photo-interpreted dataset based on the Landsat time series, the Visually Interpreted Landsat Time Series dataset (VILTS). Based on best practices outlined by Olofsson et al.68, we used a stratified random sampling with 1,100 sampling pixels to achieve a confidence level of 95% and a standard error of 0.02 for the pest class. VILTS points were automatically selected randomly using the resulting latest disturbance maps and the aerial survey polygons to enable species-level analyses. We made sure that those points were at least 200 m away from existing training points. The expert interpreter used Landsat summer imagery, NBR time series (Temporal/Spectral profile tool in QGIS), and high-resolution imagery freely available via Google Earth Pro to determine the class of disturbance, as well as the starting and ending years of the disturbance as proposed by Cohen and al.47. Since the severity and type of pest are extremely challenging to rigorously assess visually, only a single pest class was assigned by the interpreter. Samples that were difficult to interpret were not included in the final 1,073 VILTS points. We considered a prediction correct if the year predicted by our LandTrendr/TempCNN model overlapped with at least one visually photo-interpreted disturbance year.

Since the sum of the undisturbed pixels in the 40-year time series is significantly larger than any individual stratum, using adjusted accuracy metrics will result in excessive omission errors69. While the adjusted overall accuracy will appear greater, the omission error will not be interpretable. To address this issue, accuracy metrics and the confusion matrix for all classes was reported as count values (Table 2). The overall accuracy was 81% based on photo-interpreted points. Wildfire was the most accurate class, with an omission (missing detections) error of 17% and commission (false detections) error of 2%. Harvesting showed moderate accuracy, with 31% for omission and 14% for commission error. Windthrow had a greater level of error with 55% omission and 58% commission error, indicating a considerable level of false detections. For the pest classes, we found a reasonable commission of 19% but a greater omission of 52%.

Table 2 Confusion matrix of the Visually Interpreted Landsat Time Series dataset (VILTS) dataset.
Full size table

We followed the calculation methods of Stehman et al.70 for the aggregated pest/no-pest classes, and used stratified area estimates based on whether or not pest outbreak have been detected by aerial surveys since 1985. For medium and severe defoliation (dNBR > 0.15), the area adjusted overall accuracy was 90.0% ± 1.8%, with a commission error of 6.7 ± 3.5% and omission error of 41.0 ± 6.2% (Fig. 6a). We further analysed the percentage of omitted points based on the difference in NBR between the observed starting year and the final year of the outbreak (Fig. 6b). As expected, pixels with a small decrease in NBR (i.e. low severity outbreaks) are more frequently omitted.

Finally, temporal accuracy was assessed using the R² value between the LandTrendr-estimated date and the interpreter-observed date, for defoliated plots that were correctly detected. Figure 6c and d show strong agreement between the predicted and the photo-interpreted disturbance start (R2 of 0.96) and end year (R2 of 0.80). However, the ending year predicted was most of the time earlier than the photo-interpreted insect pest outbreak duration.

Fig. 6
figure 6

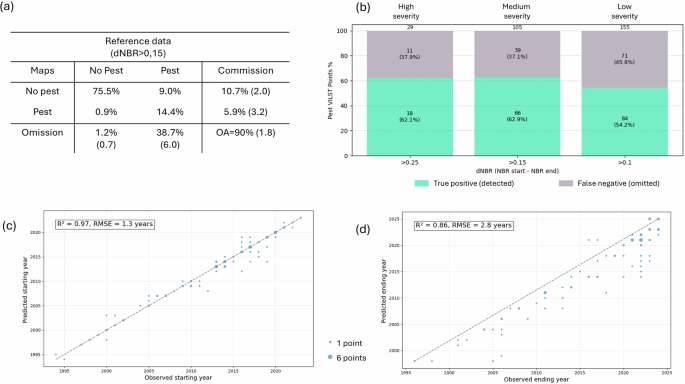

(a) Confusion matrix including medium and severe defoliation, with area adjusted values; standard errors are shown in brackets. (b) Bar plot showing the percentage of false negative (omissions) or true positive (correct prediction) for Visually Interpreted Landsat Time Series dataset (VILTS) points visually identified as pest defoliation, as a function of the dNBR. The dNBR was calculated from VILTS points between the visually estimated date of start and end of defoliation. (c) Scatterplot of predicted versus observed starting years for the correctly classified defoliated VILTS points. (d) Scatterplot of predicted versus observed ending year for the defoliated points. Point size indicates the number of overlapping VILTS points.

Full size image

Comparison with other national forest datasets

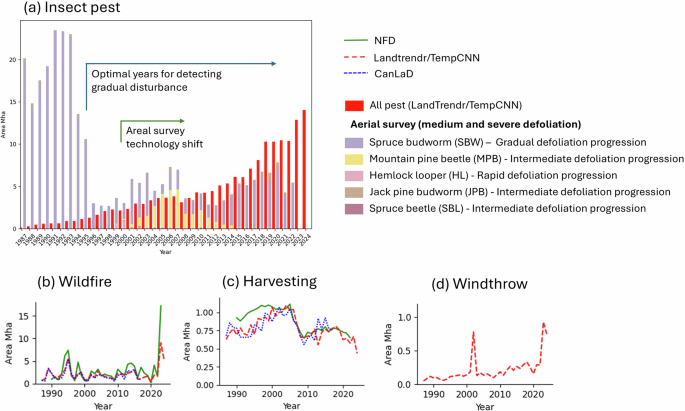

Figure 7 presents the impacted area over the year of the main disturbances classes compared to the National Forestry Database17 (NFD) between 1990 and 2022 (or 2023 for the wildfire as it was already available) for the whole of Canada. For insect pests (Fig. 7a), we present the annual aerial survey area of medium and severely defoliated tagged polygons, compared to our model predictions. Major observations highlighted by the figure include two peaks of spruce budworm activity: one from the early 1970s until 1995 (primarily in eastern Canada) and another between 2013 and 2020 (in Quebec). Additionally, there was a peak of mountain pine beetle activity between 2004 and 2008 (British Columbia). The first spruce budworm peak recorded by aerial surveys is likely overestimated due to the coarse digitization methods used prior to the adoption of onboard tablet technology2. Nevertheless, this peak was not captured by our model. Given the gradual spectral signature of spruce budworm outbreaks, the starting year of the outbreak predates the time series. Since our model relies on detecting changes relative to a baseline of healthy forest conditions, it failed to consistently detect this large spruce budworm outbreak. Consequently, this result suggests that reliable historical mapping of pest outbreaks using this method becomes realistic only after approximately 10 years into the time series. After 1995, the trend in area impacted by pests from our model more closely match the aerial surveys. We observed the peak of the mountain pine beetle outbreak around 2005 and the recent spruce budworm outbreak in eastern Canada.

We found a clear correspondence between our maps and the NFD for wildfire (Fig. 7b). In 2023, our model underestimated the land area impacted by fire, likely due to the temporal mismatch between this record-breaking fire season, which extended into the fall71, and the Landsat summer composites used. As a result, the peak in wildfire area in 2024 thus includes a part of the area affected by the 2023 wildfires. The delay of detection is a limitation of using the summer composite time series already shown in several studies18,29. For harvesting (Fig. 7c), the annual area disturbed is comparable only after 2005. For windthrow events (Fig. 7d), although no national database exists to validate our data, the 2003 peak aligns with a snow damage event in Ontario72, and the 2023 peak corresponds to the impact of Hurricane Fiona in Nova Scotia73. These windthrow peaks are notable as they nearly match the annual harvested area in terms of impact.

Fig. 7
figure 7

Area impacted by various disturbances over time according to our methodology (dashed red line), the National Forest Database (NFD; green line) and the Canada Landsat Disturbance data product of Guindon et al.25 (CanLaD; dashed blue line). Figures (a–c) are based on the detected disturbance starting year, while Figure (d) is derived from time series data, which highlights the gradual impact of pest outbreaks. As our approach requires a healthy year at the beginning of the sequence, the major spruce budworm outbreak from the 1970s to 1995 was not detected. The optimal years for detecting gradual disturbances are indicated by the blue arrow.

Full size image

Aerial survey visual comparison

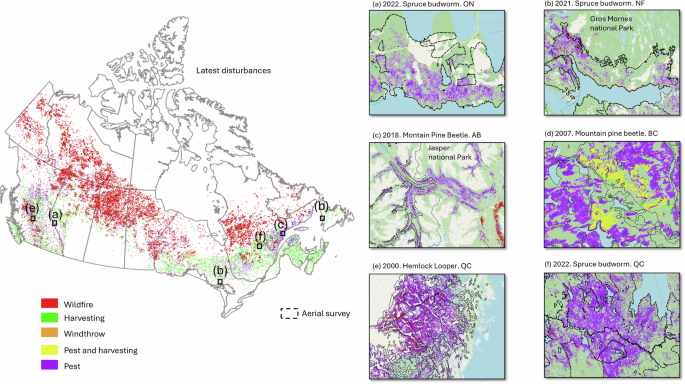

Figure 8 shows the latest disturbance maps from 1985 to 2024, along with yearly regional examples overlaid with the corresponding aerial survey polygons. Overall, our results show that aerial survey polygons overestimated the damage extent compared to the disturbance maps derived from remote sensing. For instance, in southern Ontario and eastern Newfoundland (a and b), the aerial survey includes large non-forested areas (beige color) that are correctly classified as undisturbed by our remote sensing model. In Fig. 8c, we show how this data product detects missing insect pest outbreaks outside the boundaries of existing aerial surveys (e.g. Jasper National Park). Figure 8d highlights detections of salvalge logging following severe mountain pine beetle outbreaks in British Columbia. Example 8e shows how the severe hemlock looper outbreak in Quebec, which tends to be misclassified as fire in other remotely sensed disturbance detection products, was mostly classified as an insect pest outbreak. Figure 8f demonstrates the detection of the recent spruce budworm outbreak in Quebec.

Fig. 8
figure 8

Latest disturbances map and yearly regional examples (a to f) displayed over OpenStreetMap87, with corresponding aerial survey polygons for the same year (in dash black outlines).

Full size image

Forest disturbance is a natural part of boreal and temperate forest ecosystem dynamics, although climate is expected to have repercussions for the severity and patterns of these disturbances74,75. Based on this new method of detecting disturbance across Canadian forests, 36% of Canada’s forest area has been impacted by disturbance between 1985 and 2024. Of that, 19% of forest was impacted by fire, 8% due to pests, 2% due to windthrow and 8% due to harvesting activities. Disturbance has been detected at least once for 31% of the forest area in Canada, with 5% having experienced overlapping (multiple) disturbances. Disturbance has not been detected for 69% of the forest area in Canada during the analysis period.

Usage Notes

Uncertainty and limitations

A single national forest disturbance model ensures spatial consistency and facilitates annual map updates. However, this approach may lead to uncertainties, given the ecological variability across Canada’s regions, seasonal differences in vegetation phenology, and the distinct spectral and temporal signatures of disturbance types, especially insect pest outbreaks. Users should be aware of the following limitations when interpreting and using these maps. Even though our methodology fails to reliably detect low-severity insect pest outbreaks, national-scale carbon modeling focuses primarily on severe defoliation events that lead to reduced growth or tree mortality. As we have shown, such moderate to severe events are consistently detected by our model. Unfortunately, the 10-year analysis window, combined with the requirement that forest conditions appear healthy at the start of this period, limits our ability to detect defoliation events that occurred before 1995. Similarly, this limitation has minimal impact on potential large scale ecological applications involving pest interactions. Caution is advised when using these maps as a substitute for aerial surveys, since our model is less effective in detecting recent or low-severity defoliation events. As highlighted in previous studies using Landsat time series59,76,77,78, the end of the sequence may cause increased confusion due to the limited information available to the model regarding the disturbance recovery trajectory, hampering the model’s ability to accurately distinguish between real disturbances and spectral noise. For this reason, the most recent years in the historical maps may exhibit greater commission errors, potentially leading to misinterpretation.

Potential applications

With an overall classification accuracy of 90% between the aggregated pest and non-pest classes, these historical Canadian disturbance maps, using a consistent mapping methodology, provide a comprehensive portrait of the importance of forest pests in Canadian forest ecosystem dynamics. These maps highlight regions where defoliation can hinder tree growth and contribute to tree mortality, providing valuable inputs for studies in forest dynamics, ecology, and carbon modeling13.

Furthermore, these new data can aid in understanding interactions between forest ecology dynamics and forest management activities, such as those between wildfires and pests79,80, moose browsing81, bird migration82, and habitat of woodland caribou83. In addition to traditional harvested and fire classes, the inclusion of a pest disturbance class can enhance understanding of the drivers of forest cover loss or change, particularly in analyses conducted at biome or global scales45,84,85,86.
