From: A single-center 3D reconstruction image dataset for exploring inferior mesenteric artery and vein types

Fig. 5

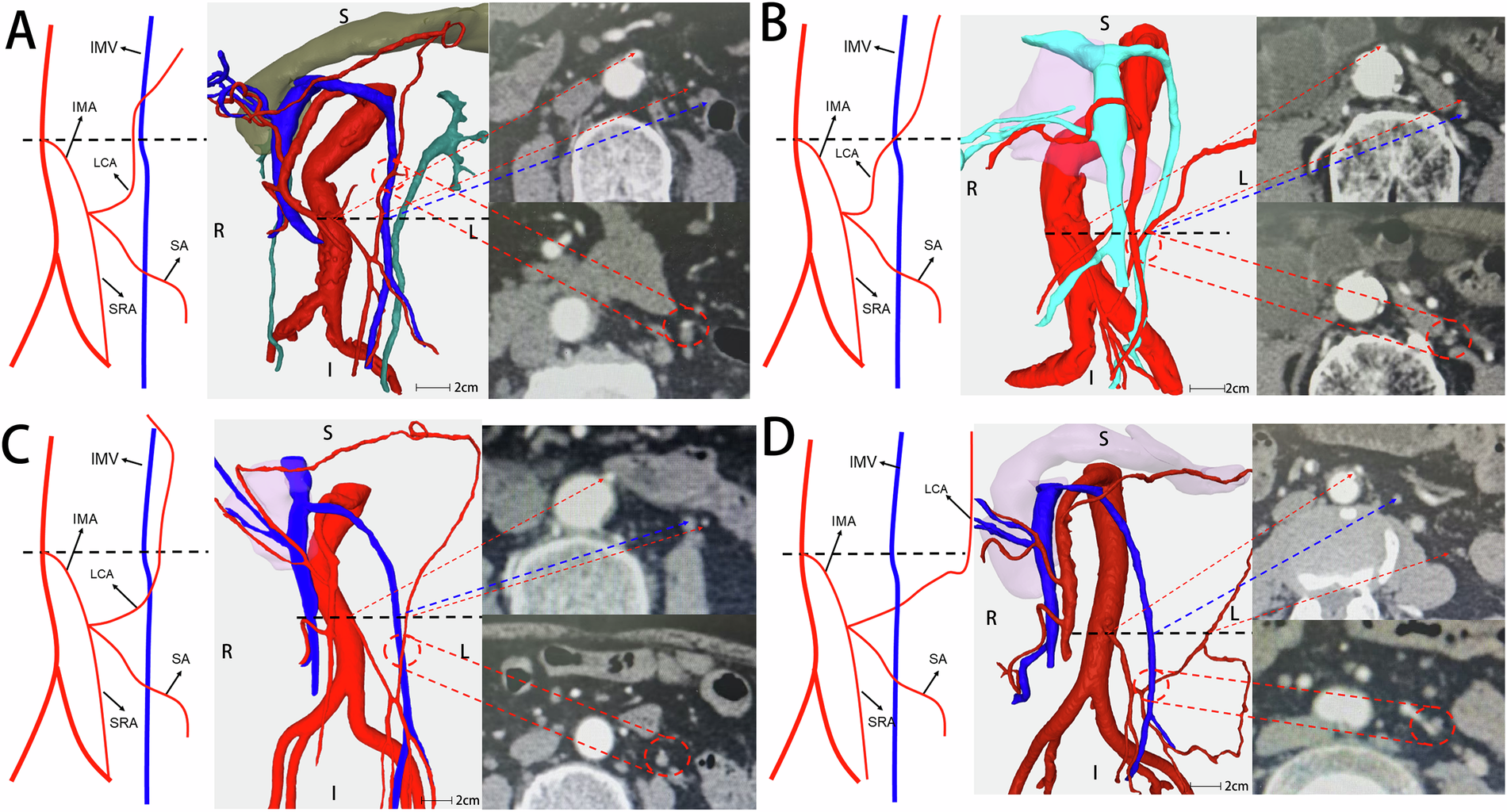

Schematic diagram (left), 3D reconstructed image (middle), and enhanced CT image (right) of IMA Type III (LCA, SA, and SRA all branch jointly from the IMA). (A) Lateral type (6.12%): LCA located close to the lateral side of the IMV. (B) Crossing type (7.48%): LCA and IMV showing a crossing course. (C) Medial type (10.88%): LCA located close to the medial side of the IMV (distance ≤ 15 mm). (D) Distant type (5.44%): LCA located distantly on the lateral side of the IMV (distance > 15 mm). The enhanced CT images are in the axial plane. Red represents arteries, and blue represents veins.
