Background & Summary

The large intestine is one of the major digestive tract organs and colorectal cancer (CRC) is one of the most prevalent malignancies of the digestive tract, significantly compromising individuals’ health and quality of life1,2. According to research statistics, approximately 70% CRC are located in the left-side, including the splenic flexure, descending colon, sigmoid colon, and rectum3. The inferior mesenteric artery (IMA) arises from the abdominal aorta, located between the L2 and L4 vertebrae, and primarily supplies the left side of the colon and the upper portion of the rectum4. Usually, IMA has three branches: the left colic artery (LCA), which primarily supplies the descending colon and splenic flexure; the sigmoid arteries (SA), which primarily supply the sigmoid colon; and the superior rectal artery (SRA), which primarily supplies the upper portion of the rectum. During the surgical procedures of laparoscopic left-sided colon or rectal resection, it is crucial to meticulously handle the IMA and complete lymph node dissection (D3)5,6,7,8. For example, in laparoscopic anterior resection of the rectum, completing D3 lymph node dissection at the root of IMA while preserving LCA, though challenging, can reduce the incidence of postoperative complications9,10. For patients with tumors located in the descending colon or sigmoid colon, selectively preserving the SAR or SA during surgery can help reduce the incidence of postoperative complications11,12. For non-neoplastic colonic conditions, such as, inflammatory bowel disease and colonic diverticula, while lymphadenectomy is not required during surgery, careful management of the IMA branches is essential to ensure sufficient blood supply to the remaining colon and the anastomosis13,14.

According to relevant studies, the IMA commonly exhibits four types or variations. In Type I, the LCA branches off early and separately from the IMA, followed by the SA and SRA branching together from the IMA. In Type II, the LCA and SA initially branch together from the IMA, while the SRA branches independently from the IMA. In Type III, the LCA, SA, and SRA all branch together from the IMA. In Type IV, the LCA is absent, with only the SA and SRA present5,15. In addition, some studies also showed that the anatomical relationships between the LCA and the IMV can be classified into four types16,17,18. In detail, medial type, the LCA ascends closely along the medial side of the IMV; overlapping type: LCA and IMV exhibit a crossing course; lateral type, the LCA ascends on the lateral side of the IMV (with a distance less than 15 mm); distant type, the LCA ascends on the lateral side of the IMV and is far away from the IMV19. Some studies also focus on the crossing relationship between the LCA and IMV, specifically including the type where the LCA runs across above the IMV and the type where the LCA is located dorsal to the IMV17. Overall, the complex anatomical classifications of the IMA/IMV and potential anatomic variation significantly increase surgical risks and present great challenges for the surgeon.

K. Wang5 has previously studied the application of preserving the LCA in rectal cancer (RC) surgery through three-dimensional (3D) reconstruction. J. Chen20 has investigated the impact of different IMA classifications on the preservation of the LCA using enhanced computed tomography (CT) scan. Although the aforementioned studies are excellent and have certain clinical significance, their data and figures are not open source. This limitation restricts the ability of other researchers to validate findings, conduct further analyses, and apply these insights to related studies. Open-source data promotes greater transparency, reproducibility, and collaboration across the scientific community. By making data and figures openly accessible, researchers can build upon existing work, explore new hypotheses, and accelerate the pace of discovery.3D reconstruction visualization and 3D printing technology can be utilized for medical, including medical education and training, anatomical research, personalized implants, preoperative simulation and intraoperative navigation, assisting surgeons in selecting the appropriate surgical plan21,22. 3D reconstruction and 3D printing technology offer significant advantages in studying the classification of the IMA. These techniques provide precise, high-resolution anatomical images, detailing the structure of the IMA and its branches, aiding in the accurate understanding of its anatomical variations and classification. Additionally, 3D printing technology can materialize the reconstructed anatomical structures, allowing researchers and clinicians to observe and manipulate physical models from different angles, enhancing the intuitive understanding of the IMA structure. In our previous retrospective studies, we found that 3D reconstruction and 3D printing of IMA models are beneficial for surgeons in preoperative simulation, allowing for the formulation of individualized treatment plans and intraoperative navigation to accurately locate key vessels. In laparoscopic rectal cancer surgery, these techniques have been shown to effectively reduce surgical risks and complexity23. According to this datasets research, we found that 3D-reconstructed IMA/IMV images provide a more effective platform for researchers to observe, share, and disseminate findings. This approach also offers significant advantages for advancing future research into the detailed anatomy of the IMA/IMV. As the first study to apply 3D reconstruction and 3D printing technology for exploring the anatomical classification of the IMA/IMV, this work effectively fills the existing gap of insufficient 3D datasets focusing on the IMA and IMV. Furthermore, we have made these 3D images open source to facilitate future research by other investigators. By making the data accessible, we aim to foster greater collaboration across the scientific community, accelerate advancements in anatomical research, and contribute to the improvement of clinical outcomes in colorectal surgery.

Methods

Data collection

Patients who underwent surgical treatment for rectal cancer, sigmoid colon cancer, and descending colon cancer at Fuyang City People’s Hospital were included between January 2022 and May 2025. The high-resolution imaging data from RC patients undergoing abdominal surgery were collected for investigating the types of the IMA/IMV. This study utilized contrast-enhanced CT scans, which provide detailed visualization of vascular structures. In addition, the clinical characteristics (age, height, weight, gender) of patients were collected. Inclusion criteria: (1) Patients aged ≥ 18 years; (2) Presence of clear preoperative enhanced-CT imaging data; (3) Underwent laparoscopic surgery with intraoperative exposure of the IMA/IMV-related vessels; (4) Availability of surgical videos, images, or detailed surgical records documenting the vascular classification; (5) Provided signed informed consent. Exclusion criteria: (1) Lacking or losing clinical or imaging data; (2) History of prior surgeries that may have altered the vascular anatomy; (3) Comorbidity with schizophrenia or other mental health disorders, lack of independent behavior ability, or inability to cooperate with treatment. This study was approved by the Ethics Committee of Fuyang City People’s Hospital (NO: [2024] 203). All study participants signed an informed consent form, permitting data collection for this study.

3D Reconstruction and printing

Enhanced CT scans were acquired with the following parameters: slice thickness of 0.625 mm, tube voltage of 120 kV, tube current of 250–300 mA, and contrast agent (iopromide injection) administered at a dose of 1.5 mL/kg body weight with an injection rate of 3.0–3.5 mL/s. The arterial phase images were imported in DICOM format into 3D modeling software (3D Slicer 5.2.2) for 3D reconstruction. The abdominal aorta (AA), left iliac artery, right iliac artery, IMA, LCA, SA, SRA, IMV and related artery/vein and organs were manually selected for segmentation and 3D reconstruction. And the required arteries and veins were selected and marked in the transverse, sagittal, and coronal planes in sequence. The surface of the 3D virtual model was refined through a smoothing process. After confirmation by another 3D reconstruction technician that there were no reconstruction errors, the IMA model was 3D-printed using a high-precision SLA 3D printer with white resin material. The 3D printing models were subsequently cured, polished, and color-coded, with red representing the arteries and blue representing the veins. Finally, the 3D printing models was ultimately confirmed by surgeons during the operation.

Classification of IMA and IMV Types

The intraoperative data were particularly valuable for accurately classifying the types of IMA and IMV. Surgeons assessed the IMA/IMV types and anatomical variations by enhanced CT and 3D reconstruction. The classification of IMA and IMV types was validated through real-time observations, comparison with operation videos or images, surgical records, as well as 3D reconstruction images and 3D-printed models.

IMA Classification

The IMA can be classified into four types:

Type I: The LCA branches off early and independently from the IMA, while the SA and SRA branch jointly from the IMA.

Type II: The LCA and SA branch together from the IMA, and the SRA branches independently from the IMA.

Type III: The LCA, SA, and SRA all branch jointly from the IMA.

Type IV: The LCA is absent, with only the SA and SRA branching from the IMA.

IMV Classification

The IMV has two kinds of classification types.

  1. 1.

    By spatial structural relationship among the LCA, IMA and IMV, it can be categorized into four types:

LCA medial type: LCA close medial to IMV, DLCA < DIMV;

LCA overlapping type: LCA and IMV exhibit a crossing course, DLCA = DIMV;

LCA lateral type: LCA close lateral to IMV, DLCA > DIMV and DLCA − DIMV ≤ 15 mm.;

LCA distant type: LCA distantly lateral to IMV, DLCA − DIMV > 15 mm.

2. By crossing relationship between the LCA and IMV, it can be categorized into two types:

Type A: The LCA crosses over the IMV.

Type B: The LCA passes beneath the IMV.

Observation index

Patients’ basic characteristics, including gender, age, height, weight, the length of the IMA trunk, the classification of IMA/IMV were collected. We defined the length of the IMA trunk as the distance from the abdominal aorta to the first branch of IMA (origin of LCA or SRA, usually). Subsequently, we collected and conducted an analysis of additional factors. These encompassed the duration of the operation, the amount of blood loss during the operation, the quantity of lymph nodes dissected, and the incidence of lymphatic vessel and nerve invasion. Moreover, we took into account the depth of tumor invasion (T stage), the presence of lymph node metastasis (N stage), hospitalization duration, postoperative recovery duration (the time from the end of operation to discharge from the hospital) and the occurrence rate of postoperative complications such as anastomotic leakage, intestinal obstruction, and wound infection. Finally, we uploaded the relevant observational data and reconstructed 3D images as attachments for data open access.

Institutional review board statement

The study was reviewed and approved by the Institutional Review Board of Fuyang City People’s Hospital (NO: [2024] 203).

Informed consent statement

All study participants provided informed written consent prior to study enrollment.

Data Records

The dataset is available at IMA/IMV 3D-reconstructed images dataset24. This dataset includes the gender, age, height, weight, BMI, T and N stages, as well as links to 3D reconstructed images, for a total of 147 included cases. In detail, between January 2022 and May 2025, a total of 165 patients with CRC who underwent laparoscopic radical resection, sigmoid resection or left hemicolectomy were included. Among them, 11 patients who lost the imaging data or clinical data were excluded. In addition, 5 patients who underwent abdominal operation before and were further excluded. 2 cases were excluded due to poor quality of the CT scans. Finally, a total of 147 eligible patients (63 female and 84 male) were collected and were completed with the 3D construction and printing (Fig. 1). The baseline data was shown in Table 1. Among the 147 included patients, there were 82 males and 65 females; the average age was 66.94 ± 13.07 years. According to the IMA classification, there were 73 cases of Type I, 22 cases of Type II, 44 cases of Type III, and 8 cases of Type IV. The clinical characteristics of patients with the four IMA types are presented in Table 2.

Fig. 1
Fig. 1
Full size image

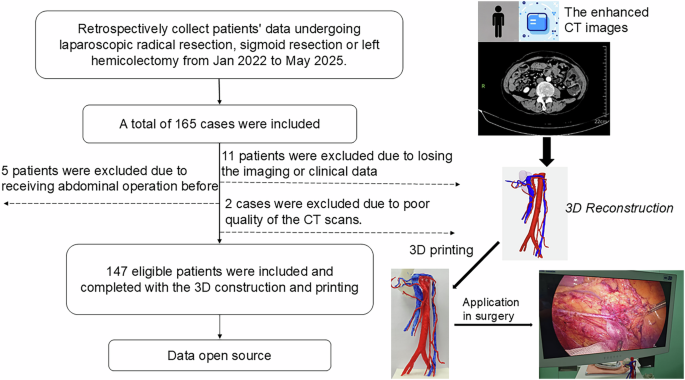

The design and flowchart of this study.

Table 1 The baseline data of patients.
Full size table
Table 2 Clinical characteristics and comparative analysis of the four inferior mesenteric artery types.
Full size table

Technical Validation

To assess the quality of the image dataset, we compared the 3D reconstruction models and 3D-printed models with intraoperative operation images, as well as preoperative and postoperative contrast-enhanced CT images. As shown in Fig. 2, the 3D reconstructed images and 3D-printed models are highly consistent with the actual intraoperative anatomy, which indicates that both the 3D images and 3D-printed models have a high degree of reliability.

Fig. 2
Fig. 2
Full size image

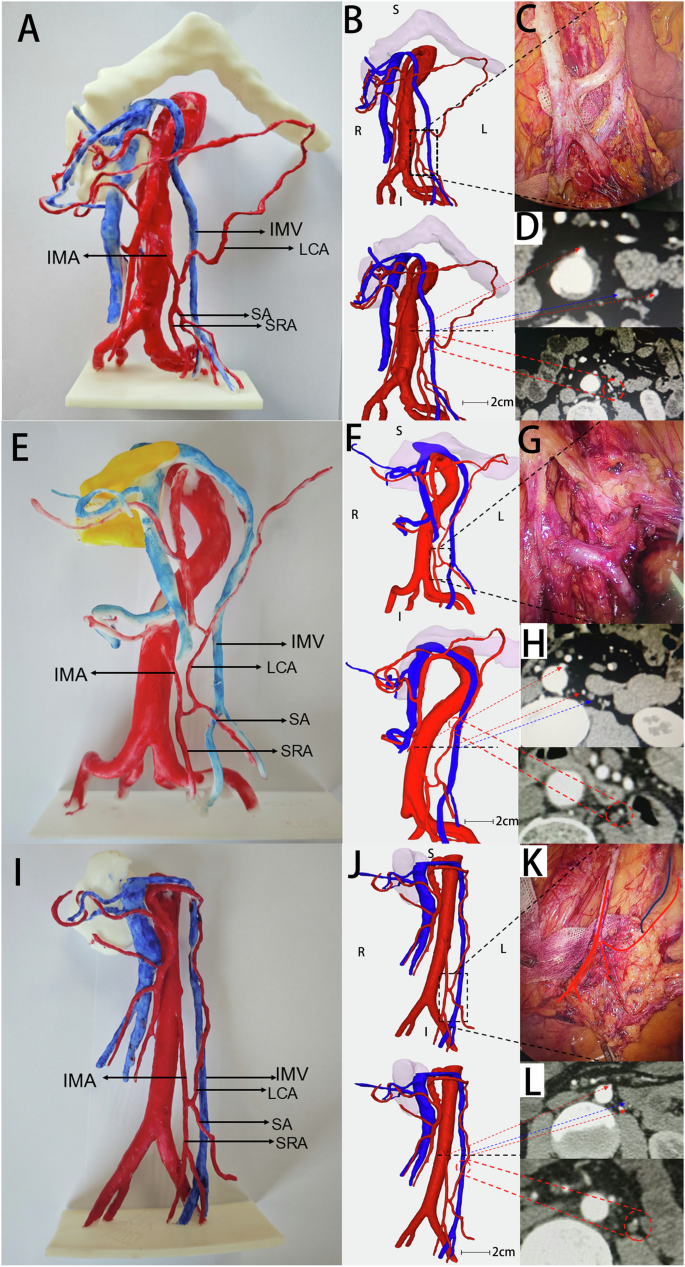

Comparison of three-dimensional (3D) printed models and 3D reconstructed images of the inferior mesenteric artery and vein (IMA/IMV) and their surrounding organs with enhanced computed tomography (CT) images and intraoperative photographs, demonstrating the excellent accuracy of 3D reconstruction images and 3D-printed models. (A) 3D-printed model of IMA Type I; (B) 3D reconstructed image of IMA Type I; (C) Intraoperative real anatomical photograph of IMA Type I; (D) Enhanced CT image of IMA Type I (Axial). (E) 3D-printed model of IMA Type II; (F) 3D reconstructed image of IMA Type II; (G) Intraoperative real anatomical photograph of IMA Type II; (H) Enhanced CT image of IMA Type II (Axial). (I) 3D-printed model of IMA Type III; (J) 3D reconstructed image of IMA Type III; (K) Intraoperative real anatomical photograph of IMA Type III; (L) Enhanced CT image of IMA Type III (Axial). Red represents arteries, and blue represents veins.

Typing result of IMA and IMV

Based on the classification of the IMA and the spatial structural relationship among the LCA, IMA, and IMV, we conducted relevant statistics and presented the results. As shown in Fig. 3, statistical data reveal that there were 73 cases of Type I in total (the LCA branches independently from the IMA, while the SA and SRA branch jointly from the IMA), accounting for 49.66%.

Fig. 3
Fig. 3
Full size image

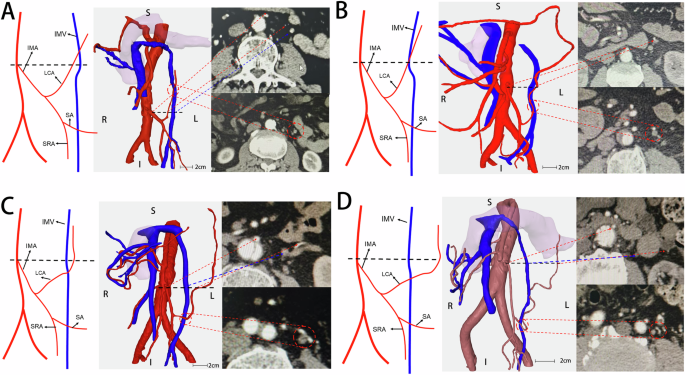

Schematic diagram (left), 3D reconstructed image (middle), and enhanced CT image (right) of IMA Type I (the left colic artery (LCA) arising solely from the main trunk of the IMA, (49.66%)). (A) Lateral type (12.24%): LCA located close to the lateral side of the IMV. (B) Crossing type (16.32%): LCA and IMV showing a crossing course. (C) Medial type (17.01%): LCA located close to the medial side of IMV (distance ≤ 15 mm). (D) Distant type (4.08%): LCA located distantly on the lateral side of IMV (distance > 15 mm). The enhanced CT images are in the axial plane. Red represents arteries, and blue represents veins.

Furthermore, among these cases, the subtypes were distributed as follows:

Lateral type (LCA located close to the lateral side of IMV): 18 cases, accounting for 12.24% (Fig. 3A);

Crossing type (LCA and IMV showing a crossing course): 24 cases, accounting for 16.32% (Fig. 3B);

Medial type (LCA located close to the medial side of IMV): 25 cases, accounting for 17.01% (Fig. 3C);

Distant type (LCA located distantly on the lateral side of IMV, with a distance >15 mm): 6 cases, accounting for 4.08% (Fig. 3D).

In addition, as shown in Fig. 4, there were 22 cases of Type II in total (the LCA and SA branch together from the IMA, and the SRA branches independently from the IMA), accounting for 14.97%. And the subtypes were distributed as follows:

Fig. 4
Fig. 4
Full size image

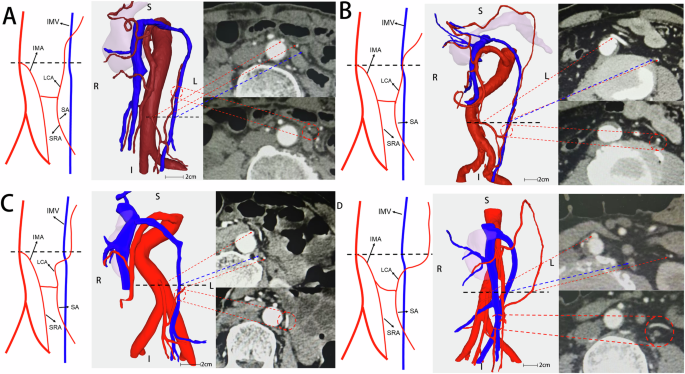

Schematic diagram (left), 3D reconstructed image (middle), and enhanced CT image (right) of IMA Type II (LCA and sigmoid artery (SA) branching conjointly from the main trunk of the IMA, with the superior rectal artery (SRA) branching independently from the IMA). (A) Lateral type (5.44%): LCA located close to the lateral side of the IMV. (B) Crossing type (4.08%): LCA and IMV showing a crossing course. (C) Medial type (4.08%): LCA located close to the medial side of the IMV (distance ≤ 15 mm). (D) Distant type (1.36%): LCA located distantly on the lateral side of the IMV (distance > 15 mm). The enhanced CT images are in the axial plane. Red represents arteries, and blue represents veins.

Lateral type: 8 cases, accounting for 5.44% (Fig. 4A);

Crossing type: 6 cases, accounting for 4.08% (Fig. 4B);

Medial type: 6 cases, accounting for 4.08% (Fig. 4C);

Distant type: 2 cases, accounting for 1.36% (Fig. 4D).

In addition, as shown in Fig. 5, there were 44 cases of Type III in total (The LCA, SA, and SRA all branch jointly from the IMA), accounting for 29.93%. And the subtypes were distributed as follows:

Fig. 5
Fig. 5
Full size image

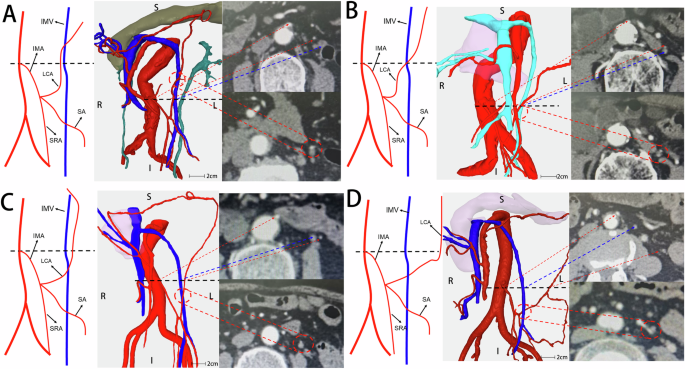

Schematic diagram (left), 3D reconstructed image (middle), and enhanced CT image (right) of IMA Type III (LCA, SA, and SRA all branch jointly from the IMA). (A) Lateral type (6.12%): LCA located close to the lateral side of the IMV. (B) Crossing type (7.48%): LCA and IMV showing a crossing course. (C) Medial type (10.88%): LCA located close to the medial side of the IMV (distance ≤ 15 mm). (D) Distant type (5.44%): LCA located distantly on the lateral side of the IMV (distance > 15 mm). The enhanced CT images are in the axial plane. Red represents arteries, and blue represents veins.

Lateral type: 9 cases, accounting for 6.12% (Fig. 5A);

Crossing type: 11 cases, accounting for 7.48% (Fig. 5B);

Medial type: 16 cases, accounting for 10.88% (Fig. 5C);

Distant type: 8 cases, accounting for 5.44% (Fig. 5D).

Besides, there were 8 cases of Type IV in total (The LCA is absent, with only the SA and SRA branching from the IMA), accounting for 5.44% (Fig. 6). Based on the crossing relationship between the LCA and IMV, our statistical analysis showed the following: there were 111 cases where the LCA crossed over the IMV, accounting for 79.86% (Figs. 3–5); and 28 cases where the LCA passed beneath the IMV, accounting for 20.14% (Fig. 7A,B). In total, our dataset is consistent with previous related high-quality research data15,16,17,19. Furthermore, this dataset is the first to present the anatomical morphology of the IMA and IMV in the form of 3D visualization, with the complex spatial anatomical relationships between the IMA and IMV also successfully demonstrated in detail. For the limitations, we honestly acknowledge the following points. First, this is a single-center retrospective study, and the sample is derived from CRC patients, which may limit the generalizability of the dataset to healthy populations or patients with other digestive system diseases. Second, the dataset does not include long-term follow-up data of patients, so it cannot reflect the correlation between IMA/IMV anatomical types and long-term surgical outcomes. Finally, due to technical constraints, the dataset does not provide quantitative parameters such as vascular wall thickness and blood flow velocity, which may restrict certain in-depth biomechanical research.

Fig. 6
Fig. 6
Full size image

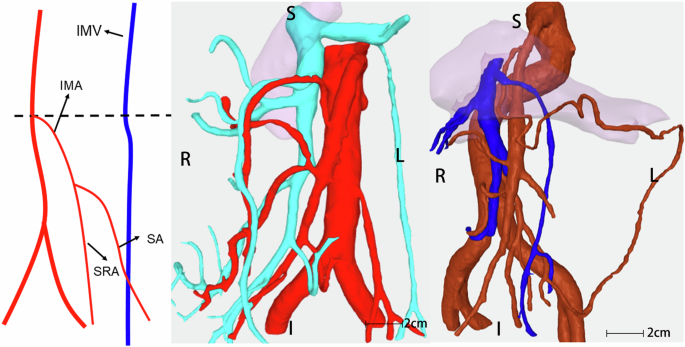

Diagram and 3D reconstruction image display of IMA Type IV, in which the LCA is absent and only the SA and SRA branch from the IMA, accounting for 5.44%. Red represents arteries, and blue represents veins.

Fig. 7
Fig. 7
Full size image

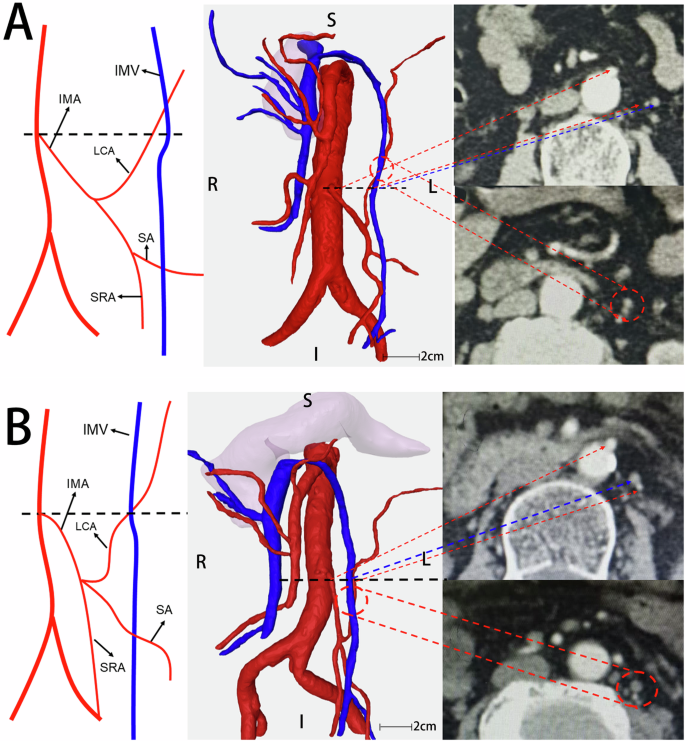

Schematic diagram (left), 3D reconstructed image (middle), and enhanced CT image (right), showing the LCA running beneath the IMV, with this type accounting for 20.14%. The enhanced CT images are in the axial plane. Red represents arteries, and blue represents veins.
