Fig. 6
From: Chromosome-level genome assemblies of two maize inbred lines with contrasting plant architectures

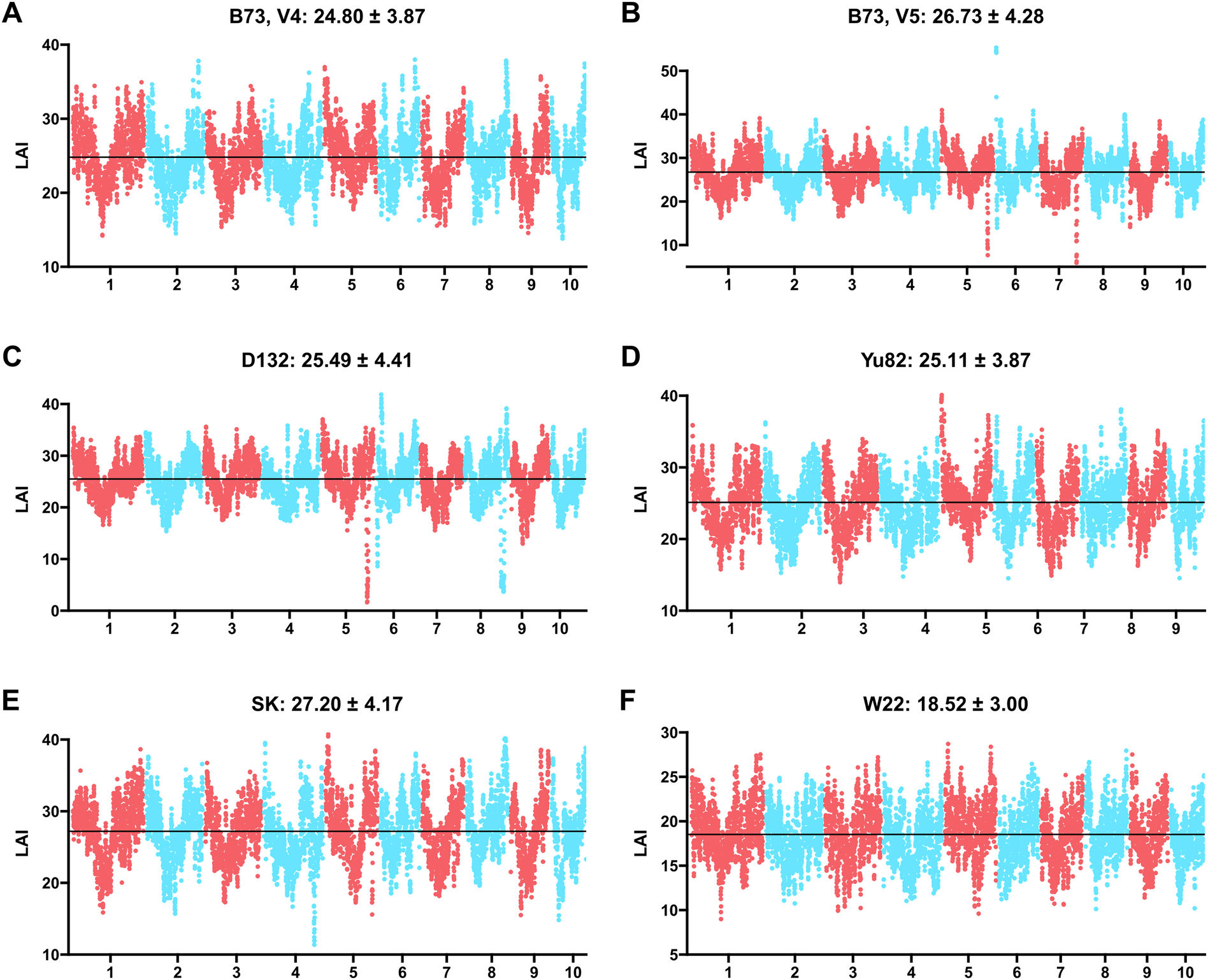

Assessment of genome assembly quality using the LTR Assembly Index (LAI). The LAI scores for B73 v4 (A), B73 v5 (B), D132 (C), and Yu82 (D) are shown. The mean and standard deviation of LAI scores across the genome are indicated at the top left of each plot.
