Fig. 1
From: Chromosome-level genome assembly of the deep-sea solemyid bivalve Acharax haimaensis

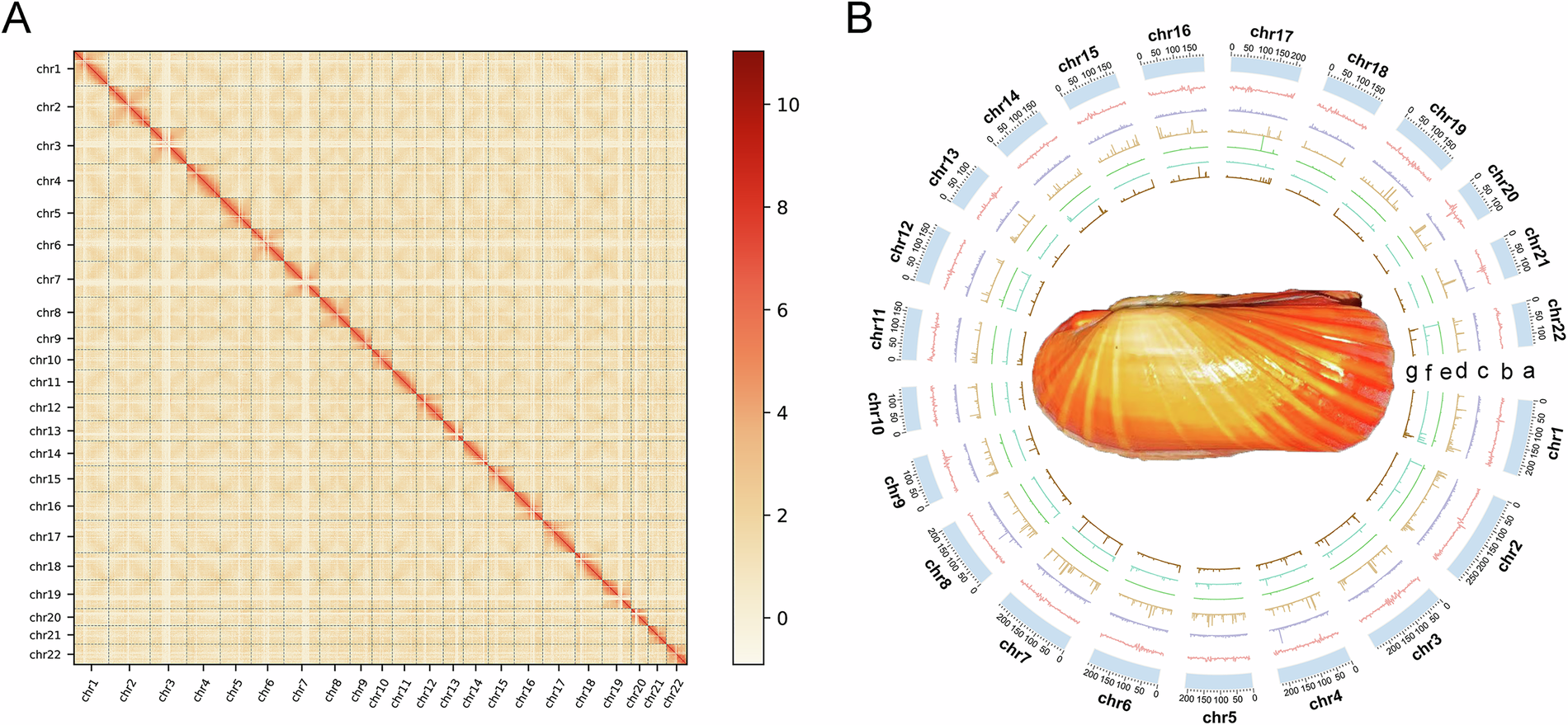

Genomic characteristics of A. haimaensis. (A) Hi-C contact heatmap of chromosome interactions. The scale bar indicates interaction intensity from yellow (low) to red (high). (B) Circos view of the assembled chromosomes showing marker distributions at 1-Mb sliding windows from outer to inner circle: (a) chromosome length, (b) GC content, (c) gene density, (d) long interspersed nuclear element (LINE) density, (e) short interspersed nuclear element (SINE) density, (f) long terminal repeat (LTR) density, and (g) DNA transposon density.
