Introduction

Hydrogen sulfide (H2S), known as a colorless, flammable and water-soluble gas with the distinctive smell of rotten eggs, has drawn attention as an environmental hazard for many decades. It can be contacted in the oil and gas industry, agriculture, sewage and faeces treatments, infrastructure construction including asphalt operations, marshy terrain development and other settings1. Even worse, suicide by H2S inhalation is an emerging trend in some countries2. So it’s no strange that H2S is a highly toxic gas-second only to carbon monoxide as a cause of inhalational deaths3. Studies have proved that H2S could disturb people’s eyes, respiratory system and central nervous system when inhaled at a low concentration. While at a high concentration, it could cause permanent brain damage, even death on account of a respiratory failure by binding with cytochrome oxidase4, 5. However, the current situation that H2S poisoning having few specific histopathological findings was often hard to be diagnosed, made a confine in the field of forensic identification, especially for the analysis of H2S as a supporting evidence to the diagnosis of H2S poisoning in forensic identification6, 7. Therefore, developing a simple, selective and sensitive detection method for H2S poisoning biosample is urgent and popular, no matter for the establishment of an accurate treatment for victim, or a qualitative and quantitative analysis for the poisoning death.

Currently, several methods have been used to measure H2S, including high pressure liquid chromatography (HPLC)8, methylene-blue and gas chromatography/mass spectrum (GC/MS)9 and electrochemical sensors10. However, there are some disadvantages in detection system, respectively. Method based on HPLC was limited in the application of biosamples with the lack of capability to a real-time measurement11. Methylene-blue and GC/MS, which may be the most widely used method for the detection of H2S, but their detection sensitivities are low at concentrations(>1 µM) and need long incubation time (with more than 30 min) and sophisticated pretreated procedures12. In spite of electrochemical sensor providing high sensitivity, it needs to overcome the difficulties in removing harmful substances and proteins during detection13.

Recently, great attention has been paid to fluorescence sensor due to its simple operation, high selectivity and sensitivity compared with the above methods. Various metal materials including gold, silver and copper have been widely used to construct fluorescence systems to detect various analytes14,15,16. Recently, DNA-templated metal nanoclusters (NCs) fluorescence probes have enormous advantages, such as excellent photostability, good biocompatibility and sub-nanometer size. Thus, fluorescent DNA-metal nanoclusters  have extensively been used in biomedical application17,18,19. For instance, DNA-templated silver nanocluster probe was reported to detect in-solution multiplex miRNA20. Double-strand DNA (dsDNA) can act as a template for synthesis of CuNCs, which was used to distinguish the deletion or duplication genotypes21. These performances really make metal nanoclusters as a strong candidate for bio-sample rapid detection.

Due to the serious toxicological effects of H2S and the shortage of the current detection method, many researchers have developed different kinds of agents to deliver H2S in animal models22,23,24. Among the various researches, the sodium salts (NaHS and Na2S) were most widely and simply used to administer S2− which was the major lethal component of H2S25,26,27. In this study, we choose the DNA-templated copper/silver nanocluster (DNA-Cu/AgNCs) as a fluorescence probe to develop the selective fluorescence sensor for rapid detection f S2− in the H2S poisoning blood. DNA was used as the template for synthesis and stabilization of copper/silver bimetal nanoclusters. We then employed the DNA-Cu/Ag NCs to selectively detect S2− on the basis of their specific interactions between Cu2+/Ag+ ions and S2−. The selectivity of the DNA-Cu/Ag NCs toward S2− were evaluated. The analytical characteristics of the as-prepared fluorescence sensor are discussed in detail, including the linear range and accuracy. Moreover, the practical feasibility of this fluorescence sensing system was further validated by detecting biosamples of H2S poisoning blood, and the satisfied results were obtained.

Materials and Methods

Chemicals and apparatus

AgNO3(99.99%), NaBH4(98%), CuNO3(99.99%), Na2S, NaOH, NaSiO3, Na2CO3, NaCl, NaClO4, NaF4, NaHCO3, NaHSO4, NaNO3, CH3COONa, Na2SO3 and NaHSO3 were obtained from Sigma-Aldrich. The DNA sample (5′-CCCTTAATCCCC-3′) was separately purchased from Shanghai Sangon Biotechnology Co. Ltd. (Shanghai, China). Adult male Kunming (KM) rats (20 ± 2 g) were obtained from Shanghai Laboratory Animal Co. Ltd. Other reagents were of analytical grade and used without further purification.

All fluorescence measurements were recorded on a fluorescence spectrophotometer (Hitachi, F-4600) using a 350 μL quartz cell. The emission spectra of DNA-Cu/AgNCs were recorded from 500 nm to 675 nm. Both the emission and the excitation slits were set to 10 nM, the scanning speed was 240 nm min−1. The UV−vis absorption spectra were obtained on an UV−vis spectrophotometer (Shimadzu, UV-2450). The prepared DNA-Cu/AgNCs was analyzed by using a Titan G2 60-300 transmission electron microscope (TEM, FEI, USA). FT-IR spectrograms were received by a Nicolet 6700 FT-IR spectrometer & microscope. The gas chromatography/mass spectrum (GC/MS) experiments were carried out with GC/MS system (Agilent, 7890B/5977 A).

Establishment of H2S poisoned mouse model and sample preparation

To establish the H2S poisoned mouse model, we used the Na2S as a donor. Prior to conducting the experiments, a pre-test was carried out in order to increase the accuracy and efficiency of experiment. We set a series of Na2S with different doses (2 mg, 3 mg, 4 mg, 5 mg, 6 mg) based on other reports to find the precise lethal concentration of S2−  27, 28. By using intraperitoneal injection technique, every mouse body-weight about 20 g was randomly injected with different dose Na2S mentioned above diluted by 0.1 mL normal saline. And we found the lethal dose here was about 6 mg and all the mice would die in 3 minutes after injected.

In the subsequent experiment, the H2S poisoning mouse model was established (Fig. 1 ). 35 mice from the same batch whose weight about 20 g were randomly divided with two groups: model group (n = 33) and control group (n = 2). Different doses of Na2S (5 mg, 6 mg, 7 mg, 8 mg, 9 mg, 10 mg, 11 mg, 12 mg, 13 mg, 14 mg, 15 mg) were injected intraperitoneally to mice from the model groups. Each reaction dose set three parallel experiments with the same handling. Finally, blood samples were collected by removing eyeball method into heparinized 1.5 mL polythene tubes 3 minutes later and sealed preservation at −4 °C until analysis.

Figure 1
Figure 1
Full size image

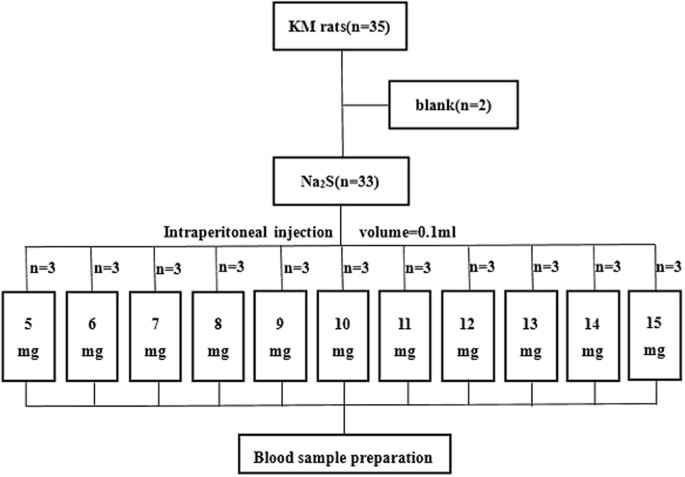

Experimental design for blood samples of H2S poisoning.

Synthesis of DNA-Cu/AgNCs probes

The DNA-Cu/AgNCs probes were prepared according to the previous literature procedure29. Briefly, 45 μL of 1 mM AgNO3 and 45 μL of 1 mM CuNO3 were added into 100 μL of 50 μM DNA and mixed together sufficiently. After put in an ice bath for 15 min, 30 μL of 2 mM NaBH4 was quickly added into the mixture, and the final solution was incubated at indoor temperature in the dark for 2 h before use.

Fluorescence detection of S2− using DNA-Cu/AgNCs probes

To develop this analytical method based on fluorescence sensing between DNA-Cu/AgNCs probes and S2−, the optimal conditions, including the pH and reaction time, were conducted anteriorly. The fluorescence reactions between 30 μL of 100 nM Na2S and 50 μL of DNA-Cu/AgNCs probes were detected at different pH values from 5.5 to 8.0 and different reaction time from 1 min to 12 mins for the optimal response conditions, respectively. Subsequently, fluorescence spectra were recorded to verify the quantitative, selective and biocompatible ability of DNA-Cu/AgNCs probes. On the one hand, 30 µL of Na2S solutions with different concentrations from 1 pM to 50 mM were added into 50 μL of DNA-Cu/AgNCs probes solution in order to investigate the quantitative ability of probe. On the other hand, to judge the selectivity of the DNA-Cu/AgNCs probes, 10 μM of various sodium salts including NaOH, NaSiO3, Na2CO3, NaCl, NaClO4, NaF4, NaHCO3, NaHSO4, NaNO3, CH3COONa, Na2SO3, NaHSO3 and Na2S were added into DNA-Cu/AgNCs probes and the fluorescence responses were detected under the same conditions mentioned above. Finally, to investigate the practical feasibility, hydrogen sulfide poisoned mice blood samples from different lethal doses were diluted to 50 folds, where 30 μL diluted blood samples containing various H2S concentration were added into 50 μL of DNA-Cu/AgNCs respectively.

Data Availability

The datasets generated during and/or analysed during the current study are not publicly available due to there is no corresponding database, but are available from the corresponding author on reasonable request.

Results and Discussion

Detection principle of S2− based on DNA-Cu/AgNCs probes

The proposed fluorescence sensing mechanism for detection of S2− was shown in Fig. 2. In this detection system, the DNA-Cu/AgNCs fluorescence probes were synthesized with DNA template (5′-CCCTTAATCCCC-3′)29. The proposed DNA sequence enriched in ‘C’ and ‘T’ may have affinity to the silver atoms and copper atoms, respectively, which has enabled the production of DNA-Cu/AgNCs with excellent fluorescence properties30, 31. As shown in the Fig. 3, the synthetic DNA-Cu/AgNCs probes displayed strong fluorescence emission at 568 nm when excited at 500 nm. Whereas, once a solution containing S2− was introduced, the structure of fluorescence DNA-Cu/AgNCs probes was changed because sulfide ions have strong affinity with silver and copper atoms. The structural changes induced greatly quenching the fluorescence of DNA-Cu/AgNCs. Therefore, the concentration of S2− can be detected quantitatively via the change of the fluorescence intensity detected by DNA-Cu/AgNCs.

Figure 2
Figure 2
Full size image

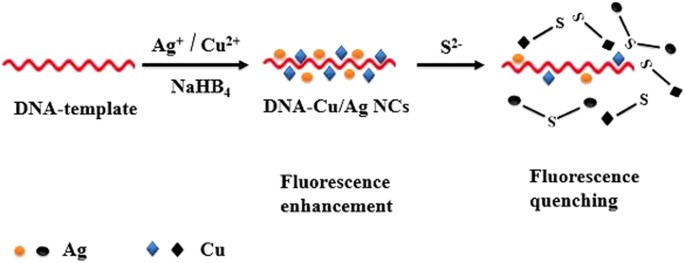

Schematic illustration of the fluorescence sensor for determination of S2− based on DNA-Cu/AgNCs.

Figure 3
Figure 3
Full size image

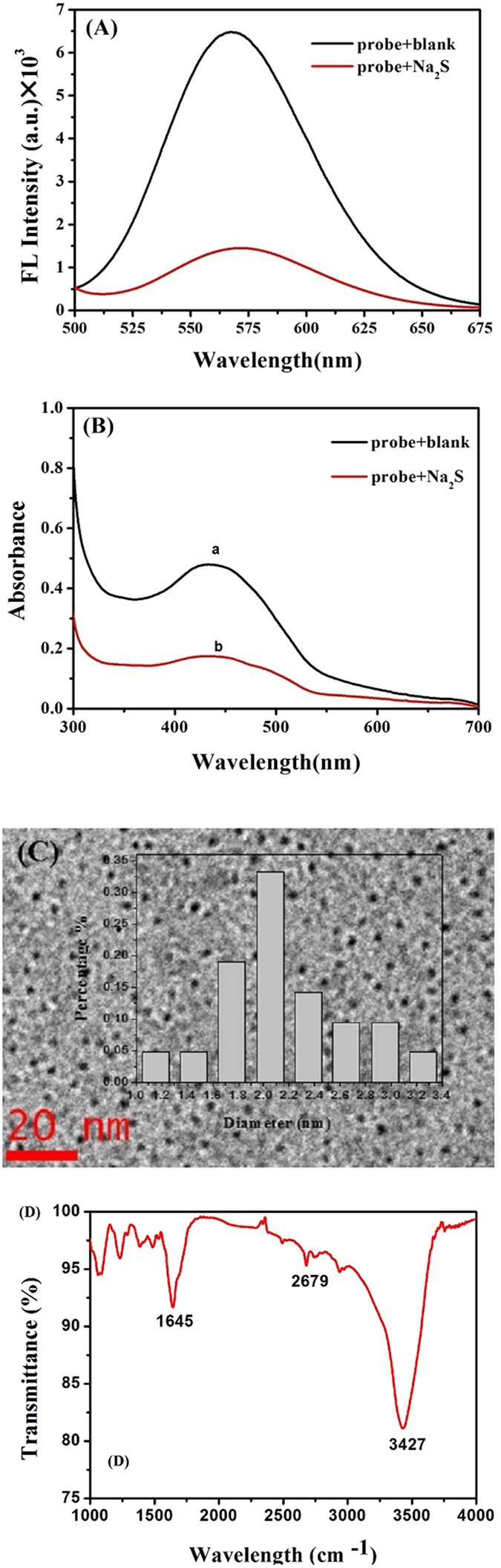

(A) Excitation wavelength of DNA-Cu/AgNCs and its corresponding fluorescence intensity in the absence and presence of Na2S. (B) UV- spectra recorded from DNA-Cu/AgNCs probes before (a) and after (b) the addition of 100 µM Na2S. DNA-Cu/AgNCs probes at pH 7.0 with 10 minutes’ incubation. (C) TEM image of the DNA-Cu/AgNCs, the inset showed the corresponding size distribution diagram. (D) FT-IR spectrum of DNA-Cu/Ag NCs.

Characteristics of DNA-Cu/AgNCs probes

In order to get the information of DNA-Cu/AgNCs probe, four different techniques were used to characterized the DNA-Cu/AgNCs probe. Firstly, the fluorescence spectra of the prepared DNA-Cu/AgNCs were recorded from the spectrophotometer. As shown in Fig. 3A, we can distinctly achieve that the DNA-Cu/AgNCs probes have a strong fluorescence intensity of 6418 a.u. (excited at 500 nm), being in accordance with prior study29. Secondly, UV-vis spectra of DNA-Cu/AgNCs probes were recorded as Fig. 3B to further explore the mechanism that DNA-Cu/AgNCs probes worked as the model fluorescent probe for Na2S. As can be seen in Fig. 3B, the absorption peak at about 450 nm decreased after the addition of 30 μL of 100 μM Na2S. These results indicated that the fluorescence quenching of DNA-Cu/AgNCs probes was induced by the reaction between S2− and DNA-Cu/AgNCs, according to the reports that S2− has a strong binding affinity to copper and silver32, 33. Moreover, TEM and FT-IR of DNA-Cu/AgNCs probes have been investigated and showed in the Fig. 3C and D, respectively. As shown in Fig. 3C, the DNA-Cu/AgNCs were mostly spherical in shape and had an average size of 2.0 ± 0.2 nm without large nanoparticles or aggregation, which was in agreement with literature34. The surface chemistry of alloy NCs was confirmed by FT-IR spectroscopy (Fig. 3D ). The band at 3427 cm−1 corresponded to the -OH stretching and the band around 1645 cm−1 arose from the C = O stretching35. In addition, no S-H bond stretching appeared at 2568 cm−1, which implied that the sulfhydryl (-SH) has bounded to silver atoms and copper atoms to form a complex. These results indicated that DNA as the template protected the DNA- Cu/Ag NCs successfully36.

Optimization of fluorescence response

For a precise study of the performance of DNA-Cu/AgNCs probes for the detection of S2−, the influences of pH value and incubation time in response system had been evaluated by the change of fluorescence intensity. As presented in Fig. 4A, the fluorescence intensities of DNA-Cu/AgNCs probes for Na2S had a strongest decrease at pH 7.0. Also, we can see from Fig. 4B that the fluorescence intensity apparently dropped to the lowest point at 10 minutes and held stable later. Therefore, pH 7.0 and 10 minutes of reaction time interval were selected as the optimal experimental conditions to attain the best effective utilization. These also probably implied that we didn’t need to prepare a special reaction condition or wait too long for a consequence based on this DNA-Cu/AgNCs probe, and it indeed made much sense when we run into an emergency and bad situation in practice.

Figure 4
Figure 4
Full size image

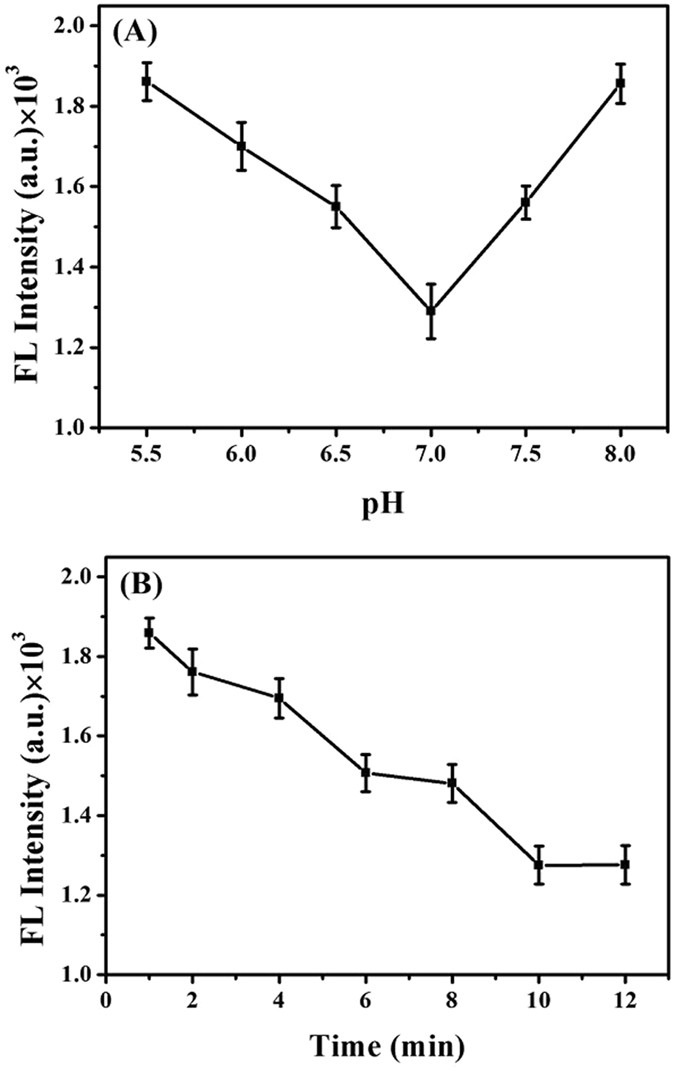

(A) pH dependence of the fluorescence sensor under the following conditions: 30 µL of 100 µM Na2S mixed with 50 µL of DNA-Cu/AgNCs at various pH values from 5.5 to 8.0, incubated for 10 min at indoor temperature. (B) Reaction time dependence of the fluorescence sensor under the following conditions: 30 µL of 100 µM Na2S was added into 50 µL of DNA-Cu/AgNCs with different reaction time from 1 min to 12 min, incubated with pH 7.0 at room temperature.

Selectivity of DNA-Cu/AgNCs probes

Verification experiments of selectivity for S2− were conducted over other twelve kinds of common cation ions including NaOH, NaSiO3, Na2CO3, NaCl, NaClO4, NaF4, NaHCO3, NaHSO4, NaNO3, CH3COONa, Na2SO3, NaHSO3 (Fig. 5). As shown from Fig. 5, the fluorescence intensity with the addition of S2− decreased obviously, while all the other anion ions used above did not produce such obvious fluorescence reduction as much as Na2S in comparison. The fluorescence change (F0-F) of the sensor in the presence of Na2S is 5377 a.u., which was much higher than other ions, where F0 and F were the fluorescence intensity of the DNA-Cu/AgNCs solution without and with analytical substances, respectively. Such a phenomenon manifested that the DNA-Cu/AgNCs probe has good selectivity for S2− free from strong interferences of various small molecules in common sample, which can make it a feasible sensor in complex samples.

Figure 5
Figure 5
Full size image

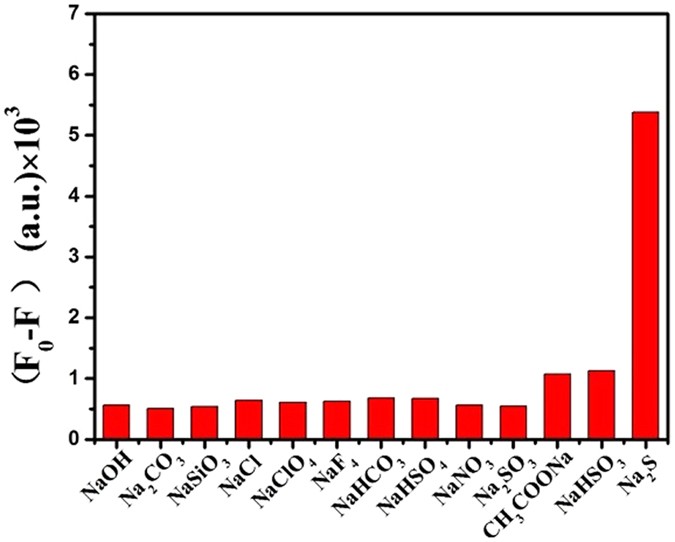

Selectivity of the probes was described through comparison of fluorescence intensity change of thirteen different anions, where F0 and F correspond to the fluorescence intensity of DNA-Cu/AgNCs in the absence and presence of analytical substances. All measurements were done in the same condition. 30 µL of various anions of 100 µM was respectively added into 50 µL of DNA-Cu/AgNCs.

Quantitative analysis of S2−

Under the optimal conditions, the performance of this fluorescence sensing system was evaluated by adding various concentrations of Na2S (1 pM to 50 mM) to the DNA-Cu/AgNCs solution (Fig. 6). As illustrated in Fig. 6A, the result showed the fluorescence intensity decreased with increasing concentrations of S2− from 10 pM to 1 mM. When the S2− concentration was larger than 1 mM or smllar than 10 pM, fluorescence intensity kept a minimum or maximum value, and then reached a plateau. The plot of the fluorescence intensity as a function of the S2− concentration was shown in Fig. 6B. The linear equation can be described as Y = −0.432 lg[S2−] + 0.675 (R2 = 0.9844). The limit of detection (LOD) was estimated to be about 3.75 pM, according to the 3σ (standard deviation) rule, which was much lower than the concentration reported in the previous studies2, 6, 37.

Figure 6
Figure 6
Full size image

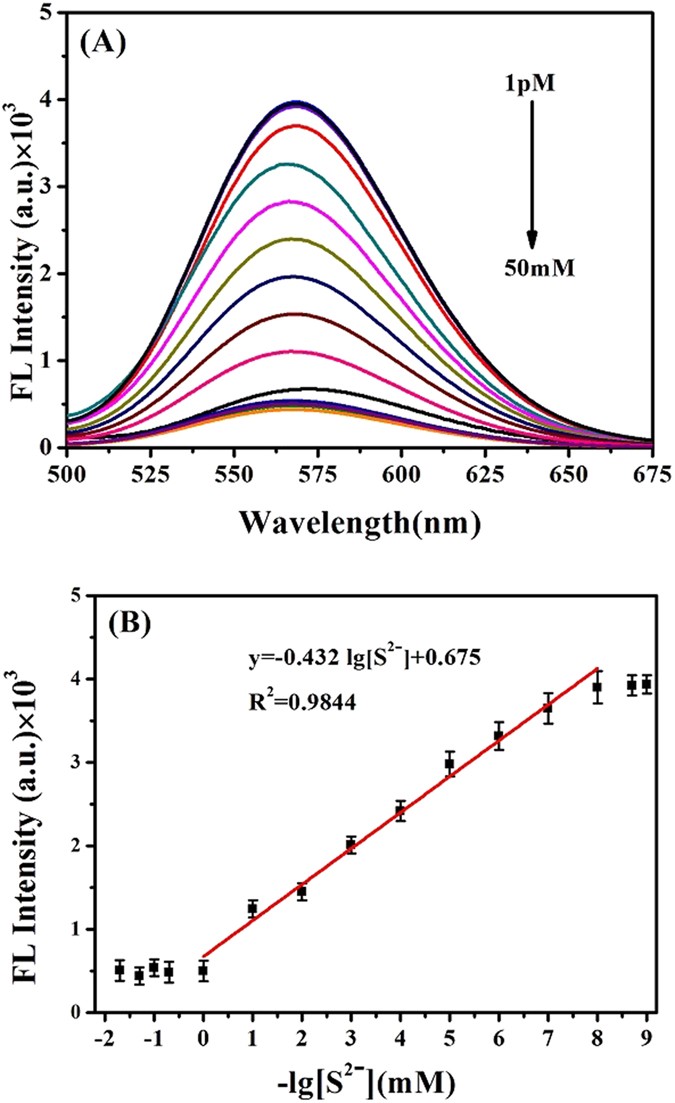

(A) Fluorescence spectra of DNA-Cu/AgNCs system after incubation with different concentrations of Na2S from 1 pM to 50 mM. (B) The linear relationship between the fluorescence intensity and concentration of Na2S. Each data point represents the average of the fluorescence responses of triplicate measurements.

Comparable analysis between fluorescence sensor and GC/MS

To provide a strong evidence for the feasibility and accuracy of the fluorescence sensor, a comparable analysis experiment for S2− detection between the fluorescence sensor and GC/MS were conducted. Table 1 described the results and the relative deviations between the fluorescence sensor and GC/MS method. GC/MS is the most widely used method for H2S poisoning analysis recently and considered as standard in judicial identification, according to the profile of forensic technical specifications provided by the Ministry of Justice of the People’s Republic of China (SF/Z JD0107004-2010). As can be seen from the Table 1, the obtained relative deviations were in the range of −3.4–4%, which indicated both methods were in appreciable agreement. Therefore, the proposed fluorescence sensor may work as an alternative tool in the detection of H2S poisoning blood in forensic and clinical diagnostics.

Table 1 Comparison of S2− levels determined using two methods with the proposed fluorescence sensor and GC/MS.
Full size table

Analysis of S2− activity in mouse blood sample

In order to investigate the biocompability of the proposed fluorescence sensor, we established the H2S poisoning mouse models with intraperitoneal injection of different H2S concentrations and obtained 33 poisoning blood samples, which has been examined using the fluorescence sensor (Fig. 7). Excitingly, as shown in the Fig. 7, there was a corresponding decrease of fluorescence intensity with the increase of the S2− containing in H2S poisoning blood, which illustrated that the proposed sensor system was pretty feasible in the detection application of poisoning blood. Because H2S played a significant role of pathological processes in poisoning death, the fluorescence sensor based on DNA-Cu/AgNCs probe can be a potential tool for the detection of H2S in blood samples for practical applications including estimation of time and death cause.

Figure 7
Figure 7
Full size image

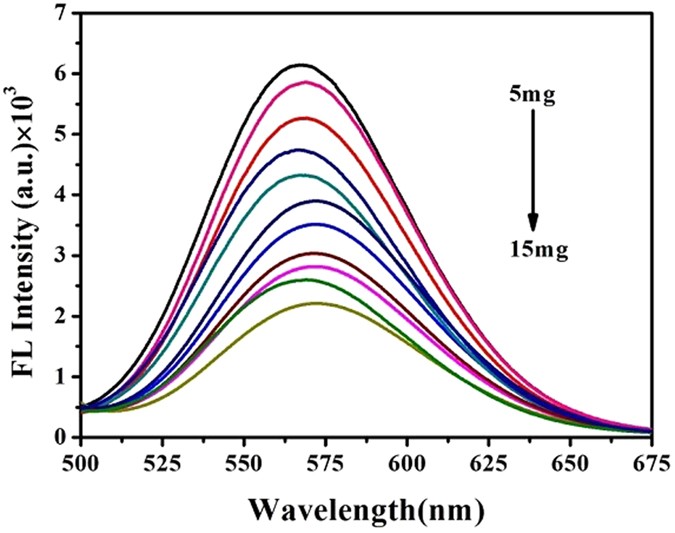

Biocompatibility of this proposed fluorescence sensor was conducted in H2S poisoning mouse blood samples, where mice were injected with 0.1 mL of different lethal dose from 5 mg to 15 mg and the blood samples were diluted to 50 folds. Then 30 µL of diluted blood samples of different concentrations were added into 50 µL of DNA-Cu/AgNCs probes.

Conclusions

In this work, a novel fluorescence sensor has been developed for rapid, simple and sensitive detection of H2S poisoning blood based on DNA-Cu/AgNCs. The DNA-Cu/AgNCs fluorescence probe, was very easyto synthesize and stable for a long-term storage. Under the optimal conditions, it provided a possibility for a quantitative analysis, and a linear equation y = −0.432 lg[S2−] + 0.675 (R2 = 0.9844) for 10 pM to 1 mM of S2− was obtained, with limit of detection of 3.75 pM. Compared with existing methodologies, such as the official GC/MS method, this fluorescence sensor was quite simple and straightforward and can be completed in a few minutes without the need of any expensive equipment or trained personnel. Moreover, the probe was further used to monitor H2S poisoning blood, and results showed there was an obvious downward trend with the increase of concentration towards S2−, which confirmed its good biological application feasibility. Overall, the proposed fluorescence sensor method allows for favorable selectivity, high efficiency and sensitivity towards H2S poisoning blood. And it may offer a promising new detection approach for toxicant-metabolizing study in the forensic and clinical fields that makes significant social meanings.
