Introduction

Annual worldwide production of synthetic dyes reaches 7 × 107 tons, and around 105 tons of synthetic dyes are released to aquatic systems1. Such colored effluents are highly toxic and carcinogenic to flora and fauna as well as humans2, 3. Among the already developed technologies, adsorption technology based on various adsorbents, such as activated carbons (ACs), are widely employed for the removal of dye-stuff from aqueous solutions4.

However, the application of ACs in large-scale faced some problems such as high cost, difficulty in regeneration5 and easy clogging. To lower the cost of adsorbents (such as ACs), many low-cost bioadsorbents have been developed and investigated6, 7. Microwave-assisted activation method avoids environmental side effects and reduces processing time, thus saving energy consumption and eliminating gas production8. Consequently, in this study, swede rape hull was selected and activated using microwave-assisted thermal treatment. Then an efficient low-cost bioadsorbent (microwave-activated swede rape hull, MSRH) was produced and applied in the first treatment unit.

Previous investigations showed that the application of adsorbents alone (e.g., activated carbons, or low-cost bioadsorbents), when applied at economical dosages, could not completely remove the color or reduce the contamination level to an acceptable standard2, 6, 9. Such not sufficiently treated wastewater is unacceptable for direct discharge to water bodies, because the presence of trace concentration of dyes in effluent is highly visible, undesirable, and may still have residual toxicity. This low concentration of dye-contained effluents is a new challenge in the field of remediation of colored wastewater effluents. Consequently, such wastewaters need to be further purified by certain cost-effective and environmental-friendly sustainable processes.

A few previous studies selected some microbial species to purify low-level dye-contained wastewater. For example, Waghmode10 reported the biodegradation of disperse dye Brown 3 REL using Galactomyces geotrichum and Brevibacillus laterosporus. But the application of single species usually has limitations, especially when the concentration of pollutants is high. Shabbir reported the degradation of food dye by epiphyton, metaphyton and epilithon1, but this kind of chemical compound is less toxic to aquatic organisms, and further studies are needed for some toxic dye compounds.

Consequently, to solve the above problems, environmental-friendly measures based on microbial aggregates have aroused interests in removing pollutants from aquatic systems11,12,13. Periphyton, which is composed of autotrophic and heterotrophic microorganisms, is a kind of microbial aggregates attached on submerged surface in almost every natural water bodies14,15,16,17. These complex aggregates are usually highly tolerant to toxic environment and highly effective in removing various contaminants such as microcystin-RR, Cr and Cd18,19,20. Moreover, the organisms of periphyton are usually coated with an “organic shell” such as extracellular polymeric substances (EPS), which may have an efficient pollutant-binding capacity and biological activity for dye molecules11.

However, the colored effluents of printing and dyeing industry are usually heavily polluted21, which could not be directly purified by living organisms such as periphyton, consequently, a pretreatment is necessary. Considering the significance and practicality of including a self-cleaning and renewable bio-based system to remove contaminants such as dye-stuff, a hybrid adsorption-periphyton reactor (HAPR), combining an adsorption unit and a biological treatment unit, was designed and investigated. Specifically, HAPR includes an adsorption column based on a low-cost efficient bioadsorbents (MSRH) to pretreat the high concentrations of dye wastewater and a periphyton based photo-bioreactor (PPBR) to degrade the residual dyes present at low concentration as discharged from the first adsorption unit.

In summary, the objectives of this study were to: (1) develop a hybrid adsorption-periphyton reactor (HAPR) to enhance the removal efficiency of a model cationic dye (Methylene Blue, MB) from wastewater, and (2) investigate the removal mechanism of dye-stuff by HAPR. The study will provide an environmentally benign measure to enhance the purification of dye wastewater and give an insight into MB removal mechanisms by periphyton and provides possible suggestions to enhance dye purification by modulating the adsorption process.

Materials and Methods

The preparation of bioadsorbent (MSRH)

Crude swede rape hull (B. napus L.) was collected in Shandong province, China. Natural sunlight dried hull was washed by deionized water and dried in an oven at 60 °C. Then the dried biomass was crushed, sieved (pore diameter was 250 μm), and activated by a microwave oven (Galanz wp800sl23-2, China). Briefly, the activation procedure was as follows: (1) crude swede rape hull powder was scattered in a glass plate with the thickness of around 2–5 mm and the glass plate together with the biomass powder was placed in the microwave oven; (2) the activation was conducted at high power (800 W) for 2 min; then the samples were cooled for 1 min; (3) the activation-cooling procedure was repeated 3 times. The microwave-activated swede rape hull (MSRH) was then produced and stored in an air tight glass bottle for further use.

The description of the Hybrid Adsorption-Periphyton Reactor (HAPR)

HAPR consisted of two units: MSRH-based adsorption column and periphyton-based photo-bioreactor (PPBR) (see Fig. 1S in Appendix 1). The adsorption column (Appendix 2) was filled with a certain amount of MSRH (bed depth = 1.5 cm), and to avoid the leakage of bioadsorbent particles, glass wool was placed at the column bottom. The PPBR was made of several glass containers with capacity of 5 L (Appendix 3). To collect and culture periphyton biofilms, 30% of the PPBR volume was filled with substrates (spec: 200 mm × 0.5 mm, Jineng Environmental Protection Company of Yixing, China). A piece of gauze was covered on the top of PPBR in order to prevent insects flying into the reactor. When periphyton grew to mid-logistic growth curve stage (i.e., 4 weeks after incubation), the Hybrid Adsorption-Periphyton Reactor was operated to conduct this study.

Influent with high concentration Methylene blue (C16H18ClN3S·3H2O, C.I.52015, MB) solution, with concentration of 200 mg L−1, was injected into the MSRH-based adsorption column and then the effluent was added to the PPBR. The hydraulic retention time (HRT) was 1.85 min and 48 h in the MSRH-based adsorption column and PPBR, respectively. In this study, to simulate low concentration MB discharge in practice and keep continuous running of the PPBR, MB solutions of low concentrations (0.2 and 0.5 mg L−1) were added to PPBR every 48 h. After treatment of MB wastewater by PPBR, water samples of MB-contained effluents were collected before next addition of MB wastewater. Specifically, MB solution with different concentrations (i.e., 0.2 and 0.5 mg L−1, respectively) were added to two independent PPBR systems at around 9:00 am in the first day, and the samples were collected at around 9:00 am in the third day. Thereafter, MB solutions were added and samples were collected every 48 hours. This process repeated at least 12 cycles.

Characterization of bioadsorbent (MSRH)

The bioadsorbent was characterized by a scanning electron microscope (SEM) (Quanta 200, FEI, Netherlands) at magnification of 1000X, Fourier Transform Infrared Spectroscope (FTIR) (Nicolet 360, Thermo Electron Co., USA) at a spectral range of 4000 to 400 cm−1 and particle size distribution analyzer (Mastersizer 2000, Malvern Instruments, UK).

Adsorption experiments for MSRH

The concentration of MB stock solution for adsorption experiment was 1000 mg L−1. The concentration of MB was measured at 664 nm using a UV-vis spectrophotometer (Shimadzu, UV2450, Japan); detailed information of analysis method was presented in our previous study2. The amounts of MB adsorbed onto the bioadsorbents at equilibrium and at time t were obtained by the following equations:

$${{\rm{q}}}_{{\rm{e}}}=\frac{({C}_{0}-{C}_{e})V}{m}$$
(1)
$${{\rm{q}}}_{{\rm{t}}}=\frac{({C}_{0}-{C}_{t})V}{m}.$$
(2)

Model studies

Equilibrium models (such as Langmuir, Freundlich model) and kinetic models (such as pseudo-second-kinetic model and intraparticle diffusion model) were applied to describe the adsorption process. In addition, the performance of MSRH adsorption column operation was described by breakthrough curves to determine the operation and dynamic responses22. Relevant equations are presented in Appendix 4.

Determination of microbial activity of periphyton in PPBR

In order to investigate the removal mechanisms of MB by periphyton in PPBR, determination of microbial activity by BiologTM ECO Microplates (Hayward, CA, USA) was performed. These BiologTM ECO Microplates, containing 96 wells and 31 types of carbon sources, were applied to characterize the microbial respiratory activity in periphyton biofilms. The wells contain a redox-sensitive tetrazolium dye (oxidation indicator) and turn purple as a result of respiratory electron transport in metabolically active cells23. Therefore, the different plate color is proportional to respiratory activity. Specifically, 150 μL prediluted periphyton-water mixture was added into each well of every BiologTM ECO Microplate, and was incubated at 25 °C. The absorbance was determined at 590 nm using a Biolog Microplate Reader at predetermined time intervals for several days. More detailed information is presented in Appendix 5.

Determination of bioadsorption and biodegradation by periphyton in PPBR

NaN3 was used to suppress microbial respiration and inhibit the process of biodegradation. If the microbial activities of periphyton were completely inhibited by NaN3, the removal of MB under this condition was mainly due to adsorption process; on the contrary, if the periphyton was not inhibited, the removal of MB may be both due to adsorption and biodegradation. Consequently, if MB removal performance shows no differences between the inhibited and uninhibited periphyton, a conclusion should be made that the removal of MB by PPBR is mainly due to adsorption. Herein, the microbial activities of periphyton in PPBR were inhibited by adding 1% NaN3 (w/v). Then the removal percentage of MB by NaN3-inhibited periphyton and control (without NaN3) was studied at two initial dye concentrations (0.2 and 0.5 mg L−1).

Results and Discussion

The evaluation of dye removal process by MSRH

Equilibrium study

Langmuir model and Freundlich model are usually applied in isotherm adsorption studies. Langmuir model assumes that adsorption occurs on a homogeneous monolayer surface containing sorption sites that have uniform binding energy and saturation takes place when the dye molecules have filled the sites and no more adsorption can occur on that site24. Freundlich model assumes that the adsorption occurs on a heterogeneous surface where the binding sites are not equivalent. According to Table 1, the better fit of Langmuir model implied that the adsorption occurred on a homogeneous monolayer surface and the binding energy was uniform for every single sorption site. Additionally, the maximum adsorption capacity calculated by Langmuir model was 272 mg g−1, which was quite comparable to those of previously investigated activated or modified bioadsorbents8. The q m,cal value was even comparable to some commercial or lab produced activated carbons25, which demonstrated that MSRH was a promising substitute for the widely used relatively expensive activated carbons in purifying dye-contained wastewater.

Table 1 Parameters of isotherm models and kinetic models in batch adsorption studies of MSRH.
Full size table

Kinetic study and adsorption mechanisms by MSRH

Kinetic data were analyzed using Ho’s pseudo-second-order kinetic model and intraparticle diffusion model. Relevant parameters are presented in Table 1 and the plots are presented in Fig. 1a. Pseudo-second-order kinetic model fitted to kinetic data well, demonstrating that the rate-limiting step of this adsorption process between adsorbate (MB) and bioadsorbent (MSRH) was chemisorption. Furthermore, the q e,cal values increased while the k 2 values decreased with the increasing C 0. This could be attributed to higher competition for sorption sites at higher initial dye concentrations than that at lower dye concentrations. The k 2 values decreased with shaking speed, which demonstrated higher shaking speed led to faster attachment of MB molecules to the surface of bioadsorbents.

Figure 1
figure 1

(a) Plots for pseudo-second kinetic model in batch experiment; (b) Plots for intra-particle diffusion model in batch experiment; (c) Breakthrough curves of adsorption column for MB adsorption onto MSRH at different bed depth (flow rate = 10.16 mL min−1, initial dye concentration = 200 mg L−1, pH 5.50, bed depth = 1.0, 1.5 cm); (d) The prediction of average MB concentration of the effluents of adsorption column. (Conditions: bed depth = 1.5 cm, initial MB concentration = 200 mg L−1, flow rate = 10.16 mL min−1) and (e) The predicted average effluent MB concentration and removal percentage of MSRH-based adsorption column (initial inflow MB concentration = 200 mg L−1).

Full size image

Adsorption is a multi-step process involving bulk diffusion, film diffusion, and intraparticle diffusion, thereafter, the equilibrium is achieved6. Particularly, the diffusion of dye molecules into the interior of the sorbent pores, i.e., intraparticle diffusion, is likely to be a rate-limiting process. Herein, intraparticle diffusion model was applied to interpret the kinetic data. According to the plots of q t vs. t 0.5, the curve presented a multi-linearity correlation (i.e., three steps; see Fig. 1b). The second step is the diffusion of the adsorbate (MB molecules) from the external surface of MSRH into the pores. But the correlation coefficients of intraparticle diffusion model were between 0.882 and 0.961, indicating that the intraparticle diffusion was not the only rate controlling step; meanwhile, the linear relationship presented in Fig. 1b does not pass through the origin, indicating that some degree of boundary layer control was involved26.

Thermodynamic study

Thermodynamic studies are useful in understanding the spontaneity of the system, the dominating mechanism involved in the adsorption process, and whether the adsorption process is endothermic or exothermic. According to Table 2, the negative values of ΔH 0 confirmed the exothermic nature of the adsorption process. Meanwhile, the ΔH 0 values for all initial concentrations were lower than 40 kJ mol−1, suggesting that physical adsorption was the dominating mechanism27. The negative values of ΔG 0 indicated that the adsorption of MB onto MSRH under the present conditions was a spontaneous process. This result was similar to findings of some previous investigations28.

Table 2 Thermodynamic parameters at different initial MB concentrations.
Full size table

Comprehensive performance and mechanisms of HAPR in purifying dye wastewater

To enhance the treatment of the after-adsorption lower concentration of MB wastewater, an environmental benign bio-measure, i.e., Hybrid Adsorption-Periphyton Reactor (HAPR, Fig. S1) was constructed. As mentioned above, HAPR contains two units: the MSRH based adsorption column and the periphyton-based photo-bioreactor (PPBR).

Adsorption column based on MSRH

The effluent MB concentration of the adsorption column was tested at varied time intervals. Breakthrough curves, predicted by Yoon–Nelson model29, were applied to describe the performance of column operation (Eq. 8 in Appendix 4) and key parameters were calculated22.

Figure 1c showed that Yoon-Nelson model fit the experiment data well and the calculated correlation coefficients (R 2) were higher than 0.96. Additionally, when the bed depth increased, the breakthrough time also increased. The time required for 50% breakthrough (τ) obtained from the Yoon-Nelson model were 109 and 80 min for bed depth 1.5 cm and 1.0 cm, respectively. Further, the bed capacity values (per gram of bioadsorbent), q0YN, calculated from Eq. (9) in Appendix 4, were 343 and 379 mg g−1 for bed depth 1.5 cm and 1.0 cm, respectively. The data showed that a higher bed depth corresponded to a lower bed capacity value. It means MSRH was better involved in the adsorption process at lower bed depth conditions.

When the effluent dye concentration reached a certain value, which will be introduced in the following parts, the dye-loaded MSRH was removed and new MSRH was added. Meanwhile, effluent with low MB concentration (~0.5 mg L−1) was collected for further treatment by the following periphyton based bioreactor.

Prediction and collection of low concentration dye effluent by adsorption column

In order to further treat the low concentration of MB wastewater by PPBR without damaging the bioactivity of periphyton, the MB concentration of effluent collected from adsorption column should be kept at a feasible level. Consequently, it is necessary to predict the average dye concentration of the effluent after-adsorption. The average MB concentration was calculated by integrating the area below the breakthrough curve at a certain time interval (Fig. 1d, the curves were predicted by Yoon-Nelson model). For example, the average concentration before 51 min was calculated as 0.5 mg L−1 under the given experiment conditions (bed depth = 1.5 cm).

Figure 1e shows the average MB concentration and average accumulative MB removal percentage by adsorption column based on MSRH. The average accumulative removal percentage was very high before 51 min (reached 99.7% when bed height was 1.5 cm). But the corresponding effluent MB concentration was still visible by naked eye (at around 0.5 mg L−1), which indicated the need for further purification. Moreover, the collection time was responsible for MB effluent concentrations. For example, if the effluent was collected at 180 min, the average MB concentration would have reached 79 mg L−1. This would definitely destroy the periphyton in the following PPBR treatment. So it was important to collect effluents at predetermined time intervals. In the present study, 0.2 and 0.5 mg L−1 MB effluent solutions of the adsorption column were collected and added to the following PPBR unit.

MB removal performance of PPBR

As mentioned above, PPBR was designed to further treat the lower concentrations of MB solution. In order to (1) simulate the discharge content of actual wastewater and (2) keep the continuous treatment of this dye-contaminated wastewater without damaging the periphyton in PPBR, the average MB concentrations of the effluents were set at around 0.5 and 0.2 mg L−1 (as mentioned above), and were added to the PPBR process every 48 h.

Figure 2a showed that PPBR process was observed an obvious dye-removing ability. Although low concentration of MB was added to PPBR every 48 h, the effluent was dramatically purified during the sampling time. According to Fig. 2b, around 80–85% of the initial MB concentration was removed in 48 h.

Figure 2
figure 2

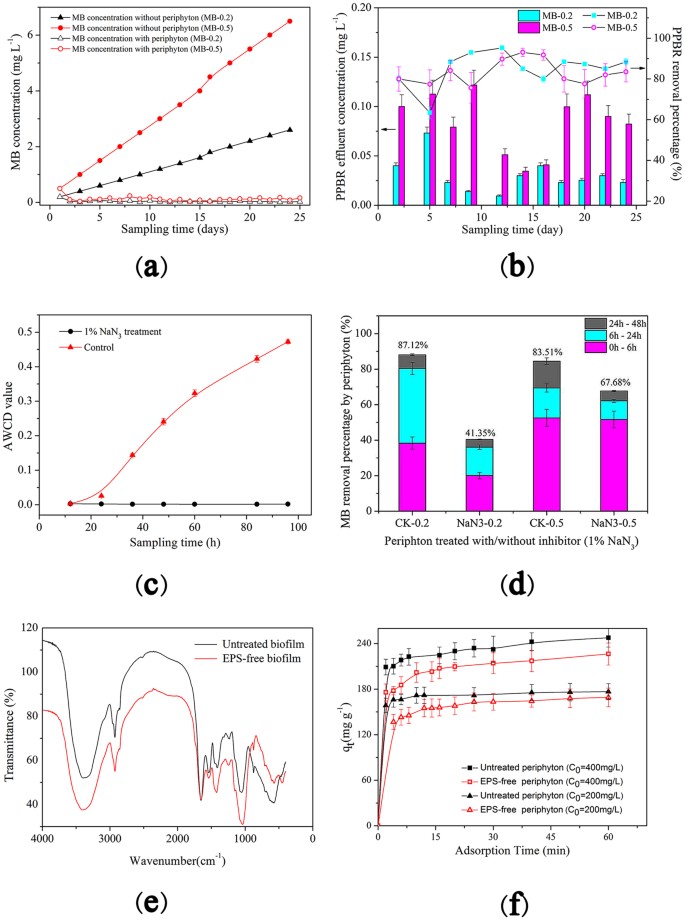

(a) Dye concentration without periphyton (the theoretical dye accumulated) and dye concentration with periphyton in PPBR (MB was added every 2 days, lasted around 4 weeks); (b) Effluent MB concentration and removal percentages of PPBR (MB was added every 2 days and the effluents were collected and texted before the next addition of MB wastewater); (c) AWCD value of periphyton with/without inhibition (microbial activity was determined by BiologTM ECO Microplates); (d) Removal performance by periphyton treated with/without NaN3 in PPBR (NaN3 concentration = 1%, w/v); (e) FTIR spectra of untreated periphyton and EPS-free periphyton, and (f) The adsorption dynamics of MB by untreated periphyton and EPS-free periphyton.

Full size image

For 0.5 mg L−1 and 0.2 mg L−1 treatment, the average MB removal percentages during the test period were 83.2% and 84.9%, respectively. The corresponding average MB concentrations were 0.08 and 0.03 mg L−1, respectively. These concentrations of effluents are invisible to naked eyes. The results showed that HAPR process successfully purified the high-level dye-contaminated wastewater and the treatment of lower initial dye concentration (0.2 mg L−1) resulted in a higher removal percentage (84.9%). This may be attributed to the important role of adsorption process that played during the PPBR purification process.

Proposed mechanism of MB removal by periphyton in PPBR

To understand the removal mechanisms of MB by HAPR, the mechanisms involved both in adsorption column and PPBR should be investigated. The adsorption mechanisms of MSRH have been discussed in the batch study in section 3.1, consequently, the removal mechanisms of MB by PPBR will be emphasized in this part. Obviously, periphyton played a key role in purifying MB-contained wastewater by PPBR. Herein, the purification mechanisms of MB by periphyton will be investigated.

The removal of hazardous materials by living organisms, such as periphyton, can take place by both biodegradation and physical/chemical mechanisms such as adsorption11. Herein, we planned to investigate the following two questions: (1) whether biodegradation was involved in the MB removal, and (2) if biodegradation was involved, what were the specific contributions of adsorption and biodegradation.

It has been reported that NaN3 can suppress microbial respiration and inhibit the process of biodegradation18. As mentioned in section 2.7, if the microbial activities of periphyton were completely inhibited by NaN3, the removal of MB under this condition was mainly due to adsorption process; on the contrary, if the periphyton was not inhibited, the removal of MB may be both due to adsorption and biodegradation. Through applying NaN3, the contribution of bioadsorption and biodegradation of MB by periphyton can be assessed. During this process, it was necessary to confirm whether the 1% (w/v) NaN3 completely inhibited periphyton under the present experiment conditions. Hence, the AWCD values obtained through BiologTM ECO Microplates are presented in Fig. 2c. According to this figure, the AWCD values of NaN3-inhibited periphyton were close to 0, which demonstrated the microbial respiration of the NaN3-treated periphyton was completely inhibited.

Figure 2d showed the MB removal percentages by NaN3-inhibited periphyton and non-inhibited periphyton in PPBR. It was clear that the NaN3-inhibited periphyton had a clear inferior performance. The MB removal percentage (with the initial MB concentration 0.2 mg L−1) was 87% and 41% for control and NaN3-inhibited periphyton, respectively. It means, from the total amount of MB (i.e., 87% of the total MB concentration) removed in 48 hours, 41% was due to physical-chemical processes (i.e., adsorption) and 46% was due to biological process (i.e., biodegradation). Additionally, for the NaN3-inhibited periphyton, a larger amount of MB was removed during the first 6 h. The fast removal was similar to that observed in the adsorption alone process, which achieved equilibrium in a short time (usually from minutes to hours)30. This also indicated that the removal of MB was first dominated by adsorption at the fast removal stage (around 6 hours) and then the adsorption reached saturation, thereafter, biodegradation played a key role.

At higher initial MB concentration (0.5 mg L−1), the trend was similar to that of 0.2 mg L−1 treatment, but adsorption played a larger part (68% was due to adsorption and 16% was due to biodegradation). That may be due to the following two reasons: (1) the high adsorption capacity of extracellular polymeric substances31 on the surface of periphyton, and (2) the adsorption process was much faster than the biodegradation process.

The extracellular polymeric substances (EPS) can reach 98% of the total organic carbon fraction of microbial aggregates, such as periphyton32. EPS usually contain carbohydrates and proteins11, which provide a large amount of functional groups, such as –COOH and –OH. Herein, in order to identify the functional groups associated with the adsorption process, FTIR spectra of the untreated and EPS-free periphytons were measured since each functional group possesses a unique energy absorption band. This can offer more useful information about periphyton structure. The preparation of EPS-free periphyton followed a previous report33. The spectra are illustrated in Fig. 2e. It could be noted that the peak near 1643 cm−1 corresponds to C=O stretching in amide group, and those at 1551 cm−1 and 1541 cm−1 were attributable to N–H bending and C–N stretching in amide group, respectively34. Peaks at 1417 cm−1 and 1396 cm−1 were mainly assigned to C–O symmetric stretching of carboxyl groups, while peaks at 1047 cm−1 and 1036 cm−1 were associated with P=O stretching of phosphate groups35, 36. Several functional groups such as amino, phosphate and carboxyl were found on the EPS-free periphyton surface. It also indicated the removal of EPS from periphyton surface made no significant difference on functional groups for their similarity in peak positions. This result was in line with previous report that the FTIR spectra of untreated and EPS-free Bacillus subtilis and Pseudomonas putida are similar37. The presence of various functional groups may provide a large adsorption capacity of EPS for hazardous materials. Herein, an adsorption experiment of MB by periphyton and EPS-free periphyton was conducted, and Fig. 2f shows the adsorption process. Based on this figure, the adsorption capacity of untreated periphyton was higher than that of EPS-free periphyton. According to Langmuir model (data not shown), the adsorption capacity of untreated periphyton was around 30 mg g−1 higher than that of EPS-free periphyton. This experiment confirmed the important role of EPS in the adsorption process of MB by periphyton in PPBR.

ESEM micrographs presented in Fig. 3a revealed that periphyton was filamentous fungi and algae. However, images presented in Fig. 3b and c indicated that periphyton turned to be a net structure and appeared to be tighter than the untreated periphyton in Fig. 3a. This demonstrated MB had apparently exerted an influence on the texture of periphyton. Previous studies had been reported that pollutants such as Cd, Cr and Pb could reduce growth of periphyton communities38 and external injuries were caused by the toxicity of the Azo Dye Methyl Red39. To some extent, these toxic pollutants all could lead to the change of structure in periphyton and the changes in turn might be a direct response of defense mechanism by periphyton.

Figure 3
figure 3

ESEM images of (a) periphyton without MB (2000×); (b) periphyton with 0.2 mg L−1 MB (2000×), and (c) periphyton with 0.5 mg L−1 MB (2000×).

Full size image

Moreover, the presence of EPS may also provide a buffering zone and keep the enclosed living organisms from fatal damage caused by these hazardous materials. This was important for the following potential biodegradation of MB by living organisms in periphyton.

As mentioned above, biodegradation was another important mechanism to reduce dye concentration from water. Biodegradation was performed when microorganisms alter the original structure of dyes and completely mineralize them to water and carbon dioxide. It has been reported that microalgae could remove dyes because of their quickly response to environmental changes due to their fast cell proliferation compared to higher plants3. The existence of various algae in periphyton will contribute to the biodegradation of MB in the present study. Photodegradation could also play a part in dye removal, but under the present conditions, it would not be a dominant mechanism because (1) adsorption process will take much less time than photodegradation; (2) periphyton contains many algae species, EPS, minerals, which can effectively block the light from outside; and (3) sunlight alone (i.e., in the absence of catalysts) usually exhibits a low efficiency in degrading contaminants. Additionally, a shade net was applied to reduce the effect from sunlight photodegradation during the experiment period. Experiments also confirmed the inefficiency of photodegradation in the present study (data not shown).

In conclusion, the removal mechanism of MB by periphyton can be illuminated by Fig. 4. Firstly, MB molecules were adsorbed on the outer surface of periphyton; then through intra-particle diffusion MB molecules penetrated EPS to bind with functional groups on the internal surface of the EPS/Cell wall. After that, some of MB molecules were mineralize by algae cell or other microorganisms. At the same time, EPS present on the surface of cells get expanded and to bind more MB molecules, which will lower the environmental stress caused by the existence of MB. Photodegradation was not the dominant mechanism in this process.

Figure 4
figure 4

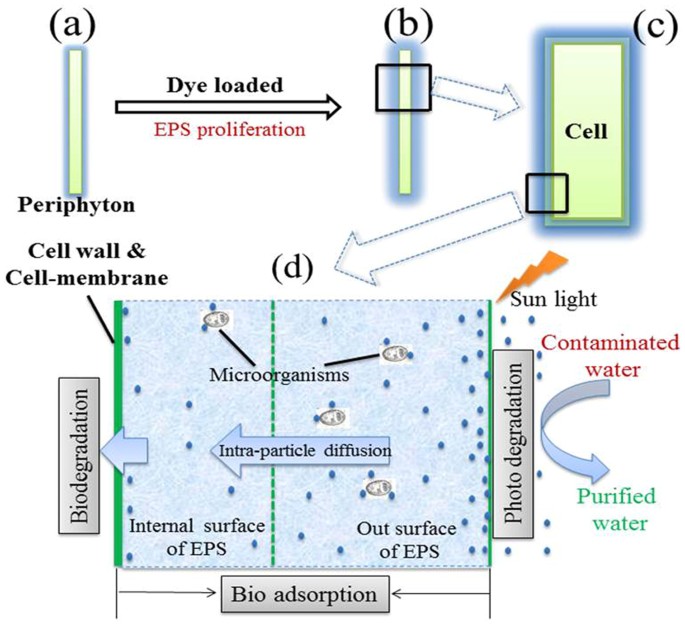

Schematic illustration for dye removal mechanisms by periphyton.

Full size image

Conclusion

This study developed a hybrid adsorption-periphyton reactor (HAPR), which included an adsorption column (the first stage) and a periphyton-based photo-bioreactor (PPBR, the second stage). Herein, periphyton was for the first time applied as a bio-medium and periphyton-based photo-bioreactor (PPBR) was built to treat dye contaminated wastewater. Results showed that HAPR was a promising environmental-benign bio-system, and with continuous addition of MB solution, the effluent MB concentration of HAPR was lower than 0.1 mg L−1 under the present experiment conditions. The dominant removal mechanisms of MB by periphyton were bioadsorption and biodegradarion process, while EPS played an important role in the adsorption process.
