Figure 8

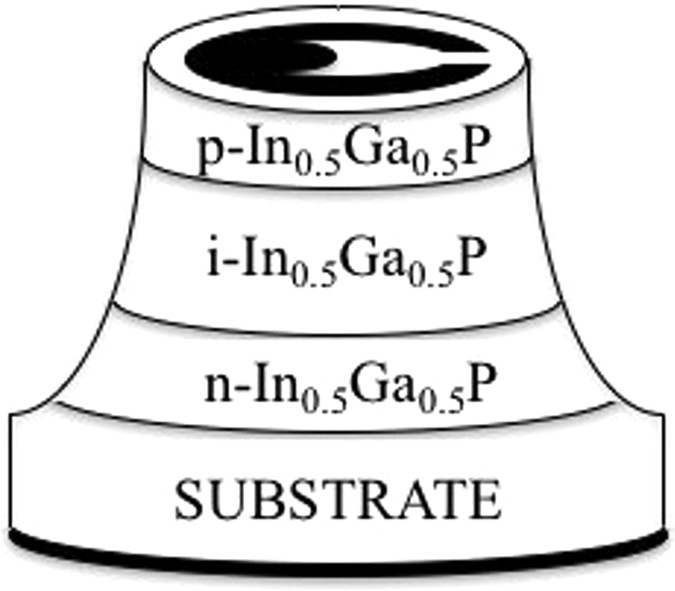

Diagram of an In_0.5Ga_0.5P mesa device; the In_0.5Ga_0.5P wafer was fully etched (i.e. down to the GaAs substrate) to form the mesa structure. The geometry of the top contact is also shown in the figure; the bottom contact covered the whole rear surface of the GaAs substrate.
