Introduction

In0.5Ga0.5P (Ga0.5In0.5P) is a direct wide bandgap (~1.9 eV at room temperature1,2,3) ternary compound with a density of 4.5 gcm−3 and high X-ray and γ-ray linear absorption coefficients4, 5. Its crystalline lattice parameter nearly matches that of GaAs which is commonly used as a substrate material in epitaxy. This allows high quality epitaxial growth of relatively thick InGaP-based structures used in optoelectronics, mainly, in visible light emitting devices and solar cells. The combinations of the above properties make In0.5Ga0.5P also potentially attractive for applications as a detector material for X-ray and possibly γ-ray photon counting spectroscopy. Due to their low leakage currents, wide bandgap semiconductor X-ray spectrometers can operate at room temperature and above without cooling systems6,7,8. Such high temperature (≥20 °C) operation may provide benefits due to the reduced mass, volume, and power requirements of such technologies brought by the elimination of cooling systems. Consequently, wide bandgap materials are attractive choices for the development of low-cost, compact and temperature tolerant X-ray spectrometers that may be useful in space missions9,10,11, and for terrestrial applications outside the laboratory environment, such as industrial monitoring, defence and security, and underwater exploration12, 13. Other wide bandgap detector technologies for X-ray spectrometers include SiC6, GaAs7, 14, Al0.52In0.48P8, 15, 16, AlGaAs17, CdTe18,19,20, and CdZnTe18, 21,22,23.

In0.5Ga0.5P combines the properties of its binary relations, GaP and InP. Moreover, (advantageously compared with AlInP) it does not include Aluminium, which, along with silicon, is a material frequently of interest in planetary X-ray fluorescence spectroscopy (XRF). Detectors without these materials are thus desirable in order to reduce the complexity of spectral analysis through the removal of these lines from the detector’s self-fluorescence. Because of the higher X-ray linear attenuation coefficients of In0.5Ga0.5P compared to those of some other wide bandgap materials (e.g. GaAs, SiC, AlGaAs, and AlInP), comparatively thinner In0.5Ga0.5P detectors can be produced to obtain the same quantum efficiency. Further, improved high temperature performance can be achieved, not only because of the wide bandgap but also because of the smaller volume of semiconductor material required in the detector.

The use of In0.5Ga0.5P for X-ray spectroscopy is a new research field that may provide innovative X-ray detection instrumentation with excellent characteristics. The results reported in this paper are the first detection of X-rays with InGaP and the first demonstration of its suitability for photon counting X-ray spectroscopy. These results are particularly significant since GaP and InP were found to be not spectroscopic at room temperature24,25,26,27. 200 μm and 400 diameter non-avalanche In0.5Ga0.5P photodiodes were connected to custom low-noise charge-sensitive preamplifier electronics developed at our laboratory in order to produce an X-ray spectrometer. A system energy resolution of 900 eV at 5.9 keV was found for a randomly selected 200 μm device at reverse biases above 5 V. The work is of potential importance for the development of wide bandgap X-ray and γ-ray spectrometers for planetary and space science missions to extreme environments (such as Mercury, Venus, Jupiter, and Saturn), for space science instrumentation to study the near Sun environment, as well as for use in harsh terrestrial environments.

Results

Two 200 μm (devices D1 and D2) and two 400 μm diameter (devices D3 and D4) In0.5Ga0.5P photodiodes were studied in this work; the growth and the fabrication details are given in the Methods section. For the areas of the photodiodes not covered by the top contact, X-ray quantum efficiencies (QE) of 53% and 44% were calculated at energies of 5.9 keV and 6.49 keV, respectively, using the Beer-Lambert law and assuming complete charge collection in the p and i layers. For the areas covered by the top contact this reduced to 44% and 38%, respectively. Considering the portion of top contacts covering the top surfaces of the 400 μm and the 200 μm diameter photodiodes, total quantum efficiencies of 50% at 5.9 keV and 42% at 6.49 keV were obtained for the 400 μm device, and total quantum efficiencies of 49% at 5.9 keV and 41% 6.49 keV were found for the 200 μm device. The linear attenuation coefficients used in the QE calculations were 0.145 μm−1 and 0.112 μm−1 at 5.9 keV and 6.49 keV, respectively4, 5, 28; these values are higher than many other semiconductors such as Si28, SiC4, GaAs4, and Al0.52In0.48P15, but lower than for CdZnTe5, 28. The calculated total QE values are in accordance with those experimentally determined in the photocurrent measurements with an 55Fe radioisotope X-ray source.

Electrical characterisation

The currents of the In0.5Ga0.5P devices were studied as functions of applied reverse bias from 0 V to 30 V in dark conditions, and under the illumination of an 55Fe radioisotope X-ray source (Mn Kα = 5.9 keV, Mn Kβ = 6.49 keV). The In0.5Ga0.5P photodiodes were investigated at room temperature in a dry nitrogen atmosphere (relative humidity <5%). A Keithley 6487 picoammeter/voltage source was used during the experiment; the uncertainty associated with the current readings was 0.3% of their values plus 400 fA, while the uncertainty associated with the applied biases was 0.1% of their values plus 1 mV29. Figure 1 shows the dark and the illuminated current curves as a function of reverse bias for 200 µm D1 (a) and 400 µm D3 (b). Similar results were found for D2 and D4. For all the photodiodes, dark current values < 0.22 pA were measured across the reverse bias range investigated (up to 30 V) (corresponding to current densities of 6.7 × 10−10 A/cm2 and 1.7 × 10−10 A/cm2 for the 200 μm and 400 μm diameter devices, respectively). The illuminated current measurements were taken when the 55Fe radioisotope X-ray source was positioned 6 mm above the top of each In0.5Ga0.5P mesa photodiode. Illuminated currents of 3.5 pA and 7 pA were observed at 30 V for the 200 μm and the 400 μm diameter In0.5Ga0.5P photodiodes, respectively. Subtracting the illuminated currents from the dark currents, photocurrents of 3.3 pA and 6.5 pA were calculated at 30 V for the 200 μm and the 400 μm diameter devices, respectively.

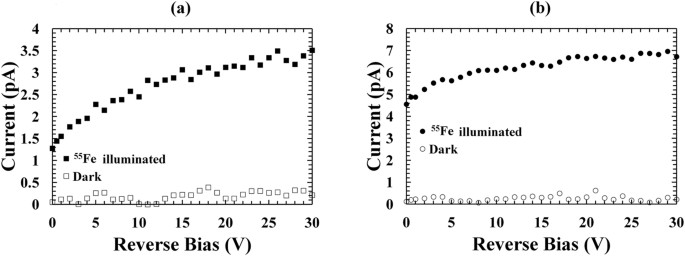

Figure 1
figure 1

Dark (empty symbols) and 55Fe illuminated (filled symbols) current measurements as functions of applied reverse bias for the (a) 200 µm diameter, D1 (squares), and (b) 400 µm diameter, D3 (circles) In0.5Ga0.5P devices at room temperature.

Full size image

Capacitance measurements of the In0.5Ga0.5P devices were made as a function of applied reverse bias from 0 V to 30 V using an HP 4275 A Multi Frequency LCR meter. The test signal was sinusoidal with a 50 mV rms magnitude and a 1 MHz frequency. The uncertainty associated with each capacitance reading was ~0.12% plus an experimental repeatability error of (±0.07 pF); the uncertainty associated with the applied biases was 0.1% of their values plus 1 mV30. The capacitance of an identical empty package was also measured and subtracted from the measured capacitance of each packaged photodiode to determine the capacitances of the devices themselves. Figure 2 shows the capacitance as a function of applied reverse bias for D1 (a) and D3 (b). The results for D2 and D4 were so similar as to be indistinguishable from those presented.

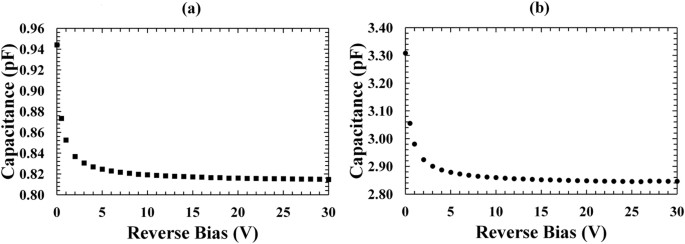

Figure 2
figure 2

Capacitance measurements as a function of applied reverse bias for the In0.5Ga0.5P devices at room temperature. (a) 200 μm diameter device, D1 (filled squares); (b) 400 μm diameter device, D3 (filled circles).

Full size image

The depletion depth (W) of each diode was then calculated by:

$$W=\frac{{\varepsilon }_{0}{\varepsilon }_{r}A\,}{C},$$
(1)

where ε 0 was the permittivity of the vacuum, ε r was the In0.5Ga0.5P dielectric constant (11.731), and A was the device area32.

Figure 3 shows the depletion depths as functions of applied reverse bias for D1 (a) and D3 (b), respectively. The results for D2 and D4 were so similar as to be indistinguishable from those presented.

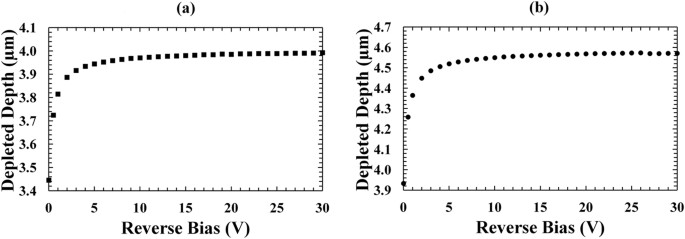

Figure 3
figure 3

Depletion depth as a function of applied reverse bias for the In0.5Ga0.5P devices at room temperature. (a) 200 μm devices, D1 (filled squares); (b) 400 μm devices, D3 (filled circles).

Full size image

At low reverse biases, the depletion depth increased as the reverse bias was increased; above 5 V the depletion depth remained almost constant in all the diodes analysed, this was due to the i-layer being fully swept-out at these biases. At 30 V, depletion depths of (4.0 ± 0.5) μm and (4.6 ± 0.2) μm were calculated from the capacitance measurements for the 200 μm and 400 μm diameter devices, respectively.

The doping concentration (N) below the p+-i junction as a function of depletion depth (W) was calculated by:

$$N(W)=\frac{2}{q{\varepsilon }_{0}{\varepsilon }_{r}{A}^{2}}(\frac{dV}{d[1/{C}^{2}]}),$$
(2)

where ε 0 was the permittivity of the vacuum, ε r was the relative permittivity of In0.5Ga0.5P (11.731), and A was the device area32. Figure 4 shows the obtained doping concentration for a representative 400 μm diameter In0.5Ga0.5P device, D3. The doping density in the i-layer was 2 × 1014 cm−3, such value increased to 4 × 1017 cm−3 at the i-n interface.

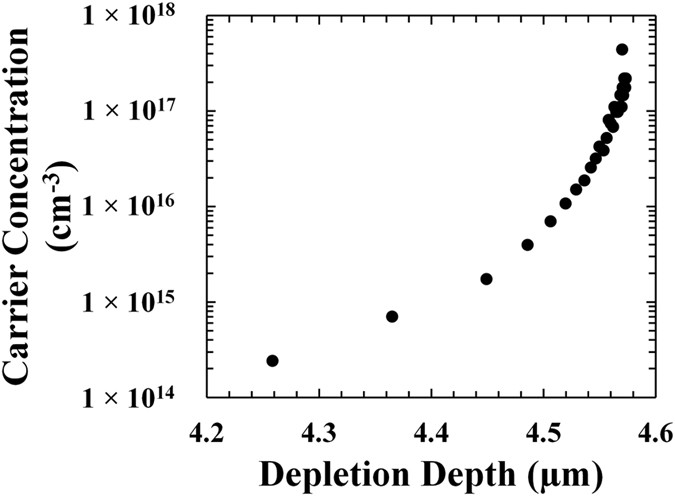

Figure 4
figure 4

Doping concentration below the p+-i junction as a function of depletion depth at room temperature for a 400 μm diameter In0.5Ga0.5P device (D3).

Full size image

X-ray spectroscopy and noise analysis

X-ray spectra were collected using the 200 μm and 400 μm diameter devices and an 55Fe radioisotope X-ray source. As per the photocurrent measurements, the distance between the top surface of the In0.5Ga0.5P photodiodes and the X-ray source was 6 mm. A custom-made low-noise charge-sensitive preamplifier of feedback resistorless design, similar to ref. 33, was connected to each In0.5Ga0.5P diode in turn. The signal from the preamplifier was amplified and shaped using an Ortec 572a shaping amplifier, the output of which was connected to an Ortec Easy-MCA-8K multichannel analyser. Spectra were accumulated with the In0.5Ga0.5P diodes reverse biased at 0 V, 5 V, 10 V and 15 V; a shaping time of 10 μs and a live time limit of 100 s for each spectrum were used. Figure 5 shows the X-ray spectra obtained at 5 V with D1 (a) and D3 (b), respectively. Similar results were found for D2 and D4.

Figure 5
figure 5

55Fe X-ray spectrum accumulated at 5 V reverse bias using the In0.5Ga0.5P devices: (a) 200 µm diameter device, D1; (b) 400 µm diameter device, D3.

Full size image

In each spectrum, the observed 55Fe photopeak was the combination of the Mn Kα and Mn Kβ lines at 5.9 keV and 6.49 keV, respectively. Gaussians were fitted to the combined peak, taking into account the relative X-ray emission rates of the 55Fe radioisotope X-ray source at 5.9 keV and 6.49 keV in the appropriate ratio34 and the relative difference in efficiency of the detector at these X-ray energies. The In0.5Ga0.5P spectrometer energy resolution, as quantified by the FWHM at 5.9 keV, was studied as a function of detector reverse bias. At 0 V, the FWHM at 5.9 keV was the poorest obtained (FWHM at 5.9 keV of 1 keV and 1.4 keV were observed for both the 200 μm (D1 and D2) and the 400 μm diameter (D3 and D4) devices, respectively), this was due to the increased contribution of incomplete charge collection noise which reduced at higher reverse biases. At 5 V and above, the charge collection efficiency was increased (the incomplete charge collection noise decreased) and the FWHM at 5.9 keV improved. The peak channel position and the FWHM remained constant at reverse biases ≥5 V, indicating that a charge collection efficiency (CCE) of 1 was obtained for each In0.5Ga0.5P device within the bias range investigated. At 5 V reverse bias, FWHM at 5.9 keV of 0.9 keV and 1.2 keV were observed for both the 200 μm (D1 and D2) and the 400 μm diameter (D3 and D4) devices, respectively.

Noise analyses were carried out in order to identify the different noise contributions that contributing to FWHM broadening. The spectral resolution of a non-avalanche photodiode X-ray spectrometer is given by:

$${\rm{\Delta }}E[eV]=2.355\omega \sqrt{\frac{FE}{\omega }+{R}^{2}+{A}^{2}},$$
(3)

where ΔE is the FWHM, ω is the electron-hole pair creation energy, F is the Fano factor, E is the energy of the X-ray photon absorbed, and R and A are the electronic noise and the incomplete charge collection noise, respectively35. The fundamental “Fano limited” energy resolution (i.e. R = 0 and A = 0) for In0.5Ga0.5P was estimated to be 137 eV at 5.9 keV, assuming an In0.5Ga0.5P electron-hole pair creation energy of 4.8 eV (2.5 times the bandgap) and a Fano factor of 0.12. This noise contribution takes into account the statistical nature of the ionization process in a semiconductor X-ray detector. Since the measured FWHM was bigger than 137 eV, it was essential to consider the contributions from the other noise sources. The electronic noise of the system consists of parallel white noise, series white noise, induced gate current noise, 1/f noise, and dielectric noise35,36,37. The leakage currents of the detector and input JFET of the preamplifier are drivers of the parallel white noise; whilst the capacitances of the detector and input JFET of the preamplifier determine the series white noise and 1/f noise35, 36. Figure 6a and b show the calculated parallel white noise, series white noise, and 1/f noise as functions of detector reverse bias for a 200 μm (D1) and a 400 μm (D3) diameter devices, respectively. The series white noise was adjusted for induced gate current noise35, 36. In0.5Ga0.5P devices with same diameters had similar noise contributions.

Figure 6
figure 6

Equivalent noise charge as a function of reverse bias using the In0.5Ga0.5P devices: (a) 200 µm diameter device, D1; (b) 400 µm diameter device, D3. In both graphs, the parallel white noise (empty circles), the series white noise adjusted for induced gate current noise (empty triangles), and the 1/f noise (empty squares) contributions are shown.

Full size image

The parallel white noise contributions were similar for the 200 μm and the 400 μm diameter devices at each reverse bias analysed; this was due to similar dark currents in devices of both sizes, as shown in Fig. 1. In contrast, the series white noise and the 1/f noise were greater for the 400 μm diameter device compared with the 200 μm diameter device; this was due to the greater capacitance measured for the devices with bigger diameter, as shown in Fig. 2. The increased FWHM observed for the 400 μm diameter devices can be explained in part by considering the increased series white noise and the 1/f noise contributions. The Fano noise, the parallel white noise, the series white noise, and the 1/f noise contributions at 5.9 keV were then subtracted in quadrature from the measured FWHM at 5.9 keV in order to compute the combined contribution of the dielectric noise and incomplete charge collection noise at 5.9 keV. Figure 7 shows the combined equivalent noise charge of the dielectric noise and incomplete charge collection noise as a function of revers bias for the spectrometers with the In0.5Ga0.5P 200 μm device D1 and the In0.5Ga0.5P 400 μm device D3. Similar results were obtained for the spectrometers with D2 and D4.

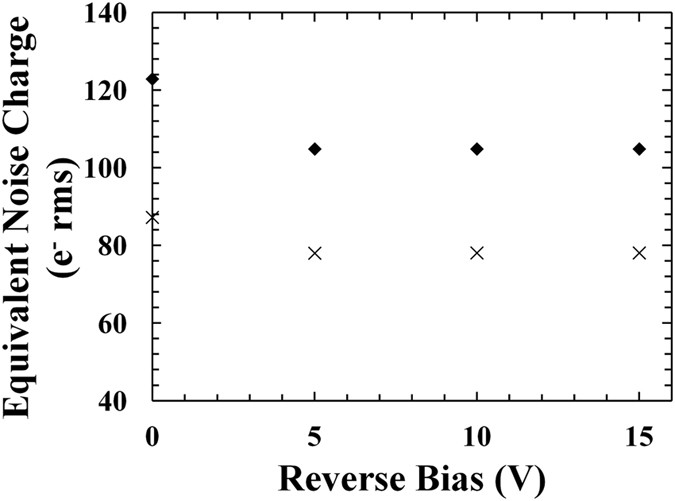

Figure 7
figure 7

Equivalent noise charge of the dielectric noise and incomplete charge collection noise as a function of reverse bias using the In0.5Ga0.5P devices: 200 μm diameter device, D1 (crosses); 400 μm diameter device, D3 (filled rhombuses).

Full size image

The combined contribution of the dielectric noise and incomplete charge collection noise (added in quadrature) was greater using the 400 μm devices with respect to the 200 μm devices at all the reverse biases. At 0 V, the combined equivalent noise charge was 123 e− rms and 87 e− rms for the 400 μm devices and the 200 μm devices, respectively. At reverse biases ≥5 V, equivalent noise charge values of 105 e− rms and 78 e− rms were computed for the 400 μm devices and the 200 μm devices, respectively. Since the dielectric noise was independent of detector bias35, the difference in the values of the combined equivalent noise charge observed at 0 V compared with those at ≥5 V for each device can be attributed to incomplete charge collection noise at 0 V; thus it can be said that at 0 V there were 64 e− rms and 39 e− rms of incomplete charge collection noise using the 400 μm device and the 200 μm device, respectively, and that incomplete charge collection noise was insignificant at reverse biases ≥5 V.

In Fig. 7, the equivalent noise charge at reverse biases ≥5 V was only due to the dielectric contribution; the dielectric equivalent noise charge (ENC D ) is given by:

$$EN{C}_{D}=\frac{1}{q}\sqrt{{A}_{2}2kTDC},$$
(4)

where q is the electric charge, A 2 is a constant (1.18) depending on the type of signal shaping37, k is the Boltzmann constant, D is the dielectric dissipation factor, and C is the capacitance35. Using equation 4 and the experimental data reported in Fig. 7, an effective combined dielectric dissipation factor as high as (4.2 ± 0.4) × 10−3 was found for the lossy dielectrics; it should be noted that this does not correspond directly to the dissipation factor of In0.5Ga0.5P, rather it is indicative of the effective combined dissipation factor of all dielectrics contributing to this noise as it is analyzed here.

The dielectric noise shown in Fig. 7 takes into account a contribution due to the diode itself and a contribution due to the other dielectrics in the system. We assumed that the variation in dielectric noise observed between the spectrometer with the 400 μm diameter device (105 e− rms) and the spectrometer with the 200 μm diameter device (78 e− rms) was only due to the different diodes used; such variation was related, using equation 4, to the different diodes capacitances (2.85 pF for the 400 μm diameter device and 0.82 pF for the 200 μm diameter device, as shown in Fig. 2). The contribution of other dielectrics in the system was considered similar in both spectrometers. Under these assumptions, it was also possible to estimate the dielectric dissipation factor of In0.5Ga0.5P: a value of ∼6.5 × 10−3 was computed.

At room temperature, the energy resolution (FWHM) at 5.9 keV using the In0.5Ga0.5P devices were not as good as the best that have been reported for SiC (196 eV)6 and GaAs (266 eV)14. However, the very good performance reported in refs 6 and 14 was in a large part due to the lower electronic noise associated with the preamplifiers used (particularly due to the direct connection of the detectors to the preamplifer input transistors, compared with the use of a discrete wire-ended packaged transistor in the present work) as well very high quality semiconductor materials. FWHM similar to those reported here for In0.5Ga0.5P have been recently reported with an Al0.52In0.48P detector (FWHM at 5.9 keV of 0.93 keV for a 200 µm diameter Al0.52In0.48P device)15 where readout electronics similar to those used for the In0.5Ga0.5P were also used. The energy resolution achieved for with In0.5Ga0.5P photodiodes was better than those previously reported with Al0.8Ga0.2As detectors17, although the readout electronics used for the Al0.8Ga0.2As detectors were not of identical design as those used here. Very notably, the In0.5Ga0.5P detectors reported here perform significantly better than the corresponding binary compounds GaP and InP24,25,26,27: In0.5Ga0.5P was found to have high enough energy resolution to allow photon counting X-ray spectroscopy at room temperature, this is not true for GaP and InP. This paper is the first report of an In0.5Ga0.5P photon counting X-ray spectrometer; improved results, particularly in term of energy resolutions, are expected to be achieved in the future with further technology developments.

Discussion

The results reported in this paper are the first demonstration of an In0.5Ga0.5P X-ray detector and the first demonstration of In0.5Ga0.5P used for a room temperature X-ray spectrometer. Although GaP and InP were previously reported to be not spectroscopic at room temperature24, In0.5Ga0.5P has been found to be suitable for photon counting X-ray spectroscopy. Under the illumination with 55Fe X-ray source and using custom-made low-noise charge sensitive preamplifier electronics developed at our laboratory, spectra were collected with 200 μm and 400 diameter non-avalanche In0.5Ga0.5P photodiodes reverse biased at 0 V, 5 V, 10 V and 15 V. A shaping time of 10 μs was used during the experiment. The best energy resolutions (FWHM) obtained at 5.9 keV were 0.9 keV and 1.2 keV using the 200 μm and 400 μm diameter devices, respectively, at 5 V. No change in FWHM was observed at reverse biases greater than 5 V, suggesting that incomplete charge collection noise was insignificant at these reverse biases. The greater FWHM observed with the 400 μm diameter devices compared with the 200 μm diameter devices can be explained considering the increased series white noise, 1/f noise, and dielectric noise contributions of the larger detector. Since the 400 μm diameter devices had greater capacitances than the 200 μm diameter devices, the series white and the 1/f noises were bigger in the 400 μm diameter devices. The parallel white noise, instead, was similar between all the diodes analysed due to similar (and very low, <0.4 pA) leakage currents. The contribution of the dielectric noise was greater for the spectrometer with the 400 μm devices (105 e− rms) than the spectrometer with the 200 μm devices (78 e− rms); this noise contribution was found to be the main source of noise limiting the spectrometers energy resolution. Assuming that the variation in dielectric noises observed between the spectrometer with the 400 μm diameter device and the spectrometer with the 200 μm diameter device was only due to the different diode capacitances, an In0.5Ga0.5P dissipation factor of ∼6.5 × 10−3 was also estimated.

Method

Device structure

The In0.5Ga0.5P structure was grown by metalorganic vapour phase epitaxy on a (100) n-GaAs substrate. The substrate’s epitaxial surface had a miscut angle of 10° towards 〈111〉 A, in order to suppress CuPt type ordering38,39,40. The latter phenomenon results in a reduction of the In0.5Ga0.5P bandgap, deterioration of the In0.5Ga0.5P crystalline quality and surface morphology, and, consequently, may deteriorate the spectral characteristics (energy resolution) of the fabricated devices. The InGaP n+ (0.1 μm), i (5 μm) and p+ (0.2 μm) layers were successively grown on the GaAs substrate to produce a p+-i-n+ structure. The In0.5Ga0.5P p+ and n+ layers had doping concentrations of 2 × 1018 cm−3. The structure was completed with a highly doped (1 × 1019 cm−3) p-GaAs layer to facilitate Ohmic contacting. Chemical wet etching techniques, in particular 1:1:1 K2Cr2O7:HBr:CH3COOH solution followed by 10 s in 1:8:80 H2SO4:H2O2:H2O solution, were used to fabricate circular mesa photodiodes with 200 μm and 400 diameters. Sidewall passivation techniques on the processed mesa In0.5Ga0.5P device were not used. Ti/Au (20 nm/200 nm) and InGe/Au (20 nm/200 nm) contacts were deposited on top of the GaAs top layer and onto the rear of the GaAs substrate to form the Ohmic top and rear contacts, respectively. The top Ohmic contacts had annular shapes; they covered 33% and 45% of the top faces of the 400 μm and 200 μm diameter photodiodes, respectively. The device layers, their relative thicknesses, and materials are summarised in Table 1. The diagram of an In0.5Ga0.5P mesa device is shown in Fig. 8; the geometry of the top contact is also shown in the figure, the bottom contact covered the whole rear surface of the GaAs substrate.

Table 1 Layer details of the In0.5Ga0.5P photodiode.
Full size table

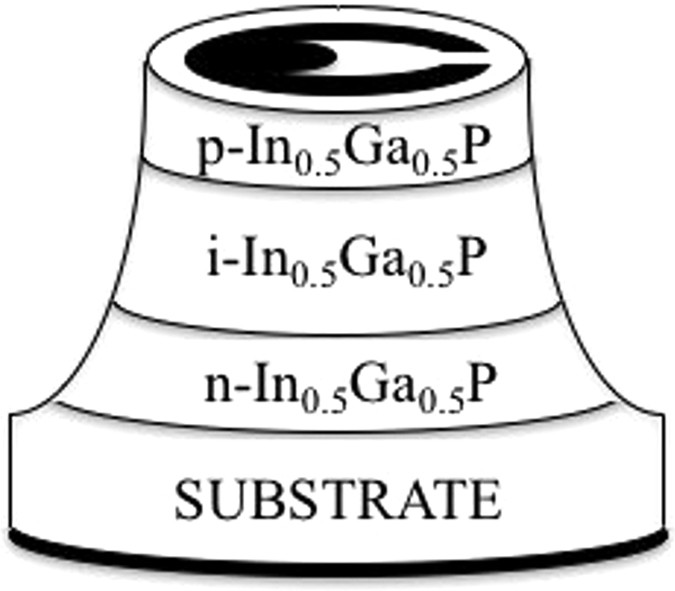

Figure 8
figure 8

Diagram of an In0.5Ga0.5P mesa device; the In0.5Ga0.5P wafer was fully etched (i.e. down to the GaAs substrate) to form the mesa structure. The geometry of the top contact is also shown in the figure; the bottom contact covered the whole rear surface of the GaAs substrate.

Full size image

Data availability

Whilst all data from the study and the findings are contained within the paper, further requests for information may be addressed to the authors.
