Introduction

Plants have evolved sophisticated strategies to defend themselves against pathogens and herbivorous insects. Plants regulate defence signalling pathways mainly through the production of the phytohormones jasmonic acid (JA) and salicylic acid (SA). The JA-signalling pathway is mainly induced by necrotrophic pathogens and insects that inflict cellular damage such as chewing or cell- content feeding herbivores, whereas the SA-signalling pathway is induced by biotrophic pathogens and phloem-feeding insects1,2,3. In recent years, new advances have shown how the plant response to one attacker can influence the performance of herbivores sharing the same host plant, a phenomenon that is driven by positive or negative interactions between these two signalling pathways4,5,6,7. For example, previous herbivory from phloem feeders that induce a SA response, often facilitates the later performance of herbivores that induce a JA response in the plant, via negative cross-talk of these signalling pathways4,5,6,7,8. However, it remains unknown how organisms of trophic levels other than herbivores interacting with the same plant will affect these often-facilitative interactions between herbivorous insects from different feeding guilds inducing different signalling pathways.

Aboveground, herbivorous insects can be attacked by parasitoids whose larvae develop inside their hosts. It is well established that plants can influence parasitoid performance9,10, but it has only recently been demonstrated that parasitoids can also affect plant responses to herbivory. Plants that are attacked by parasitised caterpillars show altered herbivore-induced plant responses, such as the emission of volatiles or the expression of certain defence genes11,12,13,14. Even more interesting is that the altered plant responses due to caterpillar parasitism can also affect other insects, such as hyperparasitoids13, moths species11, and parasitoids developing in another herbivore15. At present, our knowledge on how the third trophic level affects interactions between multiple plant attackers via the plant’s response is still limited to brassicaceous plants and associated caterpillars, thus it remains unknown whether these findings can be extended to other groups of plants and herbivores, especially those that induce different plant signalling pathways (such as phloem feeders). Thus, the posssibility of aphid parasitoids as modulators of plant defences, or how these changes may influence other feeding guilds, such as cell-feeding insects, is still unknown.

Belowground, plants interact with soil microbes, such as mycorrhizal fungi and plant growth promoting rhizobacteria, that can enhance plant growth and induce systemic resistance against different attackers16,17,18,19. There is increased awareness that interactions with the full community of soil microbes, the so-called soil microbiome, contribute to a plant’s extended phenotype, and can thereby affect herbivorous insects. For example, soil microbial communities can influence primary and secondary plant metabolite concentration20,21,22, affecting above-ground insects23,24,25,26. In turn, plants can also shape the biotic (e.g. microbes) and abiotic characteristics of the soil they grow in, and these changes can affect the performance of plants that grow in that soil subsequently. This phenomenon has been termed “plant-soil feedbacks” (PSF)27,28,29. The concept of PSF can be applied to create distinct soil microbiomes by growing different plant species in a given soil, which results in different effects on above-ground herbivores that feed on plants that are subsequently grown in these soils26,30. To date, there are no studies of PSF-mediated plant responses on herbivorous insects in a dual-attack situation.

In this study, we investigated the induction of the JA and SA-signalling pathways and herbivore interactions in a community context, where plants interact with two herbivore species of different feeding guilds, an aboveground parasitoid, and different belowground soil communities. We used a model system of Capsicum annuum var. maranello (sweet pepper), the phloem feeding aphid Myzus persicae (Sulzer, 1776) (Sternorrhyncha, Aphididae), which is commonly used as a model of SA-inducer, and the cell content feeding thrips Frankliniella occidentalis (Pergande, 1895) (Thysanoptera, Tripidae), which is known to induce and be sensitive to JA-regulated defences in Arabidopsis and tomato31,32,33,34. Both aphids and thrips, are generalist insects and major pests in sweet pepper plants, but also in many other crops worldwide. At the third trophic level, we used the parasitoid Aphidius colemani (Dalman, 1820) (Hymenoptera, Braconidae), parasitising the aphid M. persicae, in the described plant-herbivore system.

Previous studies have shown that aphid feeding facilitates caterpillar performance, associated with an strong induction of the SA signaling pathway by aphids (although aphids also induce JA signaling) and a suppression of the JA pathway induced by caterpillars4,6,7,8. Based on those studies, and on the fact that parasitism can enhance the induction of JA by caterpillars11, we hypothesized that parasitized aphids would induce a stronger JA signaling compared to healthy aphids, interfering with the facilitation of aphids towards thrips. Similarly, we expected that PSF would enhance the JA-plant response to aphids, and therefore resistance to thrips. This hypothesis is based on the fact that PSF are mainly driven by soil microbes26,35, and that different soil microbes can prime plants for a stronger JA-responses3,19,36. As a consequence, we expected that PSF would also enhance the effects of parasitism on plant signalling (since both above- and belowground factors can enhance a JA-response), with aphids having a more negative effect on thrips than in sterile soil. In order to thest these hypothesis, we addressed two main research questions: (i) Does parasitism of aphids or PSF influence the induction of marker genes of the JA and SA defensive signalling pathways in pepper plants?; (ii) Do these effects of PSF and/or parasitism on plant responses affect the later performance of F. occidentalis? By using a model system of agricultural interest we highlight the potential relevance of parasitism at modulating plant responses to aphids and their interaction with thrips.

Results

Parasitism alters plant defence responses

The transcript levels of the JA-responsive gene CaPINII showed a strong down-regulation upon aphid feeding at 24 h and 48 h after infestation (Fig. 1). However, the expression of CaPINII was significantly less suppressed by parasitised aphids than by unparasitised ones at 24 h after insect infestation (2-way ANOVA; F = 21.533; df = 2, 33; P < 0.001; LSD, P < 0.05; Fig. 1). At 48 h after infestation, healthy aphids still significantly suppressed CaPINII expression compared to levels in uninfested plants, while levels in plants with parasitised aphids were similar to both other treatments (2-way ANOVA; F = 3.698; df = 2, 34; P = 0.039; LSD, P > 0.05; Fig. 1).

Figure 1
figure 1

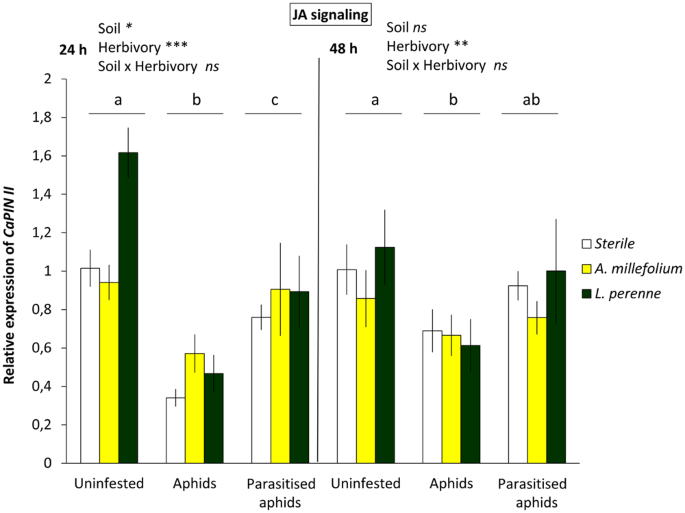

Expression levels of CaPINII in C. annuum in uninfested, aphid-infested, or parasitised aphids- infested plants, each grown in sterile soil, or inoculated with living soil conditioned by the plants A. millefolium or L. perenne. Bars represent mean CaPINII expression levels normalised as 2−∆∆Ct with standard error bars (n = 4). Bars marked with different letters are significantly different (LSD, P < 0.05), with separate analysis for the two time points (24 and 48 h after aphid infestation).

Full size image

In contrast to CaPINII, the transcript levels of CaPAL1 (SA-biosynthetic gene) were up-regulated upon feeding by both aphids and parasitised aphids, compared with uninfested plants after 24 h of insect infestation (2-way ANOVA; F = 5.684; df = 2, 33; P = 0.009; LSD, P < 0.05; Fig. 2). However, at 48 h after insect feeding, only the treatment with unparasitised aphids maintained significantly induced levels of CaPAL1, whereas the expression level in plants with parasitised aphids did not differ from uninfested and aphid-infested plants (2-way ANOVA; F = 4.673; df = 2, 34; P = 0.018; LSD, P > 0.05; Fig. 2). In contrast to CaPAL1 and CaPINII, the expression of CaLOX2 (JA-biosynthetic gene) and CaPR1 (SA-responsive gene) were not up- or downregulated after infestation with (parasitised) aphids (see Supplementary Figs S5 and S6, P > 0.05).

Figure 2
figure 2

Expression levels of CaPAL1 in C. annuum in uninfested, aphid-infested, or parasitised aphids- infested plants, each grown in sterile soil, or inoculated with living soil conditioned by the plants A. millefolium or L. perenne. Bars represent mean CaPAL1 expression levels normalised as 2−∆∆Ct with standard error bars (n = 4). Bars marked with different letters are significantly different (LSD, P < 0.05), with separate analysis for the two time points (24 and 48 h after aphid infestation).

Full size image

Plant-soil feedbacks (PSF) do not affect plant defensive hormonal pathways

We investigated the potential effect of three different soil communities on the induction of JA and/or SA defensive genes in sweet pepper plants. The soils selected for the experiment were: soil conditioned with Achilea millefolium and Lolium perenne and sterile soil as control (see Materials and Methods). No main effect of soil type was found on the expression of CaLOX2 (JA-biosynthetic gene) (P > 0.05), or SA-marker genes (CaPAL1 and CaPR1), neither at 24 h nor 48 h after insect infestation (P > 0.05) (Fig. 2, Figs S5 and S6). In contrast, the expression of CaPINII (JA-responsive gene) was up-regulated comparing PSF effects in undamaged plants, where soil conditioned by L. perenne led to a stronger response than sterile soil at first time point (24 h) (see suppl. statistical results) (2-way ANOVA; F = 3.532; df = 2, 33; P = 0.045; Fig. 1). However, the soil effect on the expression of CaPINII was no longer observed at 48 h (2-way ANOVA; F = 0.758; df = 2, 34; P = 0.479; Fig. 1).

Aphid herbivory facilitates thrips performance, but not if aphids are parasitised

Thrips survival from two-day-old nymphs until adult stage and length of adult body size were measured as performance parameters of F. occidentalis.Thrips were growing on detached leaves from sweet pepper plants previously treated as described above for gene expression analyses. Thrips survival was highest when feeding on leaves from plants that were previously infested by unparasitised aphids (GLM, binomial test; F = 9.491; df = 3, 125; P = 0.023; Fig. 3), whereas no differences in survival rates were found for thrips feeding on plants previously infested by parasitised aphids or thrips, compared with uninfested plants. Moreover, a strong effect was observed on the body size of thrips that reached the adult stage. Both females (2-way ANOVA; F = 5.017; df = 3, 69; P = 0.004; Fig. 4A) and males (2-way ANOVA; F = 4.470; df = 3, 106; P = 0.006; Fig. 4B) were significantly larger when feeding and developing on leaves previously infested by either parasitised or unparasitised aphids, or thrips, compared with uninfested plants. The effect of plant-soil feedbacks was also analysed on thrips performance; but no effect was found on thrips survival nor adult size (P > 0.05). However, a significant interaction was found between soil and herbivory on the body size of thrips males (2-way ANOVA; F = 2.264; df = 6, 106; P = 0.044; Fig. 4B), but this interaction was not found in females (2-way ANOVA; F = 1.008; df = 5, 69; P = 0.421; Fig. 4A).

Figure 3
figure 3

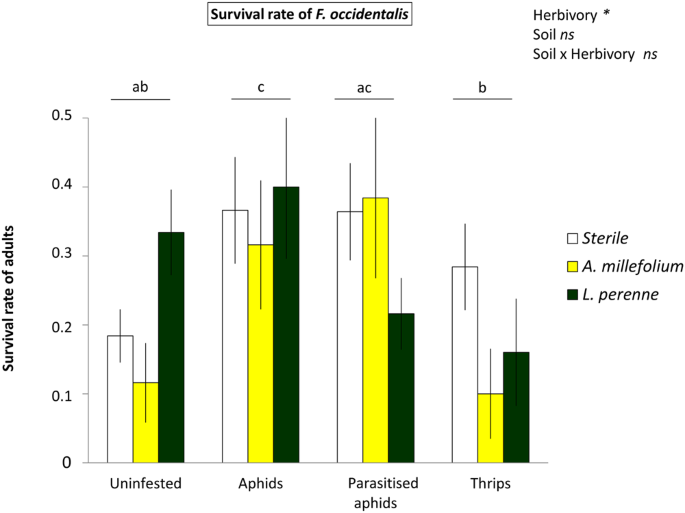

Performance of F. occidentalis, number that reach the adult stage (out of 5 initial individuals) on C. annuum for four different treatments: (a) uninfested plants, (b) aphid-infested plants, (c) parasitised aphid-infested plants, (d) thrips-infested plants, on three different soil types: (a) sterile soil, (b) A. millefolium, (c) L. perenne. Bars represent means ± SE (n = 12 replicates). Different letters indicate significant pairwise differences between infestation treatments (P < 0.05).

Full size image
Figure 4
figure 4

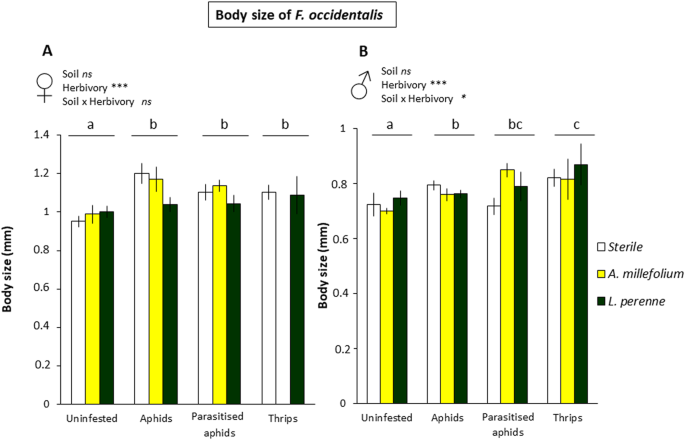

Performance of F. occidentalis, length of body size in adult stage for female (A) and male (B) thrips on C. annuum for four different treatments: (a) uninfested plants, (b) aphid infested plants, (c) parasitised aphid infested plants, (d) thrips infested plants, on three different soil types: (a) sterile soil, (b) A. millefolium, (c) L. perenne. Bars represent means ± SE (n = 12). No surviving females were found in thrips infested plants grown on A. millefolium soil. Different letters indicate significant pairwise differences between infestation treatments (P < 0.05).

Full size image

Discussion

This study shows that the plant response to aphid herbivory can be altered by parasitism, but not by legacies left in the soil by previous plants. This pattern also scales-up into the consequences for the survival of a subsequent herbivore feeding on those plants. There is an increasing awareness about how parasitism can alter the plant-defence signalling network and how these changes may have cascading effects at the insect community level. Caterpillar parasitism can increase the feeding damage done by caterpillars, increasing thus the induction of chemical plant defenses with a fitness cost for the plant14. Moreover, parasitism of caterpillars can alter both plant gene expression and metabolomics, affecting the foraging decisions made by subsequent herbivores, parasitoids and even hyperparasitoids at the fourth trophic level11,13. Our findings demonstrate such differences in plant responses due to parasitism of phloem feeders, which not only have a completely different biology, but also elicit different plant responses. Since parasitoids are indirectly affected by the plant on which their host is feeding37 and are mostly immobile inside their hosts, parasitoids may be expected to alter the plant-defence mechanisms for their own benefit. Although it is a not-yet tested hypothesis, a possibility is that parasitoids may alter herbivore induced plant responses to deter other predators that can kill the parasitoids when ingesting their herbivorous prey. This phenomenon of intraguild predation is common between aphid parasitoids and predators, and in a previous study we showed that hoverflies reduce their oviposition on plants colonized by parasitised aphids38. In contrast, although not yet known for phloem feeders, hyperparasitoids of caterpillar parasitoids were more attracted to plants infested by parasitised than unparasitised caterpillars13. Future studies including multiple members of the different trophic levels may unravel the costs and benefits of the plant responses altered by parasitoids.

Our results show that heterospecific herbivory aboveground by aphids facilitates thrips performance, but not when aphids were parasitised, or when plants were previously infested by conspecific thrips. Several studies with phloem feeders that induce the SA signalling pathway and leaf chewers that induce the JA pathway in a similar way as thrips do, have observed facilitative interactions, mainly associated with cross-talk of these two signalling pathways5,39,40,41. Here, at the plant signalling level, we also observed that aphids suppressed the JA-marker gene CaPINII, and associated with this, thrips performance on aphid-infested plants was enhanced. Linked to this result, parasitism mitigated the suppression of CaPINII, and also the aphid-triggered facilitation of thrips performance. Further work with pepper plants that have the JA signalling pathway impaired (Sarde et al., in prep) could confirm the role of JA pathway in shaping the interactions between multiple attackers in the presence of a member of the third trophic level.

A yet unresolved, question is, which mechanisms in the herbivores are triggering the observed differences between parasitised and unparasitised aphids. In our experiments, we have repeatedly observed that the honeydew covering the plants colonized by parasitised aphids show small white spots that are not present on plants with unparasitised aphids. Aphid honeydew was shown to play a significant role supressing JA accumulation in Vicia faba plants42. Parasitised aphids may release a higher amount of honeydew than healthy aphids43, and therefore a stronger JA suppression by parasitised aphids would be expected. In contrast, our results show a weaker suppression of the JA response in plants colonized by parasitised compared to unparasitised aphids. Thus, we suggest that altered plant responses due to parasitism may be due to changes in honeydew composition rather than quantity. An alternative hypothesis is that the different plant response may be due to changes in aphid saliva, which plays a key role in plant-aphid interactions44,45. In caterpillars, parasitism changes the herbivore oral secretions, and this alters plant responses such as the emission of herbivore-induced plant volatiles compounds (HIPVs), which allows parasitoids to discriminate between parasitised and unparasitised hosts, but also allows hyperparasitoids to locate their hosts11,46,47. At present, there is no information about differential composition of saliva and honeydew comparing parasitised with healthy aphids.

We did not find evidence of soil treatments altering the relationships between those herbivores nor the plant response (gene expression in JA and SA signalling). In our study, we created different soil microbiomes by applying the concept of plant-soil feedbacks29,30, with a methodology that reduces the potential differences in abiotic soil properties (see materials and methods). The selected plants (L. perenne and M. millefolium) used to condition the soil were selected according to previous results of PSF effects on plant performance and pathogen resistance in chrysanthemum (Dendranthema X grandiflora)48, and resistance against thrips (Pineda et al., in prep.). However, no effect of PSF on induced resistance nor on molecular plant responses were observed in this study with sweet pepper. Plant-soil-insect feedbacks and their underlying mechanisms is a so-far unexplored field, and the effects on insects may vary depending on factors such as plant species, plant communities, or insect feeding guild26,35. Further studies on these and other factors affecting plant resistance to herbivores will not only increase our understanding of how plants and insects interact in nature, but also of how to apply the concept of PSF to protect agricultural crops.

The vast majority of studies on plant defences have focused on the responses to the attack of single microbes or herbivores. However, in nature, plants interact with multiple species of attackers and beneficial organisms, calling for increased complexity of the study systems. Using an agriculturally important plant species, our work highlights the role of parasitism at modulating plant defences and heterospecific insect interactions.

Materials and Methods

Plants and insects

The study system consisted of Sweet pepper (Capsicum annuum var. maranello), an organically certified cultivar commonly used in organic greenhouse crops, the generalist phloem feeding aphid M. persicae, the cell-content feeding thrips F. occidentalis and A. colemani as the parasitoid of M. persicae. For the soil conditioning, we selected the forb Achilea millefolium L. (Asteraceae) and the grass Lolium perenne L. (Poaceae), species that in a previous study on chrysanthemum led to a thrips-suppressive plant-soil feedback effect (Pineda et al., in prep.).

Insects were reared at NIOO-KNAW, Wageningen, The Netherlands. Myzus persicae was reared on C. annuum plants for multiple generations, A. colemani was provided by Koppert Biological System and F. occidentalis was reared on fresh green beans Phaseolus vulgaris L. (Fabaceae), in climate chambers at 22 °C ± 2 °C, 40% relative humidity (RH) and a 16 h light and 8 h dark photo regime.

Soil preparation

To create distinct soil microbiomes, living soil collected from a grassland from the national park The Hoge Veluwe (The Netherlands) was conditioned by the wild plants A. millefolium and L. perenne, as described in Kos et al.27. One seedling per pot was transplanted into this soil (12 replicates per each wild plant), and pots were randomly located inside a greenhouse (21/16 °C day/night, 16 h photoperiod). Plants were watered three times per week. Natural daylight was supplemented by 400 W metal halide lamps (225 µmol m −2 s −1 PAR). After 8 weeks of conditioning phase, soil inocula were collected, keeping each soil replicate separately.

Then the soil inocula were mixed with sterilized bulk soil (10% soil inocula: 90% sterilized soil) and for control soil only sterilized bulk soil was used. To obtain sterilized bulk soil, the same field soil was sterilized by gamma irradiation (>25 KGray: Isotron, Ede, The Netherlands). Pots (13 × 13 × 13 cm) were filled with 1 kg of mixed soil in total. The mixing of inocula with sterilized soil reduces differences in the abiotic characteristics of the soil, while the biotic component can recolonize the sterile soil25. To ensure that at least one seedling of sweet pepper survived, we used two seeds per pot. The seeds were surface-sterilized (1 min in 0.1% sodium chloride solution and rinsed with water) and germinated directly in the pots. After two weeks, only one seedling of sweet pepper was kept per pot. Plants were grown in a greenhouse under the same conditions as described above. Plants were watered three times per week, supplied with nutrient solution (Hoagland). In total, there were 288 pots (4 herbivore treatments × 3 soil treatments × 12 replicates × 2 time points).

Insect infestation and harvesting

Five weeks after germination, plants were randomly allocated to one of the following treatments (i) uninfested, (ii) aphid-infested, (iii) parasitised aphid-infested and (iv) thrips-infested. All treatments were replicated 12 times per soil treatment and two groups were labelled as 24 h and 48 h. All the plants were individually covered with gauze cages to prevent the escape of insects, and uninfested plants were covered as well to standardise conditions. For the treatment of aphid-infested plants, thirty three-day-old nymphs of M. persicae were placed on the second expanded leaf from each plant. For the treatment of parasitised aphid-infested plants, a colony of A. colemani was allowed to parasitise approximately 1500 two-day-old nymphs of M. persicae during 24 h. Then, thirty of these three-day-old newly parasitised aphids were placed on each plant (99% of parasitism rate was confirmed after material collection). Parasitized aphids become mummies and stop feeding at the fourth instar or adult stage49, which occurs around 10 days after parasitoid oviposition50. Thus during this experiment parasitized aphids were feeding, since they were parasitized only 4 and 5 days before. For the thrips-infested plants treatment, ten three-day-old nymphs of F. occidentalis were enclosed in a clip cage on the plant, to ensure that thrips did not escape through the gauze. Results of gene expression from thrips-infested plants were analysed separately (see suppl. Materials) because of the use of clip cages in that single treatment, which can damage superficially the leaf and therefore interfere in the gene expression results compared with the control plants.

At 24 and 48 h after insect infestation, one leaf disc of 1 cm diameter was harvested per plant, using the second expanded leaf. In the plants with aphid infestation, we carefully removed their exuviae with a fine paintbrush prior to the collection. Uninfested plants were harvested similarly to the infested plants. Four separate biological replicates were arranged per treatment, and each replicate consisted of a pool of three leaf discs from three individual plants (randomly pooled). The collected material was labelled as 24 h or 48 h harvested and immediately frozen in liquid nitrogen and stored at −80 °C for RNA isolation.

RNA extraction, cDNA synthesis and quantitative RT-qPCR reaction

Total RNA extraction and purification was done following the protocol of Isolate II RNA Plant Kit (Bioline, London, United Kongdom). After purification, the RNA concentration and purity were measured using a NanoDrop ND-100 (NanoDrop Technologies, Wilmington, DE, USA) spectrophotometer (all samples with OD260/280 = 1.9–2.1), and RNA integrity was confirmed by gel electrophoresis. Isolated RNA was converted into cDNA using the iScript cDNA synthesis Kit (Biorad, Hercules, CA, USA), and diluted 1:20 with RNase free water.

Quantitative RT-qPCR analysis was used to evaluate the expression profiles of two genes involved in the JA-signalling pathway (CaLOX2 and CaPINII) and two genes involved in the SA-pathway (CaPAL1 and CaPR1), in which are appropriated markers in sweet pepper plants and common markers of the SA and JA pathways in other systems (Sarde et al. in prep) (see Supplementary information Table S1 for primer sequences). In addition, the expression of the reference genes CaUEP and CaACTIN was assessed for normalization (see further methods in Supplementary information).

Thrips performance experiment

Nymphs of F. occidentalis were allowed to develop until the adult stage while feeding on sweet pepper plants with previous herbivory (either from thrips, aphids or parasitised aphids), and growing on the different soils. From the same plants that were infested for 48 h and a sample was taken for molecular analyses, the fourth entire leaf was used for the performance bioassay (see supplementary methods: Thrips performance). The leaf petiole from each plant was inserted in 2 ml 1.5% plant agar in a 90 mm Petri dish, to maintain leaf freshness. Using a fine paintbrush, five two-day-old nymphs of F. occidentalis were transferred to each Petri dish. In total, there were 144 plates (4 herbivore treatments × 3 soil treatments × 12 replicates) and 720 individuals of thrips (5 nymphs × 144 samples). The thrips were monitored daily, starting 4 days later and until they became adults (±7 days monitoring). Survival and length of adult body-size, measured from head until the last part of the abdomen by a digital microscope (SZX12 Olympus; Tokyo, Japan), was recorded (due to differences between males and females, body size measurements were analyzed separately for each sex). The bioassay was performed in a growth chamber at 22 °C, 40% relative humidity (RH) and a 16 h light and 8 h dark photo regime.

Statistical analyses

After confirmation of the assumptions of normality and homogeneity of variances, differences in gene expression levels between previous herbivory attack and plant-soil feedbacks were analysed using two-way ANOVA’s, where herbivory and soils were set as fixed factors. Analysis were done separately for the different time points. The same two-way ANOVA models were applied to analyse the differences in thrips body size, with separate analysis for males and females, after averaging measurements from individuals from each replicate (Petri dish). To analyse whether induction by PSF and/or sequential herbivory affected thrips survival we used generalised linear models (GLM), with logit link function and binomial distribution, and the dispersion parameter estimated to correct for over-dispersion. All pairwise comparisons were done with the post-hoc protected LSD test (SPSS 15.0.; SPSS Inc., Chicago, II, USA).
