Introduction

Recently, core-shell structured nanomaterials have attracted the researcher’s attention because of their multifunctional cores and shells. Since the structure and the composition can be easily modified by a controllable way, the optical, thermal, and catalytic properties of the core-shell nanomaterials might be tailored and be used in various fields1,2,3,4,5,6. Silica is often used as a coating material due to its high chemical stability and good physico-chemical properties7,8. In addition, if the core-shell nanomaterials were coated on the silica core, the overall cost of the luminescent materials might be greatly reduced. Moreover, the photoluminescence intensity of phosphor can be significantly enhanced by these SiO2 core-shell materials: silica shell can strengthen the stability of materials to protect the core materials from dissolution or hydrolysis, while the Si–OH groups bonds can make the SiO2 easily bond with bio-macromolecule and then improve its biocompatibility. Therefore, the core-shell nanomaterials are good candidates for biological applications9,10. To date, many methods have been studied on the controlled fabrication of SiO2 core-shell luminescent materials. For example, Ansari et al. have synthesized silica-coated luminescent Y2O3:Eu nanoparticles by using an urea-based decomposition process. The mesoporous SiO2 layer played an important role in perfecting the Y2O3:Eu nanoparticles11. In addition, the SiO2@TiO2:Sm3+ hybrid materials have been prepared by a solvothermal coating method. It was found that the SiO2 core inhibited the growth of the TiO2 particles and reduced its aggregation and poor dispersity12. Tong et al. have synthesized Fe3O4@SiO2@Y2O3:Eu3+ composites, which exhibited ferromagnetic behavior and strong luminescence intensity13. Atabaev et al. have reported that the SiO2@Y2O3:Eu3+, Co2+ core-shell phosphor composites might be used in the biomedical applications because of their magnetic and luminescent properties14. The CePO4:Tb@LaPO4@SiO2 composites could also be synthesized by a co-precipitation process. The silica shell improved the solubility and colloidal stability of CePO4:Tb@LaPO4 in the solvent15. Secu et al. have found that the BaFBr:Er3+@SiO2 core-shell composites have good luminescence properties16. In short, the silica core-shell structured nanomaterials can improve its photoluminescence properties and promote their uses in biomedical applications.

Because europium ions (Eu3+) doped lanthanide phosphate (LaPO4) has unique fluorescent property, Eu3+-doped LaPO4 luminescent materials have been developed for phosphor powder, advanced flat panel displays, and biological labels17,18,19,20,21. Eu3+ ions used in the luminescent materials may be due to the following considerations: (1) Eu3+ ion has relatively high quantum efficiency. (2) The intensity ratio between electrical dipole transition (5D0 → 7F2) to magnetic dipole transition (5D0 → 7F1) transitions can be employed as a probe for the site symmetry of Eu3+ in the lattice. (3) The Eu3+ ions-doped optical material can be used as an efficient phosphor for solid state light sources22,23,24. Ray et al. have suggested that the local symmetry of Eu3+ in LaPO4 lattice can be determined by the intensity ratio between electrical dipole transition (5D0 → 7F2) to magnetic dipole transition (5D0 → 7F1) in different morphology nanocrystallines25. In addition, Jacobine et al. have found that the intensity ratio of the electric dipole transition to the magnetic dipole transition is higher when the products have a large fraction of Eu3+ ions close to the surface26. Thus, by means of the ratio of the electric dipole transition to the magnetic dipole transition, the effects of size, morphology, and crystallinity on the photoluminescence property of Eu3+ ions might be further studied.

The weak solubility of LaPO4 often limits its application in the field of biological fluorescence labeling. The silica surface coating may be the most effective strategy to improve the solubility, biocompatibility and the fluorescent property of LaPO4 samples27,28, because the silica shell can protect the phosphate materials from the influence of the surrounding environment. We want to develop the core-shell-shell structured SiO2@LaPO4:Eu@SiO2 nanomaterials, which use the LaPO4:Eu as the luminescent host and the SiO2 as cores and shells. The SiO2 is low cytotoxicity and inexpensiveness. Meanwhile, the SiO2 core can reduce the vibration of LaPO4:Eu molecular and enhance the photoluminescence properties of the materials. On the other hand, if the SiO2 were used as shells, there would be a large amount of Si-OH on the surface of the SiO2 shells. The Si-OH bond easily connects the nanomaterials to the biological macromolecules. Therefore, the core-shell-shell structure might protect the precious phosphors, as well as enhance the biocompatibility of the materials.

In this work, the SiO2 submicro-spheres were coated with layers of LaPO4:Eu phosphors, and the overall cost of the rare earth were reduced. Another SiO2 shell was coated to enhance the photoluminescence properties and the biocompatibility of the phosphate materials. The core-shell-shell structured SiO2@LaPO4:Eu@SiO2 submicro-spheres with different size of LaPO4:Eu nanoparticles were prepared to further investigate the influence of sizes on the photoluminescence properties of Eu3+ ions. The sizes, formation mechanism, and luminescent properties of the samples have been systemically studied. The intensity ratio of the 5D0 → 7F2 transition to the 5D0 → 7F1 transition of Eu3+ ions was determined. Judd-Ofelt theory was performed to evaluate the symmetry of Eu3+ in different-size LaPO4:Eu nanoparticles. Simultaneously, the photoluminescence properties of the SiO2@LaPO4:Eu@SiO2 submicro-spheres in aqueous solution have been investigated.

Result and Discussion

Structure and morphology

When the amounts of SiO2 submicro-spheres were 0.200, 0.140, and 0.067 g in the reaction system, the SiO2@LaPO4:Eu@SiO2 submicro-spheres with different size of LaPO4:Eu nanoparticles were synthesized. The crystal structure of the products was identified by the XRD patterns. Figure 1 illustrates the typical XRD patterns of the products SiO2 submicro-spheres, S1, S2 and S3. As Fig. 1a shows, a broad band centered at 2θ = 22° from the amorphous SiO2 (JCPDS No. 29-0085) was observed. The diffraction peaks of S1, S2, and S3 can be attributed to the monoclinic phase of LaPO4 (JCPDS No. 84-600), while the broad band at 2θ = 22° might result from the amorphous SiO2 (Fig. 1b,c). The peaks at 18.86°, 19.62°, 25.14°, 26.90°, 28.68°, 30.94°, 34.32°, 36.76°, 40.98°, 42.08°, 42.72°, 45.92°, 47.62°, 48.52°, 51.56°, and 52.52° can be attributed to the (011), (−111), (020), (200), (120), (012), (−202), (−212), (031), (−103), (−131), (212), (−231), (311), (−322) and (132) reflections of the crystalline LaPO4, respectively. The results indicate that the intermediate shell LaPO4:Eu can be well crystallized on the surfaces of the SiO2 core.

Figure 1
figure 1

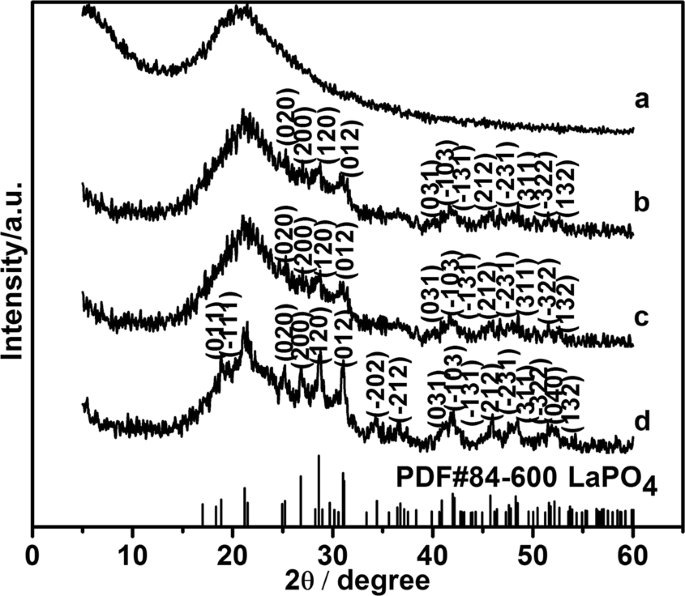

XRD patterns of SiO2 and core-shell-shell structured SiO2@LaPO4:Eu@SiO2: (a) SiO2, (b) S1, (c) S2, (d) S3.

Full size image

The structure and morphology of the S1, S2, and S3 products were also identified by TEM and high-resolution TEM (HRTEM). Figure 2 shows the TEM and HRTEM images of the SiO2@LaPO4:Eu@SiO2 submicro-spheres and the particle size distribution of the intermediate shell LaPO4:Eu nanoparticles. Figure 2a,f,k are the low-resolution images of the products S1, S2, and S3, indicating that the three products have “core-shell-shell” structures. Moreover, the “core-shell-shell” structures were composed of uniform submicro-spheres with smooth surfaces. The high-resolution images of the products S1, S2 and S3 showed that the size of LaPO4:Eu nanoparticles was 4–34 nm. These nanoparticles were uniformly distributed on the surface of the SiO2 core, and the average diameter of the SiO2 core was about 200 nm (Fig. 2b,c,g,f,l,m). For the product S1, the size of the intermediate shell LaPO4:Eu nanoparticles was about 4 nm and the average thickness of SiO2 shell was about 25 nm. The size of the intermediate shell LaPO4:Eu nanoparticles was 5–7 nm in the product S2, and the average thickness of the SiO2 shell was about 25 nm. However, the intermediate shell LaPO4:Eu of the product S3 showed single spherical particles with 15–34 nm in size, and the average thickness of the SiO2 shell was about 10 nm. The HRTEM images of the products S1, S2, and S3 shows clear lattice fringes with the lattice spacing of 0.33, 0.33, and 0.34 nm, respectively. This result well agrees with the (220) crystal plane of the monoclinic phase LaPO4 (Fig. 2d,i,n).

Figure 2
figure 2

TEM, HRTEM images of the products and size distribution images of intermediate shell LaPO4:Eu: (a–e) S1, (f–j) S2, (k–o) S3.

Full size image

Figures 2e,j,o are size distribution images of the intermediate shell LaPO4:Eu nanoparticles in the products S1, S2, and S3, respectively. Figure 3 shows the EDX mapping image of the S1 product. The STEM image of the SiO2@LaPO4:Eu@SiO2 submicro-spheres indicates that the construction of the product is an obvious “core-shell-shell” structure. The elemental mapping result revealed that the La, Eu, P, O, and Si were distributed over the whole range of submicro-spheres.

Figure 3
figure 3

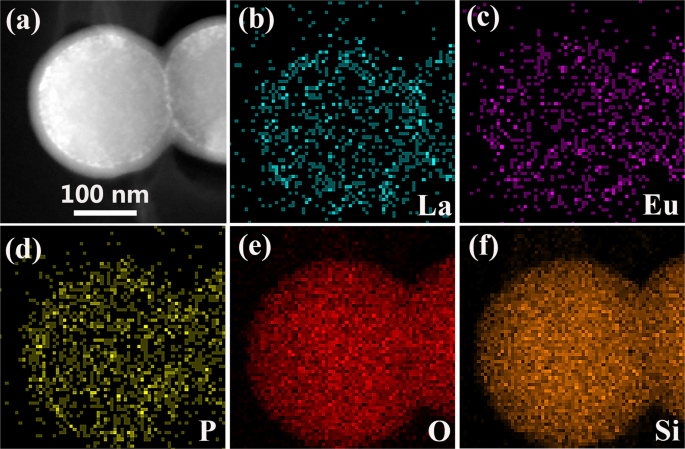

EDX mapping images of SiO2@LaPO4:Eu@SiO2. (a) STEM images, (b–f) the respective EDX element mapping images.

Full size image

To further investigate the amount of SiO2 submicro-spheres effects on the size of the LaPO4:Eu nanoparticles, the morphology of the products at the different stages were investigated by TEM (Figs S1 and S2). In this reaction system, only the amount of SiO2 submicro-spheres was changed and the other conditions were kept constant.

When the bridging ligand organosilane MABA-Si connected with different amount of SiO2 submicro-spheres, the thickness of MABA-Si grafting on the surface of SiO2 core was different. The thickness of the coating shell was about 2, 4, and 10 nm with decreasing the amount of SiO2 (Fig. S1a–l). Therefore, when different sizes of SiO2@MABA-Si connected with the LaPO4:Eu, we can obtain the SiO2@LaPO4:Eu submicro-spheres with different sizes of core-shell (the products N1, N2, and N3, Fig. S2). The TEM images (Fig. S2a–d) illustrate that LaPO4:Eu nanoparticles with about 4 nm in diameters could be uniformly coated on the surface of SiO2 submicro-spheres. By contrast, the thickness of LaPO4:Eu were increased to about 6 nm for the product N2 (Fig. S2e–h), and it was about 18 nm in the product N3 (Fig. S2i–l).

It is found that the thickness of SiO2@MABA-Si and SiO2@LaPO4:Eu would be changed by adding different amounts of SiO2 submicro-spheres in the reaction system. As the amount of SiO2 submicro-spheres decreased, we found that the thickness of SiO2@MABA-Si was proportionally increased. In addition, there would be higher content –COOH groups existing on the surface of the SiO2 submicro-spheres. The surface –COOH groups play an important role in the formation of LaPO4:Eu shell on the SiO2 core surfaces. Enough –COOH groups would coordinate with more rare earth ions, and the thickness of LaPO4:Eu coated on the surface of SiO2 core would be increased. After the core-shell-shell structured SiO2@LaPO4:Eu@SiO2 submicro-spheres were calcined at 900 °C, LaPO4:Eu particles crystallized and grew to nanoparticles with different sizes. In short, the larger thickness of the intermediate shell LaPO4:Eu was, the larger LaPO4:Eu nanoparticles might be obtained.

The growth mechanism of SiO2@LaPO4:Eu@SiO2 submicro-spheres

To better understand the growth mechanism of the SiO2@LaPO4:Eu@SiO2 submicro-spheres, the products of S1 at different stages were studied by TEM, IR, EDX, and XPS. A possible growth mechanism for the SiO2@LaPO4:Eu@SiO2 submicro-spheres was proposed, as Fig. 4a–g shows. First, the SiO2 submicro-spheres were obtained from the hydrolysis of TEOS. The SiO2 submicro-spheres presented a uniform and smooth spherical morphology. The average diameter of the SiO2 submicro-spheres was about 200 nm (Fig. 4b). At 1104, 950, and 450 cm−1, the IR absorption peaks of SiO2 submicro-spheres are observed. They should be attributed to the vibration of Si–O–Si, Si–OH, and Si–OH stretching (Fig. S3a). Second, the bridging ligand MABA-Si was grafted on the surface of the SiO2 core through Si–O–Si bond that derived from the hydrolysis and the condensation of silane coupling agent. The as-synthesized SiO2@MABA-Si exhibited a relatively rough surface with a thin layer of about 2 nm (Fig. 4c). In the IR spectrum of SiO2@MABA-Si, the –COOH stretching vibrations of MABA-Si appeared at 1720 cm−1 (Fig. S3b). When the –COOH groups exposed onto the surface of SiO2 core to coordinate with La3+ and Eu3+ ions, the peak of –COOH was found at 1705 cm−1, which appeared an obvious red shift (Fig. S3c). As Fig. 4d shows, a shell was coated on the surface of SiO2 core with a thickness of about 4 nm. Third, the PO43− would react with rare earth ions, and the LaPO4:Eu nanoparticles were formed on the surface of SiO2@MABA-Si. It was found that the surface of submicro-spheres became rough and its thickness was about 6 nm (Fig. 4e). Furthermore, the stretching and bending vibration of PO43− appeared at 872 and 578 cm−1 in the IR spectrum of SiO2@LaPO4:Eu (Fig. S3d). EDX analysis was also used to investigate the composition of the SiO2@LaPO4:Eu (Fig. S4). The appeared peaks demonstrated that the product was composed of Si, O, P, La and Eu elements. The La and Eu elements were 19% and 9%, respectively. According to the XPS analysis results (Fig. 5), the signals of 1164, 1135, 853, 836, 134, 1300, 105, and 288 eV were assigned to the binding energies of La 3d, Eu 3d, P 2p, O 1 s, and C1s, respectively (Fig. 5a). The presence of peaks at 852 and 935 eV, associated with La elemental (Fig. 5b). The two peaks of Eu 3d were located at 1165 and 1134 eV, which was attributed to 3d5 and 3d3 (Fig. 5c). The peak of P 2p was at 134 eV (Fig. 5d). The EDX and XPS results indicated that the LaPO4:Eu shell structure was formed on the surface of the SiO2 core. Fourth, in order to form a SiO2 shell on the surface of SiO2@LaPO4:Eu submicro-spheres, the TEOS should be hydrolyzed slowly. After calcination, the core-shell-shell structured SiO2@LaPO4:Eu@SiO2 submicro-spheres were finally obtained. As shown in Fig. 4f,g, a uniform silica shell was coated onto the surface of the submicro-spheres. The SiO2@LaPO4:Eu@SiO2 was an obvious “core-shell-shell” structured submicro-sphere, which has a ∼25 nm outermost shell, a ∼4 nm intermediate shell, and a ∼200 nm core. The selected area electron diffraction pattern (SAED) clearly shows several diffraction points, suggesting excellent purity of the intermediate shell LaPO4:Eu (inset Fig. 4f). In the corresponding IR spectrum, the characteristic absorption peaks of Si–O–Si (1100 cm−1), the typical PO43− symmetrical stretching and bending vibrations (879 and 567 cm−1) are observed (Fig. S3e). Finally, the core-shell-shell structured SiO2@LaPO4:Eu@SiO2 submicro-spheres were controllably synthesized.

Figure 4
figure 4

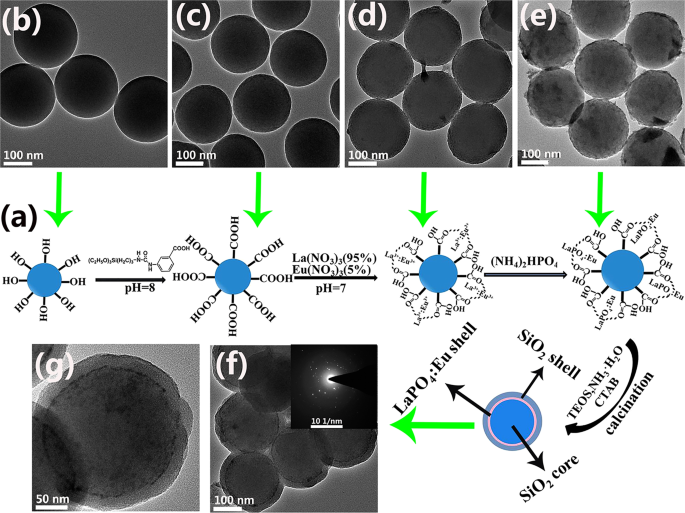

(a) The fabrication process of the SiO2@LaPO4:Eu@SiO2. TEM images of (b) SiO2, (c) SiO2@MABA-Si, (d) SiO2@La:Eu, (e) SiO2@LaPO4:Eu, (f,g) SiO2@LaPO4:Eu@SiO2 (Inset f: SAED).

Full size image
Figure 5
figure 5

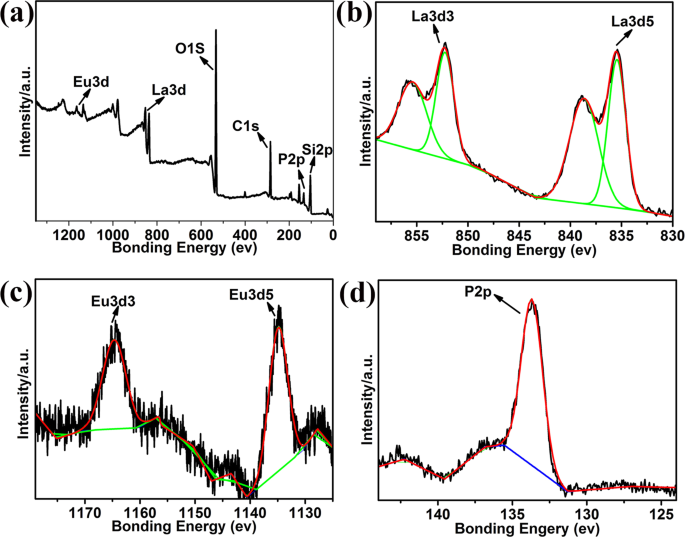

XPS spectra of SiO2@LaPO4:Eu, (a) survey spectrum, (b–d) high-resolution XPS spectra of La 3d, Eu 3d and P 2p.

Full size image

Photoluminescence properties

The photoluminescence of core-shell-shell structured products with different size of LaPO4:Eu nanoparticles were investigated by the room-temperature photoluminescence (PL) spectra. The excitation spectra of the products S1, S2, and S3 are presented in Fig. 6. For the S1 sample, the broad band centered at 282 nm should be assigned to the charge transfer (CTB) of Eu3+ ions. The other four peaks at 317, 361, 375, and 393 nm are attributed to the direct excitation of the f-f shell transitions of Eu3+ ions29. The CTB for the products S2 and S3 were displayed at 271 nm and 269 nm, respectively. Generally, the CTB position depends on the Eu-O bond length. If the length of Eu-O bond is long, the CTB usually has a longer wavelength30,31. When the size of the LaPO4:Eu nanoparticles is about 4 nm, the CTB position band would show a red shift. It indicates that the Eu-O bond distance become longer and the ratio of surface Eu3+ ions is increased as the particle size shrinks32. It is found that emission peaks at 587, 612, 650, and 685 nm would excite with a 393 nm wavelength. This result should be originated from the 5D0 → 7FJ (J = 1–4) transitions of Eu3+ (Fig. 7)33. The emission peaks at 612 nm and 587 nm should correspond to the electric dipole transition 5D0 → 7F2 and the magnetic dipole transition 5D0 → 7F1 of Eu3+ ions. The S1–S3 samples have the same peak positions in the emission spectra. However, the intensity patterns of these products are different. The strongest peak for the S1 product is found at 612 nm, but at 587 nm for the products S2 and S3. Additionally, the intensity ratios of the electric dipole transition 5D0 → 7F2 to magnetic dipole transition 5D0 → 7F1 in the products are different, and the calculated intensity ratios are 1.40, 0.98 and 0.45 for the products S1, S2, and S3, respectively. With the size of the LaPO4:Eu nanoparticles decreases, the intensity ratios of the 5D0 → 7F2 transition to the 5D0 → 7F1 transition increases gradually, and the intensity of the electric dipole transition 5D0 → 7F2 becomes stronger. These results indicate that the PL properties depend on the size of LaPO4:Eu nanoparticles. Generally, the electric-dipole transitions are strictly forbidden, and the magnetic-dipole transitions are permitted due to the parity selection rules. The electric-dipole transition 5D0 → 7F2 is very sensitive to the local environment34. When the Eu3+ ions do not lie on an inversion center of the crystal, the forbiddance of electric-dipole transition is resolved to some extent, and the electric-dipole transition 5D0 → 7F2 may become stronger. It is believed that the crystal field around the Eu3+ ions should not much affect the magnetic dipole transition 5D0 → 7F135. When the size of the nanoparticles decreased, the ratio of Eu3+ ions in the surface of nanoparticles would be increased. Therefore, the decrease of the symmetry around the Eu3+ ions would lead to the enhancement of the 5D0 → 7F2 transition32,36,37. To further understand the f-f transition and the local symmetry properties of Eu3+ ions in the LaPO4 crystal lattice, the optical transition strength parameters (Ω2 and Ω4) were calculated by the well-known Judd-Ofelt (J-O) theory.

Figure 6
figure 6

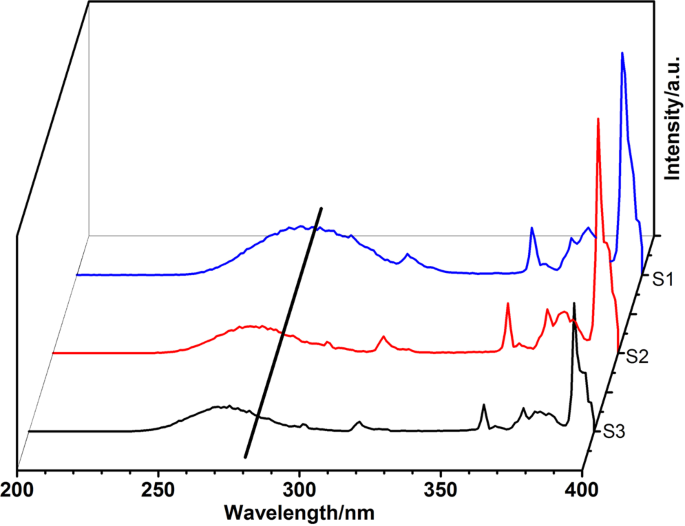

Excitation spectra of the products: S1, S2 and S3.

Full size image
Figure 7
figure 7

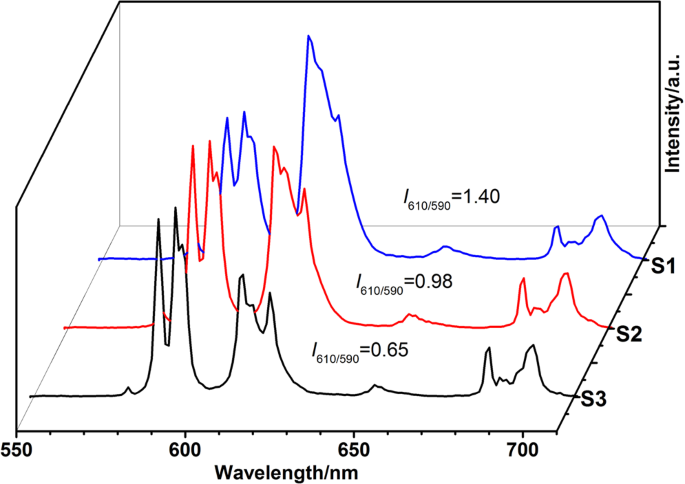

Emission spectra of the products: S1, S2 and S3.

Full size image

The Judd-Ofelt (J-O) theory describes f-f transition properties of rare earth ions and realizes the parameterization of optical transition strength and transition probability38,39. Thus, according to the emission spectra and the J-O theory, the optical transition strength parameters (Ω2 and Ω4) can be calculated. A higher Ω2 value means a decrease in site symmetry. The variation of the Ω2 value often relate to the change in local symmetry around the Eu3+ ions due to the hypersensitivity of the electric dipole transition 5D0 → 7F2 to the local environment40. Here, in order to further understand the local symmetry properties of the Eu3+ ions, J-O theory was used to calculate Ω2 and Ω4 by analyzing the emission spectrum of the products S1–S3. As the J-O theory formula (1) shows, the transition rate of the energy level is in proportion with the integral strength of the emission spectrum. Thus, the magnetic dipole transition 5D0 → 7F1 of Eu3+ ion is independent of the environment and can be used as a reference41. We can calculate Ω2 and Ω4 values by calculating the integrated intensity of the electric-dipole transitions 5D0 → 7F2 and 5D0 → 7F4. The ratio of the electric dipole transition rate to magnetic dipole transition rate can be expressed as:

$$\frac{{{\rm{A}}}_{0{\rm{J}}}}{{{\rm{A}}}_{01}}=\frac{{{\rm{e}}}^{2}}{{{\rm{S}}}_{{\rm{md}}}}\frac{{{\rm{v}}}_{{\rm{J}}}^{3}}{{{\rm{v}}}_{{\rm{1}}}^{3}}\frac{{({{\rm{n}}}^{2}+2)}^{2}}{9{{\rm{n}}}^{2}}\,{\Omega }_{{\rm{\lambda }}}|\langle {}^{5}{\rm{D}}_{0}\Vert {{\rm{U}}}^{(\lambda )}\Vert {{}^{7}{\rm{F}}_{{\rm{J}}}\rangle |}^{2}=\frac{\int {{\rm{I}}}_{{\rm{J}}}{\rm{dv}}}{\int {{\rm{I}}}_{{\rm{1}}}{\rm{dv}}}$$
(1)

where, A01 refers to magnetic dipole transition rates. It is independent of the environment and has a defined value of 50 s−1 42. The magnetic dipole transition rates A01 is expressed as:

$${{\rm{A}}}_{01}=\frac{64{{\rm{\pi }}}^{4}{{\rm{v}}}_{1}^{3}{{\rm{n}}}^{3}{{\rm{S}}}_{{\rm{md}}}}{3{\rm{h}}(2{\rm{J}}+1)}$$
(2)

The electric dipole transition rates A0J is expressed as:

$${{\rm{A}}}_{0{\rm{J}}}=\frac{64{{\rm{\pi }}}^{4}{{\rm{v}}}_{{\rm{J}}}^{3}}{3{\rm{h}}(2{\rm{J}}+1)}{{\rm{e}}}^{2}\frac{{\rm{n}}{({{\rm{n}}}^{2}+2)}^{2}}{9}\sum {\Omega }_{{\rm{\lambda }}}|\langle {}^{{\rm{5}}}{\rm{D}}_{0}\Vert {{\rm{U}}}^{({\rm{\lambda }})}\Vert {{}^{7}{\rm{F}}_{{\rm{J}}}\rangle |}^{2}$$
(3)

e is the electronic charge and the value is 4.803 × 10−10; Smd denotes the magnetic dipole line strength and its value is a constant and independent of the host materials. The value of Smd is 9.6 × 10−42 units43; h is Planck’s constant and its value is 6.626 × 10−27; n is the refractive index of the phosphors and its value is 1.6; v1 and νJ are the wavenumbers of the corresponding transition.

\(|\langle {}^{5}{\rm{D}}_{0}|{{\rm{U}}}^{({\rm{\lambda }})}|{}^{7}{\rm{F}}_{{\rm{J}}}\rangle |\) is the squared reduced lattice element. Their values are also independent of the environment of Eu3+ and are 0.00324 and 0.00229 for J = 2 and 4, respectively44.

\(\frac{\int {{\rm{I}}}_{{\rm{J}}}{\rm{dv}}}{\int {{\rm{I}}}_{1}{\rm{dv}}}\) can be obtained from the integrated intensity corresponding to the 5D0 → 7F1 and 5D0 → 7FJ (J = 2, 4) transitions in the emission spectra. For the products S1, S2, and S3, we calculated the value of \(\frac{\int {{\rm{I}}}_{2}{\rm{dv}}}{\int {{\rm{I}}}_{1}{\rm{dv}}}\) is 1.77, 1.38, and 0.95. The value of \(\frac{\int {{\rm{I}}}_{4}{\rm{dv}}}{\int {{\rm{I}}}_{1}{\rm{dv}}}\) is 0.37, 0.40 and 0.39, respectively. Substituting the \(\frac{\int {{\rm{I}}}_{2}{\rm{dv}}}{\int {{\rm{I}}}_{1}{\rm{dv}}}\) values of the products S1, S2, and S3 into the formula (1), we can get the value of Ω2 is 2.30 × 10−20, 1.80 × 10−20, and 1.20 × 10−20. Substituting the \(\frac{\int {{\rm{I}}}_{4}{\rm{dv}}}{\int {{\rm{I}}}_{1}{\rm{dv}}}\) values of the products S1, S2 and S3 into the formula (1), we can get the value of Ω4 is 1.00 × 10−20, 1.08 × 10−20, and 1.05 × 10−20. The calculation results are shown in Table 1.

Table 1 The J-O parameters of SiO2@LaPO4:Eu@SiO2.
Full size table

In our study, when the size of LaPO4:Eu nanoparticles is about 4 nm (Ω2 is 2.30 × 10−20), the intensity ratio of the 5D0 → 7F2 to 5D0 → 7F1 is greater than 1.0. This result indicates that the excited RE3+ was not in the symmetric center of the lattice. Moreover, the result also shows that the forbiddance of electric-dipole transition was resolved to some extent because of the perturbation of the crystal field. When the size of LaPO4:Eu nanoparticles is 5–34 nm (Ω2 ≤ 1.80 × 10−20), the intensity ratios of the 5D0 → 7F2 to 5D0 → 7F1 transitions is less than 1.0, indicating that the Eu3+ ion locates in the symmetric center of the LaPO4 lattice.

The results were consistent with the CIE chromaticity diagram of the products S1, S2, and S3, which were estimated from their emission spectra (Fig. S5). The CIE chromaticity coordinates of the product S1 are closer to the red light than those of the product S2 or S3. Moreover, the parameter Ω4 was hardly affected by the symmetry of the Eu3+ ions in the LaPO4 lattice45. The relative intensity ratio (R) of 5D0 → 7F2 to 5D0 → 7F1 can be calculated by the formula (4). According to the emission spectra of the products, we calculated the R values of the S1–3 products. When the size of the nanoparticles decreased, the value of R would increase, and the symmetry of the Eu3+ ions in the LaPO4 lattice was decreased (Table 1).

$${\rm{R}}=\frac{{\int }_{602}^{637}{{\rm{I}}}_{0-2}d{\rm{\lambda }}}{{\int }_{581}^{602}{{\rm{I}}}_{0-1}d{\rm{\lambda }}}$$
(4)

The photoluminescence lifetime of the products with different sizes of LaPO4:Eu nanoparticles was also measured. The photoluminescence fitting curves of the products S1, S2, and S3 were shown in Fig S6. The calculated average lifetimes (τ) were calculated to be 1.53, 2.99, and 1.17 ms for the products S1, S2, and S3, respectively. Simultaneously, the absolute quantum yields were 40.23%, 11.26%, and 11.68% for the products S1, S2, and S3, respectively.

In order to investigate the possibility of SiO2@LaPO4:Eu@SiO2 submicro-spheres in the biological application, we studied the relation of the concentration, the placement time, and the PL properties of SiO2@LaPO4:Eu@SiO2 submicro-spheres in aqueous solution. Figure 8 displays the emission intensity vs. the concentration of S1 in 5 mL H2O. At first, the emission intensity of SiO2@LaPO4:Eu@SiO2 would increase with the increase of the concentration, but it comes to stable at last. When 5 mL H2O contained 0.033 g product S1, the strongest emission intensity could be detected. Because of the rate –OH quenching effect, the PL emission intensity in water gives a slight decrease with respect to that in the solid state. However, the SiO2@LaPO4:Eu@SiO2 submicro-spheres in aqueous solution shows a stable emission property. As Fig. 9 shows, the emission of SiO2@LaPO4:Eu@SiO2 would not be quenched even after 15 days. This good photoluminescence stability in aqueous solution might offer many opportunities for their applications in fluorescent bio-labeling/bioimaging and drug delivery.

Figure 8
figure 8

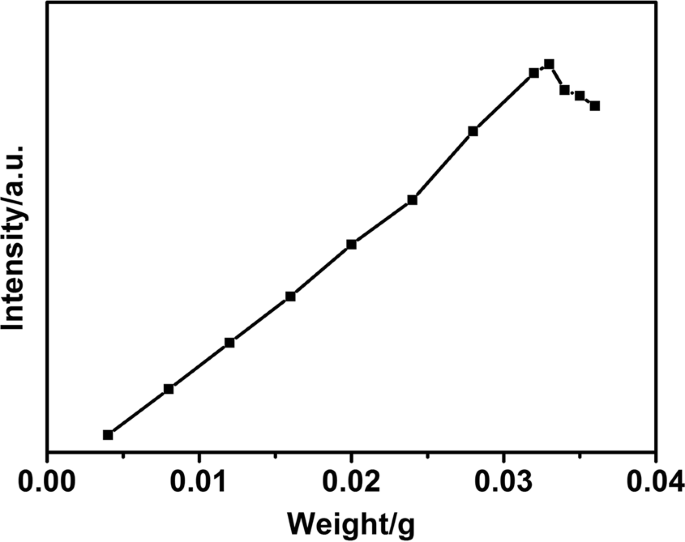

Emission intensity of the product S1 in 5 mL H2O as a function of weight.

Full size image
Figure 9
figure 9

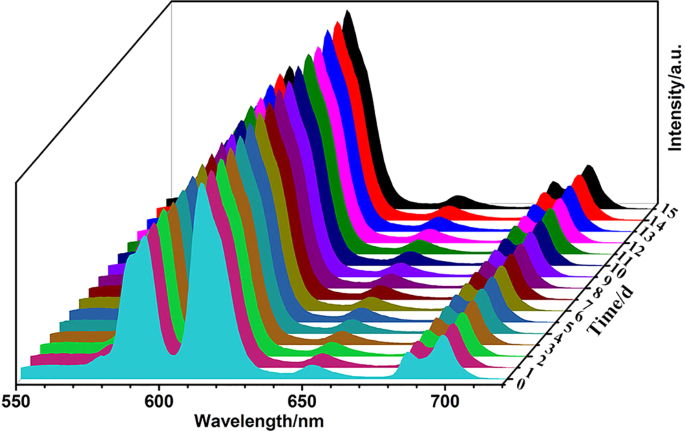

Emission spectra of 0.033 g the product S1 in 5 mL H2O with various times.

Full size image

Conclusions

In summary, the core-shell-shell structured rare earth phosphates luminescent materials (SiO2@LaPO4:Eu@SiO2) were controllably synthesized by a simple co-precipitation method using silane coupling agent (MABA-Si). The SiO2 shell played a key role in perfecting the solubility and improving the photoluminescence properties of the products. By varying the thickness of MABA-Si grafting on the SiO2 core and selecting the appropriate substitution reaction of phosphate, the intermediate shell LaPO4:Eu nanoparticles with different sizes can be obtained. According to the PL spectra and the calculation results of the Judd-Ofelt theory, the size of LaPO4:Eu significantly impacts on the symmetry of Eu3+ ions in LaPO4 lattice. When the size of LaPO4:Eu nanoparticles was about 4 nm (Ω2 = 2.30 × 10−20), the symmetry of Eu3+ ions in the crystal field became lower. Simultaneously, the SiO2@LaPO4:Eu@SiO2 exhibited strong red luminescence, which would correspond to the 5D0 → 7F2 transition of the Eu3+ ions. If the sizes of LaPO4:Eu nanoparticles were 5–34 nm (Ω2 ≤ 1.80 × 10−20), the Eu3+ ion would locate in the symmetric center of the LaPO4 lattice. Even over 15 days, the PL emission intensity of SiO2@LaPO4:Eu@SiO2 was stable in aqueous solution. These studies might expand the application of submicro-spheres in the field of the fluorescent bio-label/bio-image.

Materials and Methods

Reagents

Eu2O3 (99.99%), La(NO3)3·6H2O, Tetraethoxysilane (TEOS), Ammonia, Cetyltrimethyl ammonium bromide (CTAB), and (NH4)2HPO4 were purchased from Sinopharm Chemical Reagent Beijing Corporation Limited. Aladdin (Shanghai, China) provided 3-(triethoxysilyl)-propyl isocyanate and m-aminobenzoic acid. All reagents were analytical grade without further purification. The europium nitrate powder was prepared from Eu2O3. It was further dissolved in 10% nitric acid and was dried in a vacuum box.

Synthesis of SiO2@LaPO4:Eu@SiO2 submicro-spheres

The SiO2@LaPO4:Eu@SiO2 submicro-spheres are core-shell-shell structures, which were synthesized according to our earlier report46. First, the synthesis progress of SiO2@LaPO4:Eu was briefly described as follows: (1) The Stöber method was employed to synthesize the SiO2 submicro-spheres47. (2) The MABA-Si (bridging ligand organosilane) was prepared by using the method reported in literature48. (1H NMR, δ ppm: (2H) 0.56, (9H) 1.04–1.15, (2H) 2.93, (2H) 3.06, (6H) 3.33–3.75, (1H) 6.20, (4H) 7.43–8.01, (1H) 8.65 and (1H) 12.88). (3) The as-synthesized MABA-Si (1.000 g) and SiO2 submicro-spheres (0.067–0.200 g) were mixed with 25 mL ethanol. The pH value of the mixture was adjusted to ~8.0 by adding ammonia water, and the solution was magnetic-stirred for 4 h. The obtained SiO2@MABA-Si solution should be washed by ethanol three times. The obtained depositions were dispersed in 10 mL ethanol followed by a slowly addition of RE(NO3)3 (95% La3+ and 5% Eu3+) ethanol solution (0.066 mol/L) under stirring for 4 h. Finally, the suitable (NH4)2HPO4 was added into the mixture under continuous stirring for 6 h and a precipitation of core-shell structured SiO2@LaPO4:Eu submicro-spheres were synthesized. The materials were further washed by water and ethanol, and were dried under air at 60 °C for 8 h. The details of obtained core-shell structured SiO2@LaPO4:Eu submicro-spheres were displayed in Table 2.

Table 2 Prepared conditions of the core-shell structured SiO2@LaPO4:Eu submicro-spheres.
Full size table

Second, the synthesis of the SiO2@LaPO4:Eu@SiO2 submicro-spheres can be described as following. The above synthesized core-shell structured SiO2@LaPO4:Eu submicro-spheres (N1, N2, or N3, 0.100 g) were dispersed into 20 mL mixture solution of deionized water and ethanol. Subsequently, 0.1 g CTAB was introduced into the above mixture followed by dripping 1.0 mL aqueous ammonia with a concentration of 2.0 mol·dm−3. The suitable tetraethoxysilane (TEOS) was dropwise added to this solution and magnetic-stirred for 6 h. When the white solid precipitation was found, it was filtered and dried at 60 °C for 8 h. Finally, the above products synthesized from N1, N2, and N3 were further calcined in muffle furnace at 900 °C for 4 h, which were defined as S1, S2, and S3, respectively.

Characterization

The scanning electronic microscopy (SEM; Hitachi S-4800, Japan) and the transmission electron microscopy (TEM; FEI Tecnai F20, USA) were used to characterize the structure and morphology of the products. In addition, XRD data were investigated by a X-ray diffractometer (Model M21XVHF22, MAC science Co. Ltd., Japan). The characterization was carried out by using Cu Kα radiation over a 2θ range of 10–60° at room temperature. The X-ray photoelectron spectrometer (XPS, Thermo ESCALab 250Xi, USA) was also used to identify the elemental valences of the sample. The Infrared spectra of powders were recorded on a FT-IR instrument (IR, Nicolet NEXUS 670, USA) with a range of 4000–400 cm−1. At room temperature, the photoluminescence of the samples were determined on a fluorescence photometer (FL; Edinburgh S980, UK). And the quantum yields of products were measured at solid state (FL; Edinburgh S980, UK).
