Figure 6

From: Estimation of TiO2-FeO-Na2O slag viscosity through molecular dynamics simulations for an energy efficient ilmenite smelting process

Figure 6

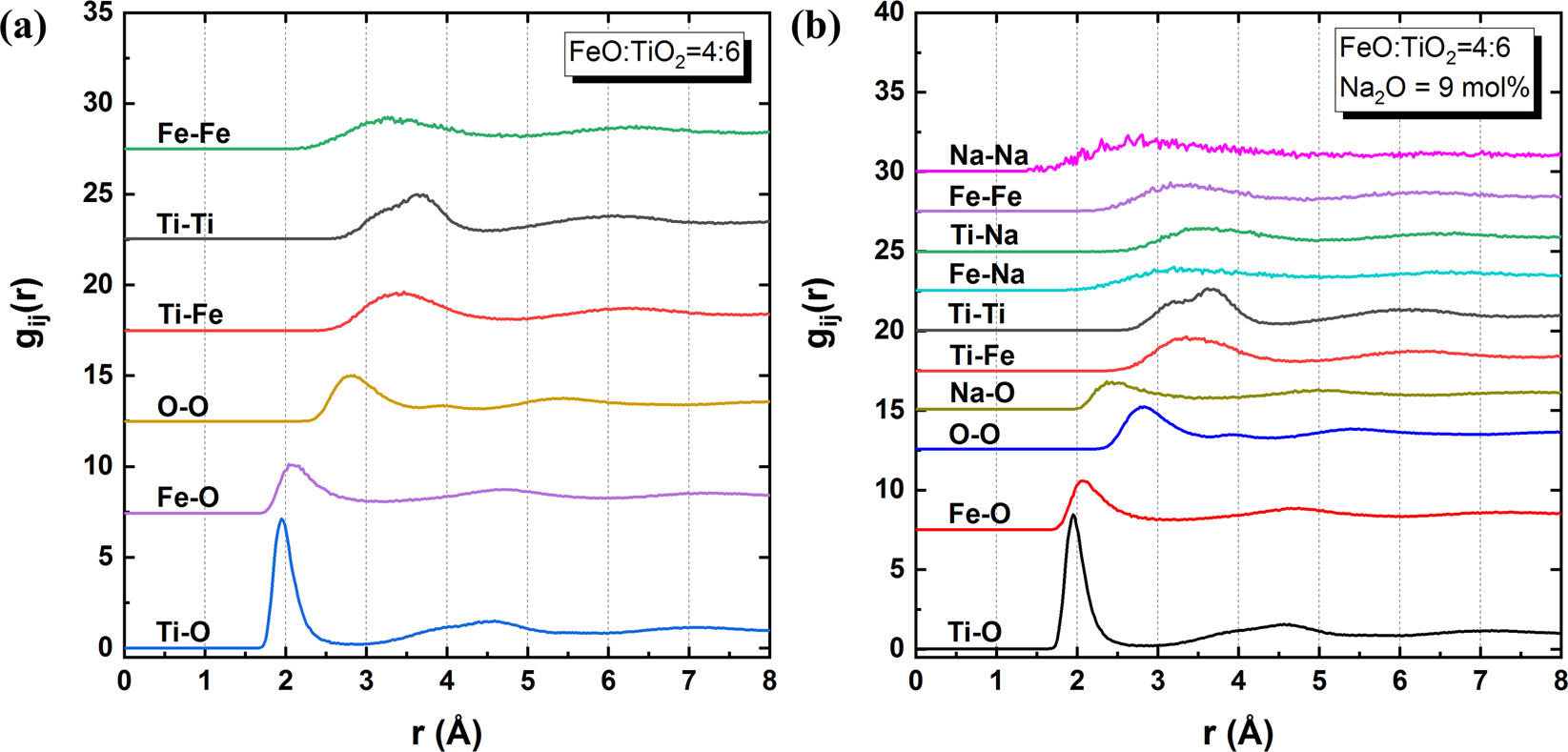

RDFs from MD simulations of the (a) 2FeO–3TiO2 system with no Na2O (Fe–Fe, green; Ti–Ti, grey; Ti–Fe, red; O–O, orange; Fe–O, purple; Ti–O, blue) and (b) the 2FeO–3TiO2 system with 9 mol% Na2O (Na–Na, pink; Fe–Fe, purple; Ti–Na, green; Fe–Na, light blue; Ti–Ti, grey, Ti–Fe, dark red; Na–O, yellow-green; O–O, blue; Fe–O, red; Ti–O, black) at 1823 K.
