Introduction

The growth improvement effect of plasma irradiation on plants has attracted considerable global attention1,2,3. Thus far, there have been pioneering studies on the improvement of germination and growth4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19, control of hormone balance between gibberellic acid (GA) and abscisic acid (ABA) in seeds20,21, and improvement of harvest characteristics22 using plasma irradiation. Recently, molecular biological studies were conducted to elucidate the mechanisms underlying the biological effects of plasma irradiation23. Plasma can irradiate seeds with reactive oxygen and nitrogen species (RONS), photons, ions, and subjects them to electric fields24. RONS are involved in a variety of seed processes, including maturation, aging, and germination, followed by seedling growth25,26. Exogenous reactive oxygen species (ROS) improves Zea mays and Helianthus annuus seed germination by inducing GA biosynthesis and ABA catabolism27. Colorimetric determination and simulations are useful for estimating the amount of RONS introduced in seeds. However, RONS introduced in seeds by plasma irradiation have not been successfully detected thus far. Considering that many studies deal with the induction of biological responses in seeds upon plasma irradiation, discussions on their underlying mechanisms should be based on the actual particles introduced in the seeds. This study provides experimental evidence that nitrate ions NO3− are introduced in seeds as RONS upon plasma irradiation.

We attempted to detect the typical RONS, NO3−, introduced in seeds upon irradiation with atmospheric-pressure air non-thermal plasma. Seed response to exogenous NO3− administration is an important research subject in plant molecular physiology. NO3− in plant seeds is responsible for inducing responses such as dormancy break, gene expression regulation, signal transduction, and ABA metabolism resulting from NLP8 binding to the CYP707A2 promoter28,29,30,31,32. Although there are many studies on the changes in genotype and phenotype due to the administration of NO3−, the molecular mechanism behind the plant’s response to NO3− remains unclear30. Consequently, this study aimed to experimentally prove that NO3− is introduced in seeds by plasma irradiation; a probable mechanism for this introduction is also suggested. It also proposed a new method of administering NO3− to seeds in a dry process using plasma.

Result and discussion

Germination characteristics

Considering that the introduction of NO3− in seeds by plasma irradiation could raise the level of food production, lettuce (Lactuca sativa L.), which is the most commonly grown factory-plant33, was used as biological material in anticipation of the rapid social implementation of plasma technology. Figure 1 shows the germination characteristics of seeds irradiated with plasma for 1, 3, and 5 min and non-irradiated seeds. This result was obtained using three biological replicates. The marks and error bars indicate average values and standard deviations, respectively. After 24 h, the seeds started to germinate with a relatively large deviation; the %germination was always higher in the seeds with (w/) plasma irradiation than in those without (w/o) plasma irradiation, suggesting that plasma irradiation promotes seed germination. This variability was probably due to the survival strategy of the plant and the amount of RONS introduced by the plasma. As the seed with 5 min of plasma irradiation had a 69% increase in its p-value compared to that (0.027) of the seed without plasma irradiation after 48 h upon two-tailed test, a plasma irradiation period of 5 min was decided for further experiments.

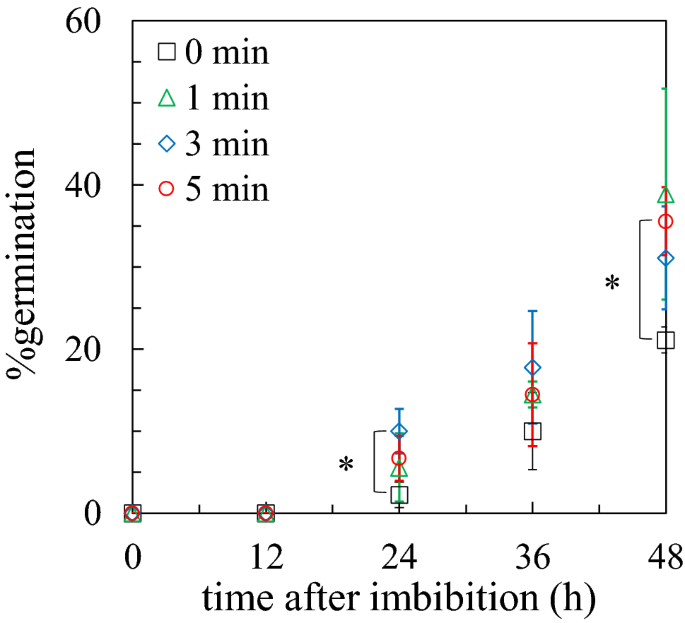

Figure 1
figure 1

Germination characteristics of lettuce seeds without and with (1, 3, and 5)-min plasma irradiation.

Full size image

Detection of plasma-induced unknown molecules in seeds

Electrospray ionization quantum mass spectrometry (ESI QMS) was used to detect NO3− in the seeds. Figure 2 shows the MS spectra of (a) ultra-pure water (blank), (b) the sample without plasma, and (c) the sample with 5 min plasma irradiation. Peaks S1, S2, S3, S4, S5, and S6 are shown in Fig. 2a–c. These peaks are observed even in ultra-pure water (Fig. 2a) and are thus assumed to have originated from the LC-QMS system. The intensities of peaks S1 to S6 in Fig. 1b and c are larger than those in Fig. 2a. This might be due to the matrix effect of seed contaminants. Conversely, the M1 and M2 peaks are found only for the seed extract in Fig. 1b and c, indicating that these two peaks originate from the seed material. The intensities of the M1 and M2 peaks in Fig. 2b are almost the same as those in Fig. 2c, indicating that the concentrations of the sample w/o and w/ plasma are the same and that plasma irradiation does not change the substantial composition in the mass range of 50–80 m/z. Nevertheless, a peak X at 62 m/z (indicated with an arrow) is clearly observed in Fig. 2c.

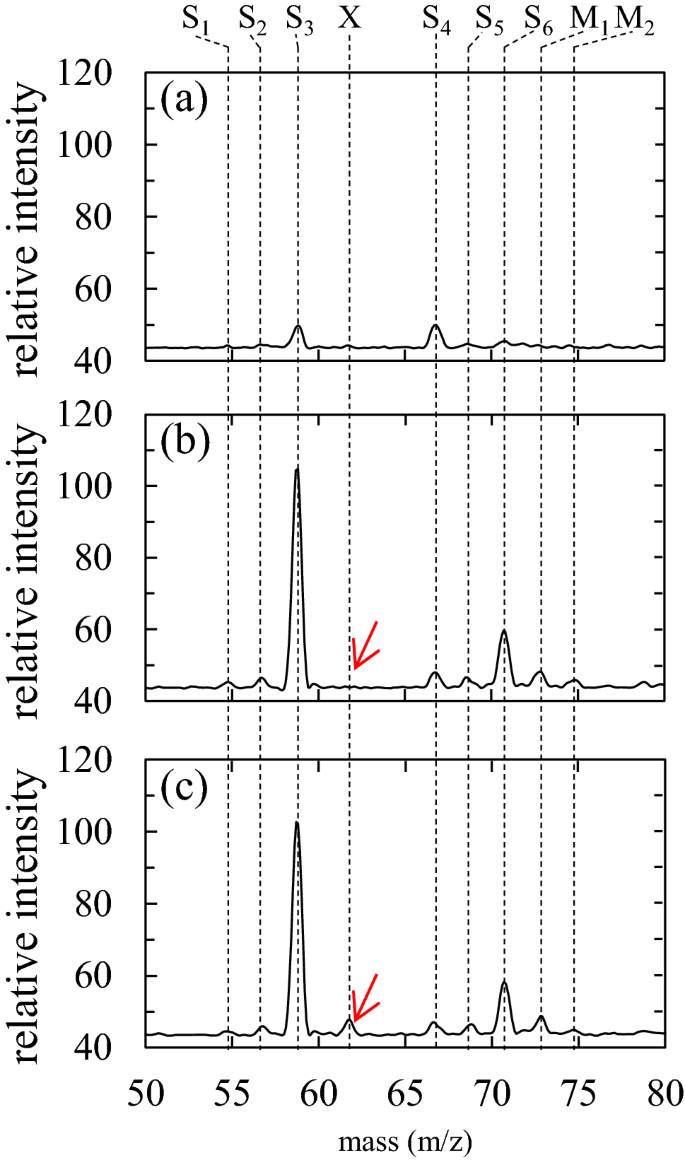

Figure 2
figure 2

Typical MS spectra of (a) blank, and extract of 20 seeds (b) without plasma irradiation and (c) with 5 min plasma irradiation, obtained by QMS.

Full size image

Further experiments were conducted to evaluate the reproducibility with five biological replicates. The MS spectra in the 60–64 m/z mass region of 20 seeds w/o plasma irradiation are shown in Fig. 3a, and those w/plasma irradiation are shown in Fig. 3b. We performed three measurements per replicate and obtained the integrated values. The marks and error bars indicate average values and standard deviations, respectively. The relative intensity at 62 m/z without plasma irradiation was 131.96 ± 0.31, which was almost the same as the baseline (131) but was 141.53 ± 1.83 for seeds with plasma irradiation. The peak area was significantly higher in the extract w/ plasma (p = 0.00012 as determined by a two-tailed t-test) than in the extract w/o plasma irradiation. These results strongly indicate that 62 m/z molecules generated by plasma irradiation were introduced in the seeds. Considering that the optical emission spectra of scalable dielectric barrier discharge (SDBD) plasma show NO (200–250 nm)34, a major candidate for peak X is nitrate ion (NO3−) among the long-lifetime species in air plasmas. NO3− can be generated from the electron impact ionization reactions of N2, O2, and H2O in the gas phase as shown in the reactions (R1)–(R7)35

$${\text{e }} + {\text{ N}}_{{2}} \to {\text{e }} + {\text{ 2N}}$$
(R1)
$${\text{e }} + {\text{ H}}_{{2}} {\text{O}} \to {\text{e }} + {\text{ H }} + {\text{ OH}}$$
(R2)
$${\text{e }} + {\text{ O}}_{{2}} \to {\text{ 2O }} + {\text{ e}}$$
(R3)
$${\text{N }} + {\text{ OH}} \to {\text{NO }} + {\text{ H}}$$
(R4)
$${\text{NO }} + {\text{ O}} \to {\text{NO}}_{{2}}$$
(R5)
$${\text{NO}}_{{2}} + {\text{ e}} \to {\text{NO}}_{{2}}^{ - }$$
(R6)
$${\text{NO}}_{{2}} + {\text{ NO}}_{{2}}^{ - } \to {\text{NO}}_{{3}}^{ - } + {\text{ NO}}$$
(R7)

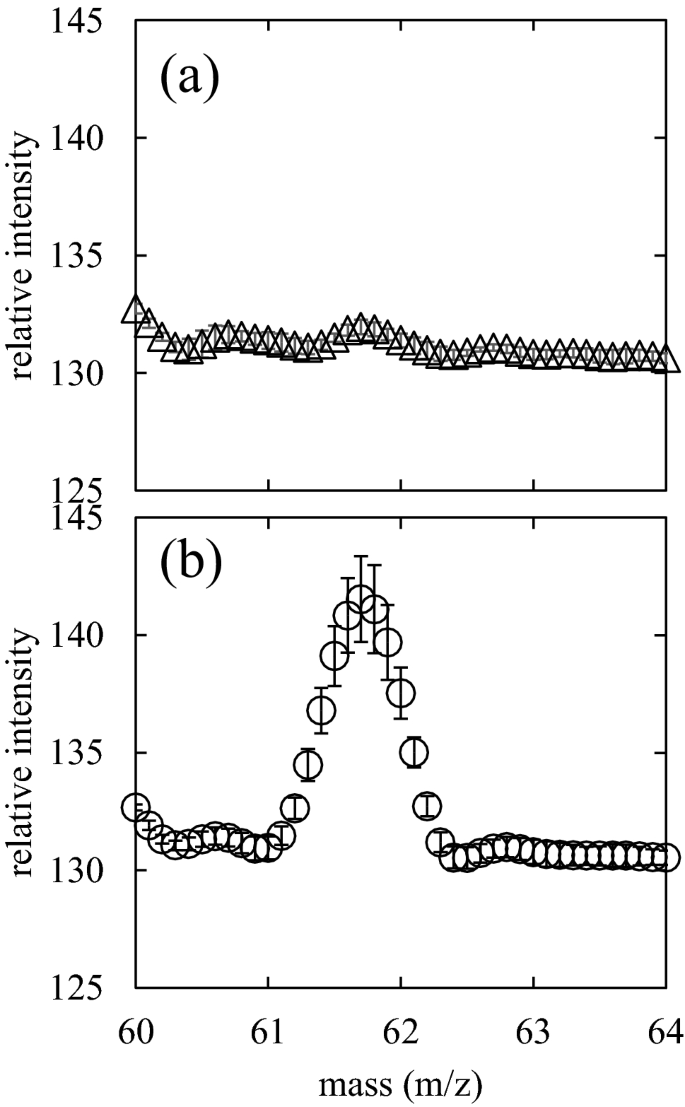

Figure 3
figure 3

MS spectrum of 60–64 m/z of extract of 20 seeds (a) without plasma irradiation and (b) with 5 min plasma irradiation, obtained by QMS mode. Three shots were integrated. Marks and error bars show mean values and standard deviations of triplicate, respectively.

Full size image

Identification of ion 62 m/z

A liquid chromatography (LC)-multiple wavelength detector (MWD) and LC-ESI QMS were used to identify the 62 m/z peak. Chromatography is effective in measuring the amount of NO3− in seed extract from impurities such as enzymes, proteins, and organic metals therein. The nitrate ion absorbs a wavelength of ~ 224 nm, and its isosbestic point is 215 nm36. A wavelength of 210 nm was used for MWD to avoid interference by peptide bonds of protein, which absorb at 228 nm, in seed extract37. It has been reported that NO3− is a major ion found in plasma-irradiated water1,38; hence, ultra-pure water was also irradiated with plasma and used for the analysis. Figure 4 shows the MWD chromatogram at 210 nm for (a) blank (ultra-pure water), (b) standard solution of NO3− at 1 µM, (c) ultra-pure water without plasma irradiation, (d) ultra-pure water with plasma irradiation, (e) seed extract without plasma irradiation, and (f) seed extract with plasma irradiation. The disturbance observed within 2 min is due to the injection shock and is thus neglected. Figure 4a shows no peaks after 2 min in the blank (ultra-pure water used for preparing the seed extraction). Ultra-pure water was used to dilute the standard reagent NO3−. A peak corresponding to NO3− appears at 5.84 min in the MWD, as shown in Fig. 4b. Although there is no NO3− peak in Fig. 4c, we can find a peak with high intensity in Fig. 4d and f, showing that NO3− is introduced in ultra-pure water and seeds by plasma irradiation. A small NO3− peak was also observed in seeds without plasma irradiation. The seed extract had several peaks at 3–5 min, as shown in Fig. 4e and f, and the areas of these peaks are almost the same, whereas the NO3− peak areas are significantly different from each other, i.e., 81.05 and 1486.04 for w/o and w/plasma, respectively. According to the Lambert–Beer law, the amount of NO3− seems to be considerably high in the extracts of seeds subjected to plasma irradiation. However, it cannot be denied that plasma irradiation may have produced an ion in the seed, which may have absorbed UV at approximately 210 nm with the same retention time as that of NO3−. Therefore, we performed an LC-ESI QMS experiment, corresponding to the results of Figs. 2, 3, and 4.

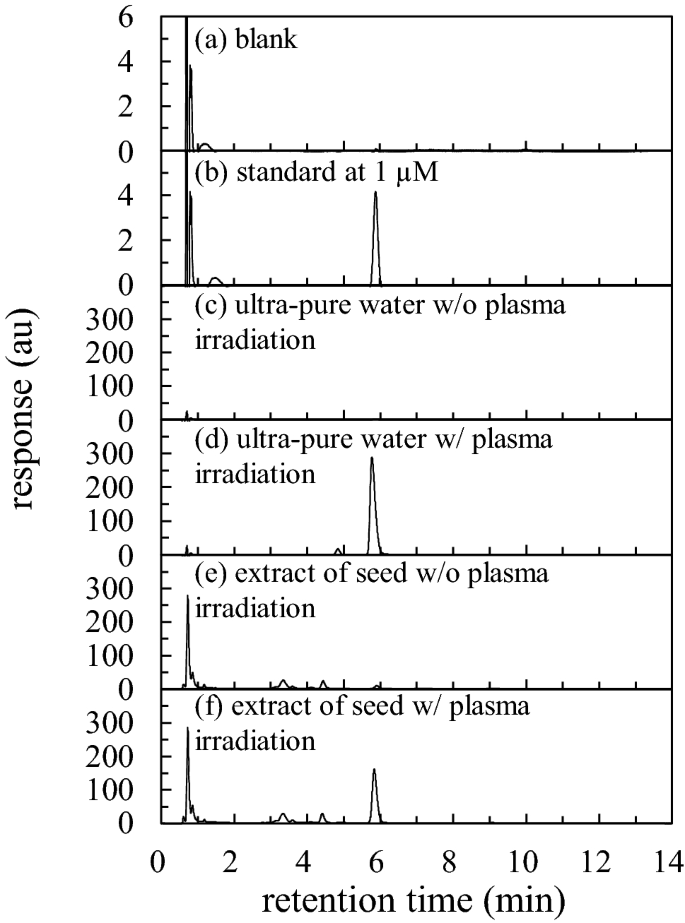

Figure 4
figure 4

MWD chromatograms of 210 nm of (a) blank, (b) standard solution of NO3− at 1 µM of concentration, ultra-pure water (c) without plasma irradiation and (d) with plasma irradiation for 300 s, and extract of seed (e) without plasma irradiation and (f) with plasma irradiation for 5 min.

Full size image

The isotope distribution of a molecule to be analyzed is unique to its structure and very effective in identifying those that indicate the detected mass. As stable isotopes are present in each of the nitrogen and oxygen atoms, the proportion of NO3− was calculated using the isotope distribution calculator (Agilent MassHunter Workstation Data Analysis Core; Version 10.0); using this we can estimate the mass that is dominantly detected for NO3−. The calculated values were 61.99 m/z, 62.99 m/z, 63.99 m/z, and 64.99 m/z of mass corresponding to 98.91%, 0.47%, 0.61%, and 0.00% of abundance, respectively, indicating that approximately 99% of NO3− existing in nature gives a mass of 62 m/z. Consequently, to identify 62 m/z of NO3−, a chromatogram of 62 m/z was obtained for the standard reagent of NO3− and extract of plasma-irradiated seeds. The mass resolution of the QMS was within 1 m/z. The coincidence of these retention times strongly indicated that they were the same substances. Although the signal intensity saturates at high concentrations for the extracted ion chromatogram (EIC), it can detect substances in smaller amounts compared to that by MWD. Figure 5 shows the ESI of 62 m/z for (a) blank, (b) standard solution of NO3− at 1 µM, (c) ultrapure water without plasma irradiation, (d) ultrapure water with plasma irradiation, (e) seed extract without plasma irradiation, and (f) seed extract with plasma irradiation. Figure 5 was obtained from the same sample shown in Fig. 4 to eliminate the contamination and concentration variation within the dilution processes. There is no peak in the blank, as shown in Figs. 5a and 4a. The standard reagent showed a peak at 5.8–6.3 min retention time, as shown in Fig. 5b. Figure 5c and d show ultra-pure water with and without plasma, respectively. During the plasma irradiation, ultrapure water was placed in a quartz Petri dish. A peak does not appear in the ultra-pure water simply placed in the quartz Petri dish (without irradiation), as shown in Fig. 5c, whereas a large peak appears at 5.8–7.0 min retention time when the same sample is irradiated with plasma, as shown in Fig. 5d. This retention time was in the same range as that of the standard reagent. Thus, the 62 m/z ion obtained from plasma irradiation was identified as NO3−. For the seed extract, peaks were found in the same retention time region as that shown in Fig. 5e and f, suggesting that NO3− was already present in the seed prior to plasma irradiation; its amount increased upon plasma irradiation. The standard deviations (±) in the mean peak areas for the seed extract were 4.6 × 103 ± 660.5 and 3.9 × 104 ± 4154.9 with and without plasma irradiation, respectively. The statistical t-test showed that p = 0.0006. Although it is clear that NO3− was introduced in the seeds by plasma irradiation, it is also interesting that NO3− was already present in the seeds at detectable levels prior to plasma irradiation. This method may be useful for measuring the amount of NO3− originally present in untreated seeds.

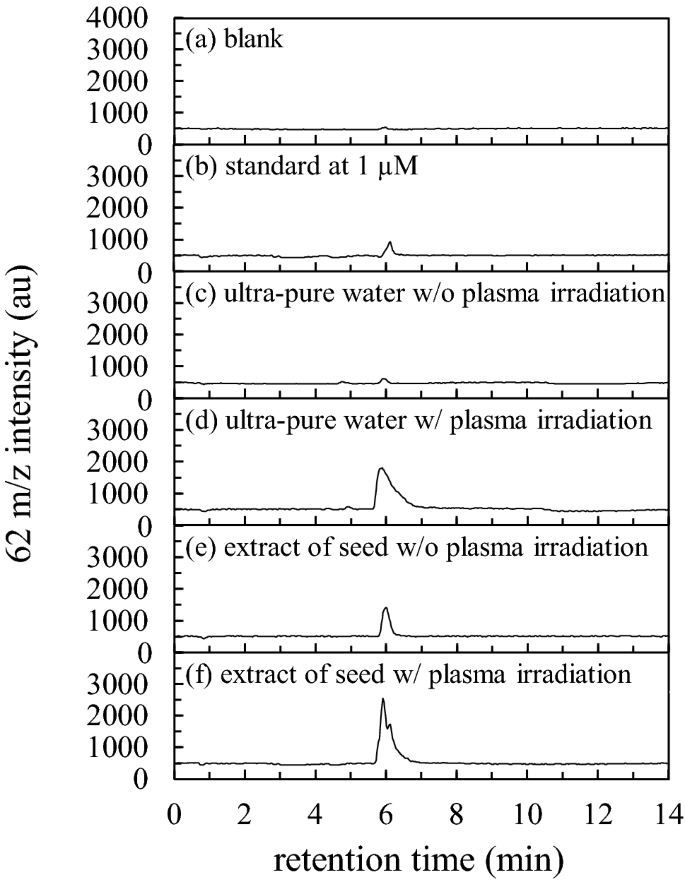

Figure 5
figure 5

EIC of 62 m/z of (a) blank, (b) standard solution of NO3− at 1 µM of concentration, ultra-pure water (c) without plasma irradiation and (d) with plasma irradiation for 5 min, and extract of seed (e) without plasma irradiation and (f) with plasma irradiation for 5 min.

Full size image

Introduction pathway of NO3 − into seeds by plasma irradiation

The feasibility of NO3− introduction in seeds by air SDBD plasma irradiation at atmospheric pressure was assessed by 1D simulation using COMSOL with 624 generation and decomposition reaction equations, summarized by Sakiyama et al.39, wherein the electron temperature Te = 1 eV, electron density Ne = 1013/m3, gas temperature Tg = 300 K, and plasma width Lp = 0.1 mm for a time duration of 1000 s. The simulation results present the density of NO3− and that of the reactive species involved in its generation at a point 5 mm away from the plasma region corresponding to the seed position. Table 1 shows the simulation results of the density at a certain point, e.g., seeds placed under the SDBD electrode after 1000 s, for NO3− and the reactive species that participate in its generation through the following reactions39,40,41,42:

$${\text{NO}}_{{2}}^{ - } + {\text{ HNO}}_{{3}} \to {\text{ NO}}_{{3}}^{ - } + {\text{ HNO}}_{{2}} \;\;\;\;\;{1}.{6} \times {1}0^{{ - {15}}}$$
(R8)
$${\text{NO}}_{{2}}^{ - } + {\text{ N}}_{{2}} {\text{O}}_{{5}} \to {\text{NO}}_{{3}}^{ - } + {\text{ NO}}_{{3}} + {\text{ NO}} \;\;\;\;\;\; {7} \times {1}0^{{ - {16}}}$$
(R9)
$${\text{O}}_{{2}}^{ - } + {\text{ NO}}_{{3}} \to {\text{NO}}_{{3}}^{ - } + {\text{ O}}_{{2}} \;\;\;\;\;\;{5} \times {1}0^{{ - {16}}}$$
(R10)
$${\text{O}}_{{3}}^{ - } + {\text{ NO}}_{{3}} \to {\text{NO}}_{{3}}^{ - } + {\text{ O}}_{{3}} \;\;\;\;\;{5} \times {1}0^{{ - {16}}}$$
(R11)
$${\text{NO}}_{{2}}^{ - } + {\text{ NO}}_{{3}} \to {\text{NO}}_{{3}}^{ - } + {\text{ NO}}_{{2}} \;\;\;\; {5} \times {1}0^{{ - {16}}}$$
(R12)
$${\text{NO}}^{ - } + {\text{ NO}}_{{3}} \to {\text{NO}}_{{3}}^{ - } + {\text{ NO}} \;\;\;\;\;\; {3} \times {1}0^{{ - {16}}}$$
(R13)
$${\text{O}}_{{2}}^{ - } + {\text{ HNO}}_{{3}} \to {\text{NO}}_{{3}}^{ - } + {\text{ HO}}_{{2}} \;\;\;\;\;\; {2}.{8} \times {1}0^{{ - {16}}}$$
(R14)
$${\text{O}}_{{3}}^{ - } + {\text{ NO}}_{{2}} \to {\text{NO}}_{{3}}^{ - } + {\text{ O}}_{{2}} \;\;\;\;\;\;\;\;\;{2} \times {1}0^{{ - {17}}}$$
(R15)
$${\text{NO}}_{{2}}^{ - } + {\text{ O}}_{{3}} \to {\text{NO}}_{{3}}^{ - } + {\text{ O}}_{{2}} \;\;\;\;\;{1}.{8} \times {1}0^{{ - {17}}}$$
(R16)
$${\text{O}}_{{3}}^{ - } + {\text{ NO}} \to {\text{NO}}_{{3}}^{ - } + {\text{O}}\;\;\;\;\;\;\;\;{1} \times {1}0^{{ - {17}}}$$
(R17)
$${\text{NO}}_{{2}}^{ - } + {\text{ NO}}_{{2}} \to {\text{NO}}_{{3}}^{ - } + {\text{ NO}} \;\;\;\;\;\; {4} \times {1}0^{{ - {18}}}$$
(R18)
$${\text{NO}}_{{2}}^{ - } + {\text{ N}}_{{2}} {\text{O}} \to {\text{NO}}_{{3}}^{ - } + {\text{ N}}_{{2}} \;\;\;\;\;\; {5} \times {1}0^{{ - {19}}}$$
(R19)
Table 1 1D simulation result for density of NOx− relating reactive species at a certain point such as seeds after 1000 s.
Full size table

The unit of the rate constant corresponding to the aforementioned reactions is (m3/s). Table 1 shows that NO3− is directly transported to seeds along with the simultaneous transportation of the reactive species participating in its generation, such as NO, NO2, NO2−, NO3, HNO3, HNO2, and N2O5. The DBD plasma is accompanied by a streamer discharge. The reduced electric field E/N in the initial DBD plasma is approximately 100 Td and that in the typical streamer channel is < 30 Td43. In this state, the electron temperature Te < 2.7 eV, and such electrons are mainly consumed for the vibration excitation of N2 and O2 in the air at atmospheric pressure. The vibrational states of N2 and O2 contribute to the formation of NO through the following reactions, commonly known as the Zeldovich mechanism44. The activation energy Ea and enthalpy of reaction ΔH both are nearly 3 eV/mol for R20, and 0.3 eV/mol and − 1 eV/mol for R21, respectively.

$${\text{O }}\left( {^{{3}} P} \right) \, + {\text{ N}}_{{2}} *(^{{1}} \Sigma_{{\text{g}}}^{ + } ,v) \, \to {\text{ NO}}(^{{2}} \Pi ) \, + {\text{ N}}\left( {^{{4}} {\text{S}}} \right),$$
(R20)
$${\text{N }} + {\text{ O}}_{{2}} \to {\text{ NO }} + {\text{ O}}$$
(R21)

Hence, NO shows the highest density (6.6 × 1018/m3) in Table 1. High-density NO may react with the H2O in the seeds. According to Lukes et al., NO leads to NO3− through the following reaction45.

$${\text{2NO }} + {\text{ O}}_{{2}} + {\text{ H}}_{{2}} {\text{O }} \to {\text{ 2H}}^{ + } + {\text{ NO}}_{{2}}^{ - } + {\text{ NO}}_{{3}}^{ - }$$
(R22)

The lettuce seeds used in this study had an average weight ± standard deviation of approximately 0.8 ± 0.04 mg/seed (n = 8). Water content in more than 1250 seeds was measured and found to be 4.705 ± 0.503 wt% (n = 4). Using these mean values, the number of water molecules in the seed, \({n}_{\mathrm{H}2\mathrm{O}}\), was derived by Eq. (1):

$${n}_{\mathrm{H}2\mathrm{O}}=\frac{w{N}_{\mathrm{A}}}{M}$$
(1)

where \(w\) is the weight of H2O in the seed (37.64 µg/seed), \({N}_{\mathrm{A}}\) is the Avogadro constant (6.022 × 1023/mol), and \(M\) is the H2O molar mass (18 g/mol). The seed area was 0.393 ± 0.00374 × 10–6 m2 (n = 290), and the seed volume was derived to be 0.393 × 10–9 m3/seed, assuming a thickness of 1 mm. The volume of NO \(({n}_{\mathrm{NO}})\) and H2O (\({n}_{\mathrm{H}2\mathrm{O}})\) in the seed were 2.594 × 109 and 1.259 × 1018, respectively. When NO reacted with H2O in the seed, two molecules of NO and one molecule of H2O were consumed to bear NO2− and NO3−, as shown in R22. Therefore, even if NO reacted completely with H2O, sufficient H2O would remain in the seeds. Considering the high density of NO in a stable (O2 and H2O)-rich environment, it is concluded that the introduction pathway of NO3− into seeds by plasma irradiation mainly involved reaction (R22). On the other hand, according to Sakiyama et al.39, NO2− reacts with NO and produces NO− and NO2 by the following reaction46.

$${\text{NO}}_{{2}}^{ - } + {\text{ NO }} \to {\text{ NO}}^{ - } + {\text{ NO}}_{{2}}$$
(R23)

NO− reacts with M, O2, and NO and produces NO, O2−, and e by the following reactions47.

$${\text{NO}}^{ - } + {\text{ M }} \to {\text{ NO }} + {\text{ M }} + {\text{ e}}$$
(R24)
$${\text{NO}}^{ - } + {\text{ O}}_{{2}} \to {\text{ NO }} + {\text{ O}}_{{2}}^{ - }$$
(R25)
$${\text{NO}}^{ - } + {\text{ NO }} \to {\text{ NO }} + {\text{ NO }} + {\text{ e}}$$
(R26)

NO is involved in R22. O2− reacts with N2 and O2 and produces e by the following reactions41.

$${\text{O}}_{{2}}^{ - } + {\text{ N}}_{{2}} \to {\text{ N}}_{{2}} + {\text{ O}}_{{2}} + {\text{ e}}$$
(R27)
$${\text{O}}_{{2}}^{ - } + {\text{ O}}_{{2}} \to {\text{ O}}_{{2}} + {\text{ O}}_{{2}} + {\text{ e}}$$
(R28)

The electron e reacts with NO and O2 and produces NO− and O2− by the following reactions39,41.

$${\text{e }} + {\text{ NO }} + {\text{ M }} \to {\text{ NO}}^{ - } + {\text{ M}}$$
(R29)
$${\text{e }} + {\text{ O}}_{{2}} \to {\text{ O}}_{{2}}^{ - }$$
(R30)

NO− and O2− are involved by reactions of R24-26 and R27, 28, respectively.

Assessment of seed surface before and after plasma irradiation

Figures 2 and 4 suggest that plasma irradiation did not affect the qualitative composition of the seeds. Therefore, the physical effects of plasma irradiation on the surface conditions of the seed coat were investigated using the scanning electron microscopy (SEM) images. Figure 6 shows a typical SEM image obtained (a) before and (b) after the plasma irradiation. The observed surface was the side on which the plasma was irradiated. The seeds were irradiated with plasma for 10 min, which was twice as long as the conditioning period of the seeds for mass spectroscopy. Lettuce seeds are composed of an outer layer, called the pericarp as the seed coat and integument, endosperm, and embryo as the internal organelle48. A typical pericarp was observed in the seeds used in this study, as shown in Fig. 6a. The pericarp remained intact after the plasma irradiation as shown in Fig. 6b. It is composed of a complex, dynamic extracellular matrix consisting of a network of carbohydrate polymers (cellulose, hemicellulose, and pectin) and structural proteins48. The chemical species produced by the plasma, such as O3, may cleave or dimerize the carbon–carbon double bond (C=C) of alkene49, including the unsaturated fatty acids in the lettuce seeds, followed by a C=C loss. Raman spectroscopy was used to assess such a chemical damage on the seed by plasma irradiation. A typical Raman spectrum at 980–1970 cm−1 of lettuce seeds w/o plasma is shown in Fig. S1. We can find a peak at 1609 cm−1, corresponding to C=C peak that is assigned to lignin and flavonoid (Fig. S1).

Figure 6
figure 6

SEM image of the same seed (a) before plasma irradiation and (b) after plasma irradiation for 10 min.

Full size image

Raman spectroscopy revealed that the carbon–carbon double bond (C=C) peak assigned to lignin and flavonoid did not change after plasma irradiation for 5 and 10 min (Fig. S2). The chemical species produced by the plasma, such as O3, may cleave or dimerize C=C of alkene49, including the unsaturated fatty acids in the lettuce seeds, followed by a C=C loss, but such an effect is undetectable. These results suggest that plasma irradiation can introduce NO3− without chemical or physical damage to the seeds.

Conclusion

In this study, we developed a method for detecting NO3− introduced in dry lettuce seeds by plasma irradiation using LC-ESI QMS. To date, only the amount of RONS in the gas phase and solution has been evaluated; this is the first time that plasma-introduced RONS in the treated seeds has been detected. As the molecular mechanism of the seed’s cell response to NO3− exogenously introduced in it is still under investigation, NO3− remains one of the most important molecules in terms of seed physiology30. Thus far, the only method of exogenous administration of NO3− in seeds has been to immerse them in a KNO3 solution. However, plasma allows us to introduce NO3− without the requirement of water or counterions. The quantitative evaluation of the amount of NO3− introduced in seeds by plasma irradiation is decisive in the contribution of plasma science to plant molecular biology and the quantitative discussion of the germination induction mechanism by plasma irradiation.

Methods

Seed treatment and germination test

Lettuce seed (Lactuca sativa L.) was purchased from Asahi Farm, Japan. The experimental use of plant materials was performed with the permission of Asahi Farm. The seeds were irradiated with plasma using a scalable dielectric discharge (SDBD) electrode21. The characteristics of the plasma used in this study have been discussed in a previous paper9. The plasma irradiation was performed at 24 °C using 55% Rh. For NO3− detection, 80 lettuce seeds were irradiated simultaneously under a single plasma exposure. The irradiation time was determined to be 5 min based on the germination characteristics of seeds upon 0, 1, 3, and 5 min of plasma irradiation. The germination test was performed with 30 seeds sown on a paper filter in a petri dish, with 3 mL of tap water in a climate chamber at 22 °C under a light and dark cycle of 12 h each day. The number of germinated seeds was counted every 12 h after their imbibition for 48 h. The %germination was calculated by dividing the number of germinated seeds by the total number of seeds in the Petri dish. All methods were performed in accordance with the relevant guidelines and regulations.

Sample preparation for mass spectrometry

Twenty seeds were used to obtain a seed extract sample in the following procedure: The seeds were pulverized with beads in a 2.0 mL-tube (Eppendorf) using an automatic grinder at 2800 rpm for 3 min. Seed extraction was performed by shaking the pulverized sample with 50 µL of ultrapure water per mg of the sample at room temperature for 120 min under dark conditions. The seed extract was filtered using a membrane filter to remove the particles.

Mass spectrometry

We used ESI QMS (G6470A, Agilent) to detect NO3− in the seeds, with a mobile phase of 3.75 mM ammonium acetate in 70% H2O/30% acetonitrile. The mobile phase profile was 0.2 mL/min for ESI QMS and 0.4 mL/min for LC-ESI QMS. The injection volume was 5 µL. Ionization was performed in the negative mode of ESI with a 4000 V capillary voltage, 300 °C turbo gas temperature; and 50 V fragmentor voltage. Agilent Infinity II including LC (G7116A, Agilent) – MWD (G7165A, Agilent) were used for the identification and the quantitative analysis. Acclaim Trinity (P1, Thermo Fisher) was used as a column for LC. LC grade ultrapure water was used for the sample dilution. Standard reagent NO3− was purchased from FUJIFILM Wako.

1D simulation

The 1D numerical model was developed using COMSOL Multiphysics 5.4, a multipurpose simulation software. Electrons exist in the plasma region at a constant number density of 1015 m−3, as described in our earlier work35. We considered the particle distribution only in the x-direction (5 mm), normal to the surface of the seeds. We assumed Te = 1 eV and Tg = 300 K. For the simulation, H2O, O2, and N2 were in fractions of 0.01, 0.21, and 0.78, respectively. As mentioned in an earlier article, a coefficient value of 10−5 m2/s was used for this species39. The simulation was performed for 1000 s to determine the diffusion of the reactive species. All reaction pathways and rate constants were taken from the work of Sakiyama et al.39.

SEM

Scanning electron microscopy (SEM) images were obtained using Hitachi S-3400 N, which has an emission current of 93 μA and acceleration voltage of 15 kV.
