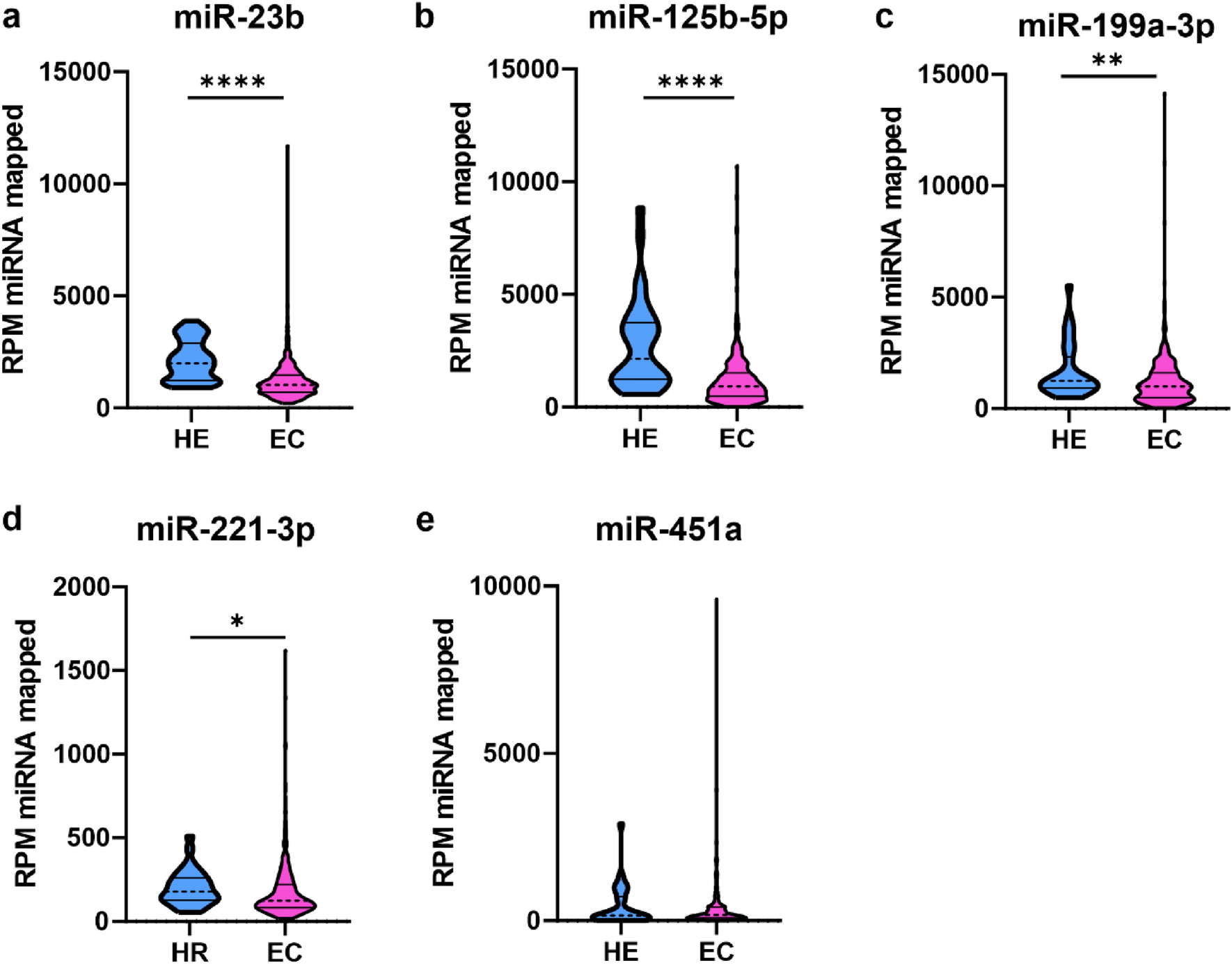

Figure 6
From: Decreased expression of miR-23b is associated with poor survival of endometrial cancer patients
Downregulation of miR-23b, miR-199a, and miR-221 in TCGA cohort. Analysis of TCGA Uterine Corpus Endometrial Carcinoma (EC) cohort using OncomiR database20. The level of miR-23b (a), miR-125b-3p (b), miR-199a (c), miR-221 (d), and miR-451a (e) presented as reads per million (RPM) miRNAs mapped. Healthy endometrial tissues (HE, n = 32), EC tissues (n = 418). Median indicated as dashed line; quartiles indicated as solid lines. (p < 0.0001, p < 0.0001, p = 0.0067, p = 0.0110, respectively) P-values were calculated using Mann–Whitney test.
