Introduction

Sorting is a well-known algorithm that can be implemented in other algorithms to solve biological, scientific, engineering, and big data problems. The popular sorting algorithm is Quicksort1. It is an important algorithm that uses the divide-and-conquer concept to sort the data. It partitions the data into smaller sizes (divide) and then sorts those data (conquer). Basically, there are 2 steps in the Quicksort algorithm. The first step is partitioning, which divides the data using their pivot recursively into smaller sizes. This step runs until the data are smaller than the algorithm’s cutoff size. Finally, the sorting step is executed to sort the data.

There are several works study in parallel sorting algorithm on multi-core CPU2,3,4,5,6, and branch misprediction and cache misses in parallel sorting algorithm7,8,9,10. It should avoid branch misprediction and reduce cache misses by improving locality while develop parallel sorting algorithm on multi-core CPU. These concepts are used to design our parallel sorting algorithm to improve its performance.

In this paper, we propose the parallel Multi-Deque Partition Dual-Deque Merge Sorting algorithm, which consists of three phases: the Multi-Deque Partitioning phase, which is block-based parallel partitioning. Each thread contains a double-ended queue (deque), which keeps the boundaries of each block. This phase partitions the data of each block and pushes the new boundaries of the partitioned data in the dual deque. Then, the Dual-Deque Merging phase is executed to merge data into the correct positions using the new boundaries of the dual deque without compare-and-swap operations. These two phases are recursively executed until the data are sufficiently small. Finally, the Sorting phase is executed to sort the data independently.

This work uses the OpenMP library11 to execute the parallel sorting algorithm. There are several metrics to measure the performance of this algorithm and compare it with the sequential sorting algorithm, such as Run time, Speedup, and Speedup per thread. Moreover, we switch Hoare’s partitioning12 to Lomuto’s partitioning algorithm in the Multi-Deque Partitioning phase. Finally, the Perf profiling tool13 is run to measure the metrics to analyze the performance of this algorithm.

Our proposed parallel sorting algorithm uses the block-based partitioning concept which has the problem while merging the data in each block. Most of solutions compare and swap the leftover data to the middle of the array. Then, they use the sequential or parallel partitioning algorithm to partition it again. In this paper, Dual-Deque Merging phase is proposed as the main contribution to solve this problem to reduce compare-and-swap operations in the algorithm which consume run time.

In this paper, the contributions are as follows: (1) the parallel sorting algorithm called the Multi-Deque Partition Dual-Deque Merge Sorting algorithm (MPDMSort), which contains Multi-Deque Partitioning, Dual-Deque Merging, and Sorting phases, is proposed. (2) The partitioning algorithms in the Multi-Deque Partitioning phase, such as Hoare’s and Lomuto’s partitioning algorithms, are compared. (3) Run time, Speedup, Speedup/core and thread, and other metrics that can be measured from the Perf profiling tool of MPDMSort, Parallel Balanced Quicksort, and Multiway merge sort are compared and analyzed. We organized this paper as follows: Background and related work are shown in section “Background and related work”. The Multi-Deque Partition Dual-Deque Merge Sorting algorithm is proposed in section “Multi-Deque Partition Dual-Deque Merge Sorting algorithm”. Section “Experiments, results and discussions” shows the experiments, results, and discussions of parallel sorting algorithms. Finally, the conclusion and future work are shown in section “Conclusions”.

Background and related work

This section introduces a sequential standard sorting algorithm called STLSort and parallel standard sorting algorithms called Parallel Balanced Quicksort (BQSort) and Multiway merge sort (MWSort). Finally, we proposed and compared related parallel sorting algorithms.

Sequential and parallel standard sorting algorithms

There is a sorting standard library function that can sequentially sort the data. STLSort14 is an important sorting function in the C++ language. Developers can implement this function by declaring \(<algorithm>\) directive. It contains the Introsort algorithm, which consists of quicksort and heapsort. While the data are sufficiently small, the insertion sort is executed to sort those data.

There are two standard sorting algorithms in parallel mode. Parallel Balanced Quicksort (BQSort)15 is the parallel sorting algorithm. It uses block-based partitioning concepts such as Tsigas and Zhang’s algorithm16. Each block runs a compare-and-swap operation and swaps all leftover to the middle of those data. Then, the sequential partitioning algorithm is executed. Multiway merge sort (MWSort) separates data equally and sorts them independently. Then, a parallel multiway merge algorithm is called to merge the data in parallel. Note that it requires an array that is used to store the temporary data. This algorithm is more stable than the quicksort algorithm.

Related parallel sorting algorithms

The performance of many quicksort algorithms is improved by parallel algorithm techniques, which can be executed on shared memory systems. The parallel quicksort algorithm concept begins with partitioning the data in parallel. Next, the partitioned data are merged. While the data are smaller, they are sorted by any sorting algorithm independently.

In 1990, a parallel quicksort algorithm on an ideal parallel random access machine using Fetch-and-Add instruction was proposed17. The speedup of this parallel quicksort is up to 400\(\times\) on 500 processors when sorting \(2^{20}\) data. Tsigas and Zhang16 proposed PQuicksort in 2003. This sorting algorithm divides the data into blocks and neutralizes them in parallel. A speedup of 11\(\times\) with a 32-core processor can be obtained. In 2004, the implementation of parallel quicksorting using pthreads and OpenMP 2.0 was presented18. A multicore standard template library was proposed19, which contains a parallel sorting algorithm that is similar to Tsigas and Zhang’s concept16. A speedup of 3.24\(\times\) is achieved on a 4-core processor. Then, a parallel introspective sorting algorithm using a deque-free work-stealing technique was proposed20. In 2009, Multisort, which is a parallel quicksort algorithm that partitions data, sorts them independently using quicksort and merges them in parallel, was presented21. A speedup of 13.6\(\times\) is achieved when sorting data using this algorithm on a 32-core processor. Man et al.22 proposed a parallel sorting algorithm named psort. It divides the data into several groups and sorts them locally in parallel. Then, those sorted groups of data are merged and finally sorted sequentially. Its speedup is up to 11\(\times\) on a 24-core processor. Meanwhile, Parallel Introspective quicksort was developed and run on an embedded OMAP-4430, which consists of a dual core processor23. Its speedup is up to 1.47\(\times\). Mahafzah24 shows a parallel sorting algorithm with a multipivot concept that partitions the data up to 8 threads. Its speedup is up to 3.8\(\times\) on the 2-core with hyperthreading technology processor. In 2016, Parallel Partition and Merge Quick sort (PPMQsort) was proposed25. A speedup of 12.29\(\times\) with 8 cores with the hyperthreading technology Xeon E5520 can be obtained. Taotiamton and Kittitornkun26 presented the parallel Hybrid Dual Pivot Sort (HDPSort) in 2017. Its partitioning function uses two pivots to partition data. Moreover, Lomuto’s and Hoare’s partitioning algorithms are implemented, and the performance is compared. Speedups of 3.02\(\times\) and 2.49\(\times\) can be obtained on AMD FX-8320 and Intel Core i7-2600 machines, respectively. In the same year, Marszałek27 introduced Parallel Modified Merge Sort Algorithm based on Parallel Random Access Machine. It was proved that it can sort n elements in the maximum time \(2n-\log {2}{n}-2\). One year later, Marszałek et al.28 proposed a fully flexible parallel merge sort algorithm which the computational complexity is optimized. The operational time is equal to \(O(\sqrt{N})\) and it is flexible to an increasing number of processor cores.

In 2020, a block-based sorting algorithm named the MultiStack Parallel Partition Sorting algorithm (MSPSort) was presented2930. Each thread uses left and right stacks to keep the boundaries of each block. It partitions from the leftmost and rightmost of the array to the middle of the array. Its run time is better than those of BQSort and MWSort on the Intel i7-2600, AMD R7-1700 and R9-2920 processors. Moreover, a parallel quicksort algorithm for OTIS-HHC optoelectronic architecture was proposed by Al-Adwan et al.31. Its average effeciency on 1,152 processors is up to 0.72. Langr and Schovánková32 developed a multithreaded quicksort named CPP11sort. A parallel speedup of 44.2\(\times\) can be obtained on the 56-core server and 14.5\(\times\) on the 10-core Hyperthread machine.

Recently, the Dual Parallel Partition Sorting algorithm (DPPSort)33 was proposed in 2022. It divides data into two parts and partitions them independently in parallel using OpenMP. Then, the Multi-Swap function is called to merge the data without the compare-and-swap operation. A speedup of 6.82\(\times\) can be obtained on a 4-core Hyperthread Intel i7-6770 machine.

There are several methods to improve the performance of sorting algorithms. Marowka34 investigated sorting algorithm proposed by Cormen35 which is vector-based quicksort algorithm. This work is implemented using process-based and thread-based models. However, it did not exhibit good scalability because of its overhead. Gebali et al.36 proposed a Parallel Multidimensional Lookahead Sorting algorithm which is suitable for GPGPU and massively parallel processor systems. Cortis et al.37 developed Parallelised Modified Quickselect algorithm which used the same concept of quicksort algorithm. Then, this algorithm was implemented into their parallel quicksort algorithm. The results showed that their algorithm is faster than the original quicksort. Helal and Shaheen38 enhanced iHmas algorithm which is parallel partitioning and sorting algorithm using MPI39. The bottleneck and single point of failure are reduced compared with their Hams algorithm. Mubarak et al.40 proposed a preprocessing techniques before run on any sorting algorithm. Insertion sort and quicksort are run using these methods. The time complexities of the proposed sorting algorithms are reduced.

Multi-Deque Partition Dual-Deque Merge Sorting algorithm

A sorting algorithm named the Multi-Deque Partition Dual-Deque Merge sorting algorithm (MPDMSort) is proposed in this section. In this work, it comprises 5 algorithms. First, the Multi-Deque Partition Dual-Deque Merge Sort function, MPDMSort, is the main function for partitioning and sorting, as shown in Algorithm 1. The median of five function (MedianOf5) is the algorithm for selecting pivot (Algorithm 2). The InitBlocks function (Algorithm 3) is the block initialization algorithm that appends the boundary of each block into a double-ended queue (deque). The MPPDMPar function (Algorithm 4) is the parallel partitioning function, which is called the Multi-Deque Partitioning phase. DualDeqMerge or Dual-Deque Merging phase (Algorithm 5) is a merging function used to merge the data from the MPDMPar function.

Multi-Deque partitioning phase

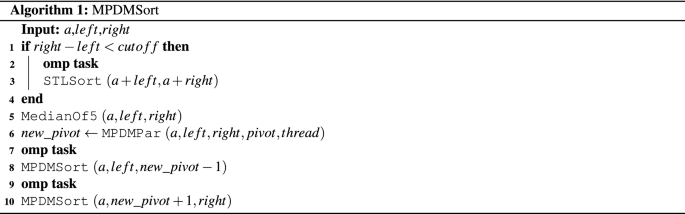

It begins with selecting the pivot to divide the data into smaller subarrays. The median of five algorithm which is the pivot selection algorithm, is called (Line 6, Algorithm 1). Then, the parallel partitioning function (MPDMPar) is executed and returns a new pivot position (Line 6, Algorithm 1). The MPDMSort is called recursively with the divide and conquer concept (Lines 8 and 10, Algorithm 1) in parallel using the omp task (Lines 7 and 9, Algorithm 1).

The median of five function or MedianOf5 (Line 5, Algorithm 1) is the pivot selection function. It selects the mid position by calculating the left and right positions of that subarray (Line 1, Algorithm 1). The positions of quarter (qt1) and third-quarter (qt3) are calculated using the left, mid, and right positions (Lines 2 and 3, Algorithm 2). Then, the data of left, qt1, mid, qt3, and right are sorted (Line 4, Algorithm 2). Finally, the mid position is returned to MPDMSort.

figure a
figure b

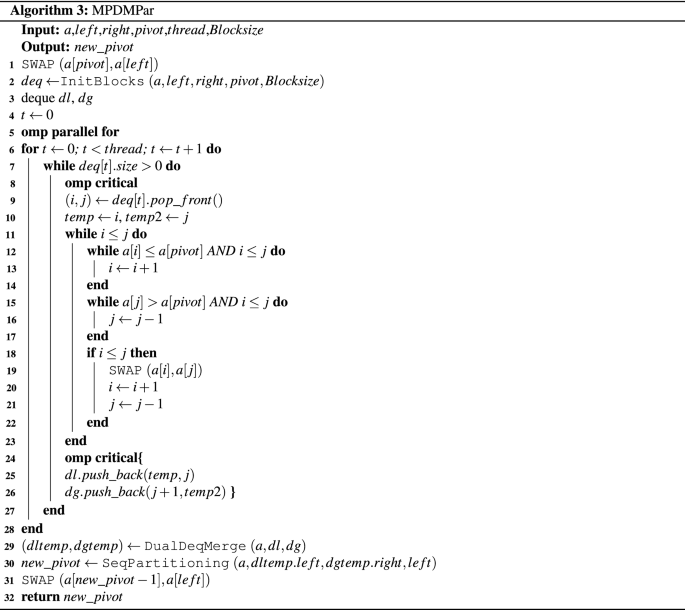

In this paper, MPDMPar is the parallel partitioning algorithm in this paper. It begins with swapping the pivot and left data of that subarray (Line 1, Algorithm 3). Then, the InitBlocks function is executed to initial multiple blocks using a double-ended queue (deque) with Blocksize size (Line 2, Algorithm 3). Note that this function returns deq, which keeps the boundary of blocks that can be used to partition the data in each block. After that, Hoare’s partitioning in block is executed using omp parallel for (Lines 5–6, Algorithm 3). Every deq in each thread is popped for the left i and right j boundaries in the critical section (Lines 8–9, Algorithm 3). Note that the left and right boundaries that pop from deq are assigned to temp and temp2, respectively (Line 10, Algorithm 3). Moreover, Hoare’s partitioning algorithm in each block is run in parallel (Lines 11–22, Algorithm 3). After that, the partitioned boundaries are pushed to dual-deque. The first deque dl keeps the boundaries of data that are less than or equal to pivot (Line 25, Algorithm 3). The second dg keeps the boundaries of data that are greater than pivot (Line 26, Algorithm 3). Then, both dl and dg are passed to the DualDeqMerge function to merge the data without the compare-and-swap operation (Line 29, Algorithm 3) and return the leftover boundary to run sequential partitioning (Line 30, Algorithm 3). Finally, the \(new\_pivot\) from sequential partitioning and data at the left position of that subarray are swapped and then returned (Lines 31–32, Algorithm 3).

figure c

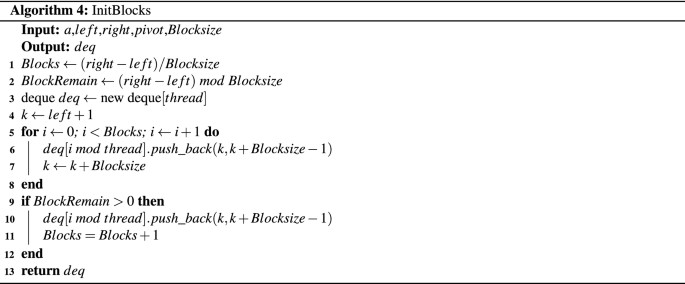

In this paper, the multideque data structures are created before parallel partitioning. It keeps the boundaries of each block. First, the number of blocks is calculated (Lines 1–2, Algorithm 4). The multideque array deq is created with thread length (Line 3, Algorithm 4), and then the boundaries are pushed into each deq (Lines 5–8, Algorithm 4). Note that if there is remaining block, the last boundaries of block will be pushed into the deq (Lines 9–12, Algorithm 4).

figure d

Dual-Deque merging phase

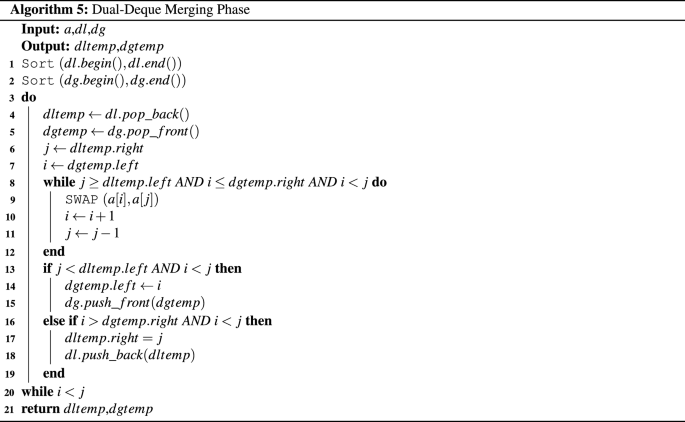

The previous phase shows the block-based parallel partitioning concept using multideque as its data structure to keep the block boundaries. It provides the data that are less than or equal to pivot and greater than pivot in each block. Therefore, we push the boundaries of data that are less than or equal to pivot value and greater than pivot value in dl and dg deques, respectively. The data will be merged in this phase without the compare-and-swap operation.

figure e

The dl and dg deques keep the boundaries of data in the Multi-Deque Partitioning phase. Therefore, the boundaries are not sorted. First, dl and dg are sorted before merging the data (Lines 1–2, Algorithm 5). Then, j is popped back from dl, and i is popped front from dg. j is an index used to swap the data that are less than or equal to pivot value in the right block of the array. i is an index used to swap the data that are greater than pivot in the left block of the array. The data of the left and right blocks are swapped, where j is greater than or equal to the boundary of its block and i is less than or equal to the boundary of its block (Lines 8–12, Algorithm 5). If there are leftover data on the left block, the boundary of the left block will be pushed front to dg (Lines 13–15, Algorithm 5). On the other hand, on the right block, the boundary of the right block will be pushed back to dl (Lines 16–18, Algorithm 5). This iteration will be run until index i is equal to j and then return dltemp and dgtemp to run the sequential partitioning function. The Multi-Deque Partitioning phase and Dual-Deque Merging phase are illustrated in Fig. 1.

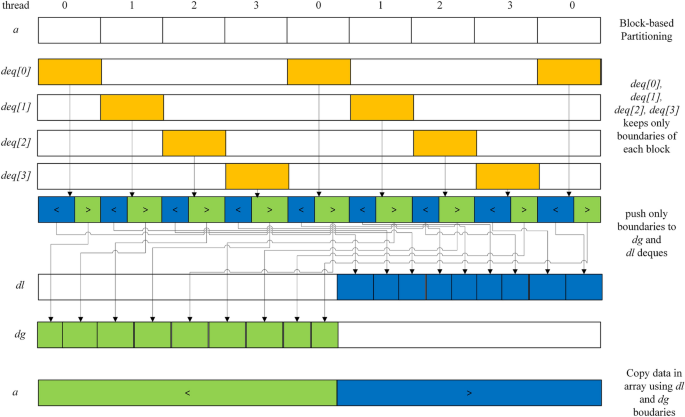

Figure 1
figure 1

The illustration of the Multi-Deque Partitioning Phase and Dual-Deque Merging Phase.

Full size image

Sorting phase

The parallel sorting algorithm with the divide and conquer concept consists of two parts. The divide step is parallel partitioning, which is the Multi-Deque Partitioning and Dual-Deque Merging phases in this work. While the data are divided and smaller than the cutoff, the Sorting phase (Conquer) is executed in parallel using the omp task (Lines 1–4, Algorithm 1).

Lomuto’s vs. Hoare’s partitioning in the Multi-Deque partitioning phase

The previous phases show the Multi-Deque Partition Dual-Deque Merge sorting algorithm. The Multi-Deque Partitioning phase, which is an important phase, uses Hoare’s partitioning algorithm to partition the data in each block (Lines 11–22, Algorithm 3). In this paper, we compare Hoare’s and Lomuto’s partitioning algorithms in the Multi-Deque Partitioning phase to improve the performance of our MPDMSort.

Experiments, results and discussions

This section shows the experimental setup of the sorting algorithms and compares the results of run time, speedup, speedup comparison between Lomuto’s and Hoare’s partitioning in the Multi-Deque Partitioning phase, and comparison of speedup per thread, which is the efficiency of the algorithm with other related sorting algorithms, and profiles the algorithms with the Perf profiling tool.

Experimental setup

In this paper, the MPDMSort is compared with the Parallel Balanced Quicksort (BQSort), Multiway Merge Sort (MWSort) and STLSort algorithms. Datasets are generated as random, nearly sorted and reversed 32-bit and 64-bit unsigned integers. Data size n are 200, 500, 1000, and 2000 million data. The block size b values in the Multi-Deque Partitioning phase are 0.5 MB, 1 MB, 2 MB, 4 MB, and 8 MB. The cutoff values in the Sorting phase were 16 MB, 32 MB, and 64 MB. The MPDMSort, BQSort, MWSort and STLSort are executed on 2 computers: one with a 16-core Intel Xeon Gold 6142 processor with 64 GB of main memory running Ubuntu Linux on a virtual machine and set the number of cores on virtual machine to 16 cores, and one with an 8-core Intel i7-11700 processor with 16 GB of main memory also running Ubuntu Linux.

Results

In this paper, run time, speedup, speedup per thread, and the Perf profiling tool are used to measure the performance metrics of the algorithms.

Run time

Table 1 Average Run time of each block size b (Uint32) of random distribution on the Intel Xeon Gold 6142 machine vs. the i7-11700 machine at cutoff = 32 MB.
Full size table

MPDMSort is the parallel block-based sorting algorithm. Each thread runs its partitioning algorithm in each block. Therefore, block size b is an important parameter that affects the run time of MPDMSort. Table 1 shows the average run time of each block size b of random distribution on the Intel Gold 6142 machine vs. the i7-11700 machine at cutoff = 4.

The best sorting run time is at b = 0.5 MB while sorting 200 and 500 million data on the Intel Xeon Gold 6142 machine. While the data are increased to 1000 and 2000 million, the b values are increased to 1 and 2 MB, respectively. On the other hand, the b values are between 1 MB and 4 MB on the i7-11700 machine. Its b values are increased when n increases, which is similar to the Intel Xeon Gold 6142 machine.

MPDMSort is developed by the divide and conquer algorithm concept. Therefore, it needs to switch the divide part into the conquer part. The parameter used to switch to the conquer part is the cutoff. Table 2 shows the average run time of each cutoff of random distribution on the Intel Xeon Gold 6142 machine vs. the i7-11700 machine at b = 1 MB.

Table 2 Average run time of each cutoff (Uint32) of random distribution on the Intel Xeon Gold 6142 machine vs. the i7-11700 machine at b = 1 MB.
Full size table

The best run time values in each n of MPDMSort are between 16 MB and 32 MB. Note that the cutoff is 32 MB at n = 2000 million data on the Intel Xeon Gold 6142 machine. It can be noticed that most of the run time of the smaller cutoff is more stable than that of the larger cutoff. On the other hand, the Intel i7-11700 machine’s best run time values are increased from 16 MB to 64 MB. Its cutoff is proportional to n.

Table 3 shows the average run time of random, reversed, nearly sorted distributions for sorting Uint64 200, 500, 1000, and 2000 million data on the Intel Xeon Gold 6142 machine at b = 2 MB and cutoff = 32 MB.

BQSort is the fastest algorithm while sorting the random distribution at n = 200 and 500 million data. However, MPDMSort can sort the random data faster than BQSort and MWSort at 1000 and 2000 million data. On the other hand, MWSort and BQSort are the fastest when sorting the reversed and nearly sorted distributions, respectively. This means that our MPDMSort can sort the larger random distribution data better than the other sorting algorithms. This is the limitations of MPDMSort. The first limitation is sorting the reversed and nearly sorted distributions. It can be noticed that run time of BQSort is the best while sorting nearly sorted distribution and MWSort run time is the best for reversed distribution. This can be dued to the Multi-Deque Partitioning phase is the block-based partitioning concept which uses the Hoare’s partitioning in each block. However, this concept uses compare-and-swap operation in each block every level of the subarray. This consumes run time greater than the Multiway-Merge algorithm in the MWSort. The second limitation of MPDMSort is sorting the small random distribution data. We can notice that run time of BQSort is the best while sorting smaller data such as 200 and 500 million random data. This can be dued to the overhead of our sequential region of MPDMSort, for example Dual-Deque Merging Phase and critical section in the parallel region such as push and pop operations of deques. Moreover, the average run time of two machines are very similar. It can be dued to the number of cores on virtual machine of Intel Xeon Gold 6152 are set to 16 cores. There are 16 hardware threads which are equal to Intel Core i7-11700 machine.

Table 3 Average Run time of each distribution for sorting Uint64 data on the Intel Xeon Gold 6142 machine (NSorted: Nearly Sorted, M: Million) at b = 2 MB and cutoff = 32 MB.
Full size table

Speedup

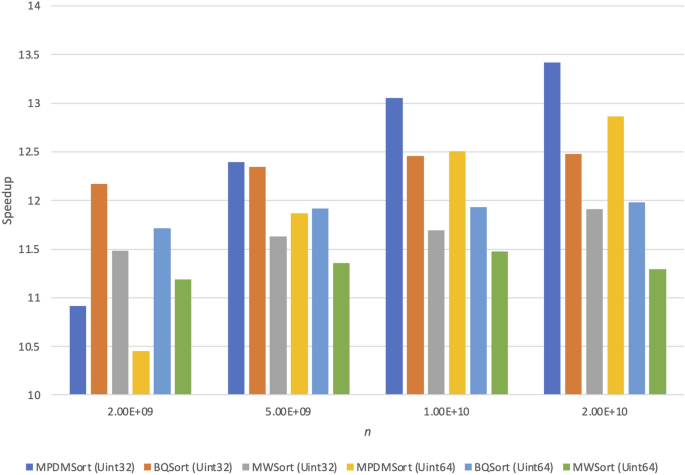

Figure 2
figure 2

Speedup of any parallel sorting algorithm (random) on the Intel Xeon Gold 6142 machine.

Full size image

In this paper, we measure the run time metric of each algorithm and calculate them using the run time of STLSort and the run time of MPDMSort, BQSort, and MWSort. Figure 2 shows the speedup of any parallel sorting algorithm with a random distribution on the Intel Xeon Gold 6142 machine. The speedup metrics of all algorithms are proportional to n. The best speedups of MPDMSort and BQSort are at n=2000 million data. However, the best speedup of MWSort is at n=1000 million data. The Speedup of our MPDMSort is proportional to the input size. It can be due to the overhead of the OpenMP library and fraction between the sequential and parallel regions of the parallel algorithm.

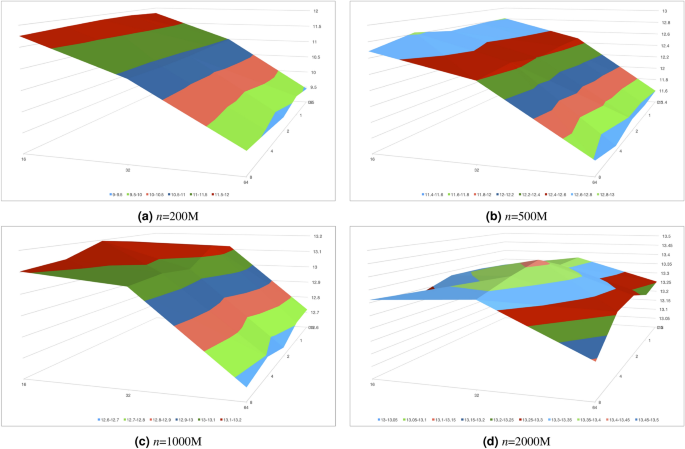

Figure 3
figure 3

Speedup vs b vs cutoff of MPDMSort sorts random Uint32 data on the Intel Xeon Gold 6142 machine (M: Million).

Full size image

Figure 3 shows speedup of MPDMSort vs b vs cutoff sortss random Uint32 data on the Intel Xeon Gold 6142 machine. We can notice that the best speedup of n = 200 M which is small dataset as shown in Fig. 3a is at b = 1 and cutoff = 16 MB. When n = 500 M and 1000 M, b is increased between 2 and 4 with cutoff = 16 MB as shown in Fig. 3b and c. Figure 3d shows speedup of MPDMSort vs b vs cutoff at n=2000 million data where b = 0.5, 1, 2, 4, 8 MB and cutoff = 16, 32, 64 MB. The best speedup is up to 13.42\(\times\) at b = 2 and cutoff = 32 MB. It can be noticed that n is increased, b grows from 1 to 2. After that, cutoff is incresed from 16 to 32 while n=2000 million data. b=2 and cutoff=32 are the set of parameters which can be choosen to sort the data by our MPDMSort.

Lomuto’s vs. Hoare’s partitioning in Multi-Deque partitioning results

Table 4 shows the best speedup of MPDMSort with Lomuto’s vs. Hoare’s partitioning in the Multi-Deque Partitioning phase. We note that Speedups of Lomuto’s partitioning in our algorithm are greater than Hoare’s in all parameters. This can be due to the block size of our work. Our algorithm uses a block-based parallel partitioning concept in which every block is small and residents the cache. The indices of Lomuto’s partitioning are increased and run from left to right. However, Hoare’s partitioning uses two indices. The first index runs from left to right, and the second index runs from right to left, and its locality is not better than that of Lomuto’s partitioning algorithm.

Table 4 Best speedup of MPDMSort with Lomuto’s vs. Hoare’s partitioning in Multi-Deque Partitioning results on the Intel Xeon Gold 6142 machine.
Full size table

Speedup per thread

Speedup per thread is the metric that can be used to measure the performance of the parallel algorithm. When Speedup per thread is greater, the processor core can be used efficiently. Speedup per thread is the fraction of Speedup of the algorithm and hardware threads in any processor. We can use this metric to compare the parallel algorithms because this metric cannot be greater than 1.00.

Table 5 Best Speedup per thread of each parallel sorting algorithm.
Full size table

Table 5 shows the best speedup per thread of each parallel sorting algorithm. Note that MPDMSort, BQSort, and MWSort are run on the same machine in this experiment. We note that Speedup per thread of both \(MPDMSort_{Lomuto}\) and \(MPDMSort_{Hoare}\) are greater than the others. The Speedup per thread of all parallel sorting algorithms in this table, such as BQSort (0.78), MWSort (0.72), MultiSort21 (0.43), psort22 (0.46), Introqsort23 (0.74), PPMQSort25 (0.77), HDPSort26 (0.31), CPP11Sort32 (0.79) and \(DPPSort_{STL}\)33 (0.74), are smaller than those of our \(MPDMSort_{Lomuto}\) and \(MPDMSort_{Hoare}\). This metric shows the performance of our parallel partitioning algorithm, which uses the block-based concept, and our merging algorithm without the compare-and-swap operation.

\(MPDMSort_{Lomuto}\) uses the block-based partitioning concept in Multi-Deque partitioning phase and implements Lomuto’s partitioning inside. It improves the locality of partitioning algorithm while it executes in parallel. This technique is used in the algorithms with high Speedup per thread metric such as BQSort, Introqsort, PPMQSort, CPP11Sort, and \(DPPSort_{STL}\). Note that, PPMQSort and \(DPPSort_{STL}\) begins with 2 blocks in parallel partitioning phase. Moreover, most of block-based partitioninig algorithms merge the unpartitioned data by moving them to the middle. Then, partitioning them in sequential or paralell which consumes compare-and-swap operations that affects run time. However, our \(MPDMSort_{Lomuto}\) uses the Dual-Deque Merging phase to merge the partitioned data in each block which reduces compare-and-swap operations. Therefore, speedup per thread of \(MPDMSort_{Lomuto}\) is greater than the other algorithms.

Perf Profiling tool

The Perf profiling tool is the Linux tool13 that can profile the metrics that affect the performance of the sorting algorithm. \(MPDMSort_{Lomuto}\), \(MPDMSort_{Hoare}\), BQSort and MWSort are run to sort the data and profile the metrics. Table 6 shows the Perf results of four parallel algorithms on the Intel i7-11700 machine.

Table 6 Perf results of \(MPDMSort_{Lomuto}\), \(MPDMSort_{Hoare}\), BQSort, and MWSort on the Intel i7-11700 machine at n = 1000 million Uint64 data.
Full size table

In this experiment, we increase b into 2 MB, 4 MB and 8 MB to show the effect of block size in each algorithm. Note that the cutoff values are set to 16 MB, 32 MB and 64 MB. The important metrics that affect the run time of any parallel sorting algorithm are branch load misses and cache misses33.

We note that b is proportional to cache misses. If b is increased, cache misses are increased. Moreover, the cutoff is proportional to the branch load misses value. If the cutoff value is increased, the branch load misses value is increased.

Conclusions

In this paper, the Multi-Deque Partition Dual-Deque Merge sorting algorithm, which is a parallel block-based sorting algorithm on a shared-memory system, is proposed. Its concept of MPDMSort is to partition in the Multi-Deque Partitioning phase. The Hoare’s and Lomuto’s partitioning are compared in this phase and found that Lomuto’s partitioning is faster than the Hoare’s partitioning algorithm. Then, the partitioning result is merged in the Dual-Deque Merging phase. The Dual-Deque Merging phase is the main contribution of this work which reduces compare-and-swap operations which can solve the problem of parallel block-based partitioning. This parallel algorithm executes recursively until the data are smaller than the cutoff parameter. Finally, the partitioned data are sorted independently using STLSort, which is a sequential standard sorting function.

MPDMSort is implemented and executed on 2 computers: one with an Intel Xeon Gold 6142 processor running Ubuntu Linux, and the other with an Intel Core i7-11700 processor also running Ubuntu Linux. The MPDMSort run time is faster than those of BQSort and MWSort. Its speedup of 13.81\(\times\) and speedup per thread of 0.86 can be obtained while sorting random distribution data. Speedup per thread of MPDMSort is greater than the other paralell sorting algorithms. Its speedup of MPDMSort depends on the block size, cutoff, data size, type, and distribution. The important metrics which affect the performance of parallel sorting algorithm are cache misses that is proportional to b and branch load misses that is proportional to cutoff. This method can be used to merge the data in the paralell algorithm with block-based concept.
