Figure 6
From: Green preparation of graphene oxide nanosheets as adsorbent

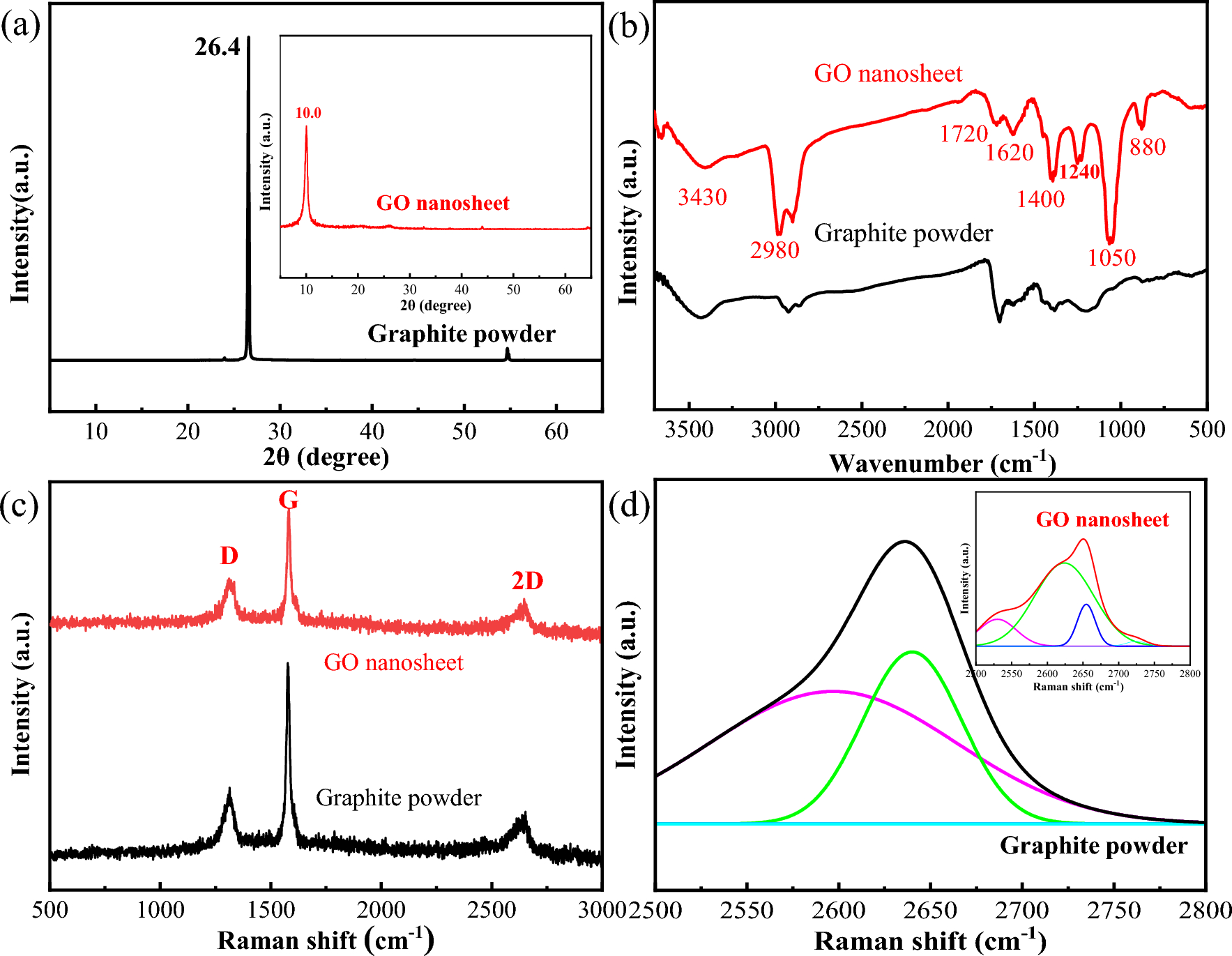

(a) XRD patterns, (b) FTIR patterns, (c) Raman spectra of graphite powder and GO nanosheets, and (d) 2D Raman peak fittings of graphite powder. The inset of (a) is XRD pattern of GO nanosheets, and the inset of (d) is 2D Raman peak fittings of GO nanosheets.
